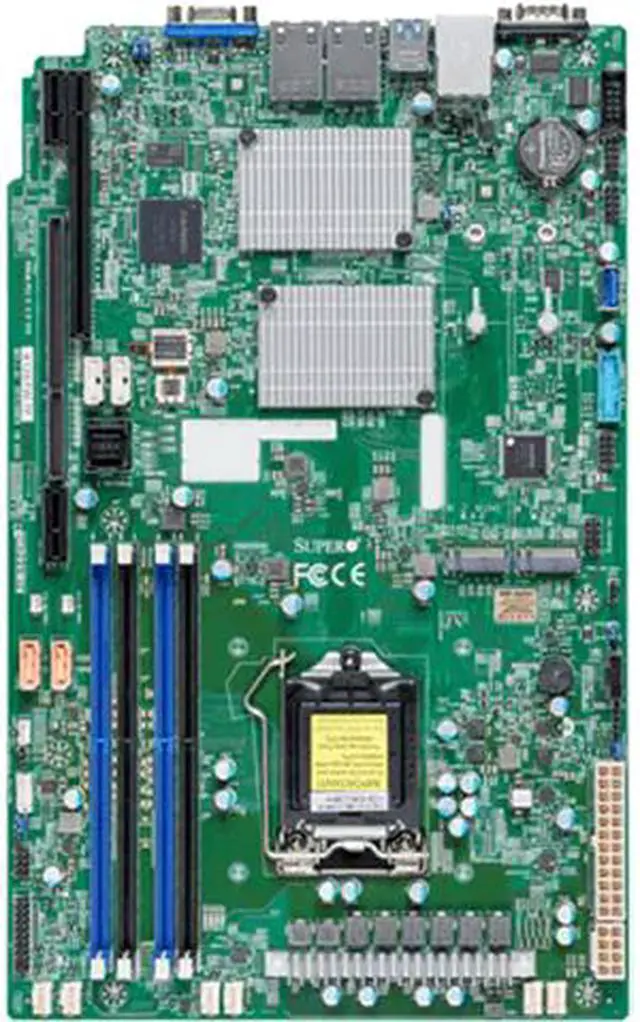

SUPERMICRO MBD-X12STW-TF-B Proprietary Server Motherboard LGA 1200 Intel C256 - Bulk packaging -
- LGA 1200
- Intel C256
+
+
Specs
Reviews
Learn more about the Supermicro MBD-X12STW-TF-B
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-X12STW-TF-B |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Supports 10th Generation Intel Pentium Processor, Intel Xeon E-2300 Processor |
| Number of Processor Support | 1 |
| North Bridge | Intel C256 |
|---|
| Number of DDR4 Slots | 4 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 3200 |
| ECC Supported | Yes |
| PCI Express 4.0 x16 | 1 x PCI-E 4.0 x16 Left Riser Slot |
|---|---|
| PCI Express x4 | 1 x PCI-E 3.0 x4 (in x8 slot) |
| SATA | 8 x SATA 6.0Gb/s |
|---|---|
| M.2 | M.2 Interface: 1 PCI-E 4.0 x4; 1 PCI-E 3.0 x4 Form Factor: 2280/22110 Key: M-Key Double Height Connector |
| Onboard Video Chipset | Aspeed AST2600 |
|---|
| LAN Chipset | Intel X550 |
|---|---|
| LAN Speed | 10Gbps |
| Max LAN Speed | 10Gbps |
| Back I/O Ports | LAN: 2 RJ45 10 Gigabit Ethernet LAN ports USB: 6 USB 2.0 port(s) (4 via header; 2 rear) 4 USB 3.2 Gen1 port(s) (2 via header; 2 rear) 1 USB 3.2 Gen2 port(s) (1 type A) Video Output: 1 VGA port(s) Serial Port: 2 COM Port(s) (1 header; 1 rear) |
|---|
| Form Factor | Proprietary |
|---|---|
| Dimensions (W x L) | 8.0" x 13.0" |
| First Listed on Newegg | May 28, 2023 |
|---|
