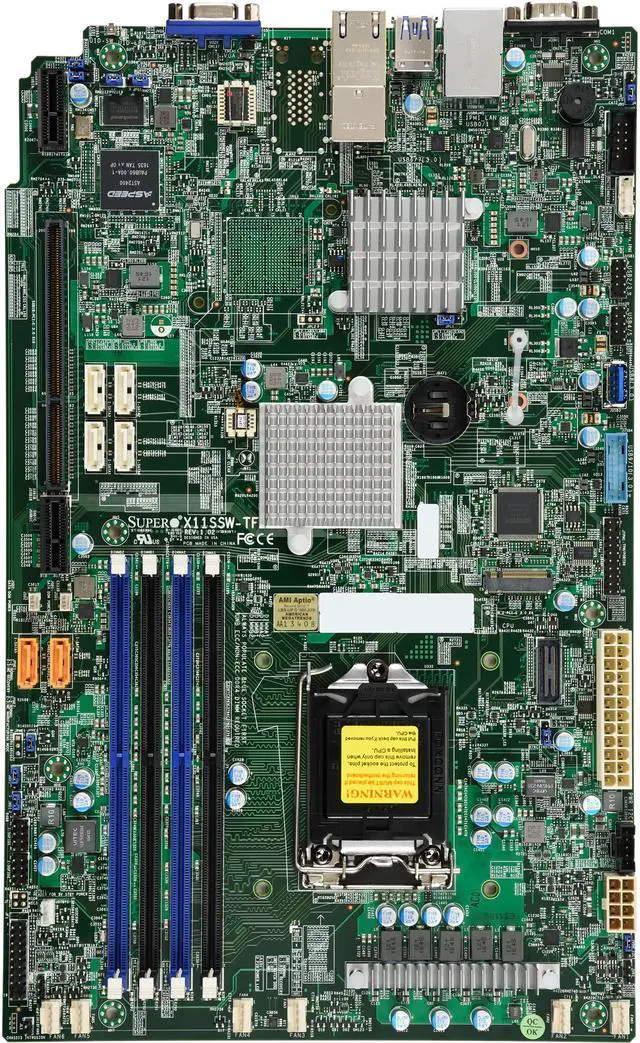

Main image of SUPERMICRO MBD-X11SSW-TF-O Proprietary Motherboard LGA 1151 Intel C236

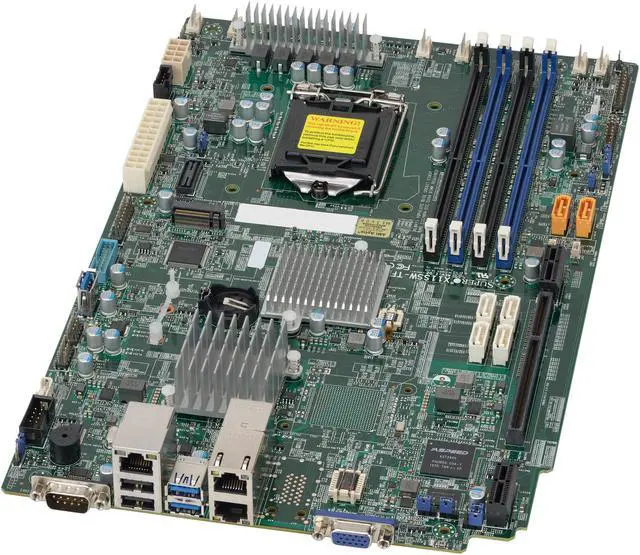

Alt view image 2 of 8 - SUPERMICRO MBD-X11SSW-TF-O Proprietary Motherboard LGA 1151 Intel C236

Alt view image 3 of 8 - SUPERMICRO MBD-X11SSW-TF-O Proprietary Motherboard LGA 1151 Intel C236

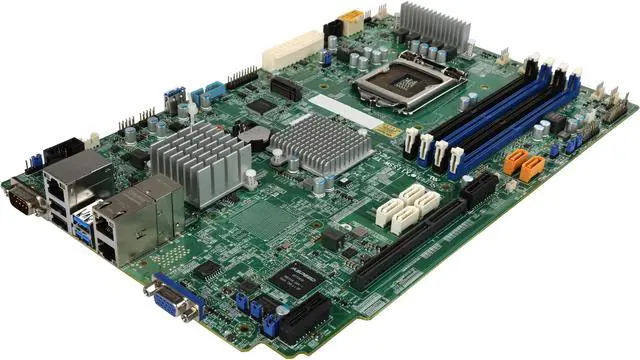

Alt view image 4 of 8 - SUPERMICRO MBD-X11SSW-TF-O Proprietary Motherboard LGA 1151 Intel C236

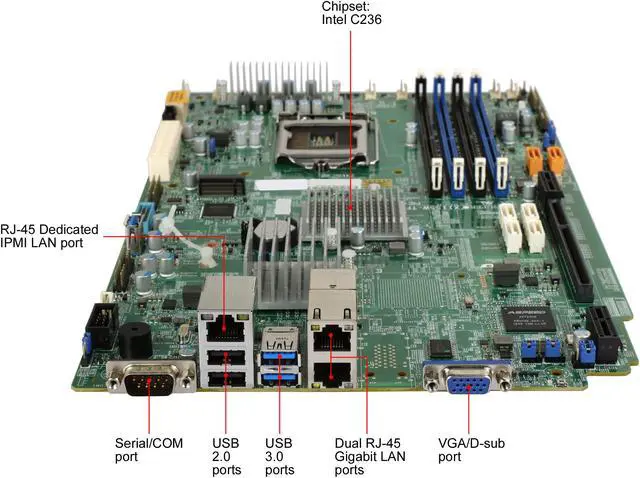

Alt view image 5 of 8 - SUPERMICRO MBD-X11SSW-TF-O Proprietary Motherboard LGA 1151 Intel C236

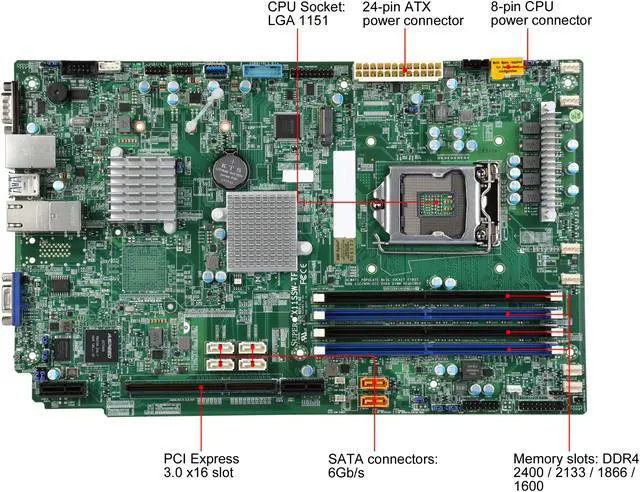

Alt view image 6 of 8 - SUPERMICRO MBD-X11SSW-TF-O Proprietary Motherboard LGA 1151 Intel C236

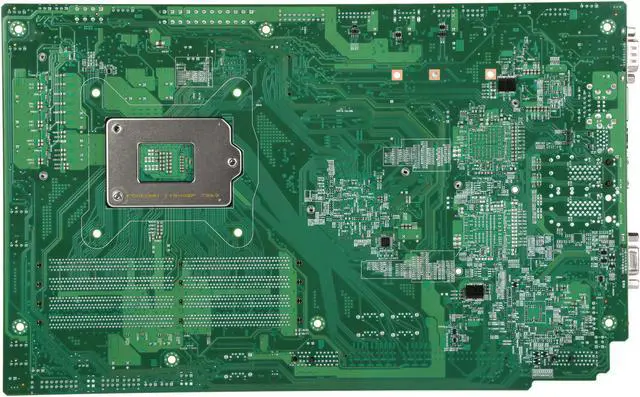

Alt view image 7 of 8 - SUPERMICRO MBD-X11SSW-TF-O Proprietary Motherboard LGA 1151 Intel C236

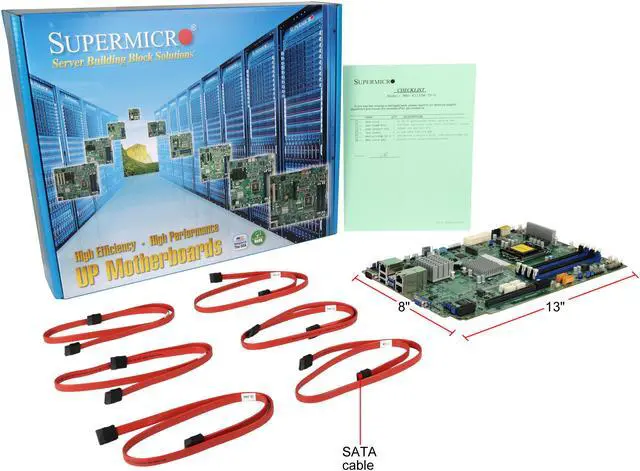

Alt view image 8 of 8 - SUPERMICRO MBD-X11SSW-TF-O Proprietary Motherboard LGA 1151 Intel C236

Shop All Supermicro Products

SUPERMICRO MBD-X11SSW-TF-O Proprietary Motherboard LGA 1151 Intel C236

Be the first to review this product...

LGA 1151
Intel C236

Specs

Reviews

Learn more about the Supermicro MBD-X11SSW-TF-O

Model
Brand	SUPERMICRO
Model	MBD-X11SSW-TF-O

Supported CPU
CPU Socket Type	LGA 1151
CPU Type	Supports: Intel Celeron Intel Pentium Intel 7th/6th Generation Core i3 series Intel Xeon processor E3-1200 v6/v5

Chipsets
North Bridge	Intel C236

Memory
DDR4 Standard	2400 / 2133 / 1866 / 1600 MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
Maximum Memory Supported	64GB
ECC Supported	Yes

Expansion Slots
PCI Express 3.0 x16	1 x PCI-E 3.0 x16 Left Riser Slot
Other Slots	Form Factor: 2260, 2280, 22110

Storage Devices
SATA	6 x SATA 6.0Gb/s
SATA RAID	0/1/5/10

Onboard Video
Onboard Video Chipset	Aspeed AST2400 BMC

Onboard LAN
LAN Chipset	Intel X540
LAN Speed	10Gbps
Second LAN Chipset	Intel X540
Second LAN Speed	10Gbps

Rear Panel Ports
COM	1
Video Ports	1 x VGA
USB 1.1/2.0	2 x USB 3.0 + 2 x USB 2.0
USB 3.0	2 x USB 3.0

Features
Features	Single socket H4 (LGA 1151) supports Intel Xeon processor E3-1200 v6 / v5, Intel 7th / 6th Gen. Core i3 series, Intel Celeron and Intel Pentium Intel C236 chipset Up to 64GB Unbuffered ECC UDIMM DDR4 2400 MHz; 4 DIMM slots Intel X540 Dual port 10GBase-T Support Intel VHD with selected CPU 6 x SATA3 (6 Gbps) via C236; RAID 0, 1, 5, 10 I/O: 1 VGA, 2 COM, TPM header 5 x USB 3.0 (2 rear, 2 via header(s), 1 Type A), 6 x USB 2.0 (2 rear, 4 via header(s)) 2 x SuperDOM with built-in power M.2 NGFF connector

Dimensions
Form Factor	Proprietary
Dimensions (W x L)	8.00" x 13.00"

Additional Information
First Listed on Newegg	May 23, 2017
