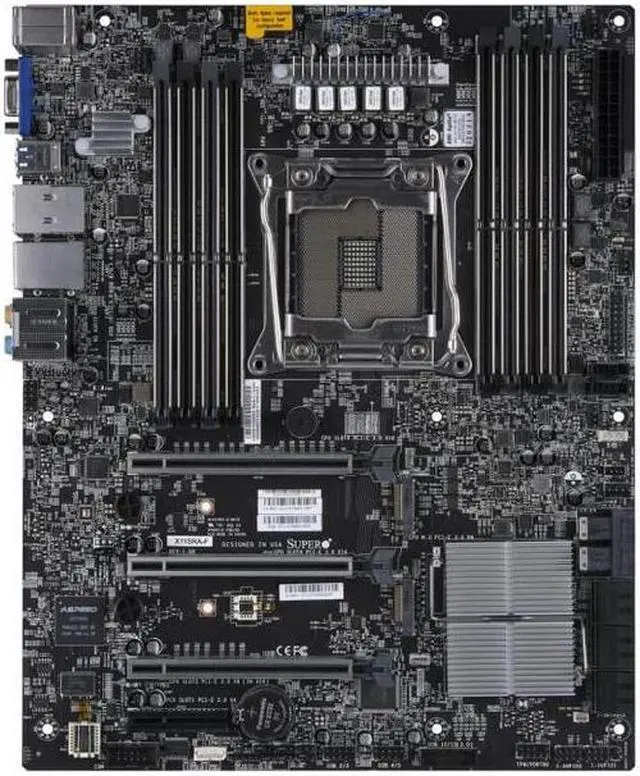

SUPERMICRO MBD-X11SRA-F-O LGA 2066 Intel C422 ECC DDR4 U.2 M.2 5G LAN USB 3.1 ATX Workstation Motherboard
- Intel® Xeon® W-2100 Processors, Intel® Xeon® W-2200 Processors
- Single Socket LGA-2066 (Socket R4) supported, CPU TDP supports Up to 165W TDP
- Intel® C422
- Up to 512GB Registered ECC RDIMM, DDR4-2666MHz; Up to 1TB Registered ECC LRDIMM, DDR4-2666MHz, in 8 DIMM slots(DDR4-2933MHz: RDIMM Max. Memory Capacity 256GB Registered ECC, LRDIMM Max. Memory Capacity 512GB Registered ECC)
- 3 PCIe 3.0 x16 (8/16/16, 48 lanes) 1 PCIe 3.0 x4 M.2 Interface: 2 PCIe 3.0 x4 M.2 Form Factor: 2280/22110 M.2 Key: M-Key (RAID 0, 1) *M-Key for SSD and Optane (up to Intel POR). Intel VROC Hardware License Key is needed to enable RAID function. U.2 Interface: 2 PCIe 3.0 x4
- Intel® C422 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- *iRST enabled, only SATA2 to SATA5 support RAID.
- Single LAN with Intel® Ethernet Controller I210-AT
Specs
Reviews
Learn more about the Supermicro MBD-X11SRA-F-O
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-X11SRA-F-O |
| CPU Socket Type | LGA 2066 |
|---|---|
| CPU Type | Supports Intel Xeon W-2100 / W-2200 Processors |
| North Bridge | Intel C422 |
|---|
| DDR4 Standard | DDR4 ECC 2666 / 2400 / 2133 / 1866 / 1600 MHz SDRAM 72-bit 288-pin RDIMM / LRDIMM |
|---|---|
| Maximum Memory Supported | Up to 256GB Registered ECC RDIMM, DDR4-2666 MHz; Up to 512GB Registered ECC LRDIMM, DDR4-2666 MHz, in 8 x DIMM slots |
| ECC Supported | Yes |
| PCI Express 3.0 x16 | 3 |
|---|---|
| PCI Express x16 | 3 x PCI Express x16 |
| PCI Express x4 | 1 x PCI-E 3.0 x4 |
| Other Slots | M.2 Interface: 2 x PCI-E 3.0 x4 Form Factor: 22110 Key: M-Key (RAID 0, 1 support) *M-Key for SSD and Optane(up to Intel POR). Intel VROC licence kit is needed to enable RAID. |
| SATA | Intel C422 controller for 6 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10 *iRST enabled, only SATA2 to SATA5 support RAID. |
|---|---|
| SATA RAID | 0/1/5/10 |
| Onboard Video Chipset | Aspeed AST2500 |
|---|
| Audio Channels | 7.1 Channels |
|---|
| Number of LAN | Single LAN with Intel Ethernet Controller I210-AT Single LAN with Aquantia 5G LAN chip AQC108 |
|---|
| USB 1.1/2.0 | 2 x USB 2.0 |
|---|---|
| USB 3.0 | 2 x USB 3.0 |
| Features | Intel Xeon Processor Skylake-W, Intel Xeon Processor W Family. Single Socket R4 (LGA 2066) supported, CPU TDP support Up to 140W Intel C422 Up to 256GB Registered ECC RDIMM, DDR4-2666 MHz; Up to 512GB Registered ECC LRDIMM, DDR4-2666 MHz, in 8 X DIMM slots 3 x PCI-E 3.0 x16, 1 x PCI-E 3.0 x4 ***3 x PCI-E3.0 x16 Slots (8/16/16 (Skylake-W 48 lanes), 1 x PCI-E3.0x4 slots*** M.2 Interface: 2 x PCI-E 3.0 x4 M.2 Form Factor: 22110 M.2 Key: M-Key (RAID 0, 1 support) *M-Key for SSD and Optane(up to Intel POR). Intel VROC licence kit is needed to enable RAID. U.2 Interface: 2 x PCI-E 3.0 x4 1 x VGA port ***VGA Port is default set to support IPMI Intel C422 controller for 6 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10 *iRST enabled, only SATA2 to SATA5 support RAID. Single LAN with Intel Ethernet Controller I210-AT, Single LAN with Aquantia 5G LAN chip AQC108 |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| First Listed on Newegg | May 03, 2018 |
|---|
