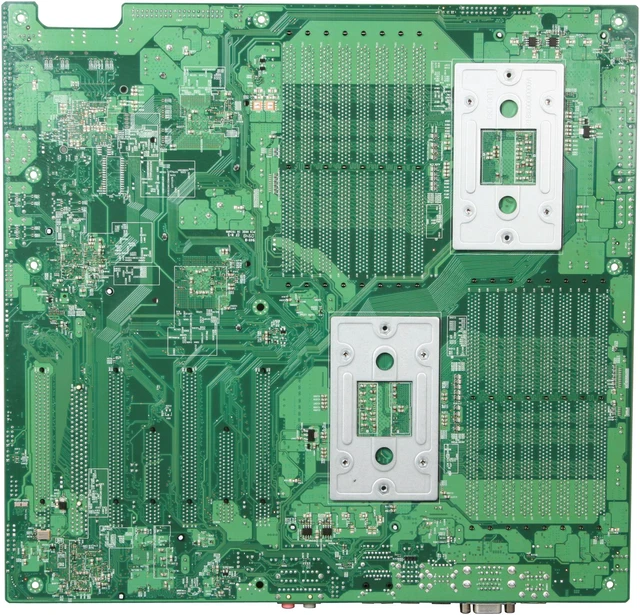

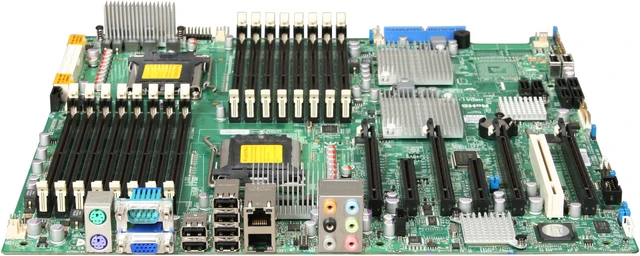

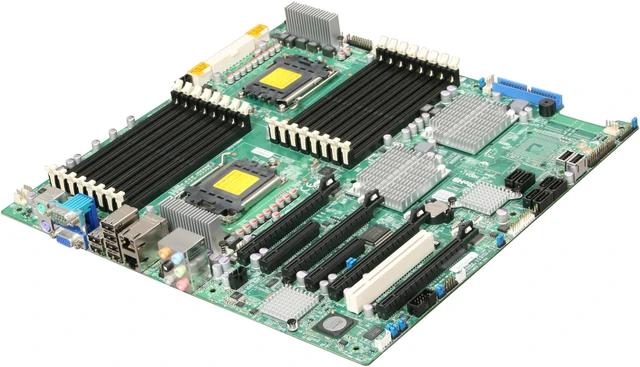

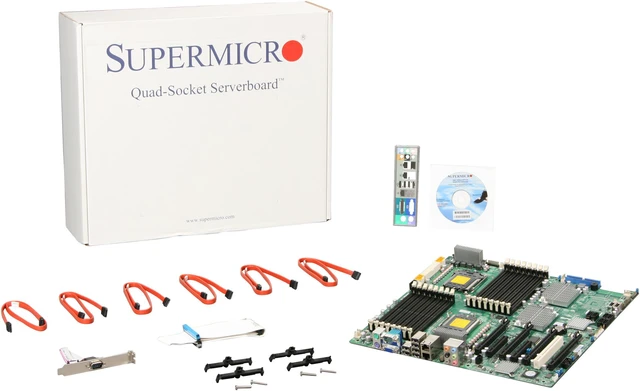

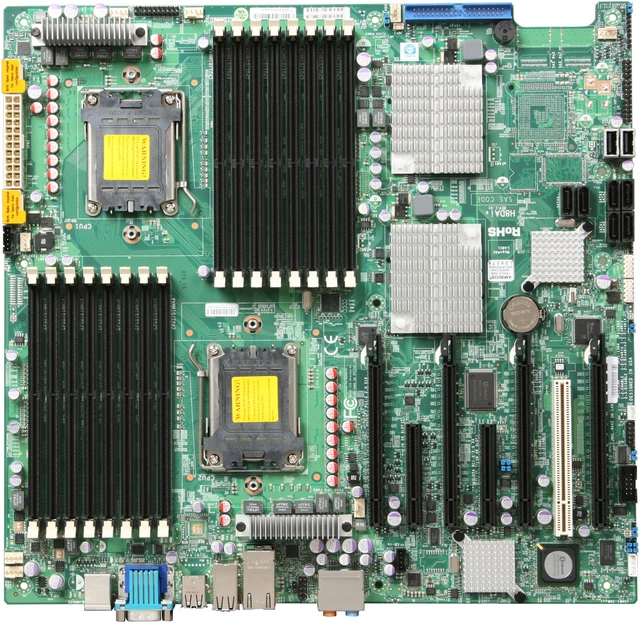

SUPERMICRO MBD-H8DAi+-O Enhanced Extended ATX Server Motherboard Dual 1207(F) AMD SR5690 DDR2 800
- Dual 1207(F)
- AMD SR5690
- 16 x 240Pin
Specs
Reviews (1)
Learn more about the Supermicro MBD-H8DAi+-O
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-H8DAi+-O |
| CPU Socket Type | Dual 1207(F) |
|---|---|
| CPU Type | Dual Six-Core / Quad-Core AMD Opteron 2000 Series |
| North Bridge | AMD SR5690 |
|---|---|
| South Bridge | AMD SP5100 |
| Number of DDR2 Slots | 16 x 240Pin |
|---|---|
| DDR2 Standard | DDR2 800 |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| Registered | Yes |
| PCI Express 2.0 x16 | 4 |
|---|---|
| PCI Express x4 | 2x PCI-e 2.0 x4 (in x8 slot) |
| PCI Slots | 1 x PCI Slot |
| PATA | 1 x ATA 133 2 Dev. Max |
|---|---|
| SATA | 6 x SATA 3.0Gb/s |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Matrox G200eW |
|---|
| LAN Chipset | Intel 82576 |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel 82576 |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 6 x USB 2.0 |
| Form Factor | Enhanced Extended ATX |
|---|---|
| Dimensions (W x L) | 13.68" x 13.05" |
| First Listed on Newegg | January 04, 2010 |
|---|
