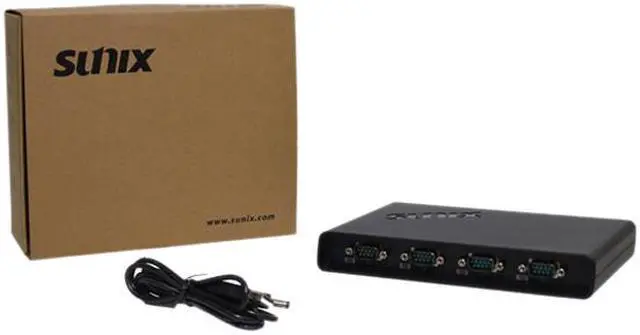

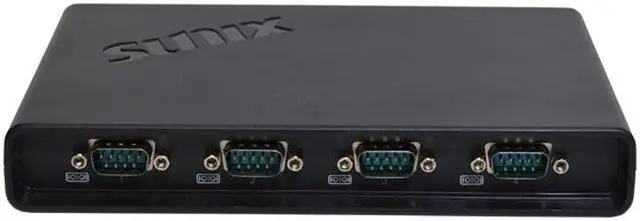

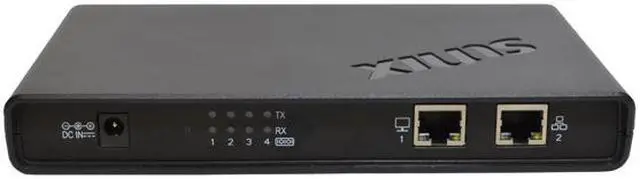

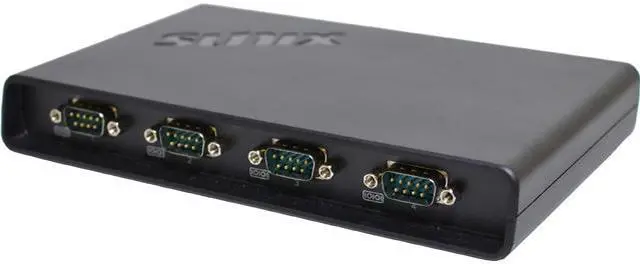

SUNIX DPKS04H00 DevicePort® Dock Mode Ethernet enabled 4-port RS-232 Port Replicator

Be the first to review this product...
Specs
Reviews

Learn more about the SUNIX DPKS04H00

Model
Brand SUNIX
Model DPKS04H00
Details
Specifications Interface : RS-232
Baud rate: 50bps ~115.2Kbps
Controller: SUNIX DPL2000Q
Stop bit: 1, 1.5, 2
BUS: Ethernet
Parity: even, odd, none, mark, space
No. of Port: 4-port
Flow Control: Xon/Xoff (software)
FIFO: 1Kbyte Hardware / per port
Connector: DB9 Male
Signal: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
Protection:
±15KV ESD IEC6000-4-2 Air Discharge
±8KV ESD IEC61000-4-2 Contact Discharge
±4KV ESD IEC61000-4-2 Level2 Line-to-Line
Features
Features SUNIX DevicePort® is the ideal choice to enable your current Legacy I/O devices. DPKS04H00 allows users to expand two RS-232 ports over Ethernet connection, and it works as a PCIe add-on card operation on any windows based tiny desktop, laptop, or All-in-one system. With SUNIX DPL2000Q High-Performance Ethernet-UART controller and exclusive I/O redirection technology, DevicePort® creates physical COM ports that support real time data communication and Ethernet-COM port hot-plug capability. Users can expand RS-232 COM port easily without complex software configuration which improves deployment efficiency to achieve greater reliability in commercial and industrial automation applications.

Expands 4 independent RS-232 serial ports over Ethernet networking.

Works as a PCIe add-on card operating experience with Ethernet Hot-Plug capability.

DevicePort® Dock mode supports secured connection between PC host and DevicePort®.

Built-in SUNIX DevicePort® DPL2000Q High-Performance Ethernet-UART/Printer controller.

SUNIX DevicePort® proprietary Ethernet I/O Redirection Technology.
- Port auto-mapping with real time data transmit and receive communication.
- Physical COM port accessed via device manager.
- Up to 256 COM ports working on windows system simultaneously.

Accesses traditional COM port by using existing software and AP.

Low power consumption design, for Green Environment.

Certified by CE, FCC, VCCI, C-Tick, BSMI, RoHS, and Microsoft WHQL approval.
Additional Information
First Listed on Newegg June 05, 2014
