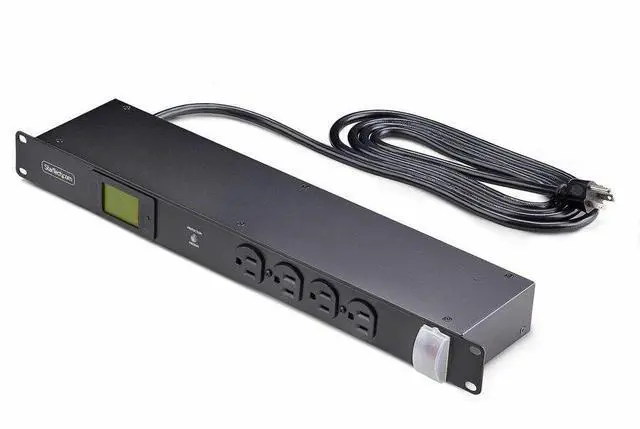

16-OUTLET 1U RACK MOUNTED METERED PDU: 16x NEMA 5-15R power outlets; 125V max and 15A circuit breaker; Built-in 8ft (2.4m) NEMA 5-15P power cord; Ideal power supply strip for 19" racks in server rooms/closets, data center, and testing labs

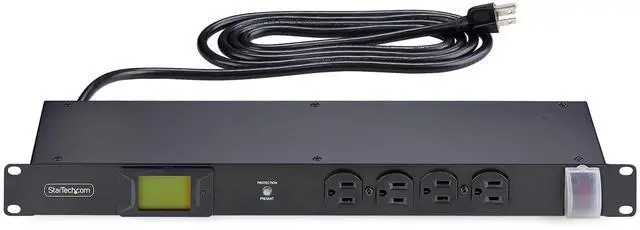

METERED POWER DISTRIBUTION UNIT: Large-font display with optional backlight for real-time monitoring of key power parameters: voltage (V), current (A), wattage (W), and power factor (PF), which indicates the efficiency of the connected devices

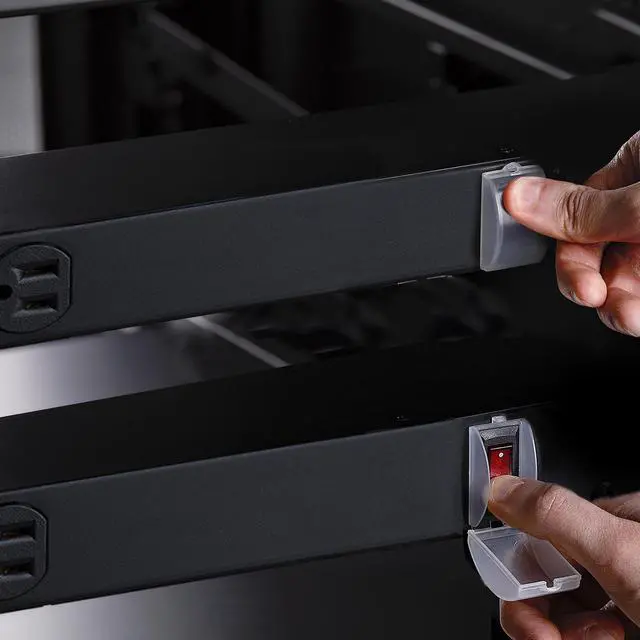

SURGE PROTECTOR: Self-tripping MOV design with mechanical trigger instantly cuts power during surges to protect connected devices; Includes LED status indicator, resettable 15A circuit breaker, and safety cover to prevent accidental resets

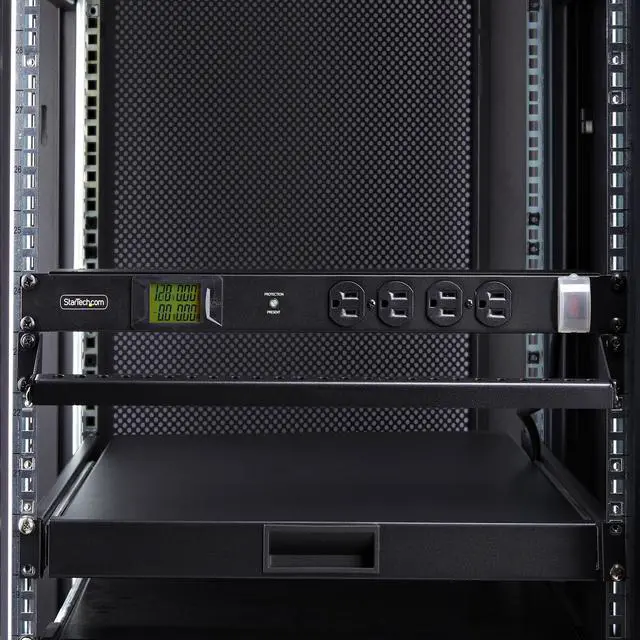

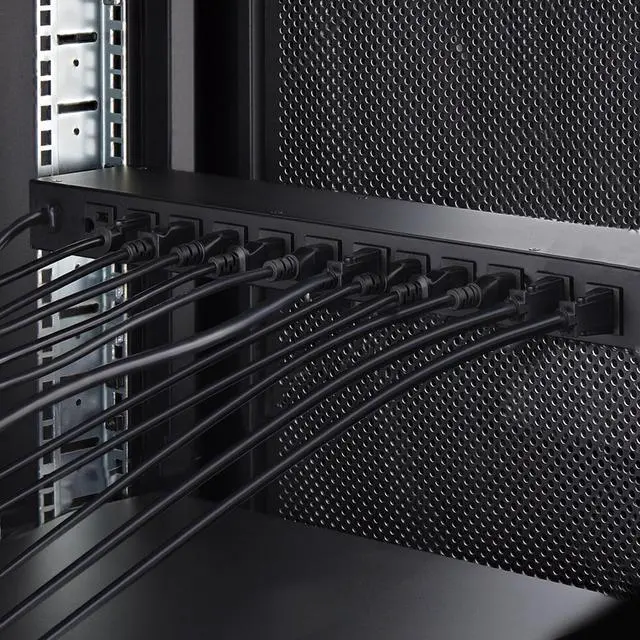

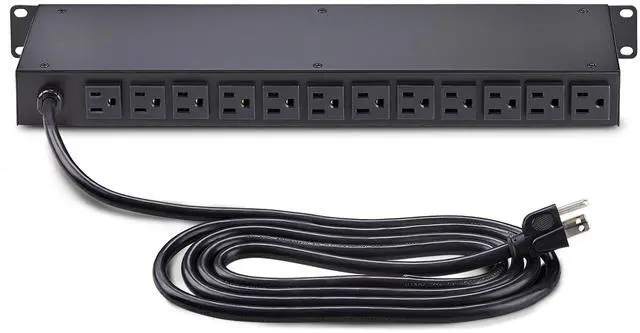

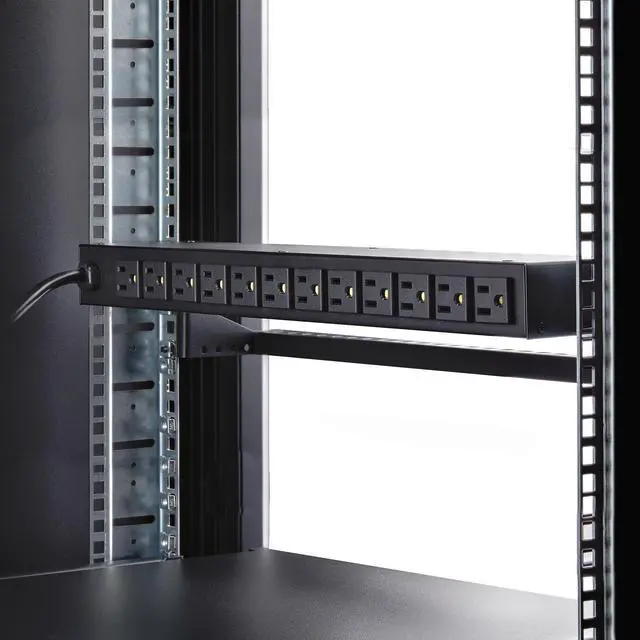

RACK MOUNTABLE: 1U horizontal rackmount PDU for EIA-310-compliant 19-inch server racks/cabinets that are 4in (10.1cm) or deeper; Made of cold-rolled steel w/textured finish for sturdiness & long-lasting durability; 12x rear and 4x front electrical outlets
+
+
Overview
Specs
Reviews
StarTech 16-Outlet Horizontal Rack Mount Metered PDU, 1U Server Power Strip w/Surge Protector, 125V/15A, 8ft ( 2.4 m) Power Cable, Power Distribution Unit, TAA 16NM8-RACK-MOUNT-PDU
Learn more about the STARTECH 16NM8-RACK-MOUNT-PDU
Model
Brand
StarTech.com
Model
16NM8-RACK-MOUNT-PDU
Details
Type
Power Distribution Units
Rack Size
1U
Style
Horizontal
Front Panel LEDs
1 - Surge Protection LED Green: Protection is present Off: No protection
Input
Input Voltage
120V
Maximum Input Current
15A
Regulatory Derated Input Current
12A
Input Connector(s)
1 - NEMA 5-15 Power (North America)
Cord Length
8 ft
Output
Output Voltage
Nominal Output Voltage: 120V Maximum Output Voltage: 125V
Output Connector(s)
16 - NEMA 5-15 Power (North America)
Environmental
Operating Environment
0°C to 40°C (32°F to 104°F)
Storage Temperature
-10°C to 50°C (14°F to 122°F)
Feature
Features
Industry Standards: EIA-310-D UL 60950-1 UL1449 VPT 500V
Number of Power Outlets: 16
Rack-Mountable: Yes
Load Capacity: 1500 VA
Color: Black
Material: Steel
Dimensions & Weight
Dimensions
1.7'' x 18.9'' x 3.9''
Weight
4.4 lbs.
Details
Package Includes
1 - Metered PDU 1 - Quick-Start Guide
