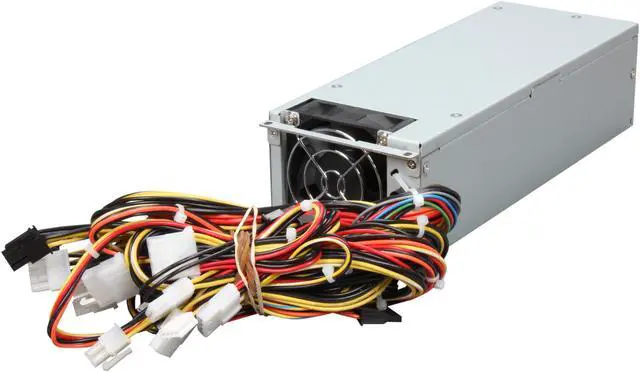

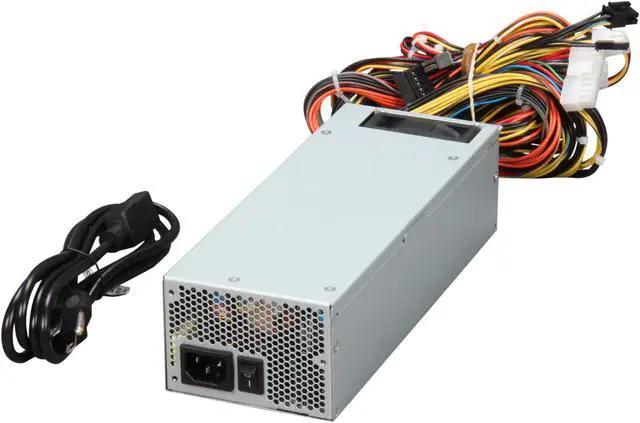

SPARKLE SPI700W7BB 700W Single 2U Switching Power Supply
- 700W Single
- Internal 12V DC fan Fans
+
+
Specs
Reviews
Learn more about the Sparkle Power Inc. SPI700W7BB
| Brand | SPARKLE |
|---|---|
| Model | SPI700W7BB |
| Type | ATX12V / EPS12V |
|---|---|
| Single/Redundant | Single |
| Maximum Power | 700W |
| Output Current | +3.3V@24A, +5V@30A, +12V1@16A, +12V2@16A, +12V3@16A, +12V4@16A, [email protected], [email protected] |
| Input Voltage | 90 ~ 264Vac, Full Range Input |
| Input Frequency Range | 47 - 63 Hz |
| Input Current | Max 10A @ 115Vac, 5.0A @ 230Vac |
| Fans | Internal 12V DC fan |
| MTBF | 100,000 hours on maximum load at +25°C |
| Efficiency | Typical up to 85% |
| Hold-up Time | 16 ms minimum at nominal input voltage |
| Protection | Output over voltage, short circuit, and over current protection |
| Features | 80PLUS, RoHS Compliant Active Power Factor Correction (PFC) meet EN61000-3-2 Compatible with European Union Directive 2002/95/EC (Restriction on Hazardous Substances). Remote ON/OFF function 100% Hi-pot, ATE, and burn-in tested Re-settable power shut down Complies with FCC part 15 subpart J class B 115Vac operation, and CISPR 22 class B at 230Vac operation |
|---|
| Dimensions | 10.2" x 3.9" x 2.75" |
|---|
| Humidity | 85% on operating, 95% on storage |
|---|---|
| Temperature | 0° C - 50° C |
