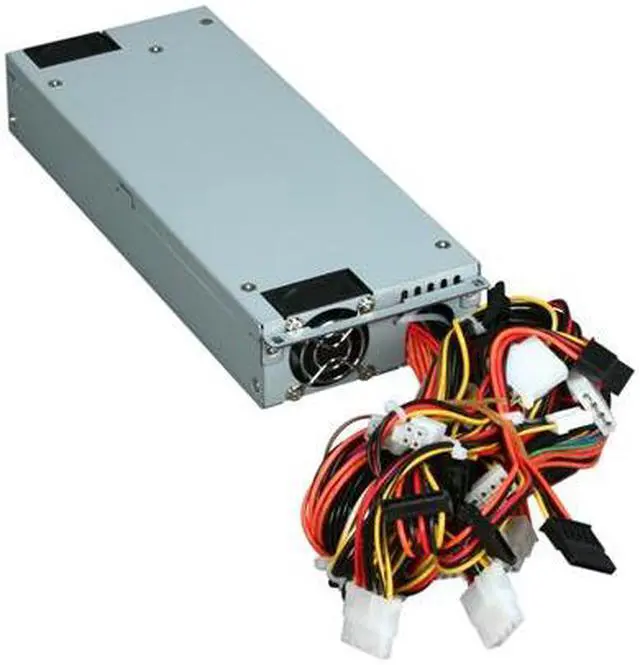

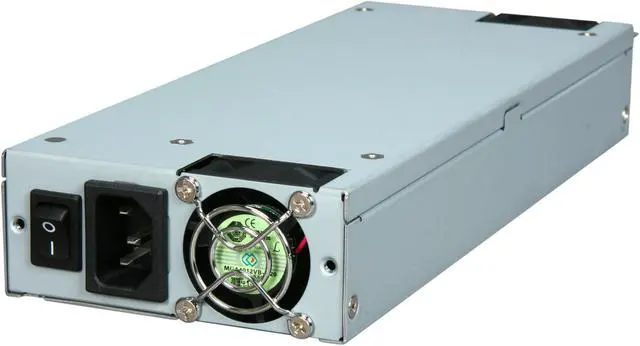

SPARKLE SPI700U4BB 700W Single 1U Switching Power Supply

700W SPI700U4BB-B204 1U POWER SUPPLY 80PLUS BRONZE

Features
- Complied with ATX12V / EPS12V standard
- Active Power Factor Correction (PFC) meet EN61000-3-2
- High efficiency and reliability
- Compatible with European Union Directive 2002/95/EC (Restriction on
Hazardous Substances).

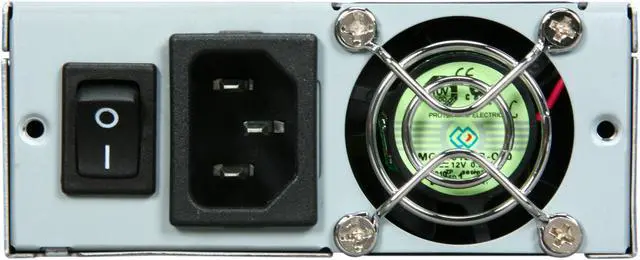

- Remote ON/OFF function
- Internal 12V DC fan included
- Low noise and ripple
- Output over voltage, short circuit, and over current protection
- 100% Hi-pot, ATE, and burn-in tested
- Re-settable power shut down
- Complies with FCC part 15 subpart J class B 115Vac operation, and
CISPR 22 class B at 230Vac operation
- Approved by : UL/CUL60950-1 2nd TUV EN60950-1 2nd, CB 60950-1 2nd ,
FCC, EMC

Specification
- Temperature Range: Operating: 0°C ~ +50°C on full load;
storage & shipping: -20°C ~ +80°C
- Humidity: 85% on operating, 95% on storage
- Dielectric Withstand: Primary frame ground 1800V AC for
1 second
- Efficiency: Typical > 85%
- Rise time: Less than 20ms
- Hold-up Time: 16 ms minimum at nominal input voltage
- Power Good Signal: Power on delay time 100 ~ 500ms, off
delay 1ms minimum (TTL and CMOS compatible)
- Leakage Current: Less than 3.5mA at 264Vac, 63Hz
- MTBF: 100,000 hours on maximum load at +25°C
Dimensions (LxWxH): 250x100x40.5mm /9.85x3.9x 1.6
inch

Input Characteristics
Input Range: 90 ~ 264Vac, Full Range Input
Frequency: 47 ~ 63Hz
Input Current: Max 10A @ 115Vac, 5.0A @ 230Vac
Inrush Current: No Damage
