SPARKLE ATX-400PN-B204 400 W ATX 12V 2.01 Power Supply - OEM

Specs

Reviews

Learn more about the Sparkle Power Inc. ATX-400PN-B204

General
Brand	SPARKLE
Model	ATX-400PN-B204

Details
Type	ATX 12V 2.01
Maximum Power	400 W
Fans	1 x 120mm Fan
PFC	No

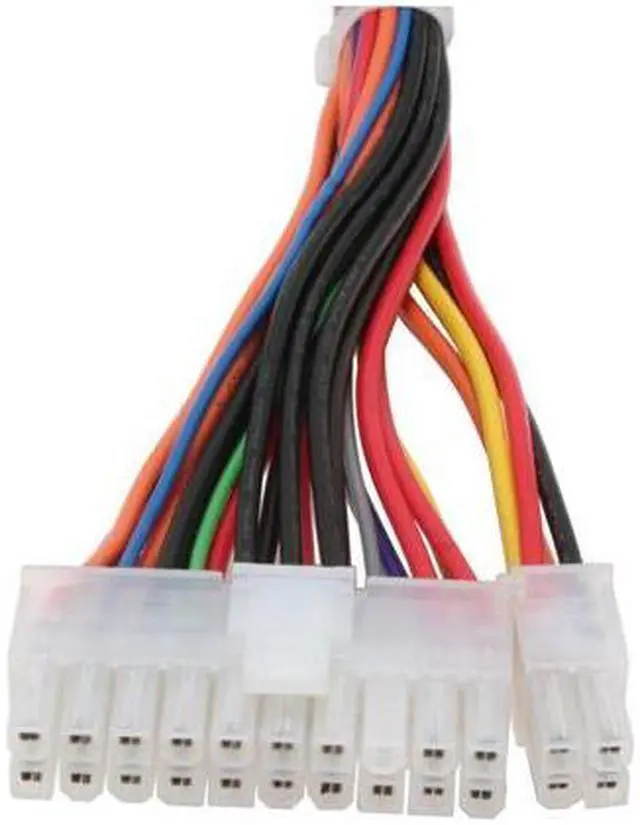

Main Connector	20+4Pin
+12V Rails	2
PCI-Express Connector	1 x 6-Pin
SLI	No
CrossFire	No
Modular	No
Power Good Signal	100-500ms
Hold-up Time	17ms min.
Efficiency	> 70%
Over Voltage Protection	Yes
Input Voltage	100 - 120 V / 200 - 240 V
Input Frequency Range	50/60 Hz
Input Current	8.5A (RMS) @115Vrms/60Hz, 5A (RMS) @ 230Vrms/50Hz

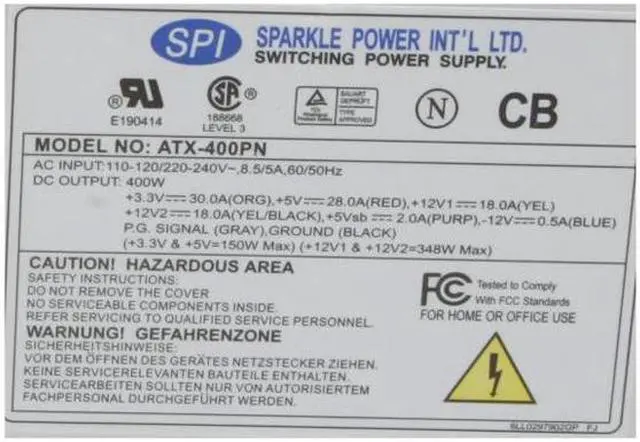

Output	+3.3V@30A,+5V@28A,+12V1@18A,+12V2@18A,-12V@0.5A,+5VSB@2.0A
MTBF	100,000 hours on maximum load at +25° C degree
Approvals	UL 60950, TUV, IEC 60950, NEMKO (CB Report)

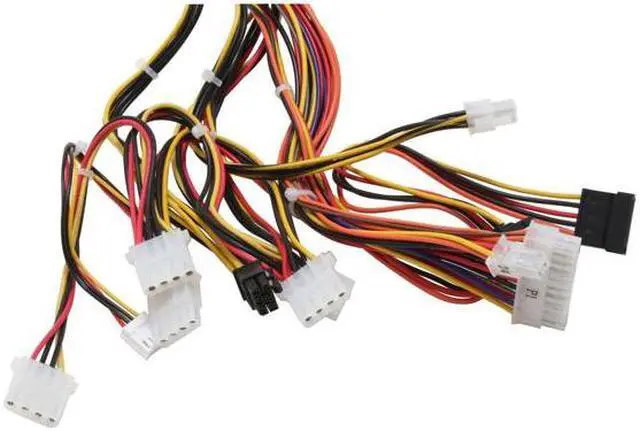

Connectors	1 x Main connector (20+4Pin) 1 x 12V (P4) 5 x peripheral 1 x SATA 1 x Floppy 1 x PCI-E

Features
Features	Complied with ATX12V 2.0 standard High efficiency, Low noise and ripple and reliability Noise Killer (Thermal fan speed control function) Complies with FCC part 15 subpart J Class B and CISPR 22 Class B Output over voltage, short circuit, and over current protection 100% Hi-pot, ATE, and burn-in tested Re-settable power shut down Temperature Range: Operating 0° C ~ +25° C on full load; De-rate 2W/C from +25°C to +50°C. Storage & shipping -20° C ~ +65° C

Additional Information
First Listed on Newegg	June 29, 2010
