20x Optical + 16x Digital Zoom
High quality super telephoto lens, 20x optical zoom, and 16x digital zoom.
H.265 Support
H.265 ecoding, enabling transmit full HD 1080p video stream by ultra-low bandwidth.
1080P Full HD
Apply Panasonic's high quality HD CMOS sensors of 1/2.7 inch, 2.07 million effective pixels, so as to reach maximum 1920 x 1080 resolution and achieve quality image.
Ultra-high Frame Rate
The output frame rate up to 60fps in 1080P.
AAC Audio Encoding
Local Storage
Low-light
High quality CMOS sensor and 2D/3D noise reduction can reduce image noise.The Image is still clear and sharp even in low light enviroment, and the SNR is high more than 55dB.

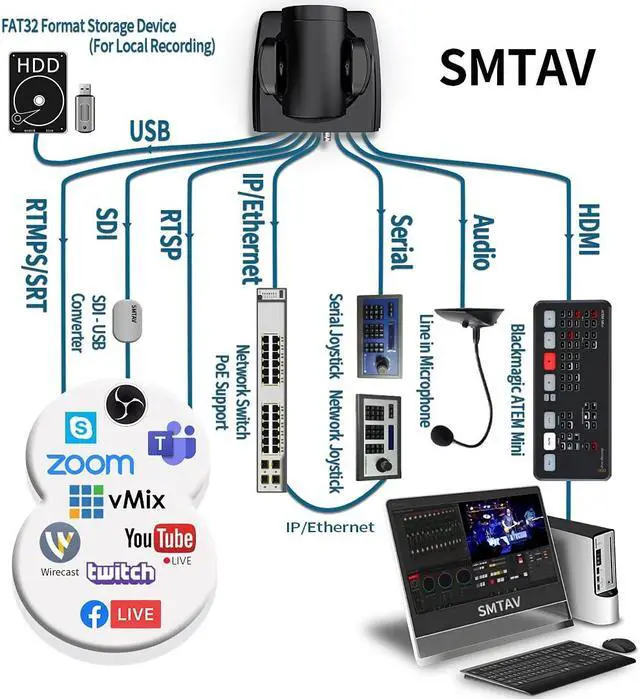

Multiple Interfaces
Support HDMI , 3G-SDI interface, effective transmission distance up to 150 meters (under 1080p30). HDMI, SDI, Network can output at the same time. It also support CVBS interface.

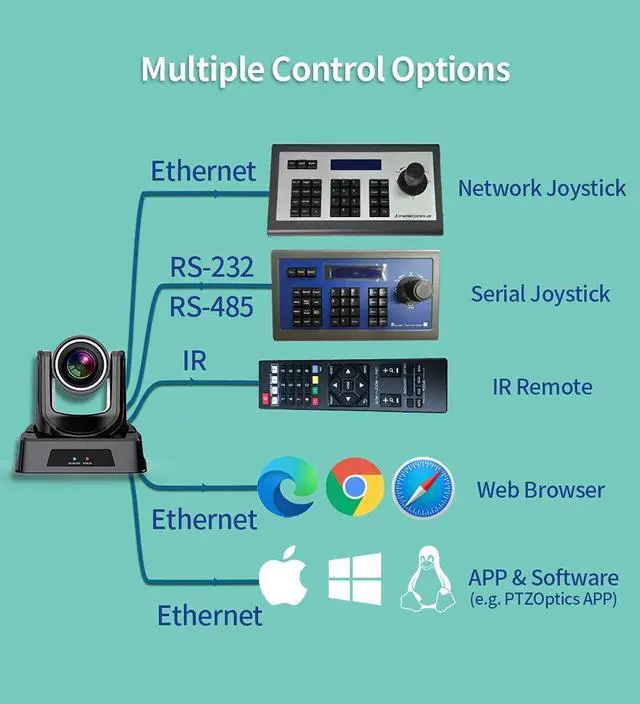

Remote Control
Using R232 and RS485 interface, all the parameters of the camera can be controled remotely.
| Video System |
HD: 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25, |
| Sensor |
1/2.7'', CMOS, Effective Pixel: 2.07M |
| Scanning Mode |
Progressive |
| Lens |
20x, f4.42mm~88.5mm, F1.8 ~ F2.8 |
| Digital Zoom |
16x |
| Minimal Illumination |
0.5 Lux @ (F1.8, AGC ON) |
| Shutter |
1/30s ~ 1/10000s |
| White Balance |
Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual |
| Backlight Compensation |
Support |
| Digital Noise Reduction |
2D&3D Digital Noise Reduction |
| Video S/N |
greater or equal to 55dB |
| Horizontal Angle of View |
60.7° ~ 2.28° |
| Vertical Angle of View |
34.1° ~ 1.28° |
| Horizontal Rotation Range |
±170° |
| Vertical Rotation Range |
-30° ~ +90° |
| Pan Speed Range |
1.7° ~ 100°/s |
| Tilt Speed Range |
1.7° ~ 69.9°/s |
| H & V Flip |
Support |
| Image Freeze |
Support |
| PoE |
Support (802.3af) |
| Local Storage |
Support |
| Number of Preset |
255 |
| Preset Accuracy |
0.1° |
| Video Compression |
H.265 / H.264 / MJEPG |
| Video Stream |
Main Stream, Sub Stream |
| Main Stream Resolution |
1920x1080, 1280x720, 1024x576 |
| Sub Stream Resolution |
720x576, 720x480, 320x240 |
| Video Bit Rate |
128Kbps ~ 8192Kbps |
| Bit Rate Type |
Variable Rate, Fixed Rate |
| Frame Rate |
50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps |
| Audio Compression |
AAC |
| Audio Bit Rate |
96Kbps, 128Kbps, 256Kbps |
| Support protocols |
TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc. |

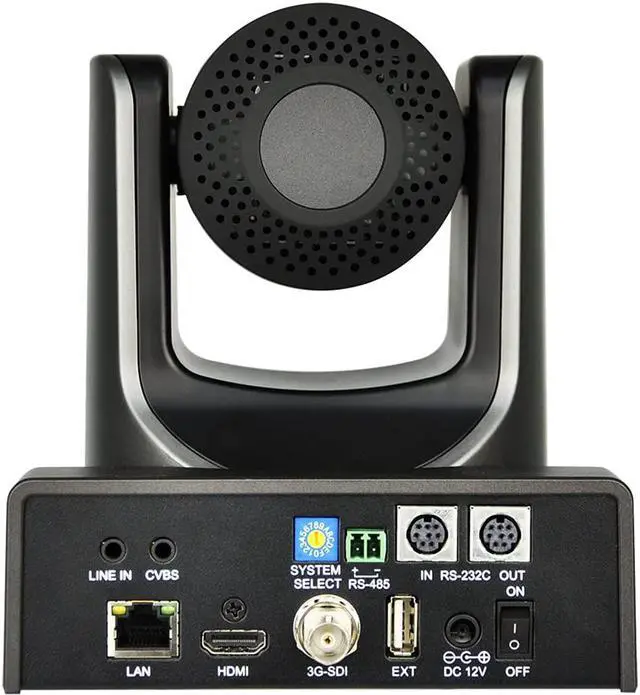

| HD Output |
1xHDMI: Version 1.3 |
| HD Output |
1x3G-SDI: BNC type, 800mVp-p, 75ohm, Along to SMPTE 424M standard |
| SD Output |
1xCVBS: 3.5mm mini jack, 1Vp-p, 75ohm |
| Network Interface |
1xRJ45: 10M/100M/1000M Ethernet Interface,Support PoE power supply |
| Audio Interface |
1-ch: 3.5mm Audio Interface, Line In |
| USB |
1xUSB2.0: Type A female jack |
| Communication Interface |
1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P |
| Communication Interface |
1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only |
| Communication Interface |
1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P |
| Power Jack |
JEITA type (DC IN 12V) |
| Input Voltage |
DC 12V |
| Current Consumption |
1.0A (Max) |
| Operating Temperature |
-10°C ~ 40°C (14°F ~ 104°F) |
| Power Consumption |
12W (Max) |
| Products include |
camera, remote control, power cord, power adapter, manual, serial cable |

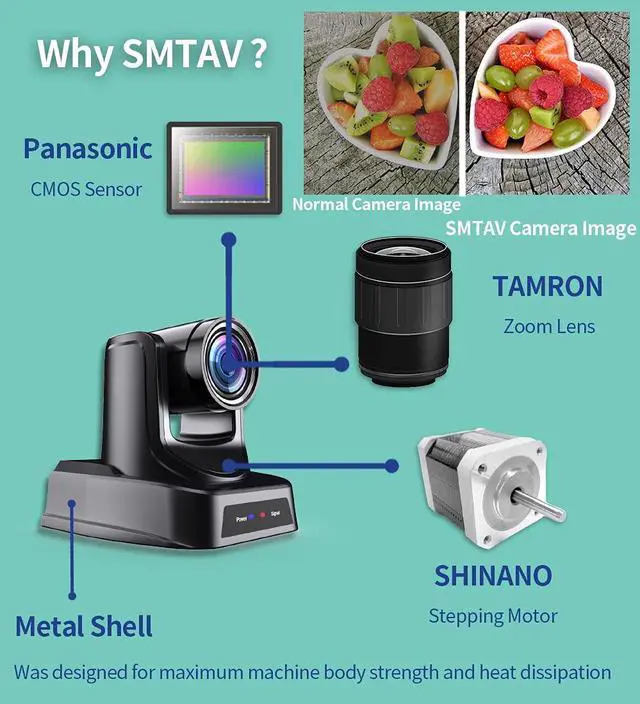

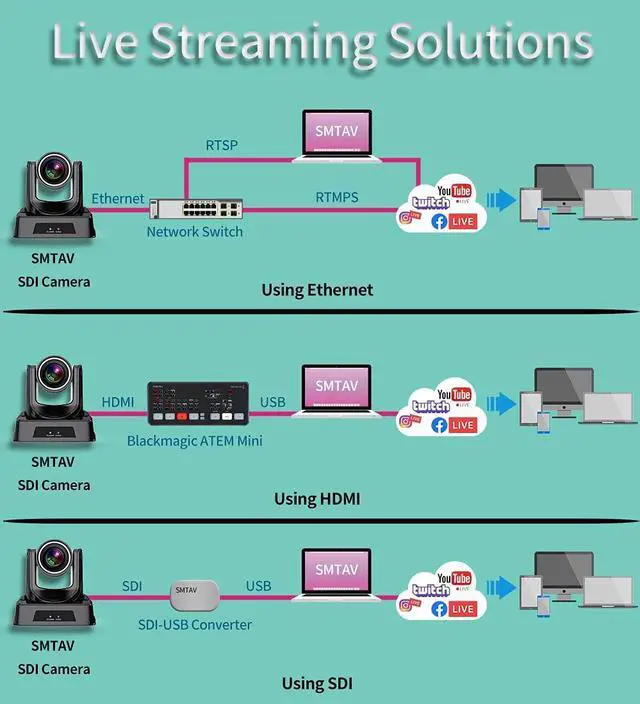

***Apply Panasonic's 1/ 2.7 inch high quality HD CMOS sensor and TAMRON Lens offers a wide 60.7 degree FOV and support 20x + 16X Zoom. The High SNR of CMOS sensor and 2D&3D Digital noise reduction supports working in 0.5 Lux Low Light well. ***As a PTZ camera, supports horizontal rotation(-170° to 170°) and vertical rotation(-30° to 90°). It has multiple ways of control, such as the included IR remote controller, CGI/HTTP/Visca/Pelco-D/Pelco-P control via RS485 or RS232 or IP. Compatible with Ptzoptics App. ***Is a Full HD professional live streaming camera and video conference camera, it can simultaneously output max 1080p@60fps video from 3G-SDI, HDMI and IP streaming(MJPEG & H.
264 & H. 265). Support PoE( 802.3 af) and RTSP, RTMP, SRT and other technologies, ability to support advanced features for live streaming. ***It has a variety of installation modes, which can be used with tripod brackets, wall brackets, and ceiling brackets. For simplicity, we also offer free app to help you setting the camera. ***What can you get. 20X Full HD PTZ Camera, Power adapter, IR remote control, user manual, Serial control cable, wall mount bracket.
