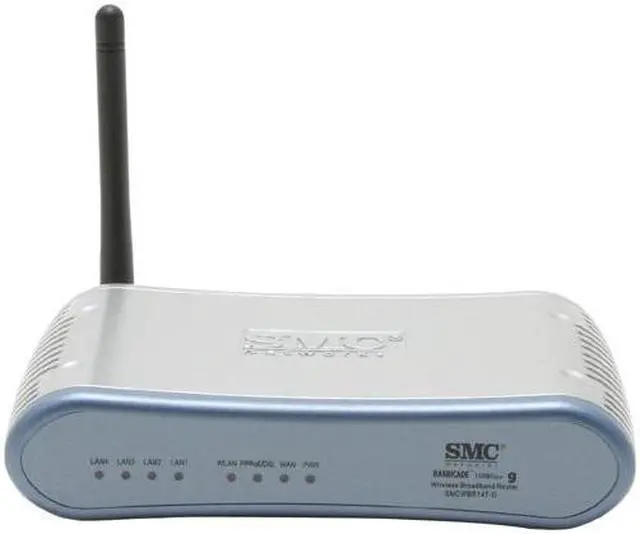

SMCWBR14T-G Barricade G Wireless Broadband Router 2.4GHz 108Mbp with WDS

OPEN BOX

Please note that this product is non-returnable and non-refundable.

Specs

Learn more about the SMC SMCWBR14T-G

Model
Brand	SMC LG-ERICSSON
Model	SMCWBR14T-G

Details
Standards	IEEE 802.3/3u, IEEE 802.11b/g
Device Management	Web-Based
Security	64/128-bit WEP/TKIP/AES-CCM/AES-OCB 802.1x, SSID broadcast disabled, MAC address fi ltering Firewall - SPI, Access Control, Event Logging

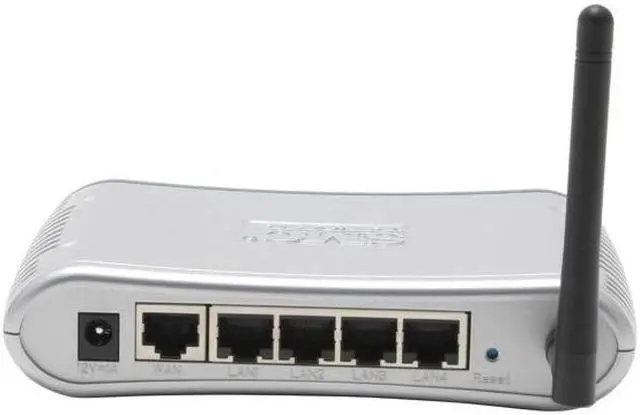

WAN Ports	1 x 10/100M
LAN Ports	4 x 10/100M
LEDs	Power, WLAN, WAN (Link, Activity), LAN (Link/Activity, Speed - 10/100 Mbps)
Wireless Data Rates	Up to 108Mbps
Modulation	OFDM, CCK
Frequency Band	IEEE 802.11b/g Radio: 2.4 GHz USA - FCC 2412~2462MHz (Ch1~Ch11) Canada - IC2412~2462MHz (Ch1~Ch11) Europe - ETSI 2412~2472MHz (Ch1~Ch13) Japan - STD-T66/STD-332412~2484MHz (Ch1~Ch14)
Antenna	1 Dipole antenna with RP-SMA connector 1.43 dBi
Channels	11 CH (US, Canada), 13 CH (ETSI), 14 CH (Japan)
Transmitted Power	Modulation Rate Output Power 15 dBm ± 2dB
Receiver Sensitivity	802.11b - 1Mbps -90 802.11b - 2Mbps -88 802.11b - 5.5Mbps -85 802.11b- 11Mbps -82 802.11g - 6Mbps -88 802.11g - 9Mbps -87 802.11g - 12Mbps -84 802.11g - 18Mbps -82 802.11g - 24Mbps -79 802.11g - 36Mbps -75 802.11g - 48Mbps -68 802.11g - 54Mbps -68
Interface	Ethernet Port
VPN support	IPSec, L2TP, and PPTP VPN pass-through

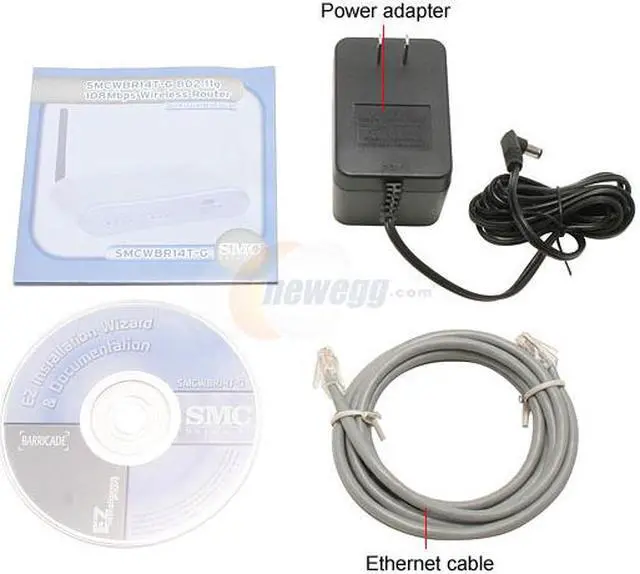

Power Supply	12 VDC 1A EU: DV-1280-3UP POWER CONSUMPTION: 5 Watts max. @ 100-240 VAC
Wireless Adapter included	No
Dimensions	6.1" x 5.1" x 1.0"
Weight	0.9 lbs.
Temperature	0°C - 40°C (32°F - 104°F)
Humidity	5% - 95%, Non-Condensing

Features
Features	Share your Cable/DSL connection Stateful Packet Inspection (SPI) Firewall Access Control and URL Blocking Web-based management Dynamic IP Address Configuration – DHCP, DNS Wireless Security – 64/128-bit WEP/TKIP/AES-CCM/AES-OCB/ 802.1x, SSID broadcast disabled, MAC address filtering Firewall - SPI, Access Control, Event Logging Virtual Server via NAT Virtual Private Network – PPTP, L2TP, IPSec pass-through Intrusion Detection, email Alerts, Parental Control Wireless Distribution System (WDS) DDNS, UPnP, Port Forwarding
