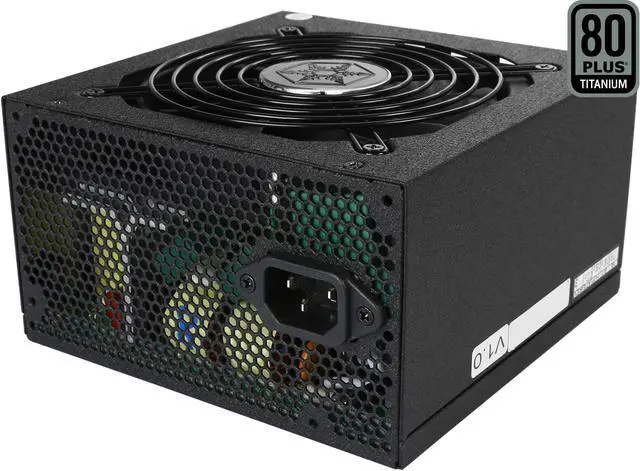

SilverStone Strider SST-ST70F-TI 700 W ATX12V / EPS12V 80 PLUS TITANIUM Certified Full Modular Active PFC Power Supply
- ATX12V / EPS12V
- Full Modular
- 80 PLUS TITANIUM Certified
- 90 - 264 V 47 - 63 Hz
- +3.3V@22A, +5V@22A, +12V1@58A, [email protected], [email protected]
Overview
Specs
Reviews (6)
INTRODUCTION
Strider Titanium ST70F-TI
- High efficiency with 80 PLUS Titanium certification
- Compact design with a depth of 150mm for easy integration
- All Japanese capacitors
- 100% modular cables
- 24/7 continuous power output with 40? operating temperature
- Class-leading single +12V rail
- Strict ±3% voltage regulation and low ripple & noise
- Silent running 120mm fan with 18dBA minimum
Introduced in 2012, the 80 PLUS Titanium represent the pinnacle of power supply efficiency with requirement of at least 90% conversion efficiency even at the very low 10% loading condition. This stringent standard makes mass producing 80 PLUS Titanium certified power supplies below 1000W extremely challenging. However, as a leader in power supply miniaturization, SilverStone successfully mass-produced a new line of power supplies -- the Strider Titanium series. Their compact design makes them the world's smallest fully modular ATX power supplies with 80 PLUS Titanium efficiency. Other enthusiasts features included are all Japanese capacitors, ±3% regulation, powerful single +12V rail, 24/7 continuous power output, and multiple PCI-E cables. For those looking to build the most efficient systems possible with great quality, the Strider Titanium is definitely the top choice.
1.Designed for 80 PLUS Titanium level of efficiency to reduce wasted heat and save on electricity.
2.100% modular cable design for use with short cable kit such as SilverStone's PP05-E or for easy removal in a case with cable routed and tied down.
3.Flat cables have much greater flexibility to allow for tighter folding and management of cables.
4.150mm depth sets new standard for high wattage PSUs with modular cables.
5.Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.
6.±3% regulation and low ripple & noise performance for high stability.
7.Built-in 120mm fan has excellent airflow and low noise, perfect for quiet home or office use.
FEATURE PHOTOS

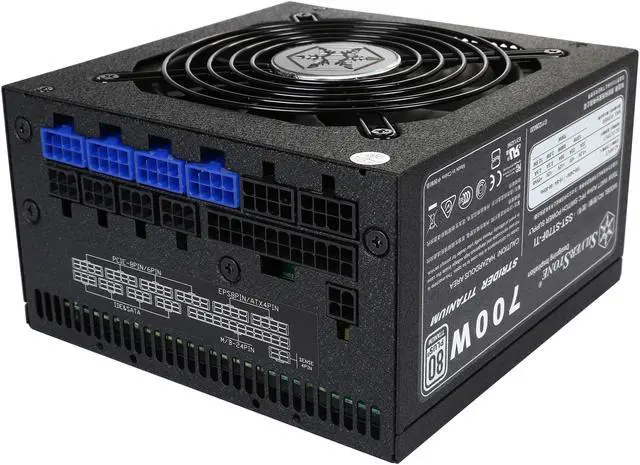

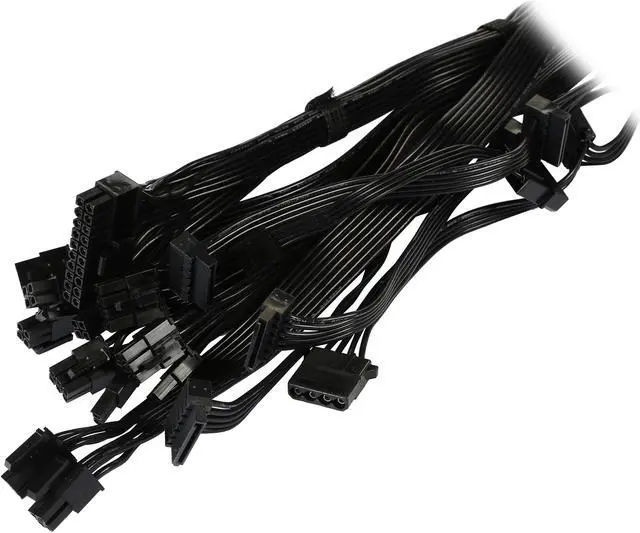

100% modular cables

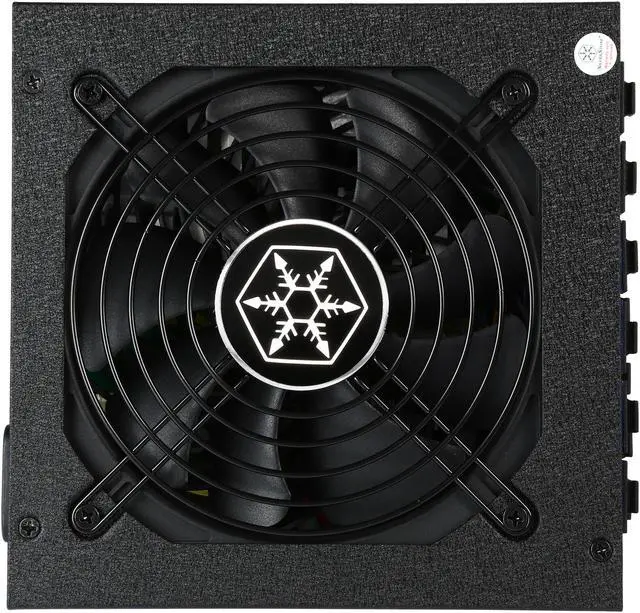

Silent running 120mm fan with 18dBA minimum
24/7 continuous power output with 40? operating temperature
1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connector(550mm & 750mm)
4 x 8 / 6-Pin PCIE connector
12 x SATA connector
3 x 4-Pin Peripheral connector
1 x 4-Pin Floppy adapter connector
SPECIFICATIONS
| Model No. | SST-ST70F-TI | ||||||||||||||||||||||||||||||||||||||||||
| Max. DC Output | 700W (Peak 750W) | ||||||||||||||||||||||||||||||||||||||||||
| Power density | 362W per liter | ||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||
| Color | Black(Lead-Free Paint) | ||||||||||||||||||||||||||||||||||||||||||
| combined +3.3, +5V | 120W | ||||||||||||||||||||||||||||||||||||||||||
| combined +12V | 696W | ||||||||||||||||||||||||||||||||||||||||||
| Input Voltage | 90V~264V | ||||||||||||||||||||||||||||||||||||||||||
| Input Frequency Range | 47Hz~63Hz | ||||||||||||||||||||||||||||||||||||||||||
| PFC | Active PFC(PF>0.9 at full load) | ||||||||||||||||||||||||||||||||||||||||||
| Efficiency | 90%~94% at 10% ~ 100% loading | ||||||||||||||||||||||||||||||||||||||||||
| MTBF | 100,000 hours | ||||||||||||||||||||||||||||||||||||||||||
| Operating temperature | 0°C ~ 40°C | ||||||||||||||||||||||||||||||||||||||||||
| Protection | Over Current Protection Over Power Protection Over Voltage Protection Short Circuit Protection Under voltage protection Over Temperature Protection |
||||||||||||||||||||||||||||||||||||||||||
| Connectors | 1 x 24 / 20-Pin motherboard connector(550mm) 1 x 8 / 4-Pin EPS / ATX 12V connector(750mm) 1 x 8 / 4-Pin EPS / ATX 12V connector(550mm) 4 x 8 / 6-Pin PCIE connector("550mm" x 4) 12 x SATA connector("600mm / 150mm / 150mm / 150mm" x 3) 3 x 4-Pin Peripheral connector(600mm / 150mm / 150mm) 1 x 4-Pin Floppy adapter connector (100mm) |
||||||||||||||||||||||||||||||||||||||||||
| Cooling System | Single 120mm silent fan | ||||||||||||||||||||||||||||||||||||||||||
| Noise Level | 18 dBA minimum | ||||||||||||||||||||||||||||||||||||||||||

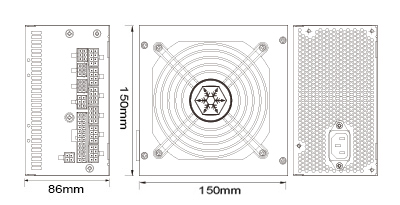

| Dimension | 150 mm (W) × 86 mm (H) × 150 mm (D) | ||||||||||||||||||||||||||||||||||||||||||
| Weight | 2.7 kg | ||||||||||||||||||||||||||||||||||||||||||
| Form factor | ATX | ||||||||||||||||||||||||||||||||||||||||||
| Certification | 80 PLUS Platinum | ||||||||||||||||||||||||||||||||||||||||||
| Other | Compatible with ATX12V v2.4 | ||||||||||||||||||||||||||||||||||||||||||
