SilverStone Strider Gold S Series ST75F-GS 750 W ATX 80 PLUS GOLD Certified Full Modular Active PFC Power Supply
- ATX
- Full Modular
- 80 PLUS GOLD Certified
- 90 - 264 V 47 - 63 Hz
- +3.3V@22A, +5V@25A, +12V1@62A, [email protected], [email protected]
Overview
Specs
Reviews (7)
To meet the requirements of current and future desktop computers, SilverStone created the Strider Gold S series power supplies. The Strider Gold S models are all new designs engineered to be the smallest, fully-modular ATX power supplies at any Wattage level.
The Strider Gold S series includes wattage range from 550W to 1500W for a great variety of applications. With short depth designs, all models in the series are among the world's smallest full-modular ATX PSUs. In addition to 80 PLUS Gold level efficiency, the Strider Gold S PSUs are built to meet very high standards in electrical performance with ±3% voltage regulation, ±3% ripple & noise, and high amperage single +12V rail. Other notable features included are 24/7 104°F (40°C) continuous output capability, low-noise fan, and multiple sets of PCI-E cables. For users looking for a power supply with faultless combination of compact size, performance, efficiency, and quality, the Strider Gold S Series is the only choice.
SPECIAL FEATURES

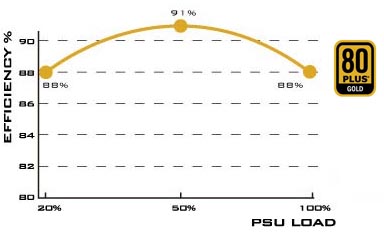

1. Designed for 80 PLUS Gold level efficiency to reduce wasted heat and save on electricity.

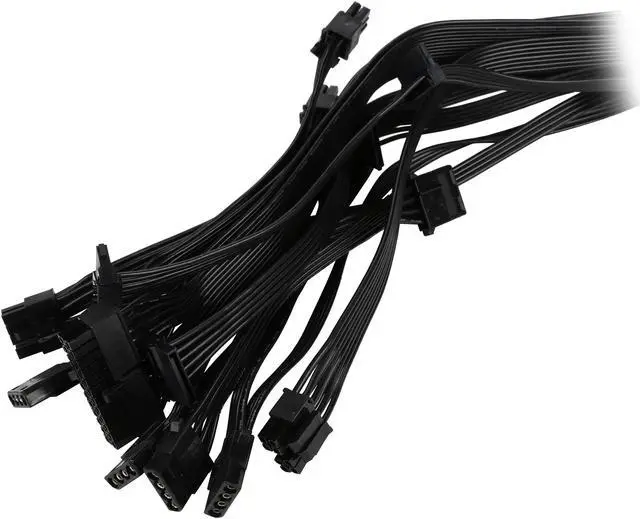

2. Strider Gold S PSUs are the first power supply models in the world to include flat 24-pin cables. This cable offers much greater flexibility for tighter folding and superior management.
3. 100% Modular cable design for use with short cable kit such as SilverStone's PP05-E for easy removal in a case with cables routed and tied down.
1 x 24 / 20-Pin Motherboard Connector
2 x 8 / 4-Pin EPS / ATX 12V Connectors (750mm/550mm)
4 x 8 / 6-Pin PCIE Connectors
8 x SATA Connectors
6 x 4-Pin Peripheral Connectors
2 x 4-Pin Aux. Connectors
4. 150mm Depth sets new standard for high Wattage PSUs with modular cables.
5. Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.
6. ±3% Regulation and low ripple & noise performance for high stability
7. Built-in 120mm fan has excellent airflow and low noise, perfect for quiet home or office use.
8. 24/7 Continuous power output with 104°F (40°C) operating temperature
Gallery

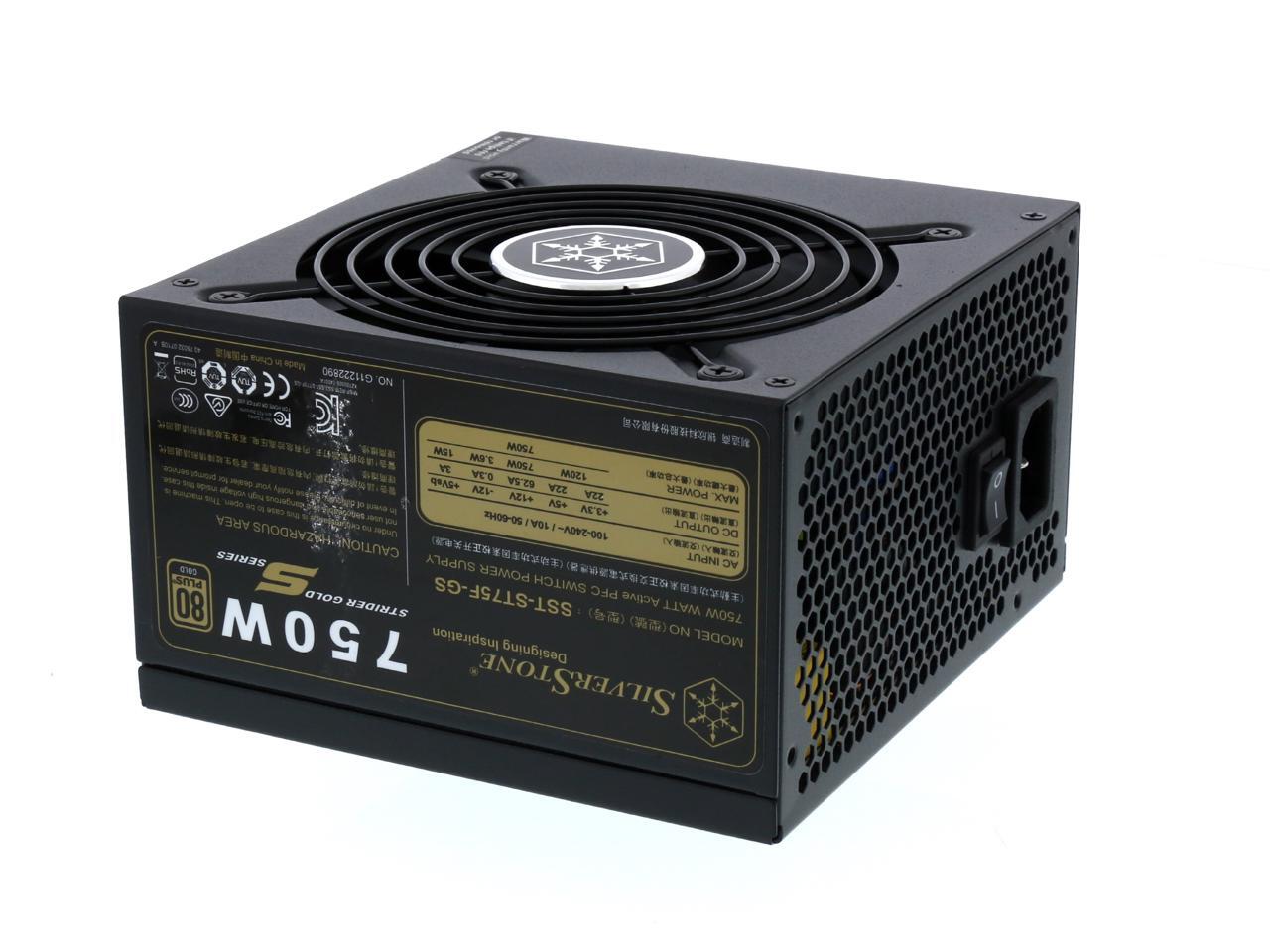

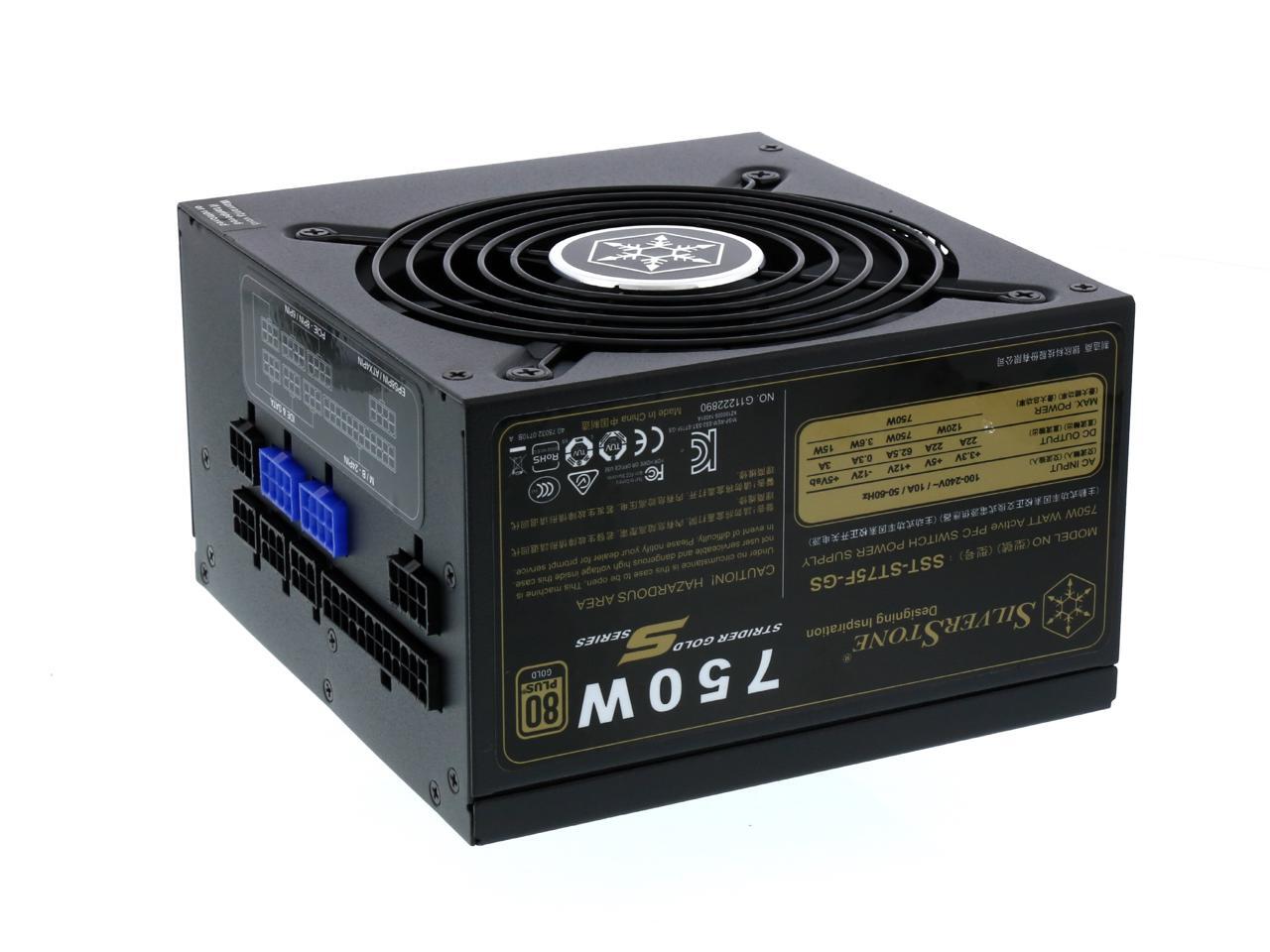

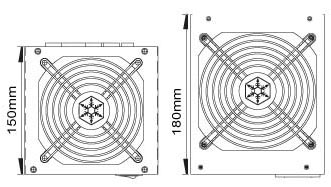

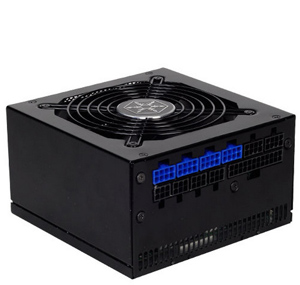

Compact design with a depth of 150mm

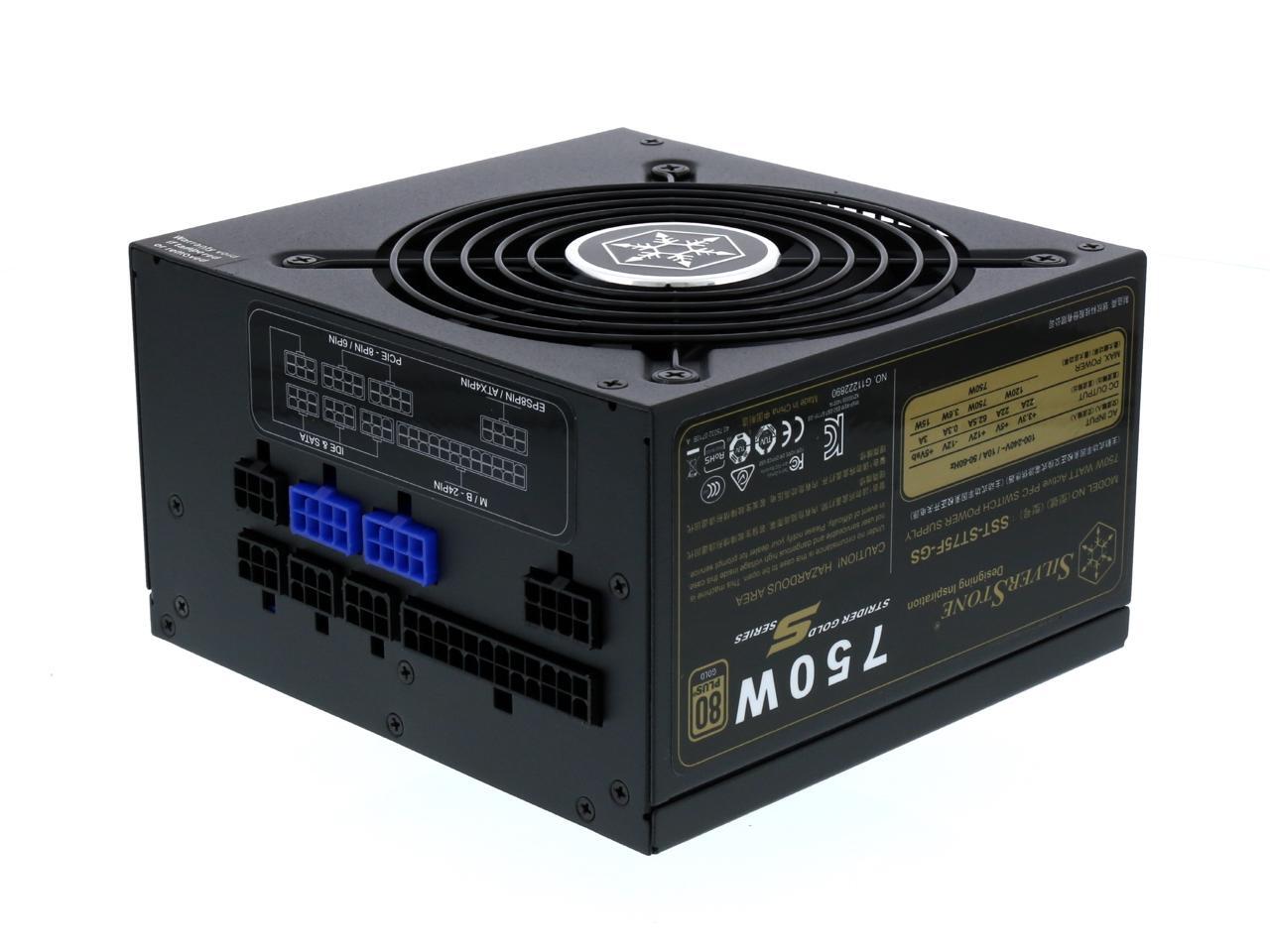

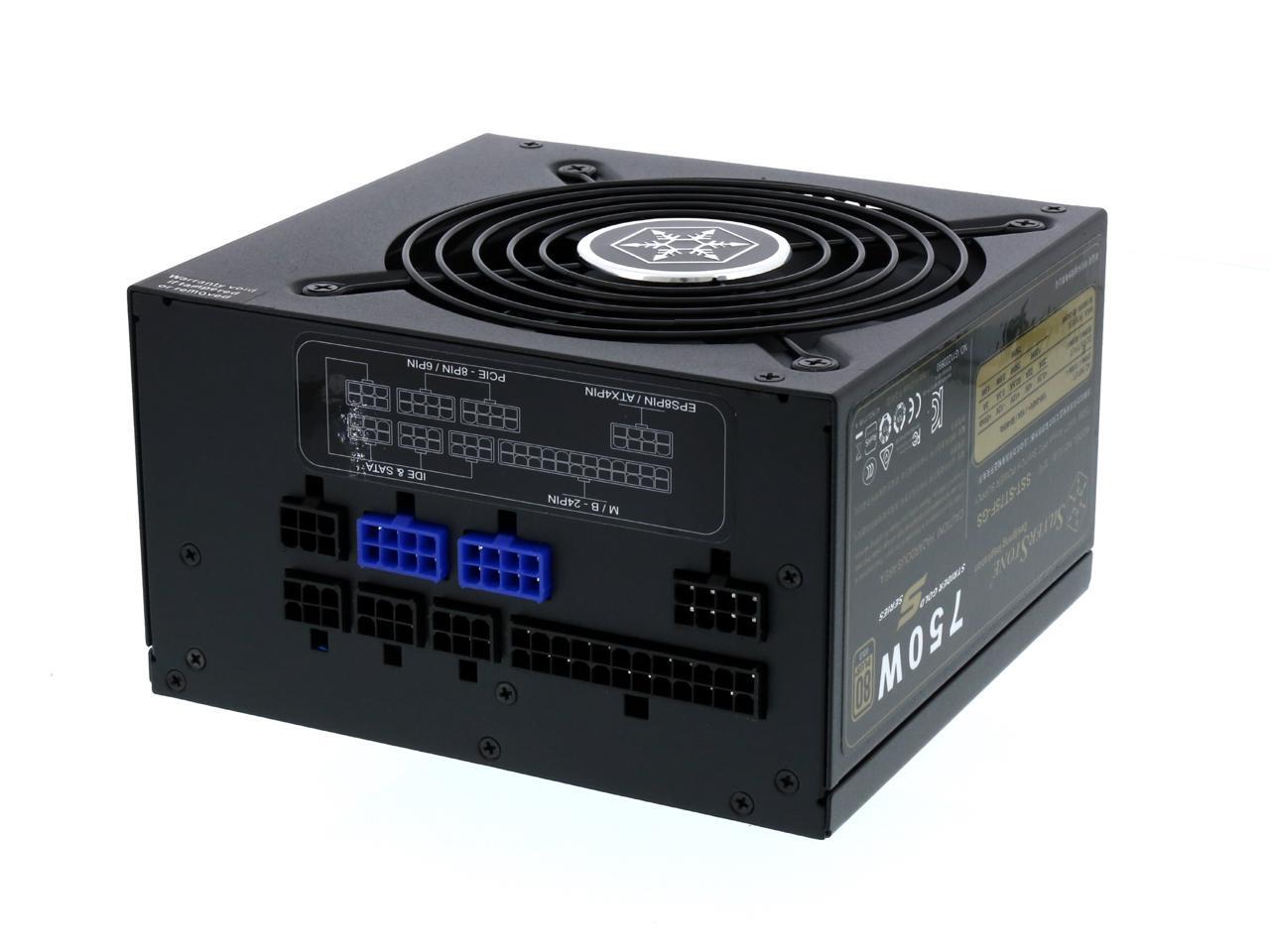

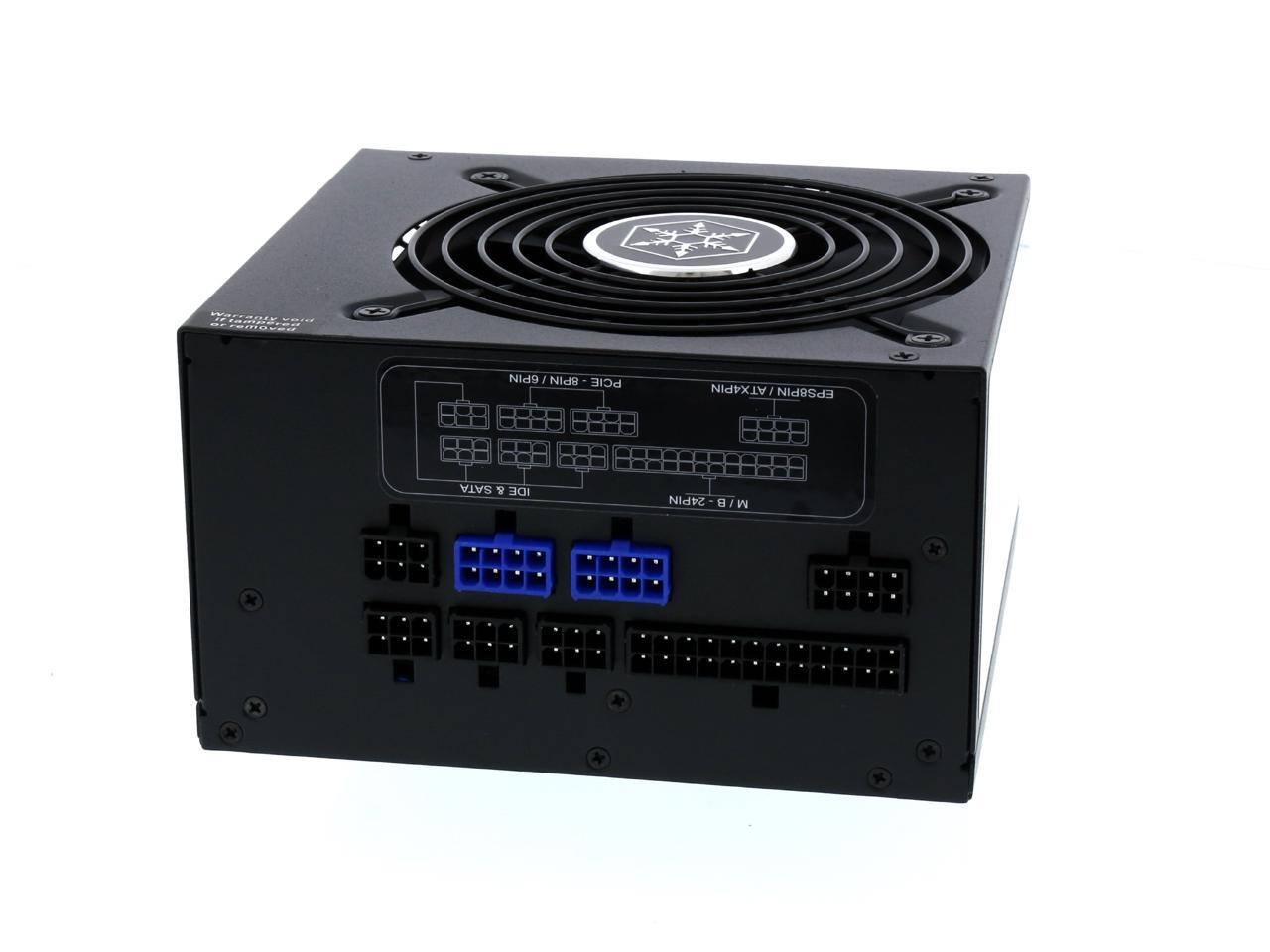

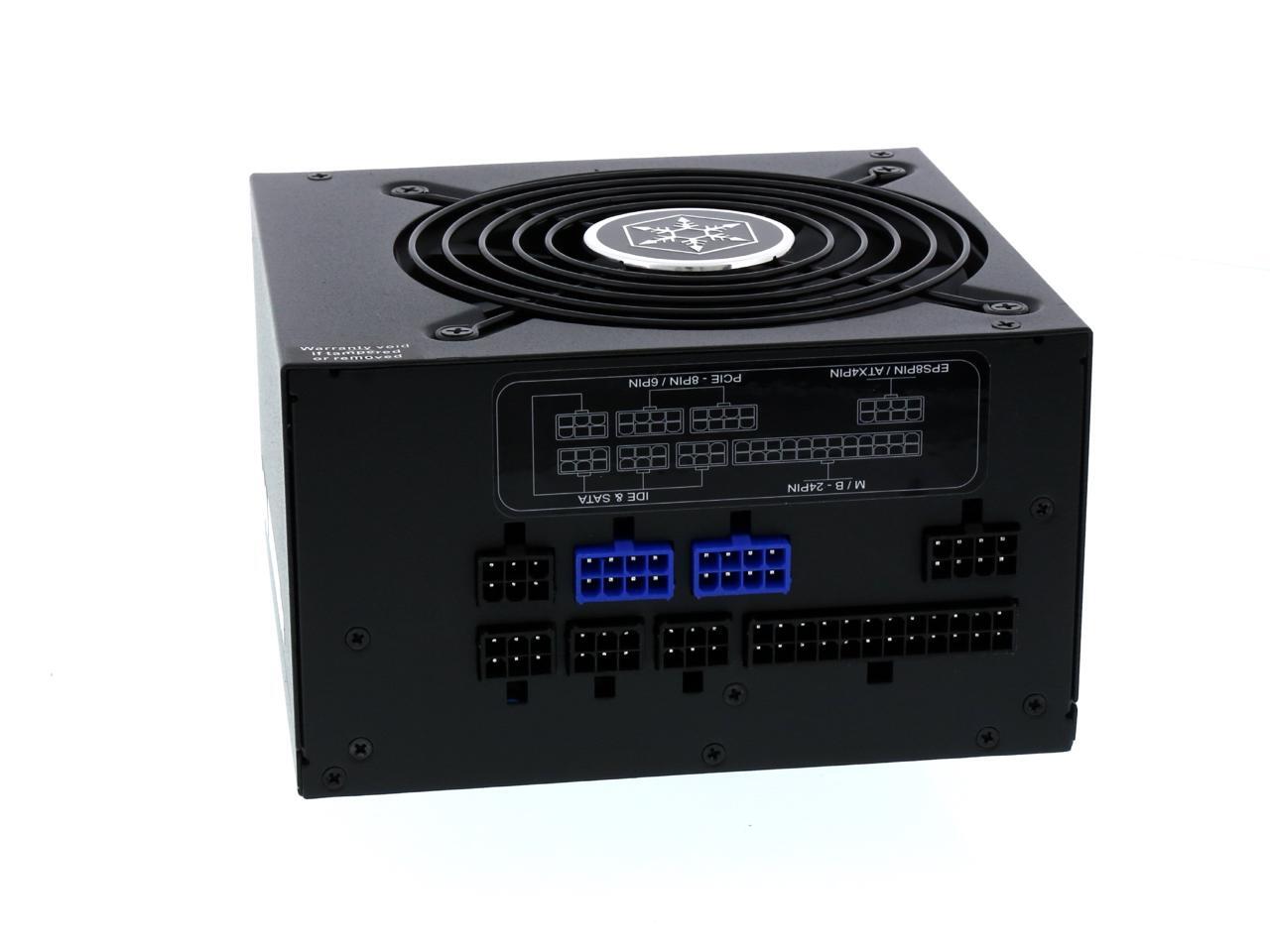

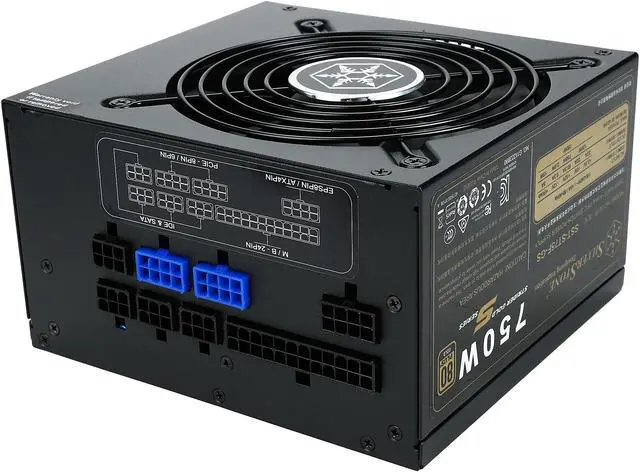

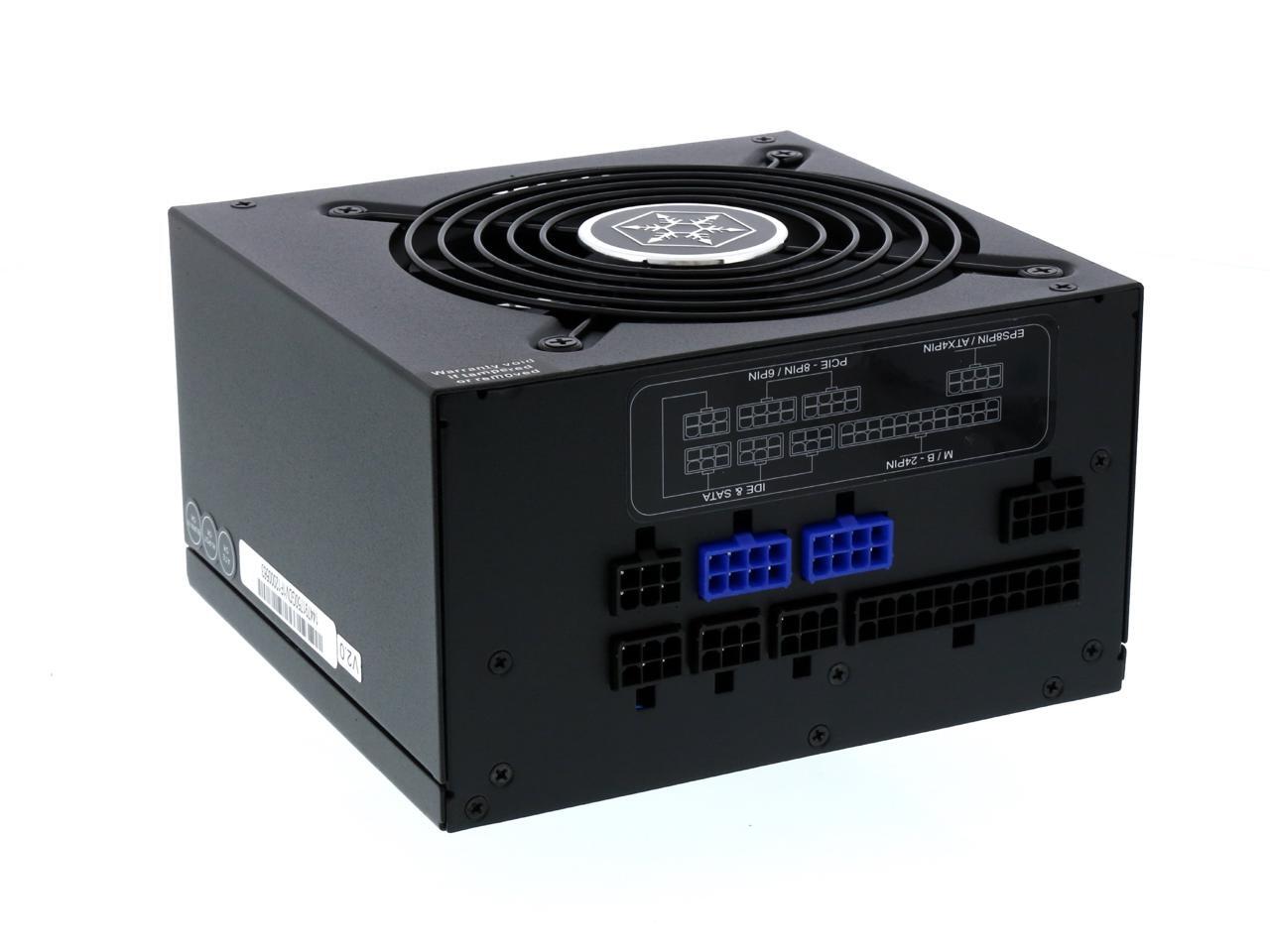

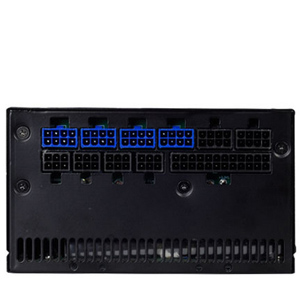

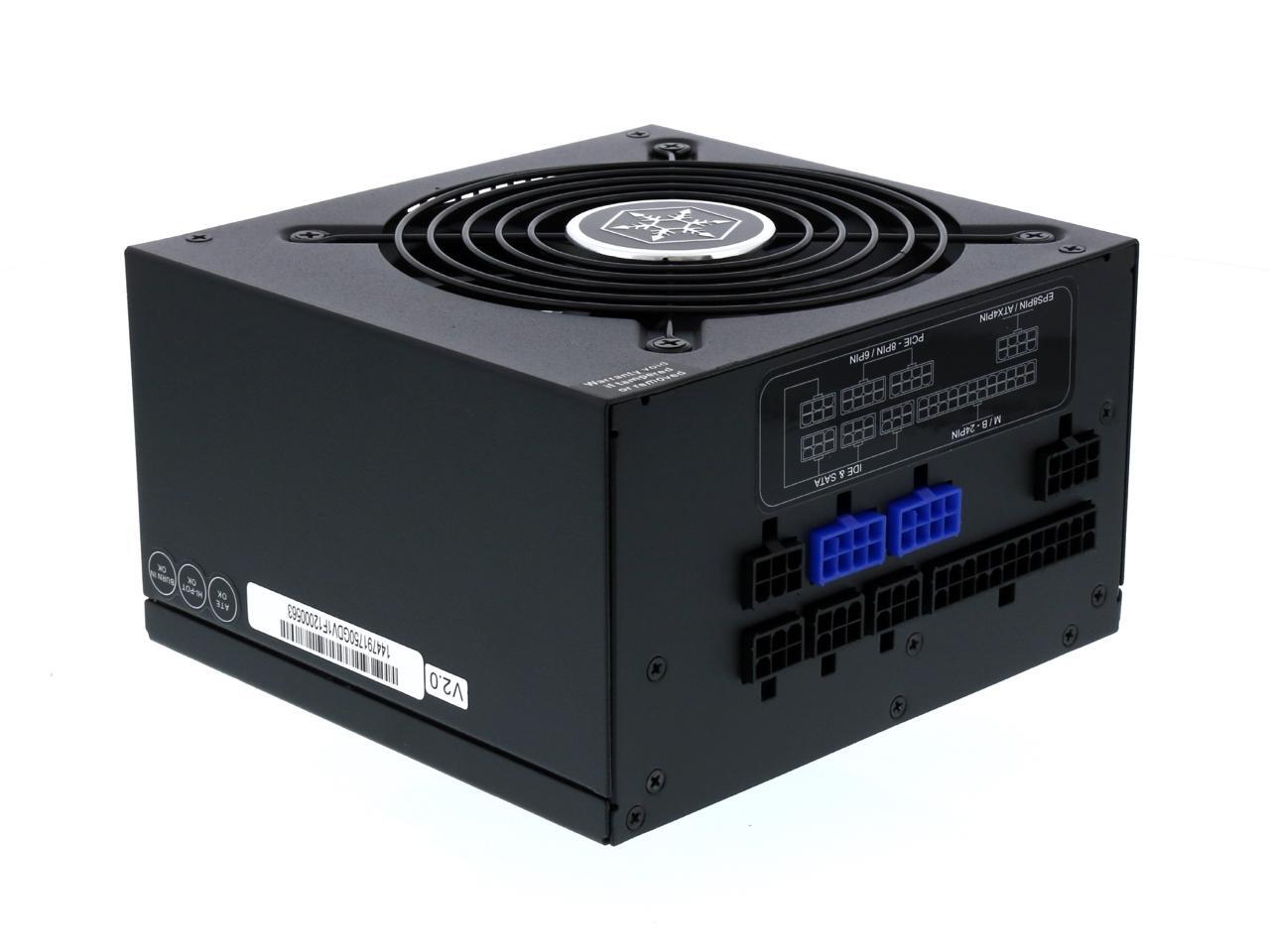

100% Modular deisgn

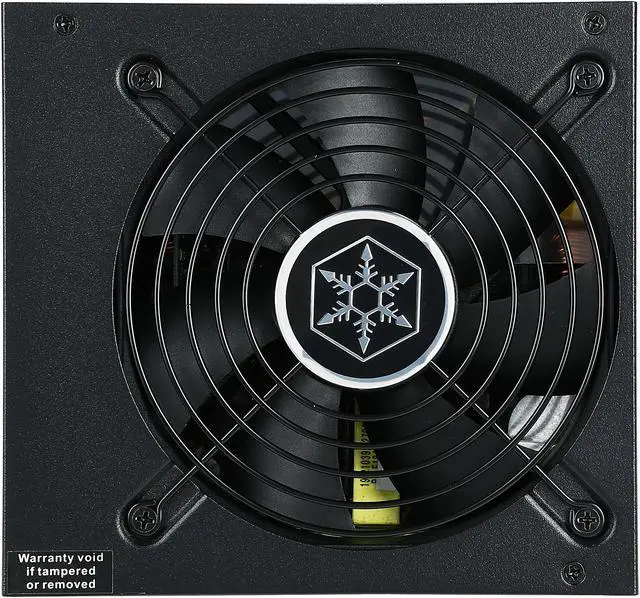

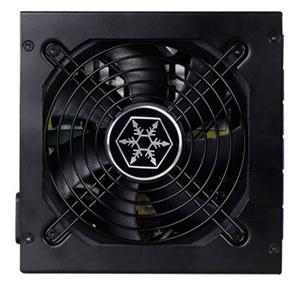

Silent running 120mm fan

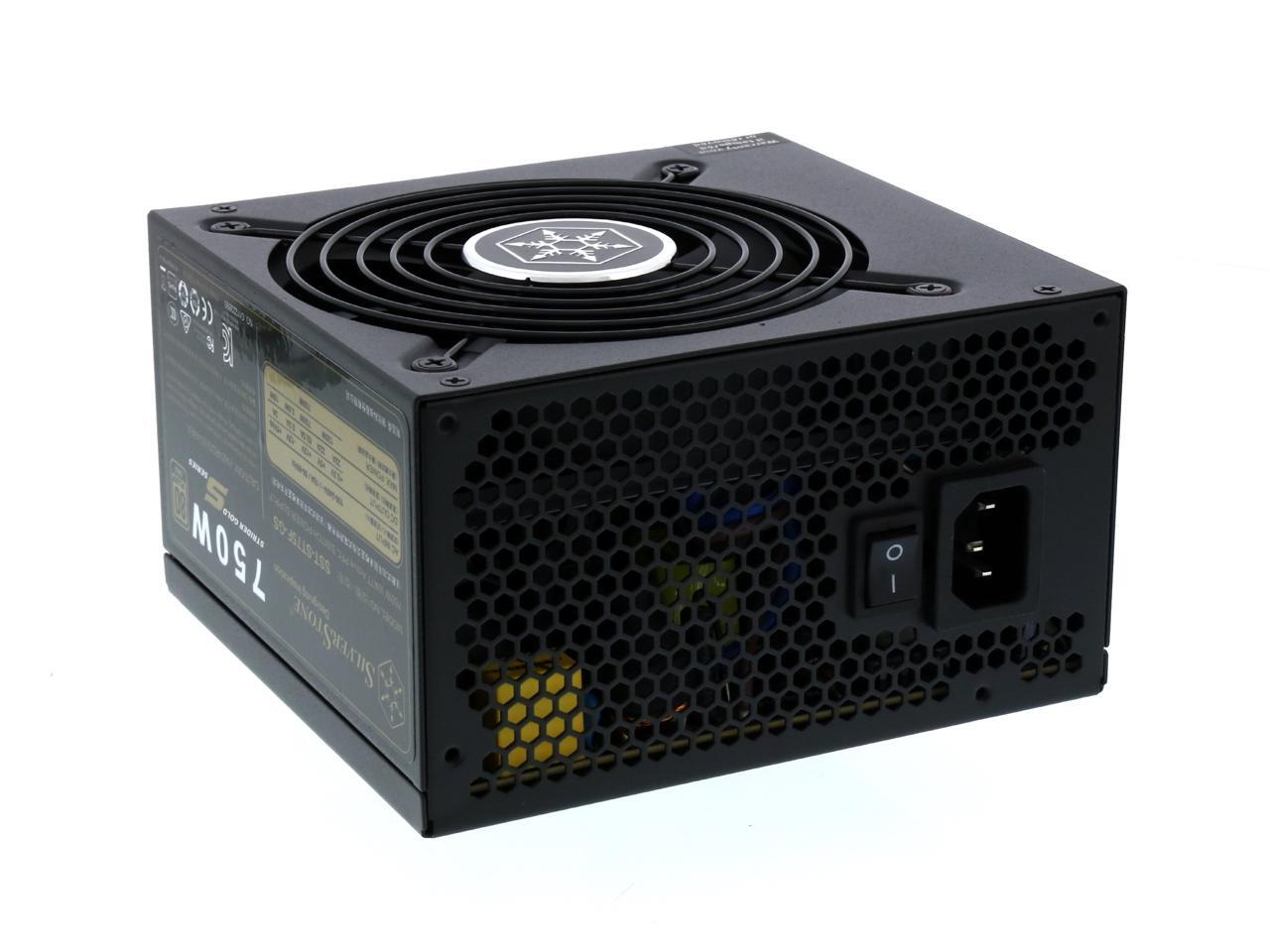

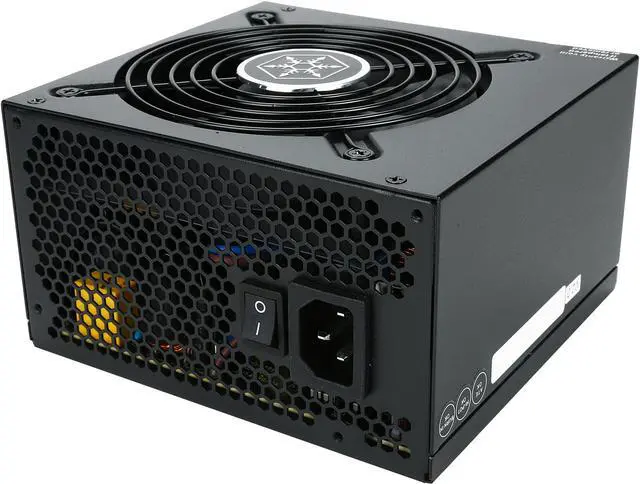

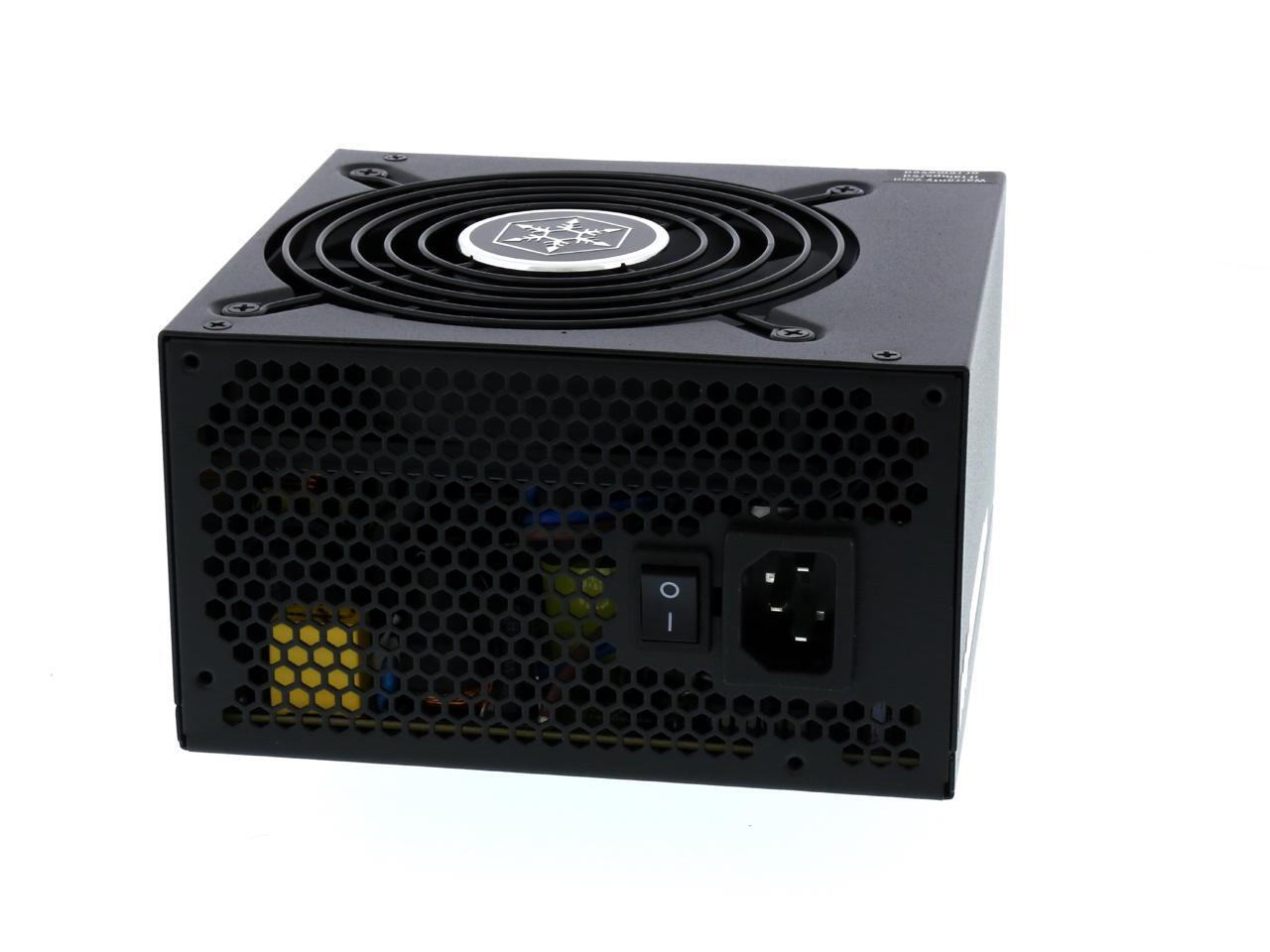

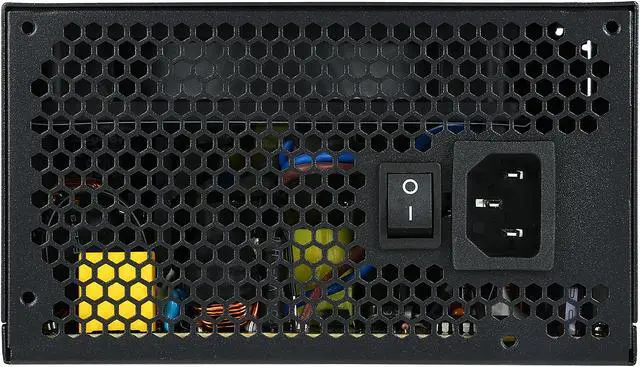

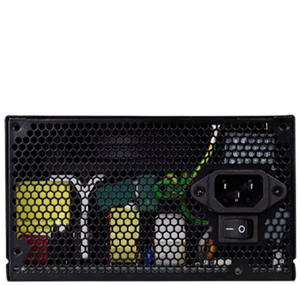

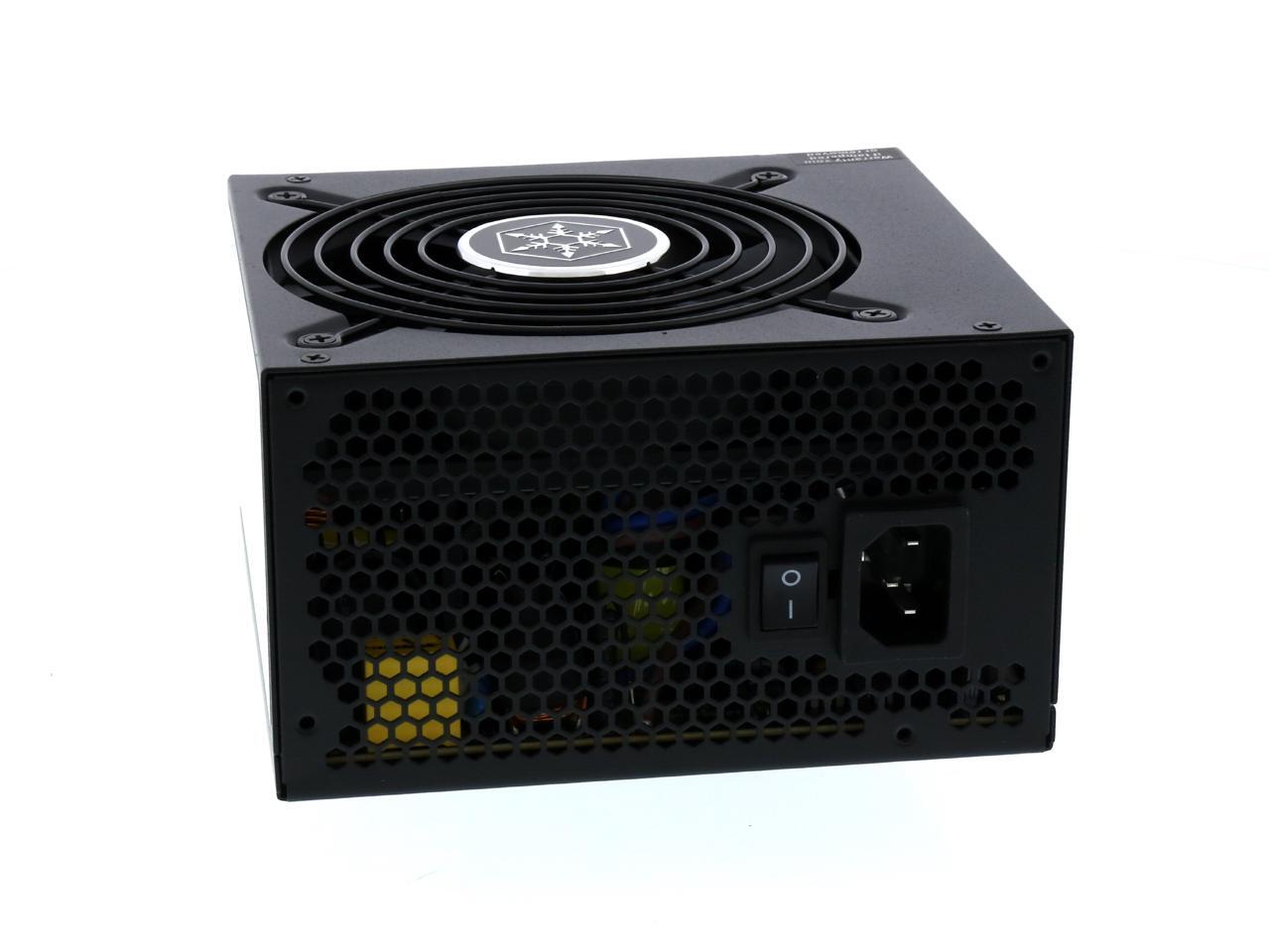

Rear view
Specifications

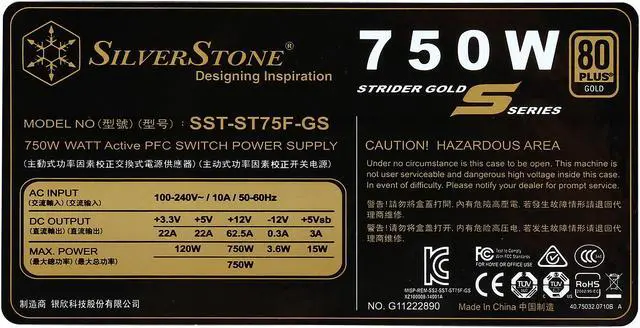

| Model No. | SST-ST75F-GS | ||||
| Max. DC Output | 750W (Peak 800W) | ||||
| Load Range | |||||
| Rail | +3.3V | +5V | +12V | +5VSB | -12V |
| Max. (Amps) | 22A | 25A | 62A | 3.5A | 0.3A |
| Min. (Amps) | 0.5A | 0.3A | 1A | 0.1A | 0A |
| Range (%) | ±3% | ±3% | ±3% | ±5% | ±10% |
| Line Reg. (%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple (mVp-p) | 50mV | 50mV | 120mV | 50mV | 120mV |
| Combined +3.3, +5V | 150W | ||||
| Combined +12V | 744W | ||||
| Input Voltage | 90V ~ 264V | ||||
| Input Frequency Range | 47Hz - 63HzW | ||||
| PFC | Active PFC. (PF>0.95 at Full Load) | ||||
| Efficiency | 88% - 91% at 20% - 100% loading | ||||
| MTBF | 100,000 hours | ||||
| Operating Temperature | 32 - 104°F (0 - 40°C) | ||||
| Protection | Over current protection Over power protection Over voltage protection Over Temperature Protection Under voltage protection Short circuit protection |
||||
| Connectors | 1 x 24 / 20-Pin motherboard connector (550mm) 1 x 8 / 4-Pin EPS / ATX 12V connector (750mm) 1 x 8 / 4-Pin EPS / ATX 12V connector (550mm) 4 x 8 / 6-Pin PCIE connector (550mm) 8 x SATA connector (600mm / 150mm / 150mm / 150mm x 2) 6 x 4-Pin Peripheral connector (600mm / 150mm / 150mm x 2) 2 x 4-Pin Aux. connector (600mm / 150mm / 150mm / 150mm x 2) |
||||
| Color | Black (lead-free paint) | ||||
| Cooling System | Single 120mm silent fan | ||||
| Noise Level | 18dBA minimum | ||||

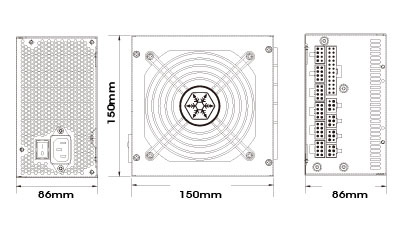

| Dimensions (W x H x D) | 6 x 3.3 x 6 inches (150 x 86 x 150mm) | ||||
| Weight | 5.5lbs (2.5kg) | ||||
| Form Factor | ATX | ||||
| Certification | 80 PLUS Gold | ||||
| Other | Haswell CPU support | ||||

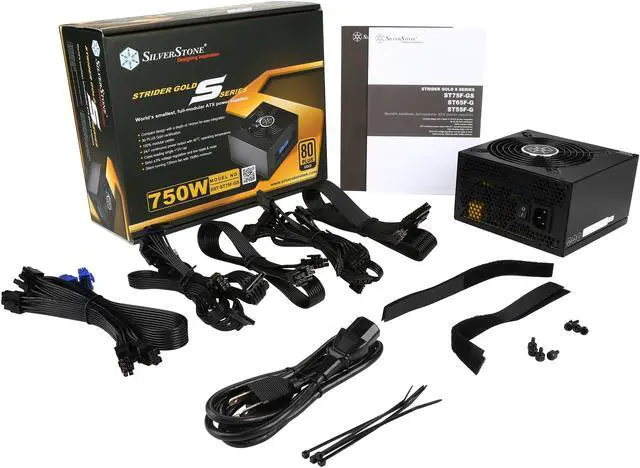

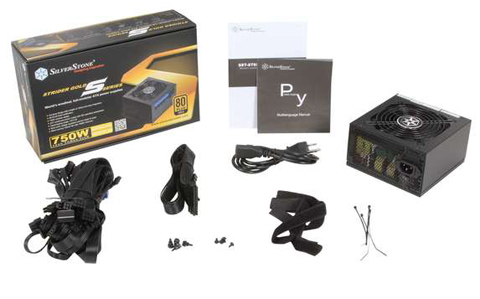

What's in the Box
