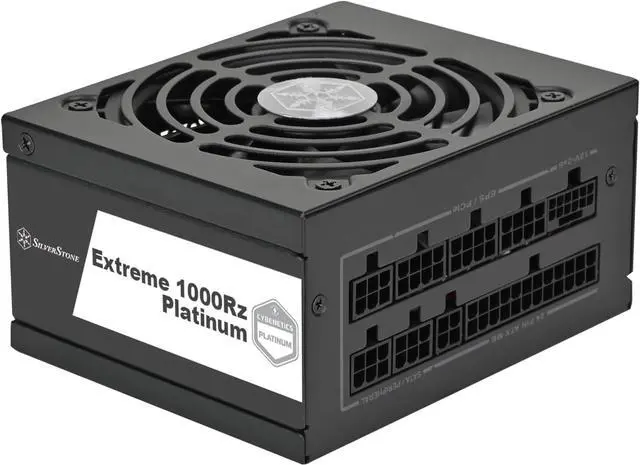

SilverStone SST-EX1000R-PM Cybenetics Platinum 1000W SFX 4 PCIe 5 Fully Modular Power Supply
- SFX form factor designed for the Small Form Factor (SFF) ecosystem.
- Equipped with Gen5 12V-2x6 PCIe connector, meeting Intel SFX12V V4.1 specification standard
- Cybenetics Platinum efficiency certification
- 24/7 continuous power output with 40° operating temperature
- Ultra-silent 92mm FDB fan with intelligent fan deactivation function
- Flexible embossed wire design
- Fully Modular design
- All Japanese electrolytic capacitors
+
+
Specs
Reviews
Learn more about the Silverstone SST-EX1000R-PM
| Brand | SilverStone |
|---|---|
| Model | SST-EX1000R-PM |
| Color | Black |
|---|---|
| Type | SFX |
| Maximum Power | 1000 W |
| Fans | Silent 92mm FDB fan |
| PFC | Active |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 4 x 6+2-Pin |
| SATA Power Connector | 8 |
| Max PSU Length | 125 mm |
| Modular | Full Modular |
| Efficiency | >=89% & <91% overall efficiency |
| Energy-Efficient | Cybenetics Platinum |
| Over Voltage Protection | Yes |
| Protection | Over Current Protection Over Power Protection Over Voltage Protection Short Circuit Protection Over Temperature Protection Under Voltage Protection |
| Input Voltage | 90 - 264 V |
| Input Frequency Range | 47 - 63 Hz |

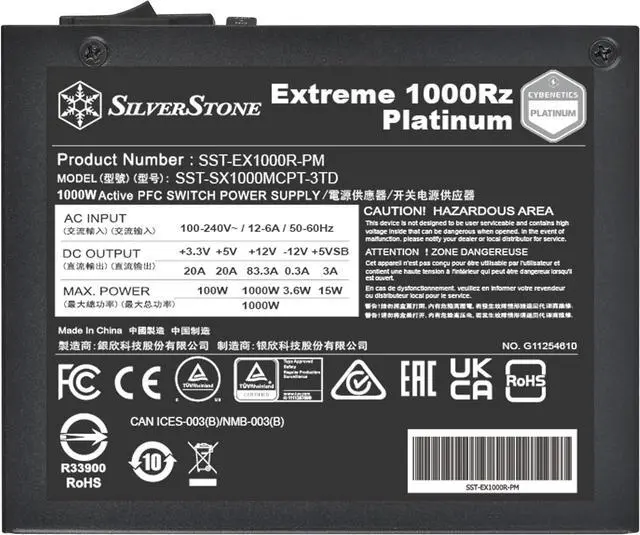

| Output | +3.3V@20A, +5V@20A, [email protected], [email protected], [email protected] |
| MTBF | 100,000 hours |
| Connectors | 1 x 24 / 20-Pin motherboard connector 2 x 8 / 4-Pin EPS / ATX 12V connector 4 x 8 / 6-Pin PCIe connectors 1 x 12+4-Pin 12V-2x6 connector 8 x SATA connectors 3 x 4-Pin Peripheral connector 1 x 4-Pin Floppy connector |
| Features | SFX form factor designed for the Small Form Factor (SFF) ecosystem Equipped with Gen5 12V-2x6 PCIe connector, meeting Intel SFX12V V4.1 specification standard Cybenetics Platinum efficiency certification 24/7 continuous power output with 40° operating temperature Ultra-silent 92mm FDB fan with intelligent fan deactivation function Flexible embossed wire design Fully Modular design All Japanese electrolytic capacitors |
|---|
| Dimensions | 4.92'' x 3.93'' x 2.50'' |
|---|---|
| Weight | 2.89 lbs. |
| First Listed on Newegg | April 23, 2026 |
|---|
