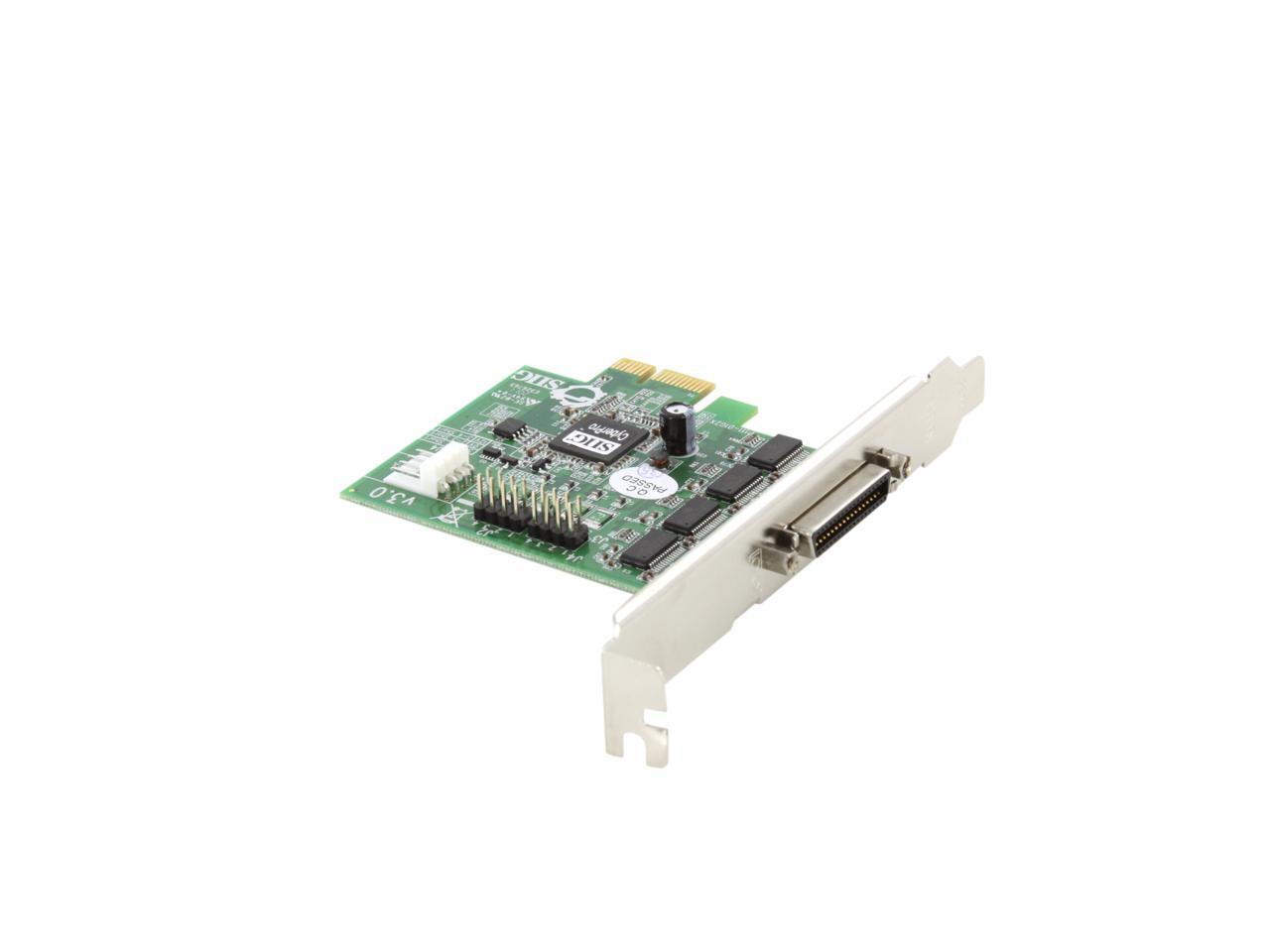

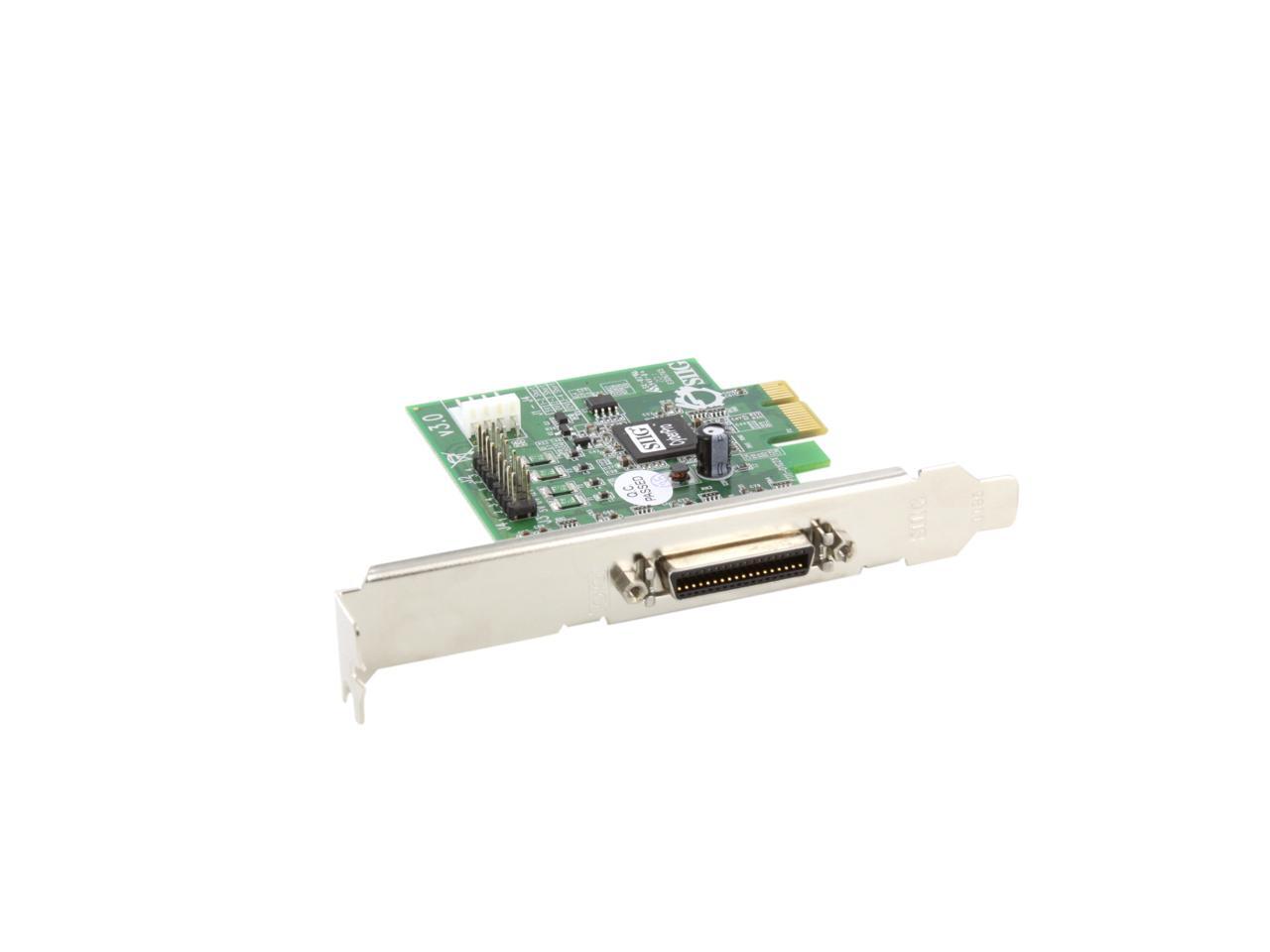

Main image of SIIG 4-Port Serial PCI Express Card Model JJ-E40011-S3

100%

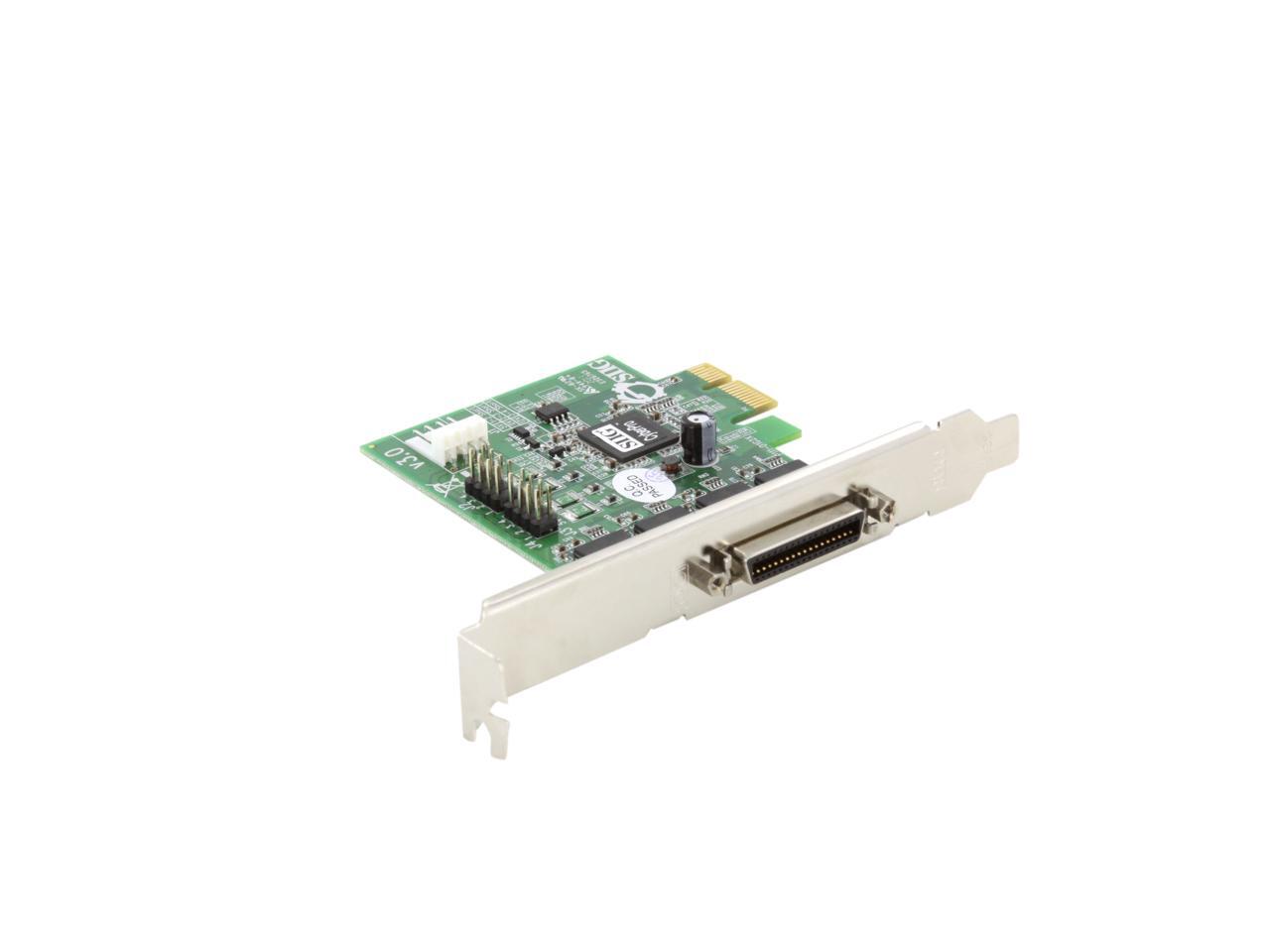

Alt view image 2 of 5 - SIIG 4-Port Serial PCI Express Card Model JJ-E40011-S3

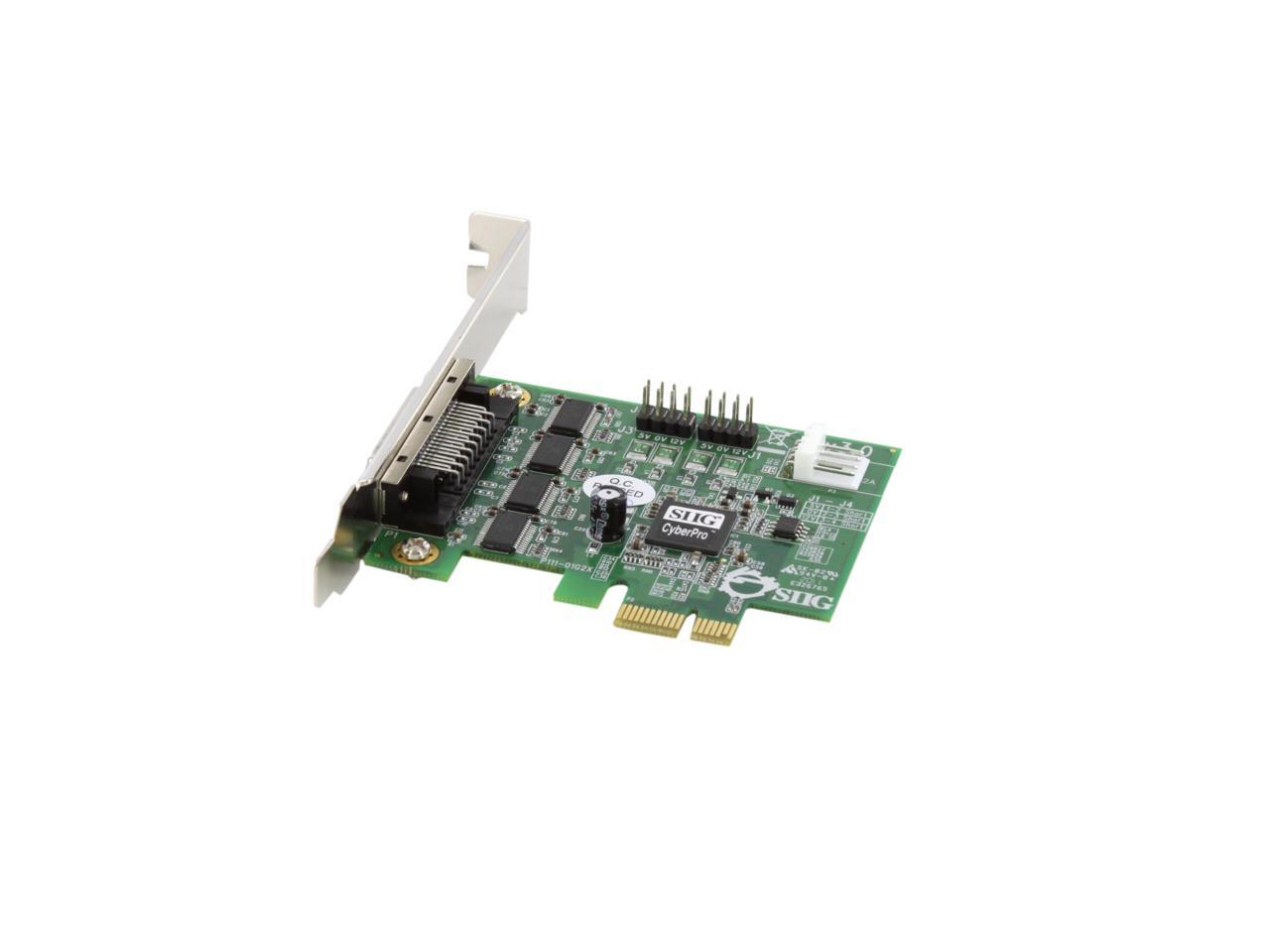

Alt view image 3 of 5 - SIIG 4-Port Serial PCI Express Card Model JJ-E40011-S3

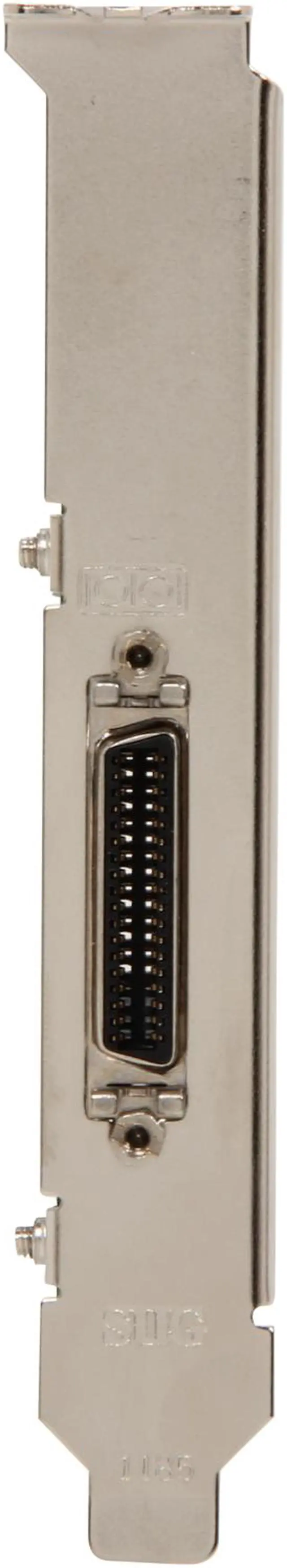

Alt view image 4 of 5 - SIIG 4-Port Serial PCI Express Card Model JJ-E40011-S3

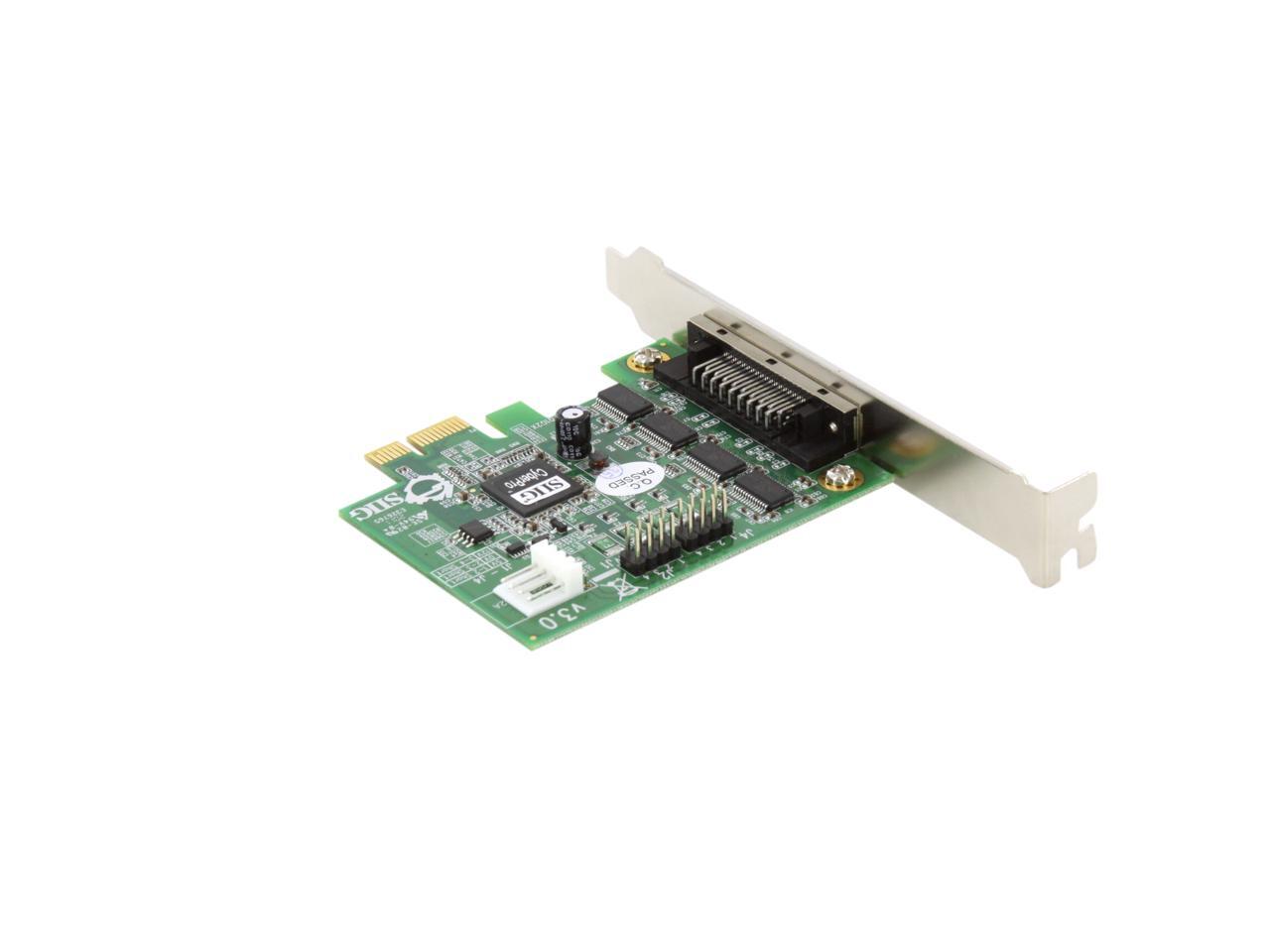

Alt view image 5 of 5 - SIIG 4-Port Serial PCI Express Card Model JJ-E40011-S3

360^°

Shop All SIIG, Inc Products

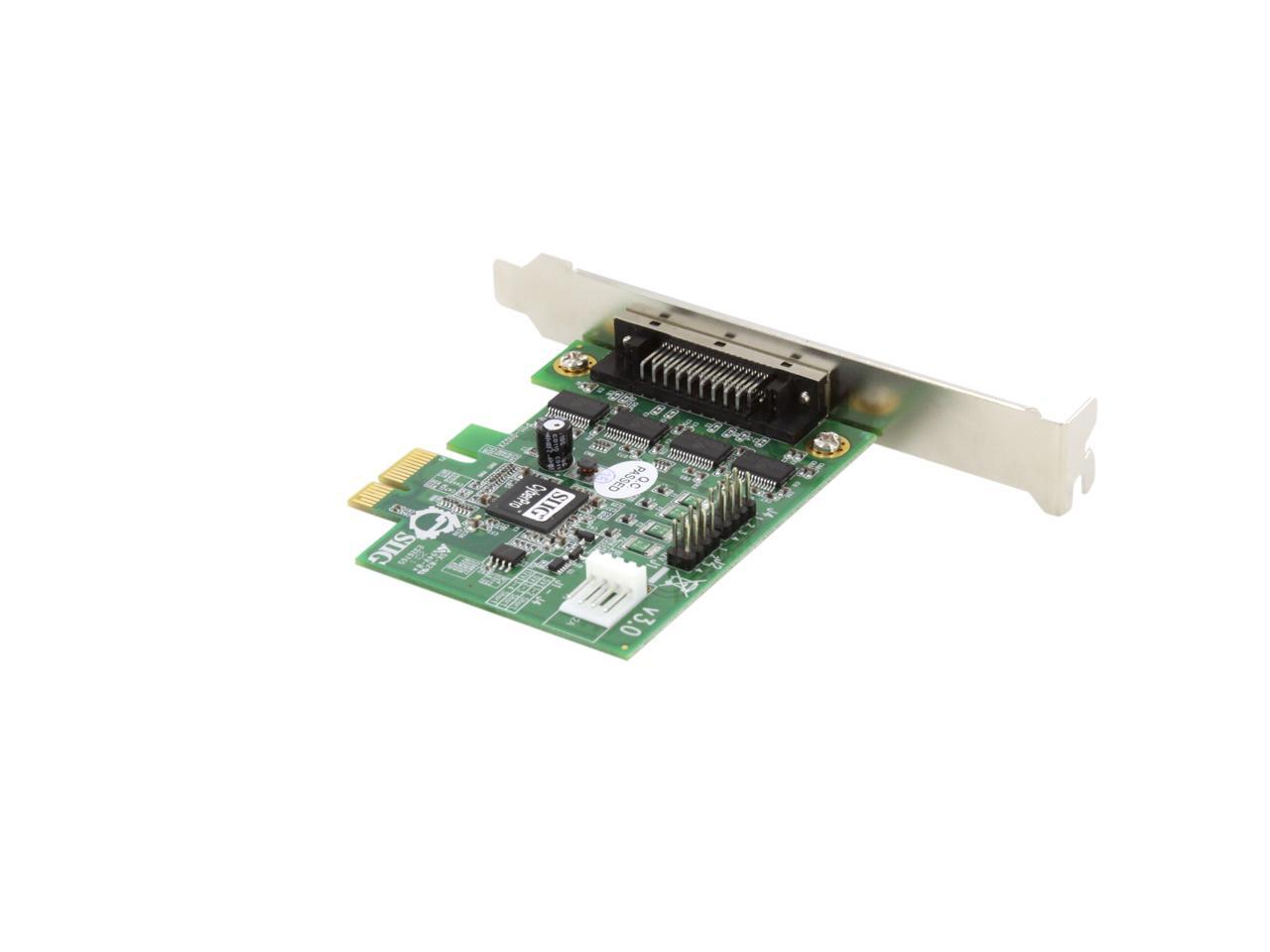

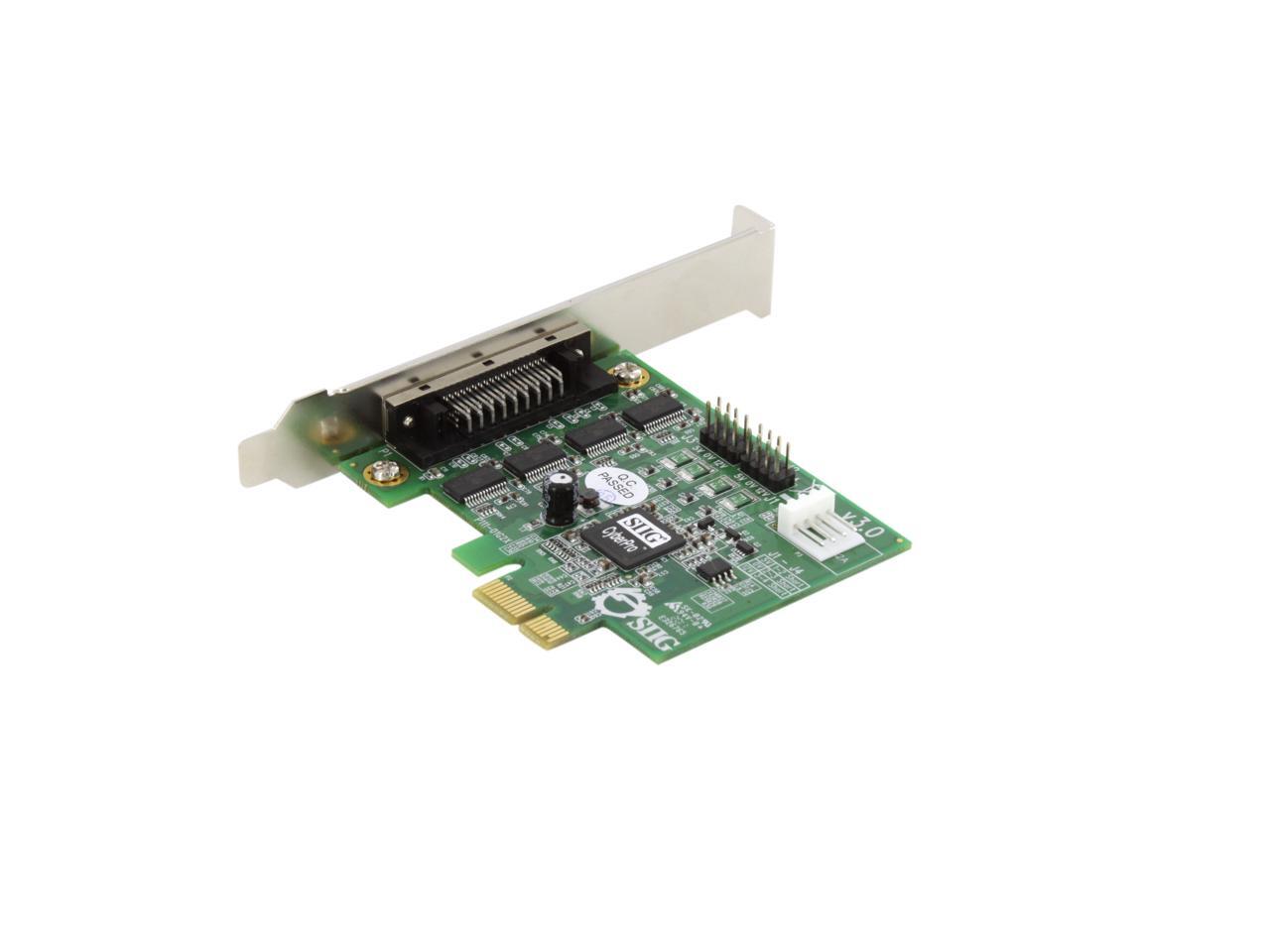

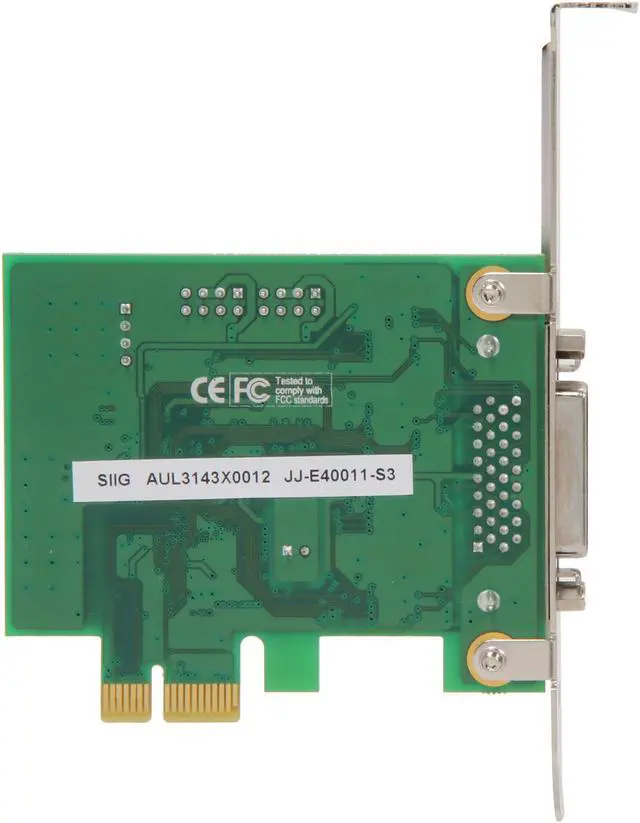

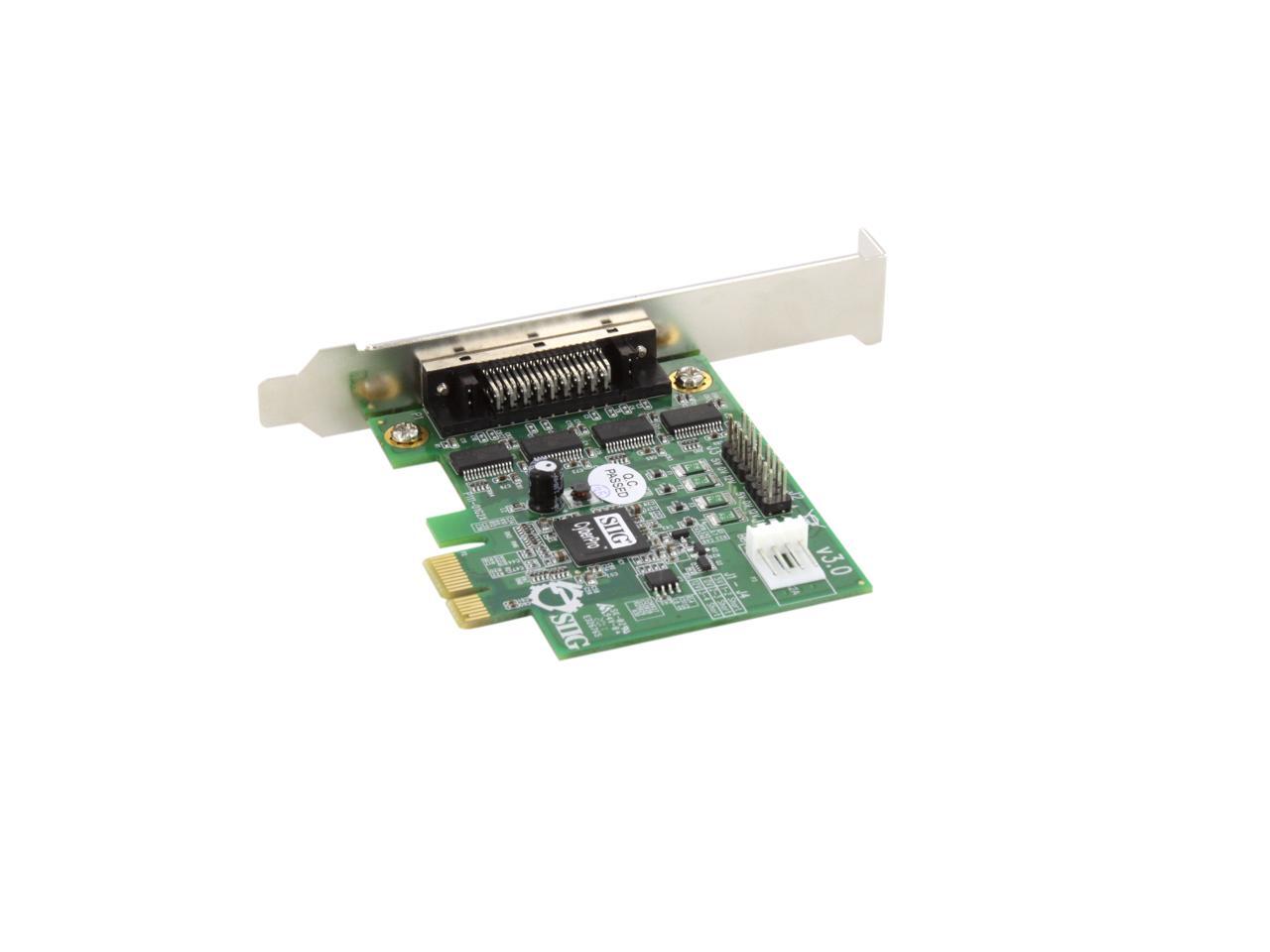

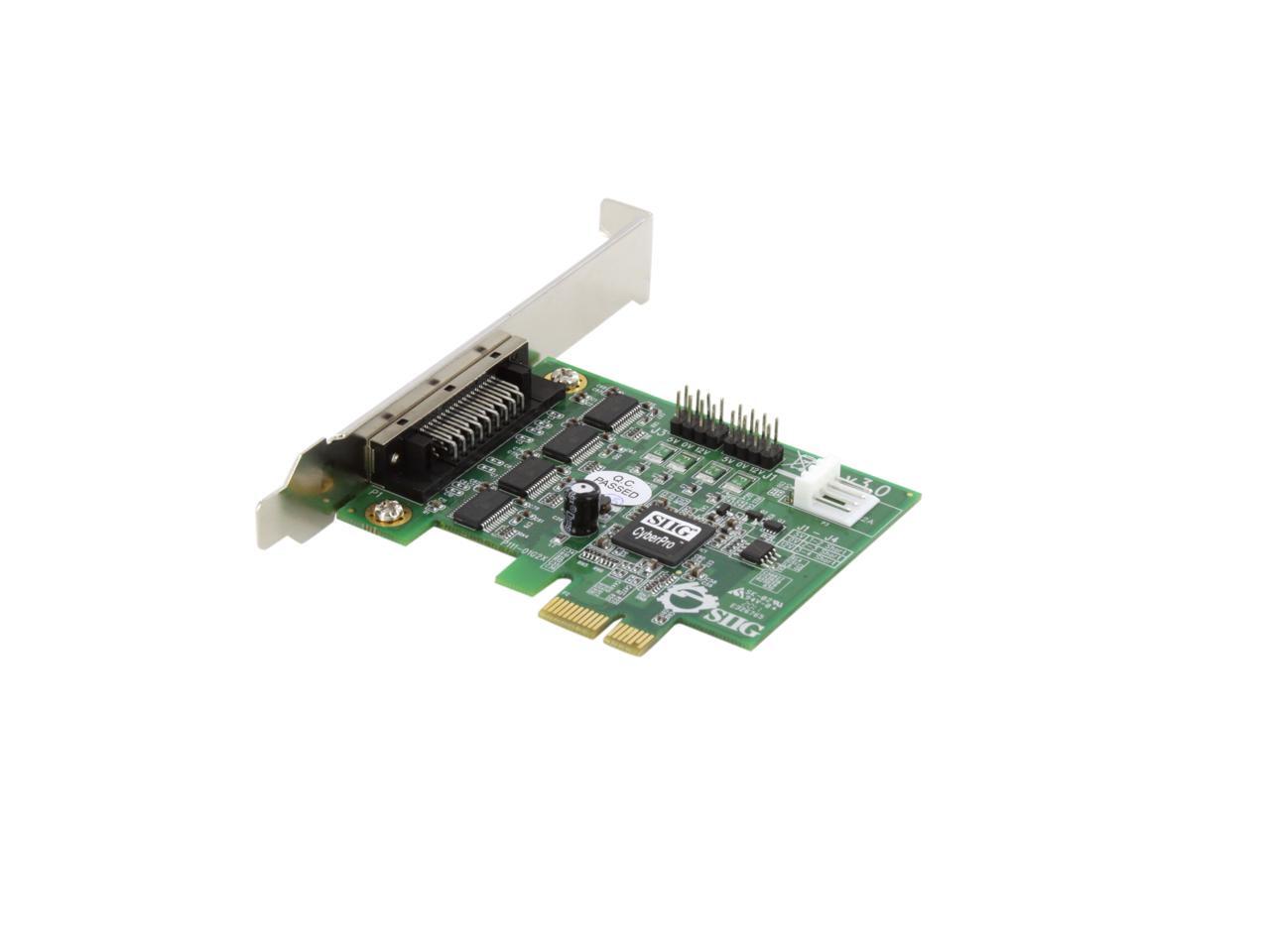

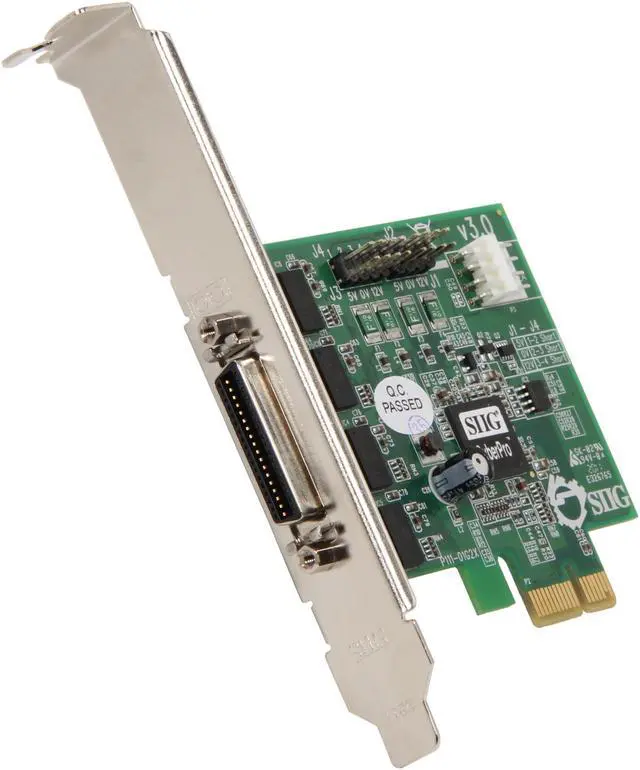

SIIG 4-Port Serial PCI Express Card Model JJ-E40011-S3

Be the first to review this product...

PCI Express to Serial Port Card
4 x Serial Ports
4-layer PCB board

Overview

Specs

Reviews

DP CyberSerial 4-port Serial Adapter works with PCI Express slots with different lane width. Installs in any available PCI Express slot. Four high-speed 16950 UART serial ports (9-pin) support data rate up to 920Kbps.

Model
Brand	SIIG
Model	JJ-E40011-S3

Details
Type	PCI Express to Serial Port Card
External Ports	4 x Serial Ports
Operating Systems Supported	Windows 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / 2000
Specifications	Regulatory approval(s): FCC Class B (DoC) & CE RoHS-compliant Chipset: SIIG CyberPro, V3.0 (Oxford OxPCIe954) Built-in 128-byte FIFO buffers dramatically increase data transmit/receive speed, especially under Windows multitasking environment 4-layer PCB board: separate layers for data & grounding. Greatly reduces signal noise & loss. Delivers more reliable high-speed data transfers Enhanced bracket design to prevent bending. Connected to PCB with washered screws for a more secure connection

Features

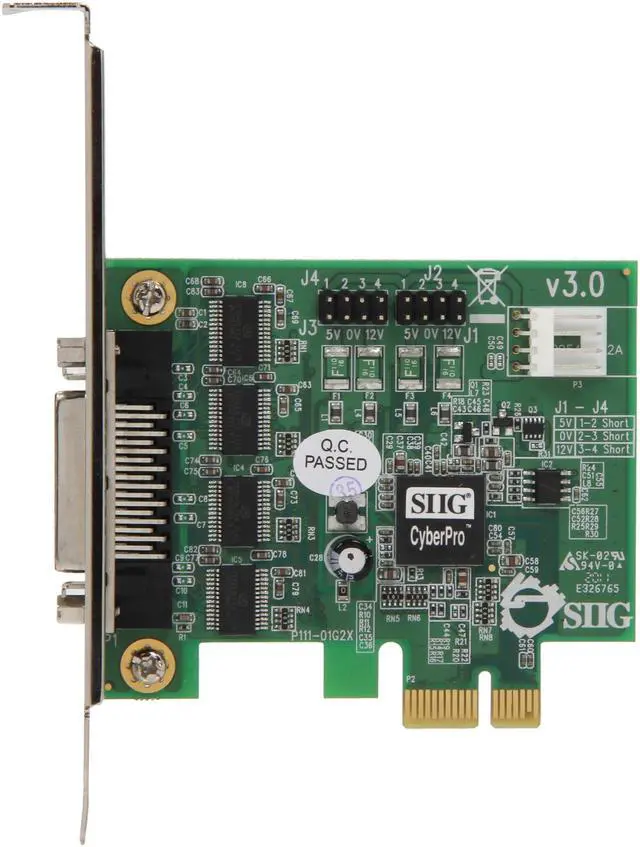

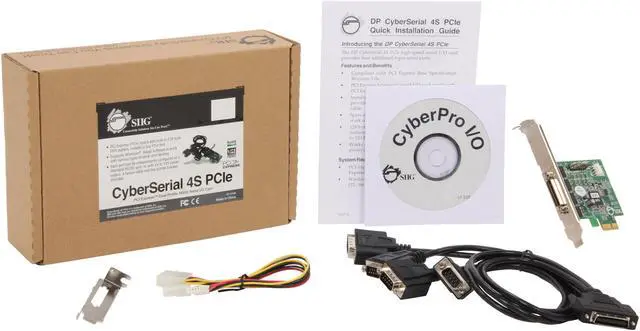

Features	PCI Express 1-lane (x1) adapter works with PCI Express slots with different lane width Installs in any available PCI Express slot Four high-speed 16950 UART serial ports (9-pin) support data rate up to 920Kbps Works as standard RS232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays, etc.). Configurable via jumpers with silk-screened settings on PCB Spare enhanced low profile bracket is included to work in low profile chassis

Additional Information
First Listed on Newegg	August 16, 2011
