Sharp PN-L501C 50" AQUOS BOARD Full HD Interactive Display System for Classrooms and Meeting Rooms, 10-point Capacitive Touch, 400nit, Edge-lit

Be the first to review this product...

With its 10-point multi-touch functionality & high-sensitivity capacitive touch technology for a precise & smooth pen operation, the SHARP AQUOS BOARD PN-L501C interactive display shines in a variety of roles & locations

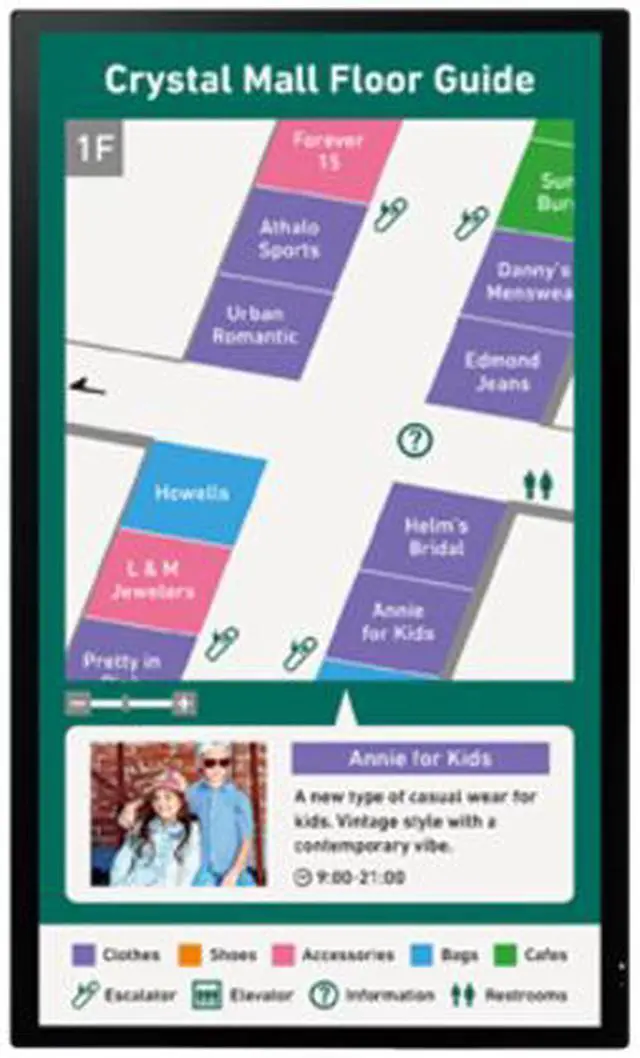

Whether installed face-up or in a landscape or portrait orientation, it excels as an interactive information interface
Not only is it a powerful meeting tool, it can also be used to engage & inform people in stores, museums, showrooms & other public spaces
SHARP Display Connect Software Included for Easy Connectivity w/ Mobile Devices
SHARP Touch Viewer Software provides Easy Manipulation of Multiple File Types (Available for download via included download application)
Enhanced Writing Surface w/ Improved Fingerprint & Glare Resistance
Crestron Connected Compatibility
Built-In 10W per Channel Stereo Audio System
Intel Mini-OPS Expansion Slot supports the optional PN-ZB03H HDBaseT™ 2.0, PN-ZB03W Wireless Expansion, and PN-ZB03AO Computing Boards

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews

MAIN OVERVIEW FEATURES: Viewable Screen Size: 49.5"Screen Mode: Full HDAspect Ratio: 16:9Backlight Technology: LEDMaximum Resolution: 1920 x 1080Speakers: YesTouchscreen Type: CapacitiveMulti-touch Screen: YesUSB: YesDisplayPort: YesVESA Mount Compatible: YesPackage Contents: PN-L501C Touchscreen LCD Monitor 1 x Passive Pen Limited Warranty: 3 Year

Touchscreen Type	Projected Capacitive
Panel	TFT LCD
Screen Size	50"
Display Type	FHD
Maximum Resolution	1920 x 1080
Resolution	1920 x 1080
Viewing Angle	178° (H) / 178° (V)
Pixel Pitch	0.571mm x 0.571mm
Display Colors	16.77 Million
Brightness	400 cd/m2
Contrast Ratio	5000:1
Response Time	9.5ms (grey to grey, avg.)

Touchscreen Interface	USB
Connectors	Input Terminals PC analog: 2 x HDMI (HDCP and 1080p compatible, PC/AV signal compatible), DisplayPort (HDCP compatible, 1 x PC signal compatible), 1 x 3.5 mm-diameter mini stereo jack, 1 x RS-232C Output Terminals 1 x 3.5 mm-diameter mini stereo jack
D-Sub	1 x Mini D-sub 15-pin

Power Supply	100V – 240V AC, 50/60 Hz
Power Consumption	89W

Built-in Speakers	Yes
VESA Compatibility - Mountable	200 x 200mm
Features	Active Screen Area (W x H) (approx.): 43.13" x 24.25" Backlight: LED, edge lit Touch Technology: Capacitive touch PC Connection Port: USB (2.0 compliant) (Type B) x 1 Power Supply: Supplied from main unit Multi Touch: 10 points Protection Glass Thickness: approx. 3.2mm Shock resistance: 130 cm Computer Input Video: Analog RGB (0.7 Vp-p) [75O], HDMI, DisplayPort Synchronization: Horizontal/vertical separation (TTL: positive/negative) Plug & Play: VESA DDC2B Power Management: VESA DPMS Environmental Conditions Operating Temperature: 5 degree C to 35 degree C Operating Humidity: 20% to 80% RH (no condensation)

Dimensions	21.50" x 36.94" x 2.56"
Weight	38.60 lbs.
