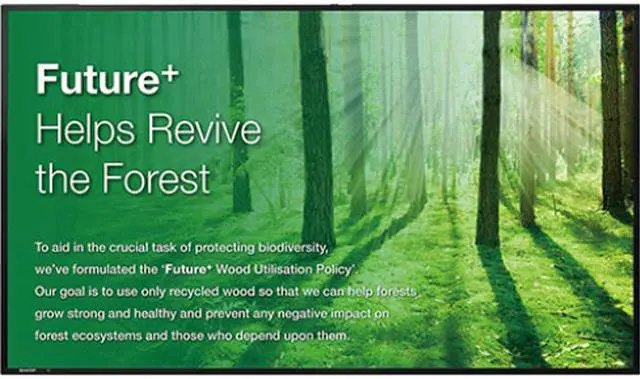

Sharp PN-E703 70" Full HD Slimline Professional LED Commercial Display
- 70", 1920 x 1080, 450nit, Edge-lit
- Combines full-HD image quality, stylishly thin profiles and energy efficiency to create appealing professional signage solutions for a wide range of applications
- With their sleek design, around-the-clock operation, and support for landscape and portrait installations, these displays offer an amazing degree of flexibility
- In hotel lobbies, conference rooms, retail spaces and elsewhere, the PN-E703 will grab and keep the attention of your target audience
- Panels incorporate Sharp’s UV2A technology, which prevents light leakage and ensures highly efficient use of light from the backlight
- Streamlined for a pleasing appearance and minimal protruding parts, these displays measure just 1 9 /16" at their thickest point and weigh only 94.8 lbs/70.5 lbs, making for easy placement in offices, public spaces, stores, and other commercial establishments
Overview
Specs
Reviews
Slimline LED Displays
That Meet Diverse Signage Needs
That Meet Diverse Signage Needs
These 70-inch-class (69.5" diagonal) and 60-inch-class (60.1" diagonal) Sharp monitors combine full-HD image quality, stylishly thin profiles and energy efficiency to create appealing professional signage solutions for a wide range of applications. With their sleek design, around-the-clock operation, and support for landscape and portrait installations, these displays offer an amazing degree of flexibility. In hotel lobbies, conference rooms, retail spaces and elsewhere, the PN-E703/E603 will grab and keep the attention of your target audience.
Superb Image Quality
PN-E703/E603 LCD panels incorporate Sharp’s UV2A* technology, which prevents light leakage and ensures highly efficient use of light from the backlight. Thanks to this technology, the monitors achieve truly bright whites and extremely deep blacks. Both models support full-HD (1080p) resolution, for beautifully clear rendering of detailed text and graphics.
* UV2A stands for Ultraviolet-induced Multi-domain Vertical Alignment, a photo-alignment technology that ensures uniform alignment of liquid crystal molecules.
NeedsThin, Lightweight Design
DesignPN-E703/E603 monitors owe their exceptionally thin profiles to edge-lit LED backlighting. Streamlined for a pleasing appearance and minimal protruding parts, these monitors measure just 1 9/16" at their thickest point and weigh only 94.8 lbs / 70.5 lbs, making for easy placement in offices, public spaces, stores, and other commercial establishments.
Choice of Installation Mode
ModePN-E703/E603 monitors offer a choice of landscape or portrait installation, allowing customers to select the mode that best suits their display content and application. While portrait installation offers the look and impact of a poster, landscape installation puts wide images on vivid display.
The Reliability of 24/7 Operation
Built solid and durable, PN-E703/E603 monitors are ideal for use in 24-hour stores and in other demanding professional applications that require around-the-clock operation seven days a week.
Dual-Screen Display
PiP (Picture-in-Picture) mode allows an AV-sourced image to be displayed within a PC-sourced one (or vice versa), whereas PbyP (Picture-by-Picture) mode puts images from AV and PC sources side by side for split-screen viewing.
Mirror Display Mode (Daisy Chain*)
Mirror Display mode enables the same onscreen content to be displayed on a series of daisy chained PN-E703/E603 monitors. This function can be used to reinforce advertising messages in public spaces or to facilitate communications in large office or conference settings.
* The number of monitors possible in a daisy chain varies depending on the connection method: Up to 25 (for non-HDCP-encoded content) or 4 (for HDCP-encoded content) via DisplayPort; or up to 5 (for HDCP-encoded content) via DVI.
Designed for Energy Efficiency
Edge-lit LED backlighting on the PN-E703/E603 monitors helps ensure reliable performance with low power consumption. Compared to a traditional CCFL-backlight display*, the PN-E703 consumes roughly 44% less energy and the PN-E603 consumes 55% less. What’s more, the PN-E603 also conforms to the ENERGY STAR® program.
Dimensions
Units: inch (mm)
* Screen dimensions * To use the VESA-standard mounting bracket, use M6 screws that are 8 to 10 mm plus the thickness of the bracket.
Input/Output Terminals
Specifications
| Model Name | PN-E703 | PN-E603 | |
| Installation | Landscape / Portrait | ||
|---|---|---|---|
| LCD Panel |
70-inch-class widescreen (69.5" diagonal) UV2A LCD |
60-inch-class widescreen (60.1" diagonal) UV2A LCD |
|
| Max. Resolution | 1,920 x 1,080 pixels | ||
| Max. Display Colors (approx.) | 1.06 billion colors0. | ||
|
Pixel Pitch (H x V) |
0.802 x 0.802 mm | 0.692 x 0.692 mm | |
| Max. Brightness | 450 cd/m2 | ||
| Contrast Ratio | 4,000 : 1 | ||
| Viewing Angle (H/V) | 176°/176° (CR 10) | ||
|
Active Screen Area (W x H) |
60 9/16" x 34 1/16" | 52 5/16" x 29 7/16" | |
| Response Time | 6 ms (grey to grey, avg.) | ||
| Backlight | LED, edge lit | ||
| Computer Input | Video | Analog RGB (0.7 Vp-p) [75O], Digital (conforms to DVI 1.0 standards), DisplayPort x 1 | |
| Synchronization | Horizontal/vertical separation (TTL: positive/negative), Sync on green, Composite sync (TTL: positive/negative) | ||
| Plug & Play | VESA DDC2B | ||
| Power Management | VESA DPMS, DVI DMPM | ||
| Video Color System | NTSC (3.58 MHz, 4.43 MHz), PAL, PAL60, SECAM | ||
| Input Terminals | DisplayPort x 1, DVI-I x 1, Mini D-sub 15-pin x 1, HDMI x 2, 3.5 mm-diameter mini stereo jack x 2, RS-232C x 1 | ||
| Output Terminals | DisplayPort x 1 (supports video signals only), DVI-D x 1, 3.5 mm-diameter mini stereo jack x 1, RS-232C x 1 | ||
| Input/Output Terminals | LAN port x 1 | ||
| Speaker Output | 10 W + 10 W | ||
| Power Supply | 100V – 240V AC, 50/60 Hz | ||
| Power Consumption | 225 W | 180 W | |
| Environmental Conditions | Operating Temperature | 0°C to 40°C | |
| Operating Humidity | 20% to 80% RH (no condensation) | ||
|
Dimensions (W x D x H) (approx.) (display only) |
62 1/8" x 1 9/16" x 36 1/16" | 54 1/4" x 1 9/16" x 31 1/4" | |
| Weight (approx.) | 94.8 lbs | 70.5 lbs27 | |
