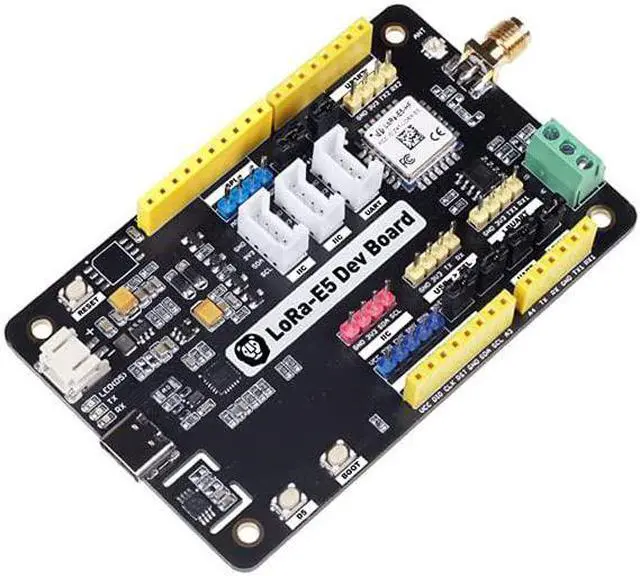

Seeed Studio LoRa-E5 Development Kit - Based on LoRa-E5 STM32WLE5JC, LoRaWAN Protocol and Worldwide Frequency Supported.

LoRa-E5 Dev Board features an ultra-long transmitting range, extremely low chip power consumption, and user-friendly interfaces.
LoRa-E5 Dev Board has a long-distance transmission range of LoRa-E5 up to 10km in an open area. The sleep current of LoRa-E5 modules on board is as low as 2.1 uA(WOR mode). It is designed with industrial standards with a wide working temperature at -40 ~ 85, high sensitivity between -116.5 dBm ~ -136 dBm, and power output up to +20.8dBm at 3.3V.

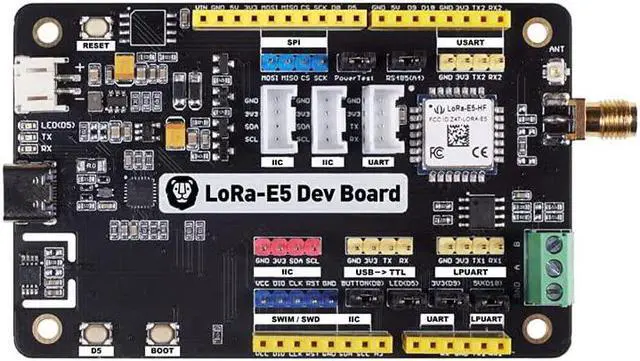

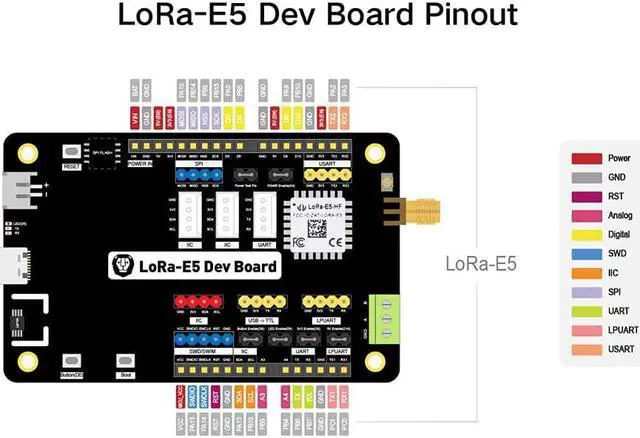

LoRa-E5 Dev Board also has rich interfaces. Developed to unlock the full functionality of the LoRa-E5 module, LoRa-E5 Dev Board has led out full 28 pins of LoRa-E5 and provides with rich interfaces including Grove connectors, RS-485 terminal, male/female pin headers for you to connect sensors and modules with different connectors and data protocols, saving your time on wire soldering. You could also easily power the board by connecting the battery holder with 2 AA batteries, enabling temporary use when lacking an external power source. It is a user-friendly board for easy testing and rapid prototyping.
Since LoRa-E5 is a LoRaWAN chip with an MCU, there are three main ways to utilize the LoRa-E5 Dev Board:
1. Connect LoRa-E5 Dev Board to PC via USB and control by AT commands
There is a built-in USB to UART function on board, you could just simply connect the LoRa-E5 Dev Board to your PC with a USB type C cable, and use serial communication software to send AT commands and read data from the board
2. Connect LoRa-E5 Dev Board to another mainboard via UART and control by AT commands
For example, connect LoRa-E5 Dev Board to Seeeduino XIAO and the Expansion Board via UART, and send AT commands and read data from Seeeduino XIAO through Arduino IDE serial monitor.
3. Develop user application by using SDK
Develop your own LoRa development board with MCU function by using STM32Cube Programmer, which is the SDK officially provided by STMicroelectronics. To download this SDK resource, please find the resources in learning and document down below.
With all the outstanding features listed above, the LoRa-E5 Dev Board will be a superior choice for IoT device development, testing, prototyping, and applications in long-distance, ultra-low power consumption IoT scenarios like smart agriculture, smart office, and smart industry.
Specification:
Size: LoRa-E5 Dev Board: 85.6*54mmPackage: 200*130*50mm
Voltage- supply: 3-5V (Battery) / 5V(USB Type C)
Voltage-output: EN 3V3 / 5V
Power-output: Up to +20.8dBm at 3.3V
Frequency: EU868 / US915 / AU915 / AS923 / KR920 / IN865
Protocol: LoRaWAN
Sensitivity: -116.5dBm ~ -136dBm

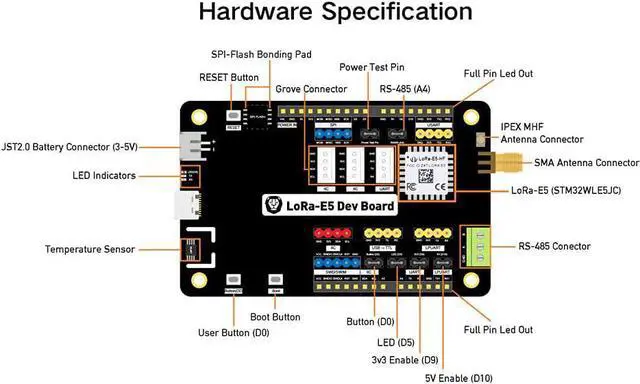

interfaces : USB Type C / JST2.0 / Grove*3(IIC*2/UART*1) / RS485 / SMA-K / IPEX
Modulation: LoRa, (G)FSK, (G)MSK, BPSK
working temperature: -40 ~ 85
Current: LoRa-E5 module sleep current as low as 2.1uA (WOR mode)

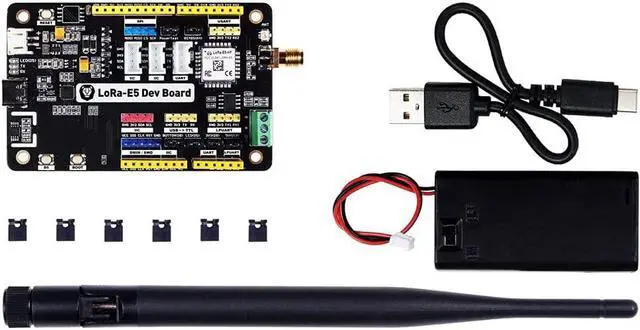

Part List:
LoRa-E5 Dev Board *1

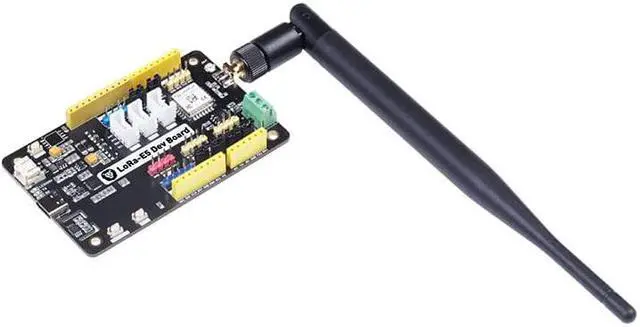

Antenna(EU868/US915) *1
USB TypeC (20cm) *1
2*AA 3V Battery Holder *1
