Seasonic SYNCRO DGC-750, 750W 80+ Gold Power Supply, CONNECT Module Cable Management, SSR-750FA2, Use Case Q704 with Psu Syncro DGC-650 / DGC-750 / DPC-850 to Create Unmatched User Experience

In stock.

Ships from United States.

Fees for brokerage and duty included in price.

Maximum Power: 750W

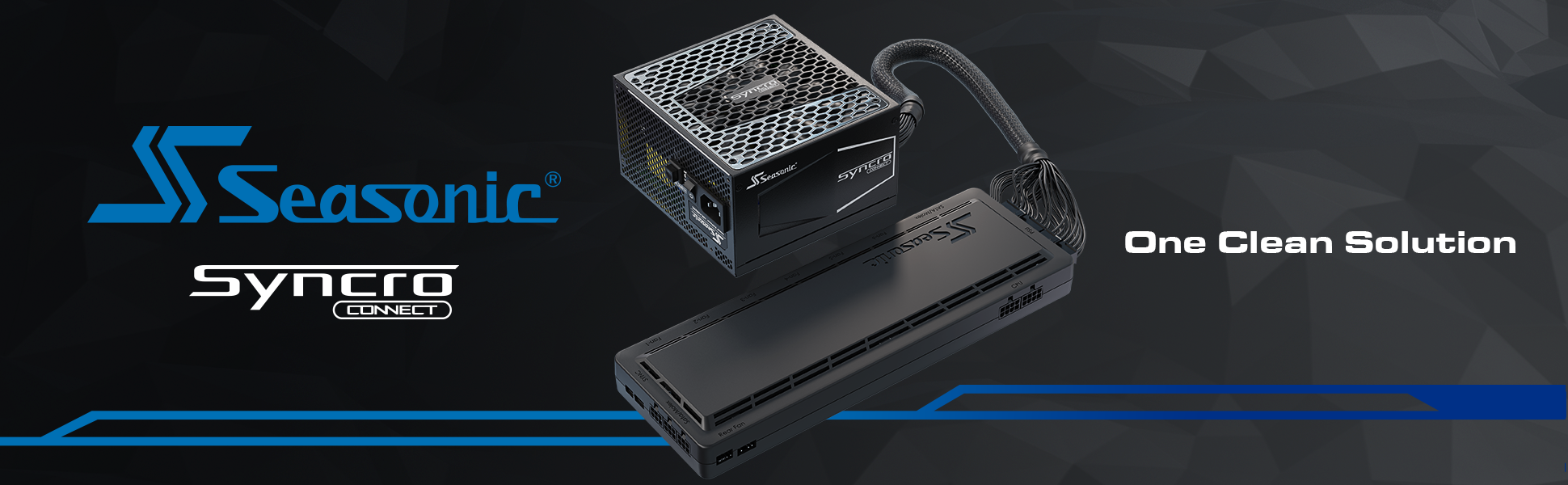

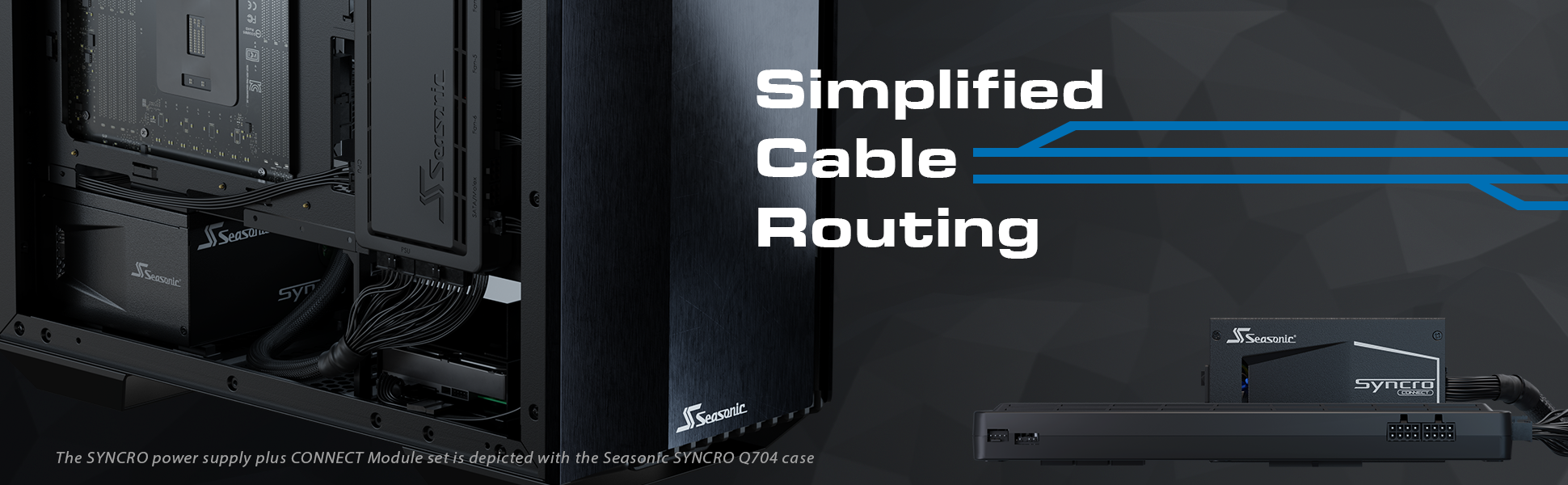

Seasonic CONNECT Module: The CONNECT Module provides a flexible solution to optimize cable management and reduce clutter inside the case. One Clean Solution to Increase Setup and Airflow Efficiency.
80 PLUS GOLD: Less energy gets wasted during power conversion; Cut down your electricity usage and be Eco-Friendly.
PREMIUM HYBRID FAN CONTROL: Unsurpassed silent performance in Fanless Mode. The fan control button at the back of the power supply allows users to customize cooling needs by selecting between Seasonic S2FC (fan control without Fanless Mode) and S3FC (fan control including Fanless Mode).
MICRO TOLERANCE LOAD REGULATION (under 0.5 %): This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.
10 YEAR WORRY-FREE WARRANTY: Our commitment to superior quality.
This product is not designed for most chassis. It is strongly recommended that end user use this with Seasonic Q704 case.

Overview

Specs

Reviews

Return for refund within: Non-refundable

Return for replacement within: 30 days

Brand	SeaSonic
Model	SYNCRO DGC-750

Type	ATX12V
Maximum Power	750W
Fans	1 x 135mm Fluid Dynamic Bearing Fan
PFC	Active
Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	2 x 6+2-Pin
SATA Power Connector	5
Modular	Full Modular
Energy-Efficient	80 PLUS GOLD Certified
Protection	OPP, OVP, UVP, OCP, OTP, SCP
Input Voltage	100 - 240 V
Input Frequency Range	50 - 60 Hz
Input Current	10 - 5 A
Output	+3.3V@20A, +5V@20A, +12V@62A, -12V@0.3A, +5VSB@3A
MTBF	>150,000 Hours
Approvals	cTUVus, TUV, CB, CCC, BSMI, EAC, CE Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Dimensions	Connect Module: 11.81" (L) x 4.15" (W) x 1.30" (H) PSU: 5.51" (L) x 5.91" (W) x 3.39" (H)
Max PSU Length	140 mm
Weight	6.37 lbs.

Connectors	1 x MB (24/20 pins) 2 x CPU (8/4 pins) 2 x PCIe (8/6 pins) 5 x SATA 3 x Molex 3 x PWM Sync 3 x ARGB Sync
Features	Seasonic CONNECT Module: The CONNECT Module provides a flexible solution to optimize cable management and reduce clutter inside the case. 80 PLUS GOLD: Less energy gets wasted during power conversion; Cut down your electricity usage and be Eco-Friendly PREMIUM HYBRID FAN CONTROL: Unsurpassed silent performance in Fanless Mode. The fan control button at the back of the power supply allows users to customize cooling needs by selecting between Seasonic S2FC (fan control without Fanless Mode) and S3FC (fan control including Fanless Mode). MICRO TOLERANCE LOAD REGULATION (under 0.5 %): This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems. 10 YEAR WORRY-FREE WARRANTY: Our commitment to superior quality. This product is not designed for most chassis. It is strongly recommended that end user use this with Seasonic Q704 case.
