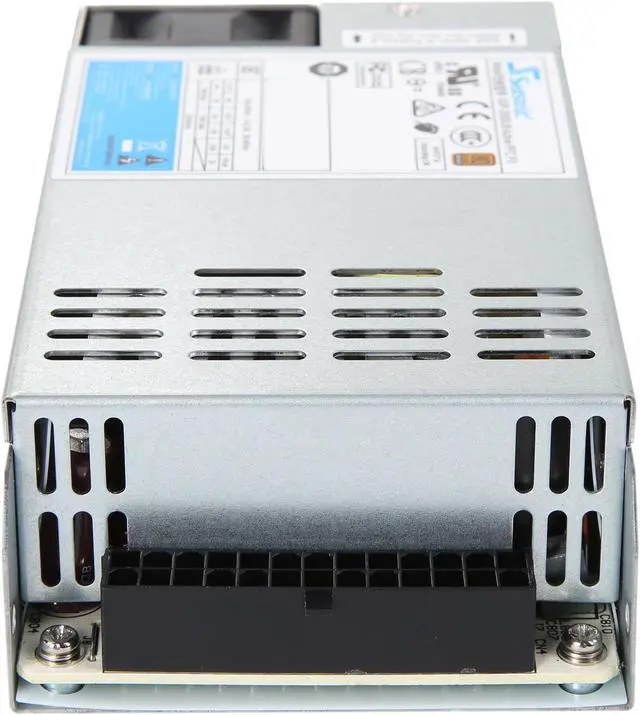

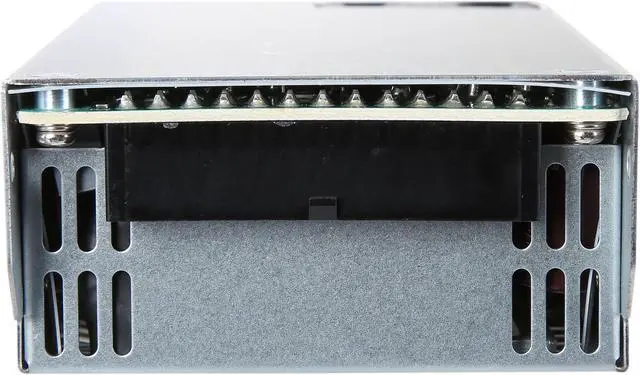

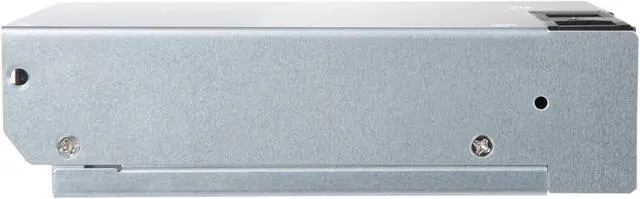

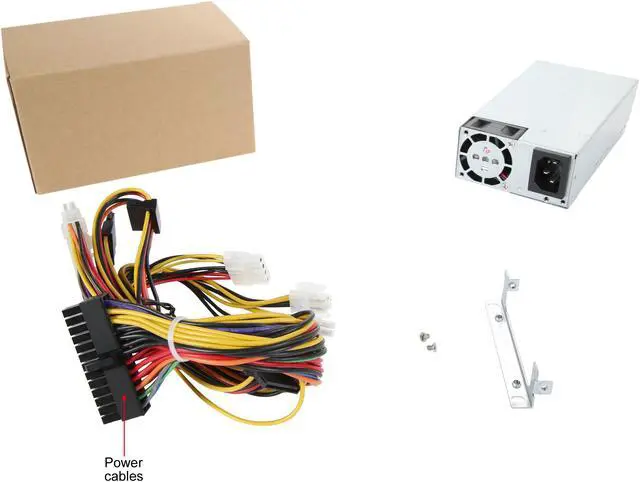

Seasonic SSP-250SUB Active PFC, 250W Flex/Mini 1U, Japanese Capacitor, Operating Temperature 0-50 degree C, 80+ Bronze, Extreme Silent Fanless Mode, Full Modular
- ATX12V Flex/Mini 1U
- Full Modular
- 80 PLUS BRONZE Certified
- 100 - 240 V 47 - 63 Hz
- +3.3V@14A, +5V@17A, +12V1@12A, +12V2@12A, [email protected], +5VSB@2A
Specs
Reviews (2)
Learn more about the SeaSonic USA SSP-250SUB
| Brand | SeaSonic |
|---|---|
| Series | Flex SUB |
| Model | SSP-250SUB |
| Type | ATX12V Flex/Mini 1U |
|---|---|
| Maximum Power | 250 W |
| Fans | 1 x 40 mm double ball bearing fan |
| PFC | Active |
| +12V Rails | 2 |
| Max PSU Length | 150 mm |
| Modular | Full Modular |
| Efficiency | 85% at normal input voltage |
| Energy-Efficient | 80 PLUS BRONZE Certified |
| Over Voltage Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 47 - 63 Hz |
| Input Current | Inrush current at cold start : 100 A max. |
| Output | +3.3V@14A, +5V@17A, +12V1@12A, +12V2@12A, [email protected], +5VSB@2A |
| MTBF | >100,000 Hours |
| Approvals | CB, UL/cUL, TUV, CCC, BSMI, EAC, CE, FCC, RCM |
| Connectors | Main Power ATX 12 V Peripherals: SATA, HDD |
| Features | SATA-ready Fully modular High efficiency and reliability Low ripple and noise Super low noise fan control Short circuit protection on all outputs Over voltage protection Over power protection Fanless Mode (up to 30% load) |
|---|
| Dimensions | 5.91" x 3.21" x 1.59" |
|---|
| First Listed on Newegg | January 22, 2018 |
|---|
