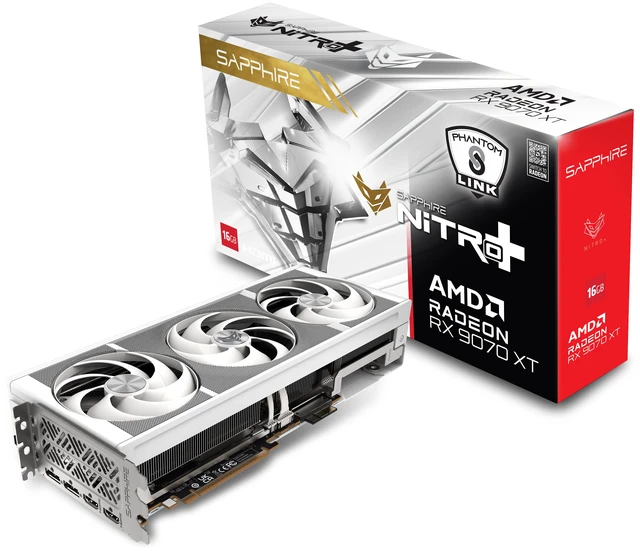

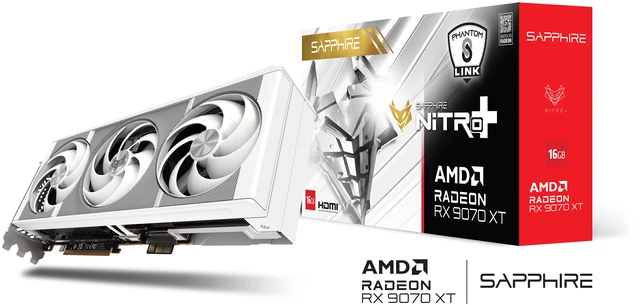

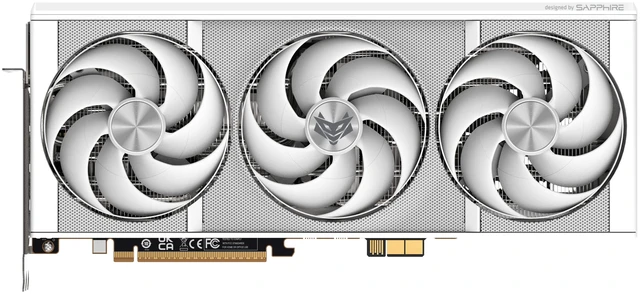

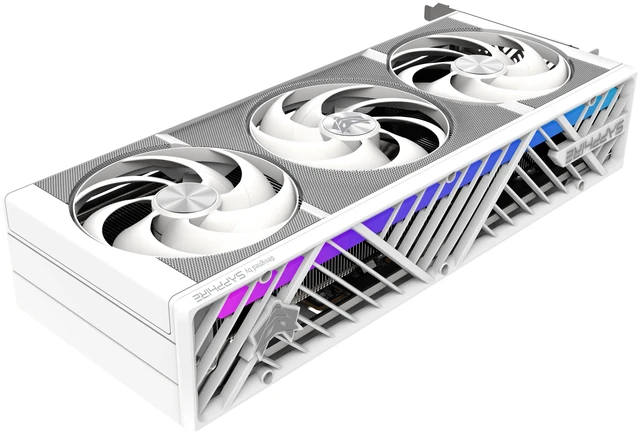

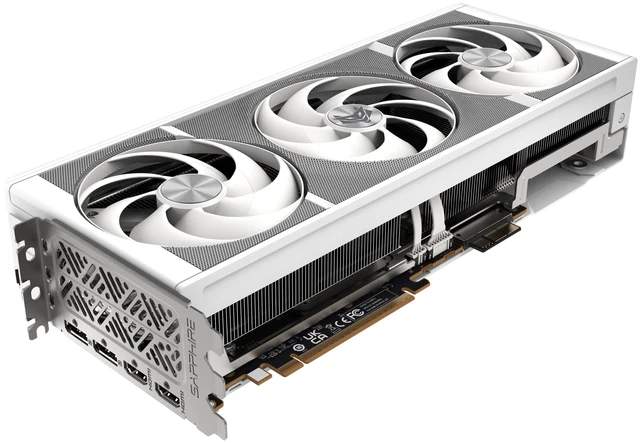

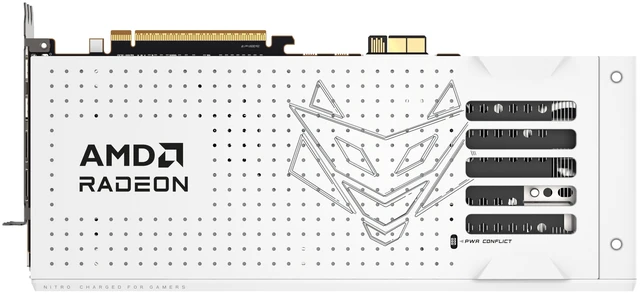

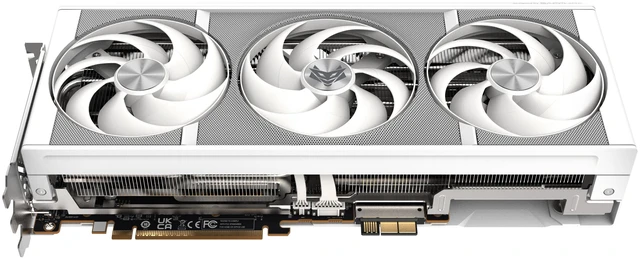

SAPPHIRE NITRO+ AMD Radeon RX 9070 XT OC PhantomLink Polar Edition GPU
- PhantomLink (GC-HPWR / BTF) Power Connector
- GPU: Boost Clock: Up to 3060 MHz
- GPU: Game Clock: Up to 2520 MHz
- Memory: 16GB/256 bit DDR6. 20 Gbps Effective
- Stream Processors: 4096
- AMD RDNA 4 Architecture
- Ray Accelerator: 64
+
+
Specs
Reviews
Learn more about the Sapphire Tech RX 9070 XT OC PhantomLink Polar Edition
| Brand | SAPPHIRE |
|---|---|
| Series | NITRO+ |
| Model | RX 9070 XT OC PhantomLink Polar Edition |
| Part Number | 11348-09-20G |
| Interface | PCI Express 5.0 x16 |
|---|
| Chipset Manufacturer | AMD |
|---|---|
| GPU Series | AMD Radeon RX 9000 Series |
| GPU | Radeon RX 9070 XT |
| Architecture | RDNA 4 |
| Game Clock | 2520 MHz |
| Boost Clock | 3060 MHz |
| Stream Processors | 4096 |
| Effective Memory Clock | 20000 MHz (20 Gbps) |
|---|---|
| Memory Size | 16GB |
| Memory Interface | 256-Bit |
| Memory Type | GDDR6 |
| DirectX | DirectX 12 Ultimate |
|---|
| Multi-Monitor Support | 4 |
|---|---|
| HDMI | 2 x HDMI 2.1b |
| DisplayPort | 2 x DisplayPort 2.1a |
| Color | Silver |
|---|---|
| Max Resolution | 7680 x 4320 |
| Cooler | Triple Fans |
| Operating Systems Supported | Linux, Windows 11. 64-bit operating system required |
| Thermal Design Power | 330W |
| Recommended PSU Wattage | 850W |
| Power Connector | 12V-2x6(H++) External Power Connector (3x8-pin power adapter is also included if your PC's Power Supply Unit does not have 12V-2x6) |
| Features | Sapphire Features: PhantomLink (GC-HPWR / BTF) Power Connector New TriXX Feature: Power Protection STEALTH Hidden Power Cable 12V-2x6(H++) External Power Connector (3x8-pin power adapter is also included if your PC's Power Supply Unit does not have 12V-2x6) Ultra-Thin Graphene Thermal Pad AeroCurve Fan Blade Free Flow FrameDefense Integrated Cooling Module Cold Rolled Steel Frame Tri-X Cooling Technology High TG Copper PCB Optimized Composite Heatpipes Metal Backplate ARGB Light Bar Fan Quick Connect Two-Ball Bearing Fans Premium 16-Phase Digital Power Design Fuse Protection Intelligent Fan Control Precision Fan Control TriXX Supported Performance vs. Efficiency Quicksets Glow! Fan Check TriXX Boost External RGB LED MB Synchronization AMD Features: AMD RDNA 4 Architecture 64 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators) AMD HYPR-RX with AFMF 2 AMD FidelityFX Super Resolution Redstone with AI Upscaling DisplayPort 2.1a AMD Radiance Display Engine AMD Fluid Motion Frames 2 technology AMD Radeon Anti-Lag 2 technology AMD FidelityFX technologies Microsoft DirectX 12 Ultimate AMD Noise Suppression AMD Freesync technology 16 GB of GDDR6 on 256-bit Memory Bus AMD smart technologies AMD Software: Adrenalin Edition application |
|---|
| Form Factor | ATX |
|---|---|
| Max GPU Length | 331 mm |
| Card Dimensions (L x H) | 330.8 x 141.25 x 65.68 mm |
| Slot Width | 3.2 Slots |
| Package Contents | L-Shape Support Bracket 3pin 5V ARGB Cable Magnetic Backplate 12V-2x6(H++) to PCI Express 3x8-pin power adapter |
|---|
| First Listed on Newegg | October 29, 2026 |
|---|
