Sapphire NITRO+ B850M WIFI AM5 mATX Motherboard + AMD Ryzen 7 9700X 8-Core 16-Thread Zen5 Processor Combo, 12+2+1 Power Stage, PCIe 5.0 M.2, WiFi 6E, 2.5G LAN, DDR5 Overclocking, Enhanced Gaming Cooli

Sapphire NITRO+ B850M WIFI AM5 mATX Motherboard + AMD Ryzen 7 9700X 8-Core 16-Thread Zen5 Processor Combo

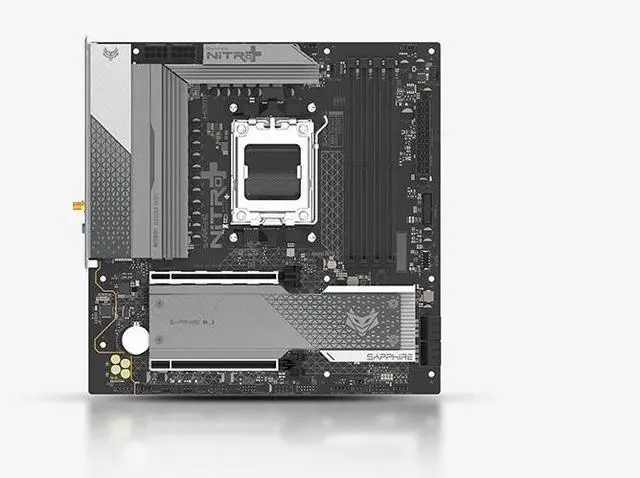

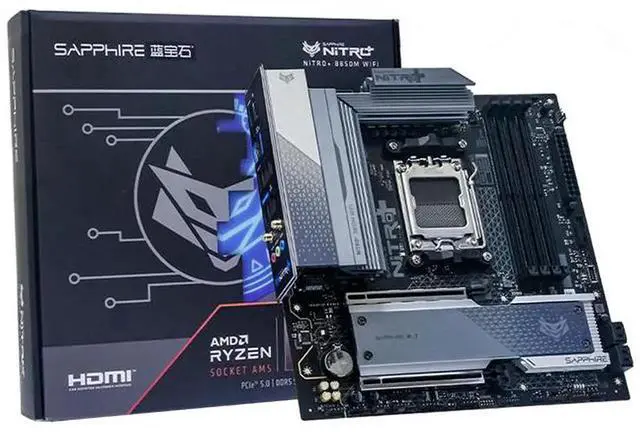

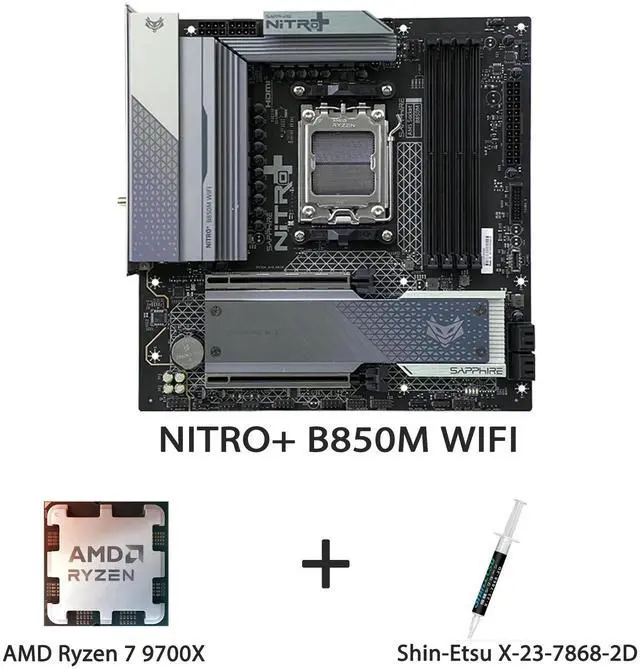

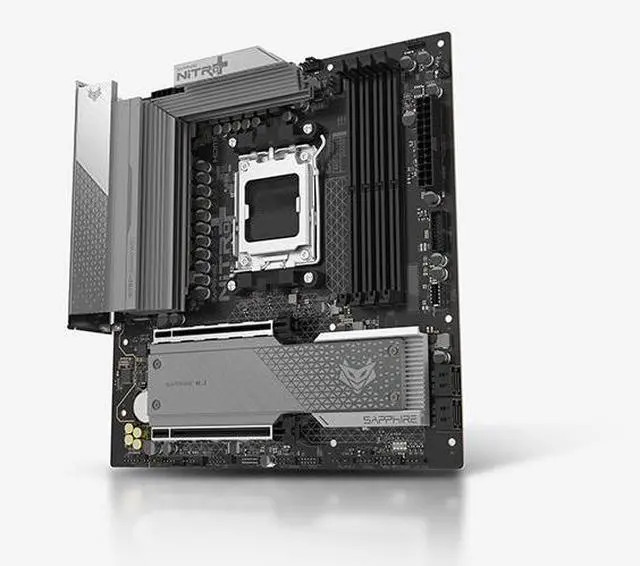

NITRO+ B850M WIFI AM5 mATX Motherboard

Chipset: AMD® B850 Chipset

CPU: Supports AMD® RALON 7000 series desktop processorsSupports AMD® RALON 8000 series desktop processorsSupports AMD® RALON 9000 series desktop processors-Supports AM5 socket processors

Memory: 4xDDR5 memory slots - Supports DDR5 memory onlyUp to 8000 MT/S (OC)

Maximum system memory capacity: 48GB*4 for 192GBSupports dual-channel memory technology - Supports Extended Overclocking Profiles (EXPO) memory modules and Extreme Memory Profiles (XMP)

Expansion slots:

1 PCIE 5.0 x16 slot 1 PCIE 4.0 x4 slot

Audio: Realtek-ALC897 Hi-Fi decoder chip (supports up to 5.1 channels)

Network function: Realtek®RTL8125BG network controller

-Supports 2.5G wired network

Wi-Fi 6 module support 802.11 a/b/g/n/ac/ax support 2.4GH z/5GHz wireless band support Bluetooth 5 wireless transmission

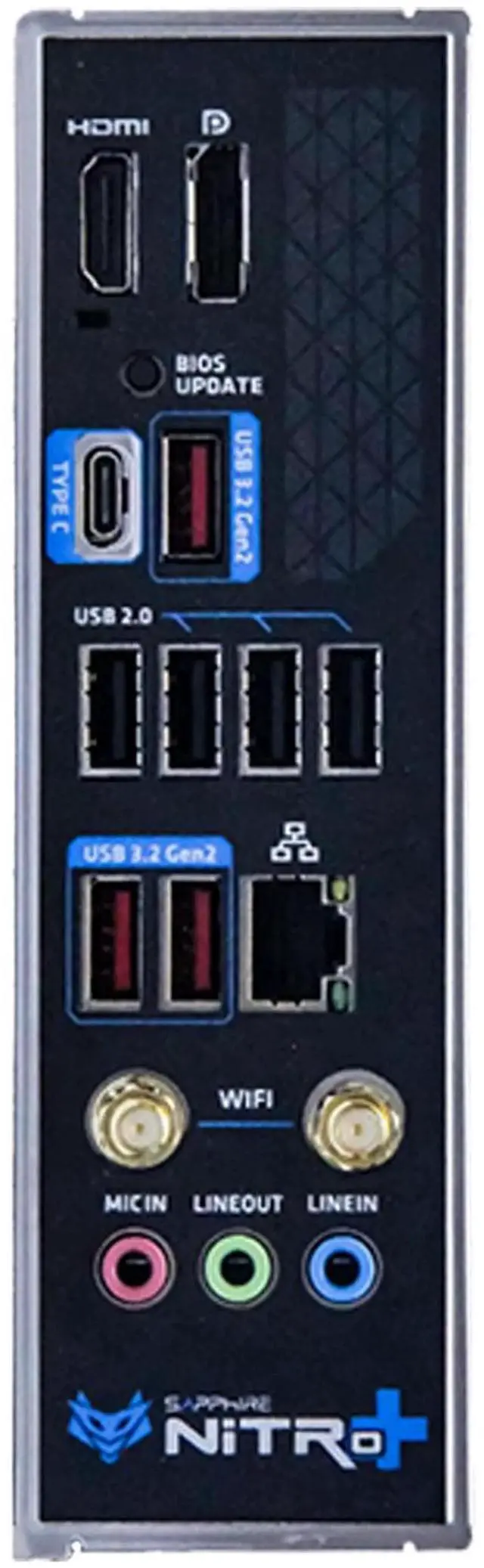

Rear I0 interfaces: 1 DisplayPort connector 1 HDMI connector 4 USB 2.0 ports 3 USB 3.2 GEN2Type-A enclosure 1 USB 3.2 GEN2 Type-C connector

1 LAN (RJ45) port 2 WiFi6 antenna ports

3 audio jacks

Front USB expansion interface: 1 USB 2.0 pin can be extended to 2 USB 2.0 interface (FUSB 2.01 ) 1 USB 3.2 Gen 1 pin can be extended to 2 USB 3.2 Gen1Type-A enclosure (FUSB 3.0 ) 1 USB 3.2 Gen 1 pin can be extended to 1 USB 3.2 Gen 1Type-C enclosure (FUSC) USC)

Storage: 1 PCIE 5.0 M. 2 support 2280/2242 specifications 1 PCIE 4.0 M. 2 support 2280/2242 specifications 4 SATA 3.0 6GB/S

Error Detection Indicator: DIMM Yellow Indicator

CPU red light GPU white light

BOOT green indicator

On-board pins,

jumpers,

buttons: 1 CPU fan pin (CPU FAN) 1 water-cooling pump pin (AIO PUMP)

3 system fan pins (CHA FAN1, CHA FAN2, CHA FAN3) 1 front audio pin (F AUDIO) 1 front panel pin (F PANEL) 3 5VARGB pins (5V ARGB 1, 5V ARGB 2, 5V ARGB 3)

1 12V RGB pin (12V RGB1) 1 speaker pin (SPEAK)

1 serial port pin (COM) 1 clear CMOS jumper (CLRCMOS)

1 Flash BIOS pin (FL BIOS1) 1 BIOS burner pin (JBIOS)

1 Diagnostic Card Pin (ESPI HEADER)

Motherboard Dimensions:

MATX version 245mmx245mm

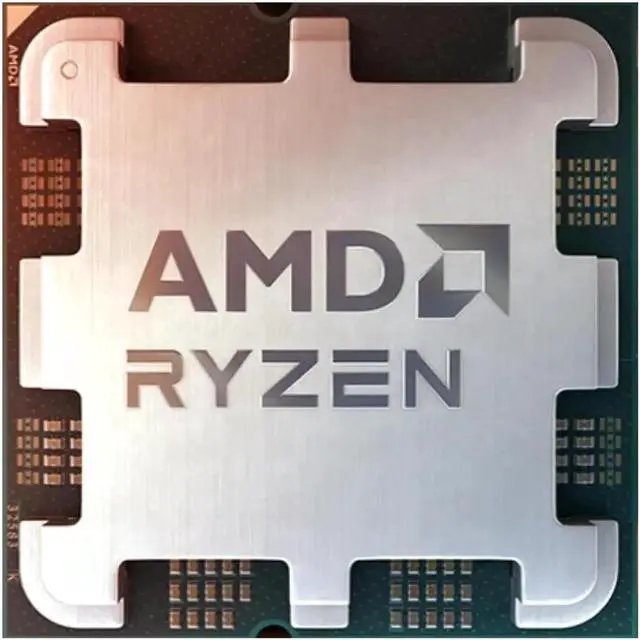

AMD Ryzen 7 9700X CPU

1. This high-performance gaming processor offers impressive 100+ FPS speeds in the world's top games.
2. It features 8 cores and 16 threads built on AMD's "Zen 5" architecture, with a max boost clock of 5.5 GHz.
3. The processor comes unlocked for overclocking, includes a 40 MB cache, and supports DDR5-5600 memory.
4. Designed for the advanced Socket AM5 platform, it is compatible with PCIe 5.0 on select motherboards.
