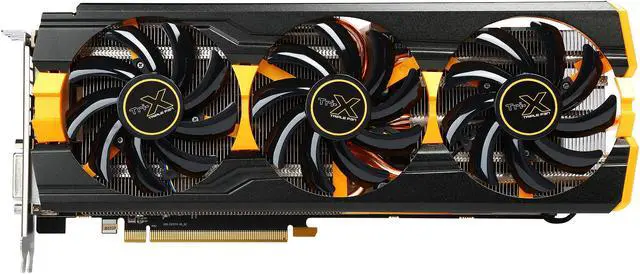

SAPPHIRE Radeon R9 290X DirectX 12 100361-4L 4GB 512-Bit GDDR5 PCI Express 3.0 Tri-X OC(UEFI) Video Card, New Edition

REFURBISHED Product Type
Be the first to review this product...
  • 4GB 512-Bit GDDR5
  • Core Clock 1020MHz
  • 2 x Dual-Link DVI-D 1 x HDMI (with 3D) 1 x DisplayPort 1.2
  • 2816 Stream Processors
  • PCI Express 3.0
Specs
Reviews

Learn more about the Sapphire Tech 11226-16-CPO

Model
Brand SAPPHIRE
Model 11226-16-CPO
Interface
Interface PCI Express 3.0
Chipset
Chipset Manufacturer AMD
GPU Radeon R9 290X
Core Clock 1020 MHz
Stream Processors 2816 Stream Processors
Memory
Effective Memory Clock 5400 MHz
Memory Size 4GB
Memory Interface 512-Bit
Memory Type GDDR5
3D API
DirectX DirectX 12
OpenGL OpenGL 4.3

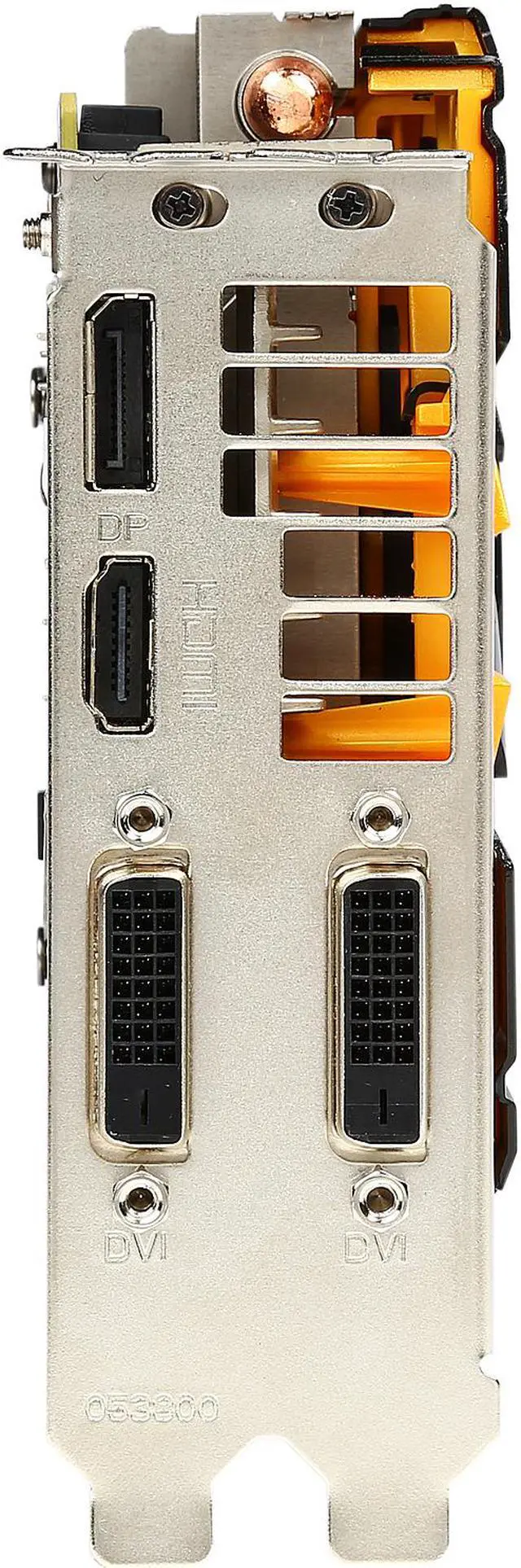

Ports
Multi-Monitor Support 4 x Maximum Display Monitor(s) support with 1 DisplayPort connected
4 x Maximum Display Monitor(s) support
HDMI 1 x HDMI (with 3D)
DisplayPort 1 x DisplayPort 1.2
DVI 2 x Dual-Link DVI-D
Details
Eyefinity Support Yes

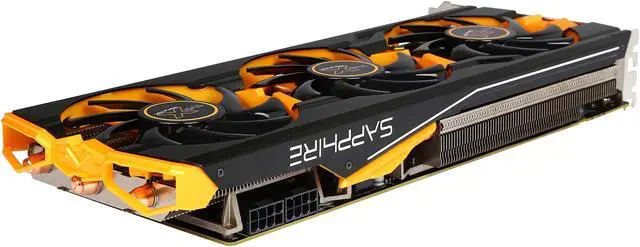

Cooler Tri-X Cooling Technology
System Requirements PCI Express based PC is required with one X16 lane graphics slot available on the motherboard.
Certified power supplies are recommended. Please refer to: http://support.amd.com/us/certified/power-supplies/Pages/listing.aspx
4096MBMinimum of system memory.
Installation software requires CD-ROM drive.
DVD playback requires DVD drive.
Blu-ray / HD DVD playback requires Blu-ray / HD DVD drive.
750 Watt Power Supply is required.
2X150 Watt 8-pin PCI Express power connector is required.
4X150 Watt 8-pin PCI Express power connector is required for CrossFireX system.
To support 4 displays, one of the monitors has to support DisplayPort
64-bit operating system highly recommended
A display with digital input (HDMI, DisplayPort or DVI) is required
Power Connector 2 x 8-Pin
Dual-Link DVI Supported Yes
Features

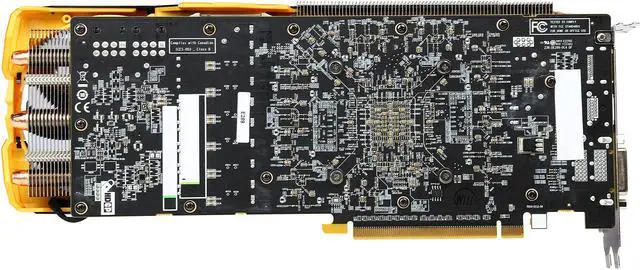

Features The new SAPPHIRE R9 290X Tri-X 4GB OC features the latest GCN (graphics core next) architecture from AMD with 2816 stream processing units and an enhanced engine clock of up to 1020Mhz. It is equipped with 4GB of the latest high performance GDDR5 memory on a 512-bit interface and now clocked at 1350 MHz (5.4GHz effective) delivering higher bandwidth than earlier models.The new SAPPHIRE R9 290X Tri-X 4GB OC is built on a SAPPHIRE original pcb design with the power upgraded to a 6-phase VDDC power design. Two 8-pin power connectors ensure adequate system power is available (up to 375 Watts total including PCI-Express power).
Form Factor & Dimensions
Card Dimensions (L x H) 12.01" x 4.45"
Slot Width 2 Slots
