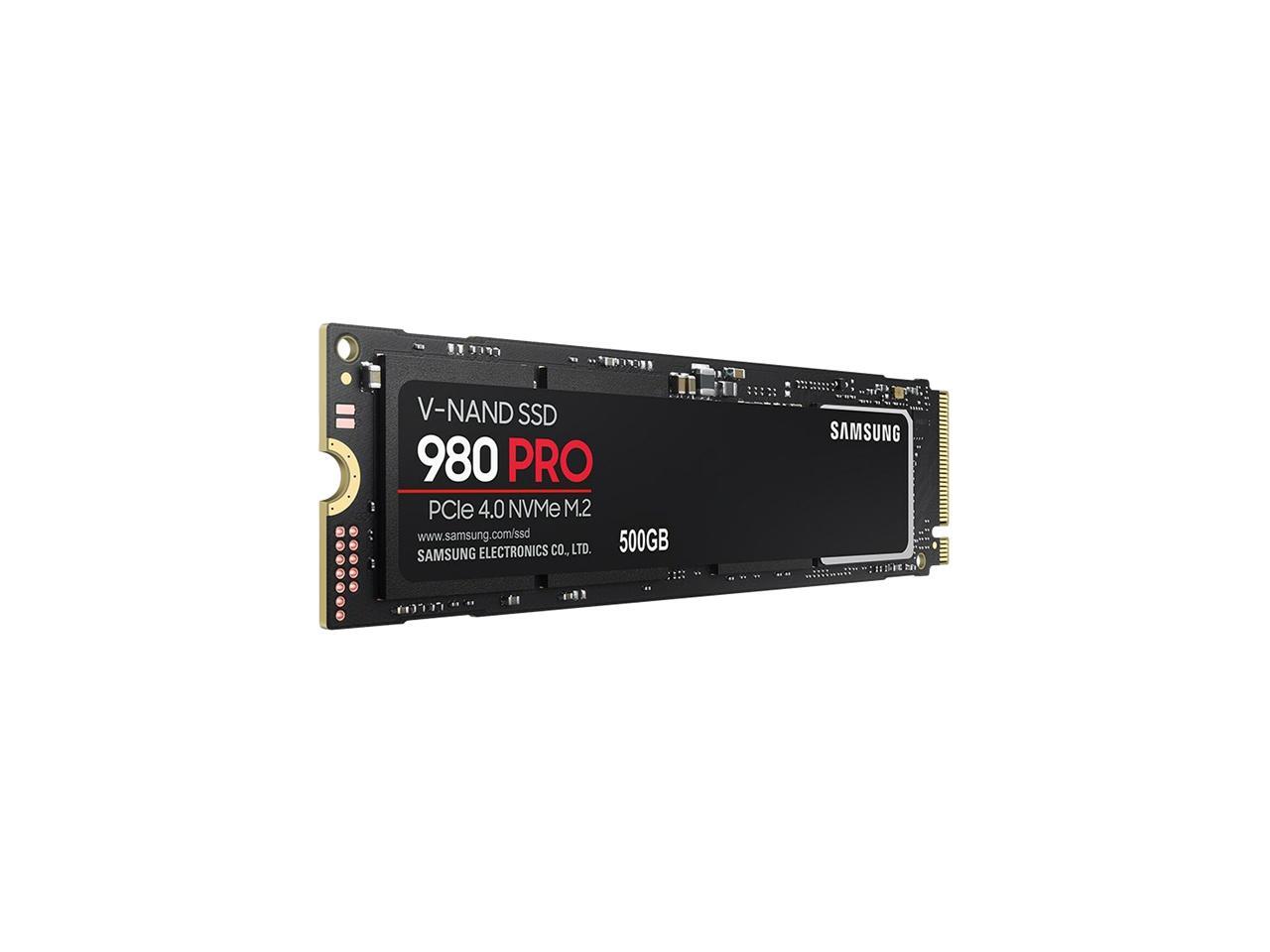

SAMSUNG 980 PRO M.2 2280 500GB PCI-Express Gen 4.0 x4, NVMe 1.3c V-NAND 3-bit MLC Internal Solid State Drive (SSD) MZ-V8P500BW

In stock.
Ships from United States.
Fees for brokerage and duty included in price.
  • M.2 2280
  • 500GB
  • PCI-Express Gen 4.0 x4, NVMe 1.3c

Learn more about the SAMSUNG MZ-V8P500BW

Series 980 PRO
Model MZ-V8P500BW
Device Type Internal Solid State Drive (SSD)
Used For Consumer
Form Factor M.2 2280
Capacity 500GB
Memory Components V-NAND 3-bit MLC
Interface PCI-Express Gen 4.0 x4, NVMe 1.3c
Controller Samsung Elpis
Cache 512MB
Max Sequential Read Up to 6900 MBps
Max Sequential Write Up to 5000 MBps
4KB Random Read QD1: Up to 22,000 IOPS
QD32: Up to 800,000 IOPS
4KB Random Write QD1: Up to 60,000 IOPS
QD32: Up to 1,000,000 IOPS
MTBF 1,500,000 hours
Features Reliability (TBW): 300TBW

Next-level SSD performance
Unleash the power of the Samsung 980 PRO PCIe 4.0 NVMe SSD for next-level computing. 980 PRO delivers 2x the data transfer rate of PCIe 3.0, while maintaining compatibility with PCIe 3.0.

Maximum Speed
980 PRO is raising the bar for NVMe SSDs, delivering read speeds up to 6,900 MB/s. With a PCIe 4.0 interface, it is up to 2x faster than PCIe 3.0 SSDs and up to 12x faster than Samsung SATA SSDs. The powerful controller is designed to support larger input & output queues for PCIe 4.0, resulting in electric speeds.

A winning combination
Designed for hardcore gamers and tech-savvy users, the 980 PRO offers high-performance bandwidth and throughput for heavy-duty applications in gaming, graphics, data analytics, and more. It's fast at loading games, so you can play more and wait less.

Efficient M.2 SSD
The 980 PRO comes in a compact M.2 2280 form factor, which can be easily plugged into desktops and laptops. Due to its size and thus optimized power efficiency, it's ideal for building high-performance computing systems.

Reliable thermal control
High-performance SSDs usually require high-performance thermal control. To ensure stable performance, the 980 PRO uses nickel coating to help manage the controller's heat level and a heat spreader label to deliver effective thermal control of the NAND chip.

Smart thermal solution
Embedded with Samsung's cutting-edge thermal control algorithm, 980 PRO manages heat on its own to deliver durable and reliable performance, while minimizing performance fluctuations during extended usage.

Samsung Magician software
Unlock the full potential of 980 PRO with Samsung Magician's advanced, yet intuitive optimization tools. Monitor drive health, optimize performance, protect valuable data, and receive important updates with Magician to ensure you're always getting the best performance out of your SSD.
Power Consumption (Idle) Max. 35 mW
Power Consumption (Active) Average: 5.9W
Maximum: 7.4W (Burst mode)
Operating Temperature 0°C ~ +70°C
Max Shock Resistance 1500G
Dimensions & Weight
Height 2.38mm
Width 22.15mm
Depth 80.15mm
Weight 9.00g
