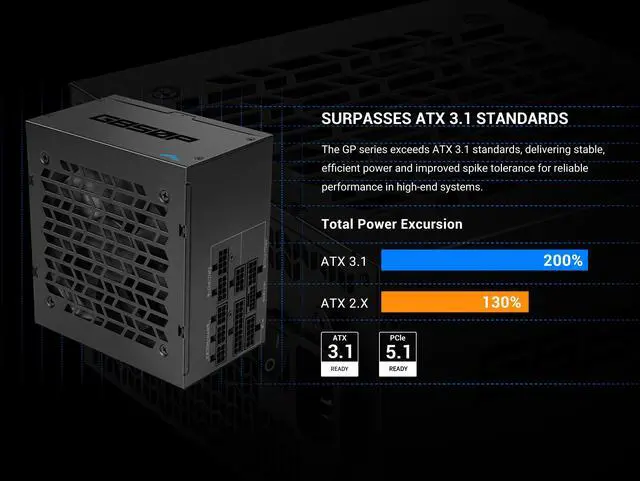

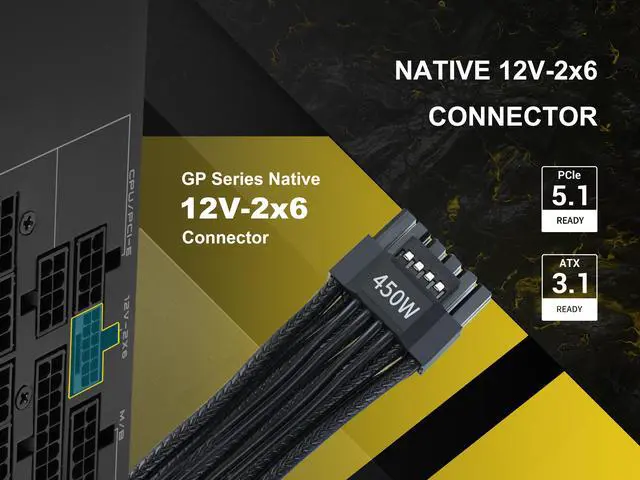

Compliant with the latest ATX 3.1 specification, featuring a 12V-2x6 (12+4) connector capable of delivering up to 450W for next-generation GPUs.
2 Cybenetics Gold Certified Efficiency
Certified by Cybenetics Gold, delivering over 90% efficiency at typical load, reducing heat and improving energy efficiency for modern gaming systems.

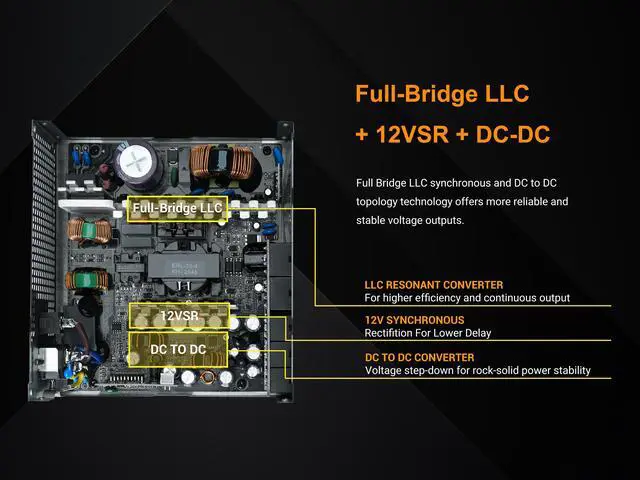

3 Advanced Full Bridge LLC + DC-DC Design
Built with APFC + Full Bridge LLC + SR + DC-DC topology to ensure stable voltage regulation and reliable performance under heavy workloads.
4 Fully Modular Cable Design
Fully modular cables allow builders to install only the cables needed, improving airflow, cable management, and system aesthetics.
5 Quiet Cooling & Premium Components
Equipped with a 120mm FDB (Fluid Dynamic Bearing) silent fan and main Taiwanese capacitors, delivering reliable long-term performance with 100,000 hours MTBF.
+
+
Overview
Specs
Reviews (111)

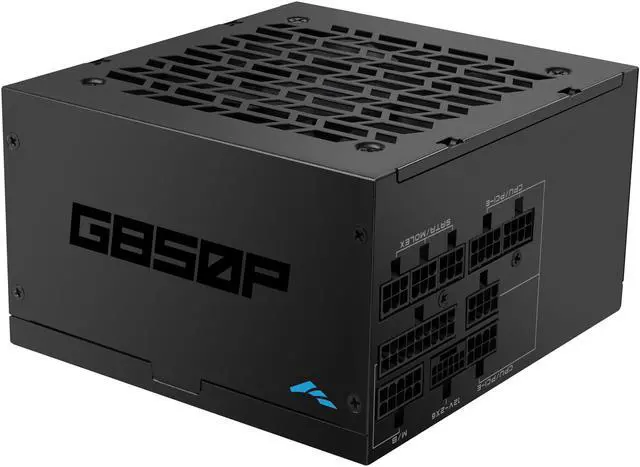

Learn more about the SAMA GP850-Black
General
Brand
SAMA
Model
GP850-Black
Series
GP Series
Details
Type
ATX3.1
Maximum Power
850 W
SLI
Yes
CrossFire
Yes
Modular
Full Modular
Fans
120mm FDB Fan (Fluid Dynamic Bearing)
PFC
Active
Main Connector
24Pin
+12V Rails
Single
SATA Power Connector
6
Hold-up Time
> 12 ms @ 100% load
Efficiency
'>90% @ Typical Load (50% Load)
Energy-Efficient
80 PLUS GOLD Certified

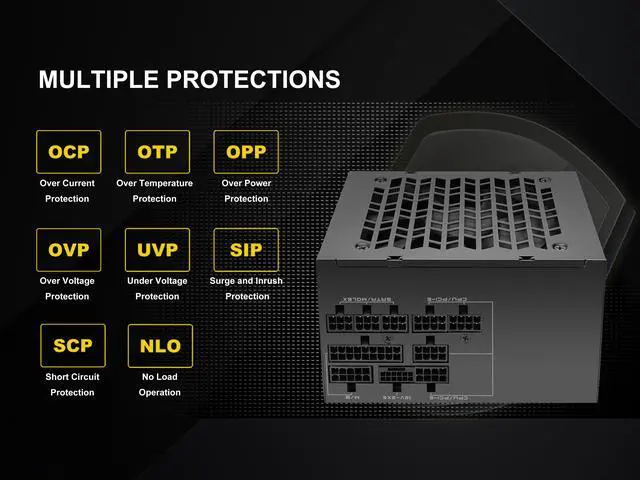

Over Voltage Protection
Yes
Overload Protection
Yes
Input Voltage
100 - 240 V
Input Frequency Range
50-60 Hz
Input Current
10A
MTBF
100,000 Hours
Dimension & Weight
Dimensions
140 x 150 x 86mm
Weight
1.60kg
Details

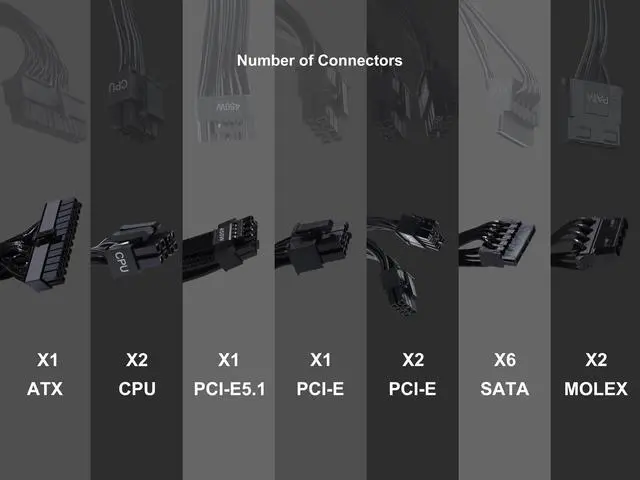

Connectors
2 x 8 pin (4+4) EPS (CPU)
Features
Features
80 PLUS Gold Certified, Fully Modular, 120mm FDB Silent Fan, APFC, Full Protection, 5 Years Warranty
