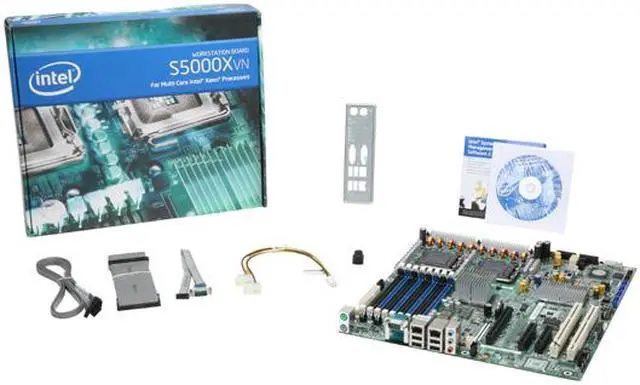

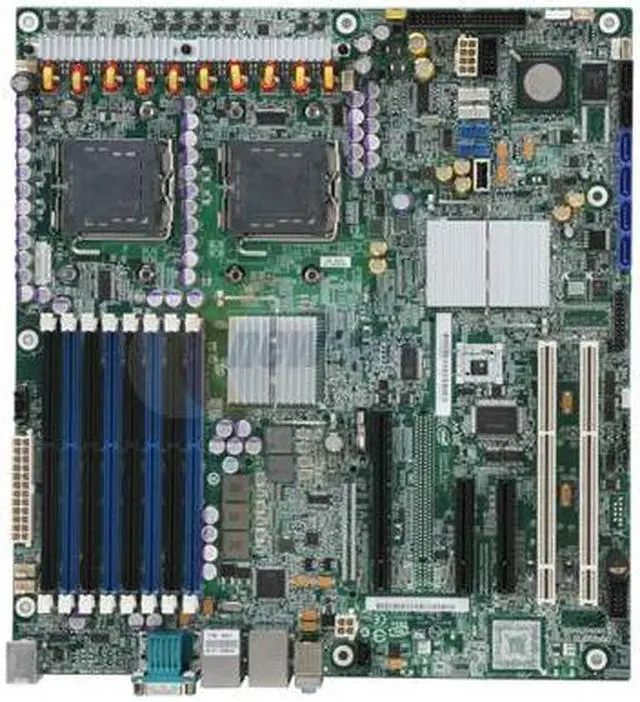

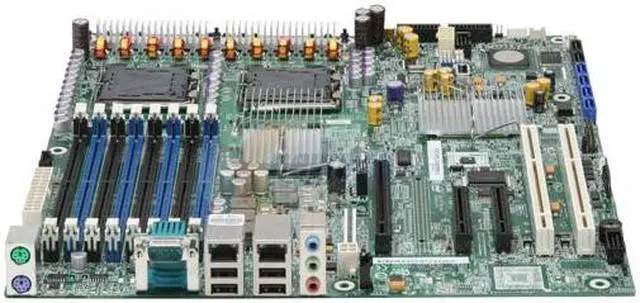

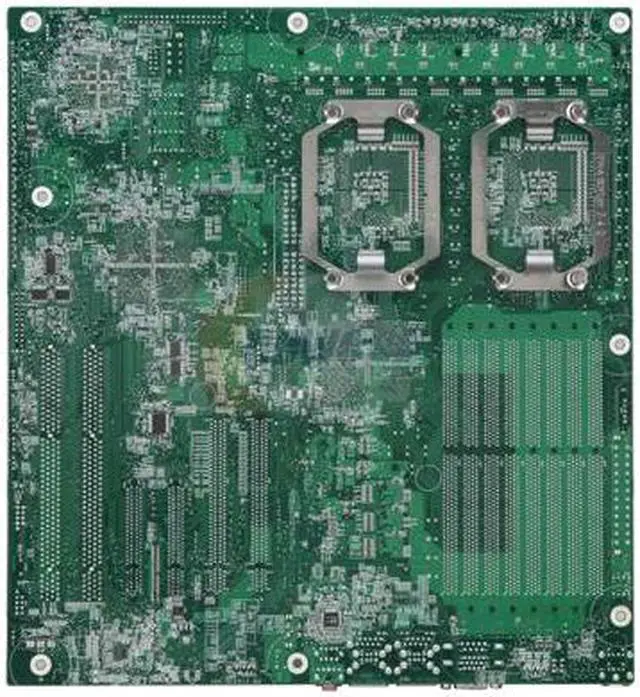

Intel S5000XVNSAS SSI EEB 3.6 (Extended ATX) Server Motherboard Dual LGA 771 Intel 5000X
- Dual LGA 771
- Intel 5000X
- 8 x 240Pin
Specs
Reviews (4)
Learn more about the Intel S5000XVNSAS
| Brand | Intel |
|---|---|
| Model | S5000XVNSAS |
| CPU Socket Type | Dual LGA 771 |
|---|---|
| CPU Type | Multi-core Intel Xeon Processor |
| System Bus | 1333/1066 MHz |
| North Bridge | Intel 5000X |
|---|
| Number of DDR2 Slots | 8 x 240Pin |
|---|---|
| Maximum Memory Supported | 32GB |
| ECC Supported | Yes |
| Registered | FBDIMM |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x4 | 2 x PCI Express x4 |
| PCI-X Slots (64-bit 133MHz) | 1 |
| PCI-X Slots (64-bit 100MHz) | 1 |
| PATA | 1 x ATA 100 2 Dev. Max |
|---|---|
| SATA | 2 x SATA 3.0Gb/s |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Integrated 2D and 3D Graphics |
|---|
| Audio Chipset | High Definition Audio |
|---|---|
| Audio Channels | 2 Channels |
| LAN Chipset | Intel 82563EB |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel 82563EB |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| Video Ports | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Features | 4-port SAS with Intel Embedded RAID Technology II providing RAID 0, 1, 10 |
|---|
| Form Factor | SSI EEB 3.6 (Extended ATX) |
|---|
| First Listed on Newegg | November 01, 2006 |
|---|
