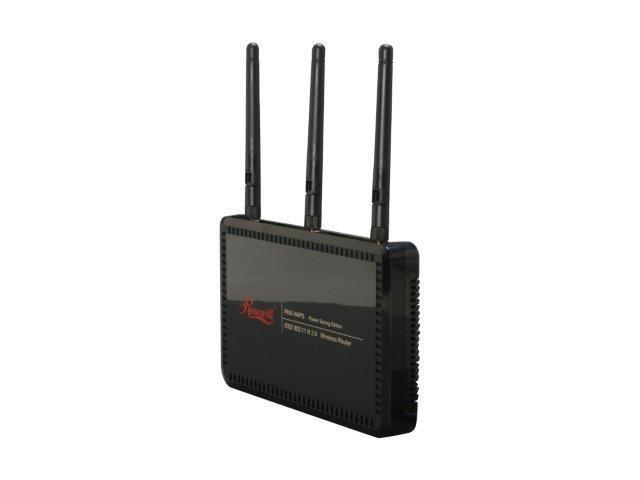

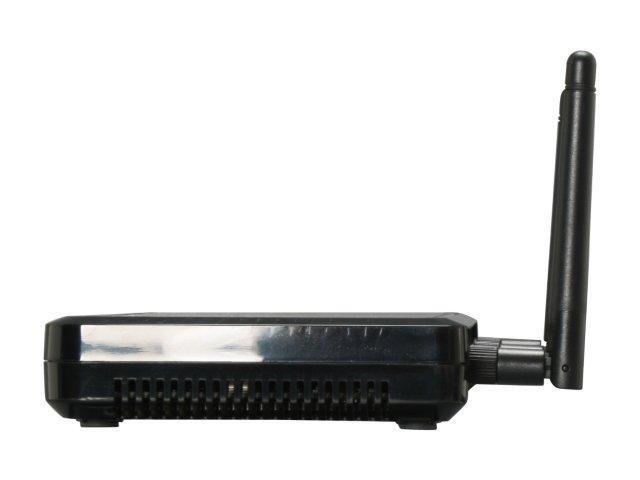

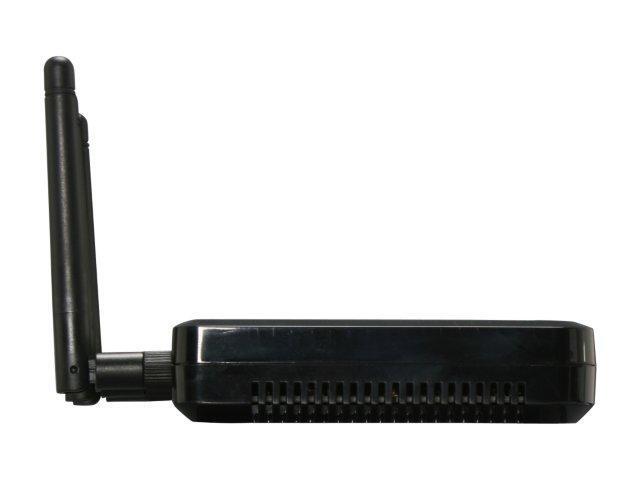

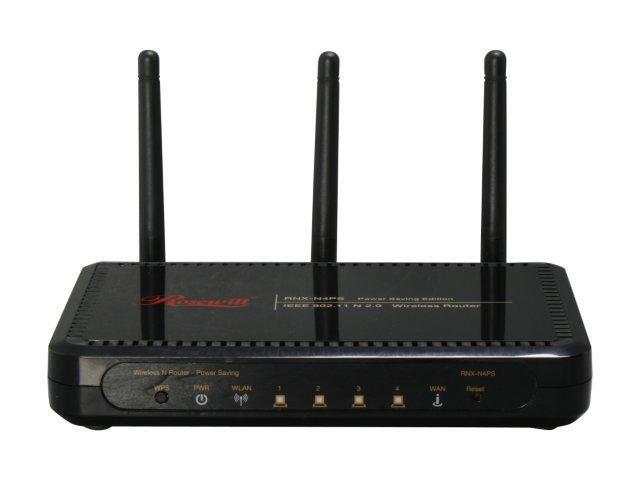

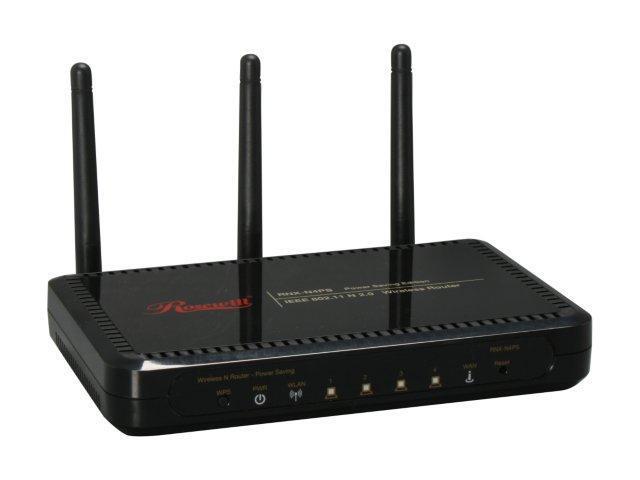

Brand | Rosewill |
---|---|
Model | RNX-N4PS |
Standards | IEEE 802.3/3u, IEEE 802.11b/g, IEEE802.11n Draft 2 |
---|---|
Device Management | Web configuration compatible with both IE and Firefox. |
Security | WPA/WPA2 (AES, 64,128-WEP with shared-key authentication), WPS. |
WPA | WPA2 |

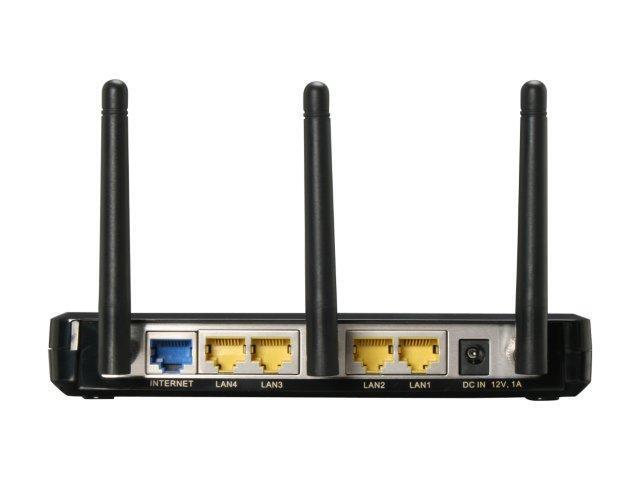

WAN Ports | 1 x 10/100M WAN; 4 x 10/100M LAN |
LEDs | Power/ Status WAN (Internet connection) LAN1~LAN4 (10/100Mbps) WLAN (Wireless Connection) |
Wireless Data Rates | Up to 300Mbps |
Modulation | OFDM: BPSK, QPSK, 16-QAM, 64-QAM DBPSK, DQPSK, CCK |
Frequency Band | 2.4 GHz - 2.484 GHz |
Antenna | 3 x high gain Omni directional 2 dBi antenna connecting for the best wireless signal. |
Channels | 11 CH (US, Canada), 13 CH (ETSI), 14 CH (Japan) |
Transmitted Power | IEEE802.11N: MCS 0~15@ >16dBm IEEE802.11g: 6~54 Mbps@ 16dBm IEEE802.11b: 1, 11Mbps@ 19dBm |
Receiver Sensitivity | IEEE802.11n(3RX): MCS0/8 @ -91dBm MCS7/15@ -74dBm IEEE802.11g (3RX): 6Mbps@ -92dBm 54Mbps@ -75dBm IEEE802.11b (1RX): 1Mbps@ -93dBm 11Mbps@ -91dBm |
Interface | Ethernet Port |
VPN support | IPSec, L2TP, and PPTP VPN pass-through |
Power Adapter | Power Supply: 200 to 240 VDC +/- 10% (ETSI), 100 to 120 VDC +/- 10% (FCC) Device: 12V/1A |

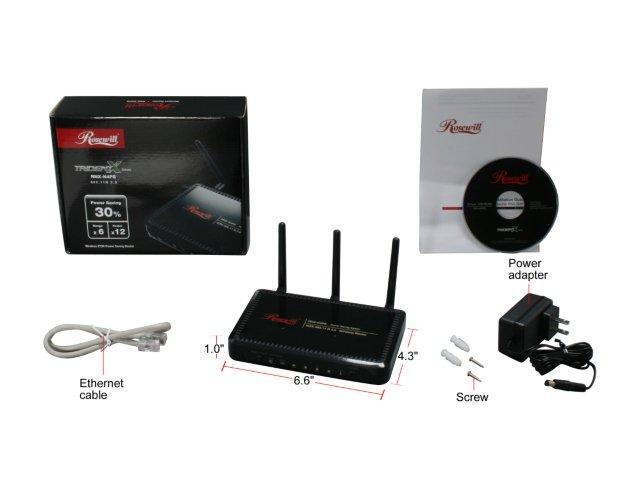

Dimensions | 6.6" x 4.3" x 1.0" |
Weight | 0.6 lbs. |
Temperature | 0°C - 45°C (32°F - 113°F) |
Humidity | 15% - 95%, Non-Condensing |
Features | Chipset: Ralink 2880 + Ralink 2820. 12x speed and 6x coverage over wireless G. x 4 built-in 10/100Mbps Fast Ethernet Switch Ports (Auto-Crossover). 802.11b/g/n 2.0 provide further coverage, less dead spot and higher throughput. MIMO technology thourghput up to 300 Mbps for Ralink 2T3R solution. Supports MIMO technology with 3 external 2 dBi SMA Antennas Support Cisco CCS V1.0, V2.0 and V3.0 compliant WPS. Wireless Multimedia Enhancements Quality of Service support (QoS) / enhanced power saving for Dynamic Networking. Firewall supports Virtual Server Mapping, DMZ, IP Filter, ICMP Blocking, SPI. Universal Plug and Play (UPnP). |
---|
Date First Available | October 10, 2008 |
---|
Pros: 2x the speed of G for file transfers from one N client to the other (verified with Copy Handler speed transfer client). Newegg has a great RMA policy and Rosewill is there to back it and please the customers, which is rare nowadays.
Cons: Still not as good as 100 mbps LAN (about half the speed, again verified watching Copy Handler). Took a long time to find out the "real source" of my connection problem. (read on) First unit had a broken antenna (probably shipping).
Overall Review: Two wireless G clients pushes about .5 mbps from client to client file transfer. Wireless N pushes about 2-3+ mbps for client to client file transfer. LAN cable connection pushes about 4-6mbps for client to client file transer. I was running speedtest.net and speakeasy.net speedtests and would noticed a slip. Everyonce in awhile, the connection to the router would drop (couldnt ping) and the speakeasy speedtest would throttle down for a second and then shoot back up. This affected VOIP. After about 2 days of messing with every single setting imaginable, I noticed 2 things: 1. If you drop to just B+G mode, this doesnt occur (although file transfers are slower) 2. If you drop the transmit rate from auto to 54mbps this doesnt happen either (although file transfers are about half the speed) *So I decided to drop the beacon interval from 100 to 20. Voila. Solid connection, no drops, no VOIP interference annnnd...still faster file transfers.* So if you have any pro
