Brand | Rosewill |
---|---|
Model | RC-401-EX |
Standards | IEEE 802.3 (10Base-T Ethernet), IEEE 802.3u (100Base-TX Fast Ethernet), IEEE 802.3z (1000Base-T Gigabit Ethernet) |
---|---|
Speed | 10/100/1000Mbps |

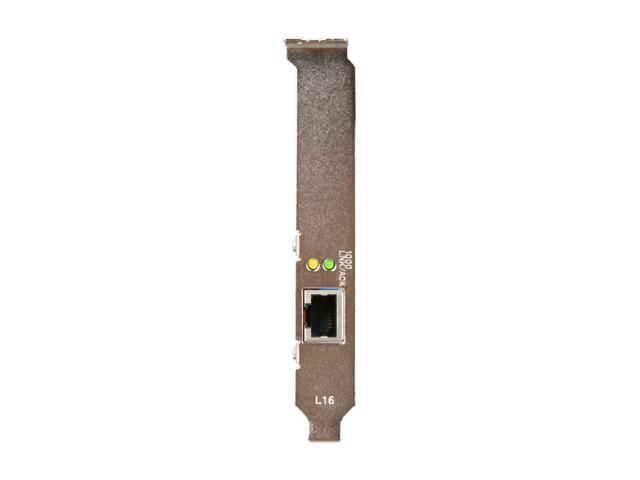

Connectors | 1 x RJ45 |
Interface | PCI-Express |
LEDs | LEDs indicate for various network activities |
Drivers | Driver Provided: Win 2000, XP, 2003, Vista, 2008, Win 7, Win 8 32 and 64 bit Mac OS X v10.4, V10.5, V10.6 (Snow Leopard) |
Features | Compliant with PCI Express Specification, revision 1.0a. Lane 2.5Gbps PCI Express host interface. Low Profile PCI Form Factor. Supports Ethernet 10Mbps (half-duplex), Ethernet 20Mbps (full-duplex), Fast Ethernet 100Mbps (half-duplex), Fast Ethernet 200Mbps (full-duplex), Gigabit 1000Mbps (full-duplex) and Gigabit 2000Mbps (full-duplex). RJ-45 Port offer high speed transmission over CAT 5 UTP cable. Auto-Negotiation with Next page capability. Supports pair swap/polarity/skew correction. Crossover Detection & Auto-Correction. Microsoft NDIS5 Checksum Offload (IP, TCP, UDP) and large send offload support. Supports IEEE 802.1Q VLAN tagging. 8K Transmit FIFO and 64K Receive FIFO support. Fully RoHS compliant. Windows 8 Compatible |
---|

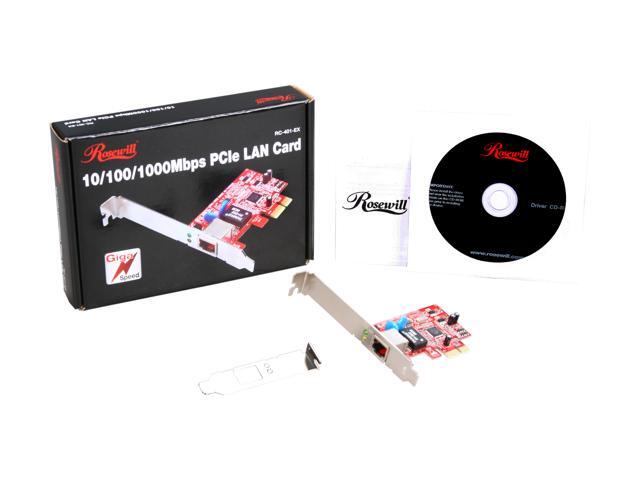

Package Contents | 1 x RC-401-EX 1 x Manual 1 x CD Driver 1 x low profile bracket |
---|
Date First Available | September 26, 2007 |
---|
Pros: Worked great at first
Cons: After 2 months Linux server starts freezing up read other thoughts
Overall Review: Trying this eathernet card in a lInux server running 24 hours a day 7 days a week with heavy tragic. Have not had a problem in 4 years with this server untill use this eathernet card. It worked fine for 2 months then out of nowhere the server would star t freezing up even with watchdog. Took out this eathernet card turned back on the onboard Realtek eathernet and no more issues. Also use intel server eathernet with no issue. So in the end this eathernet card may work fine it's just not server grade
