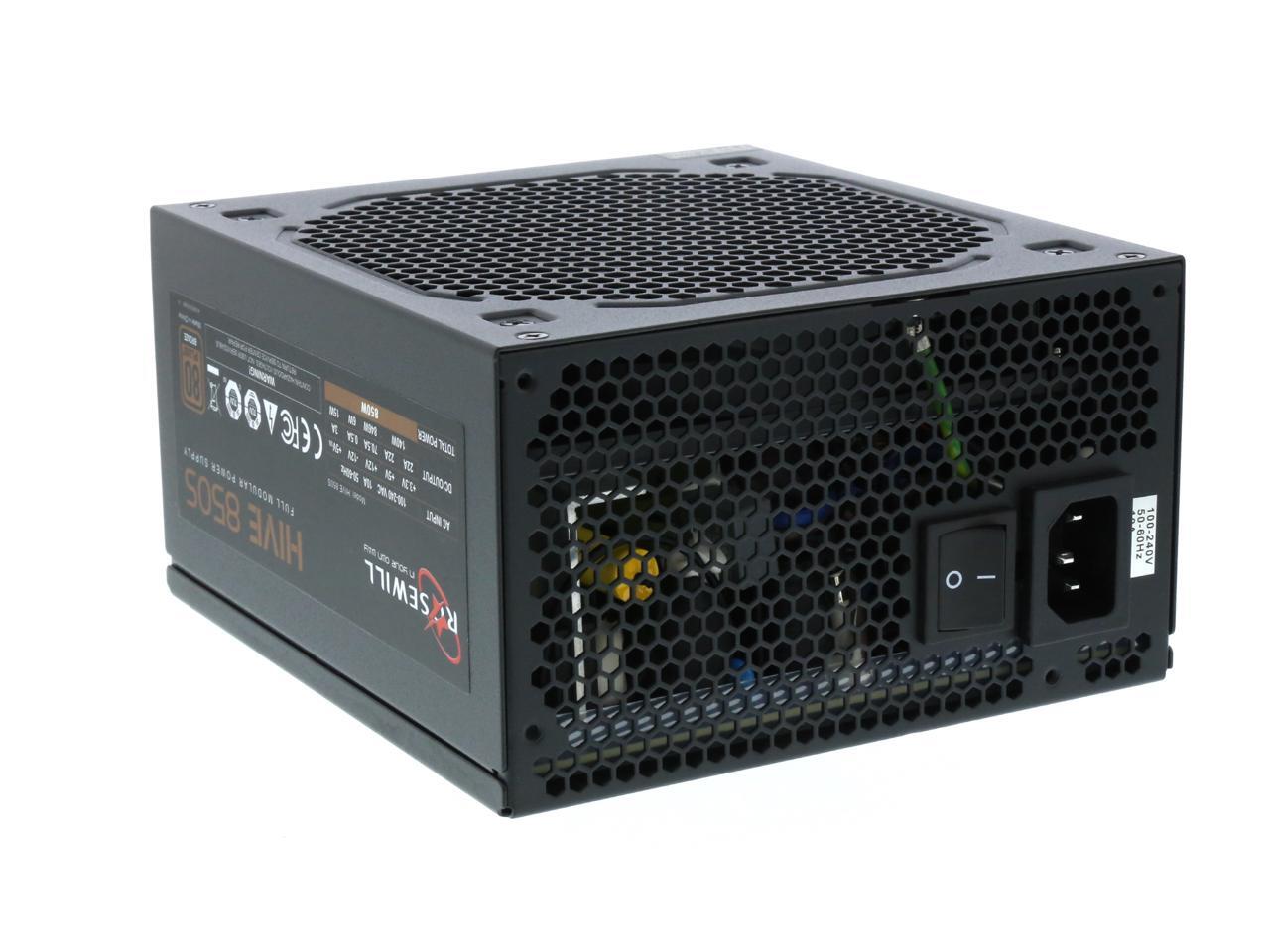

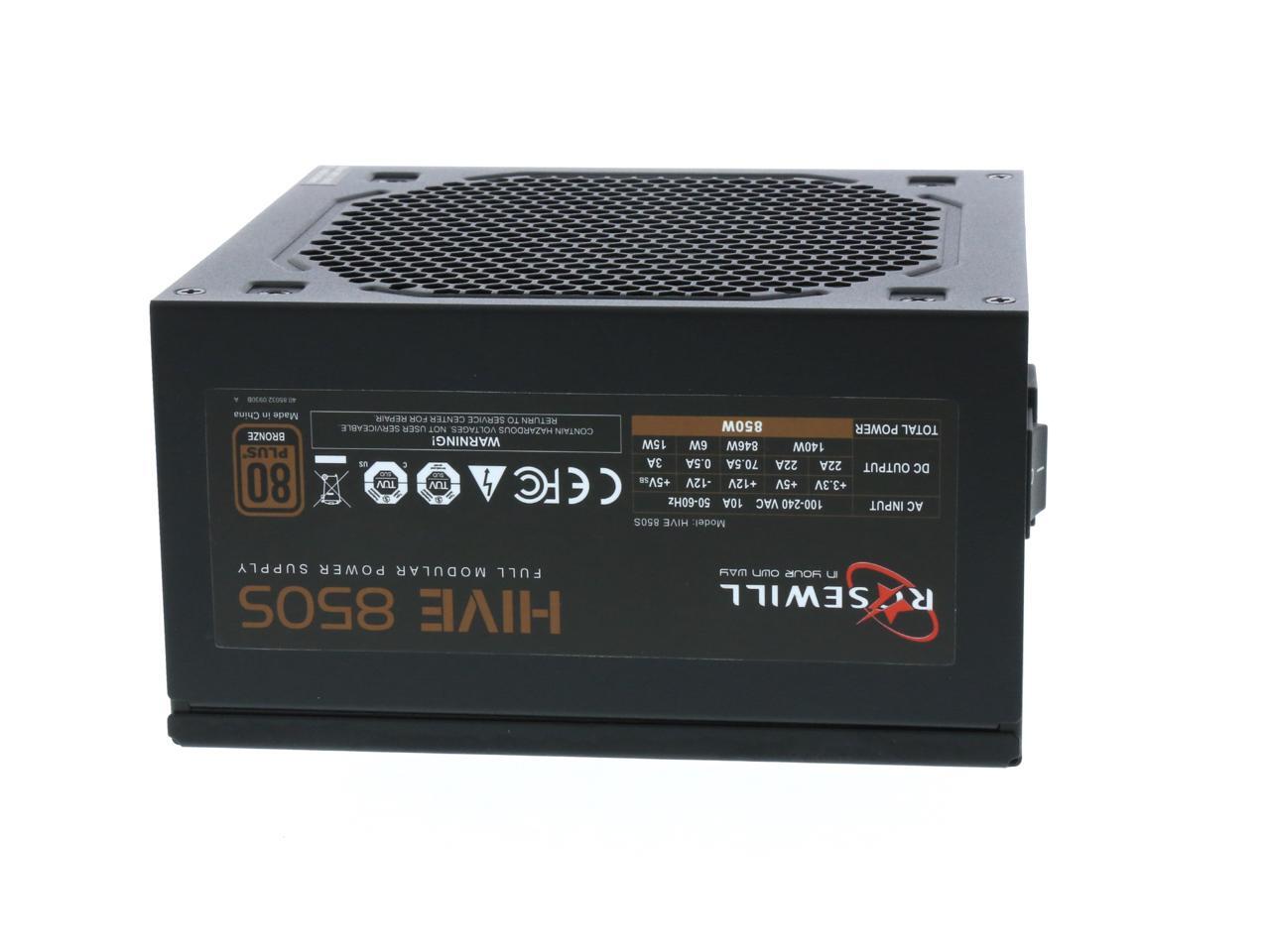

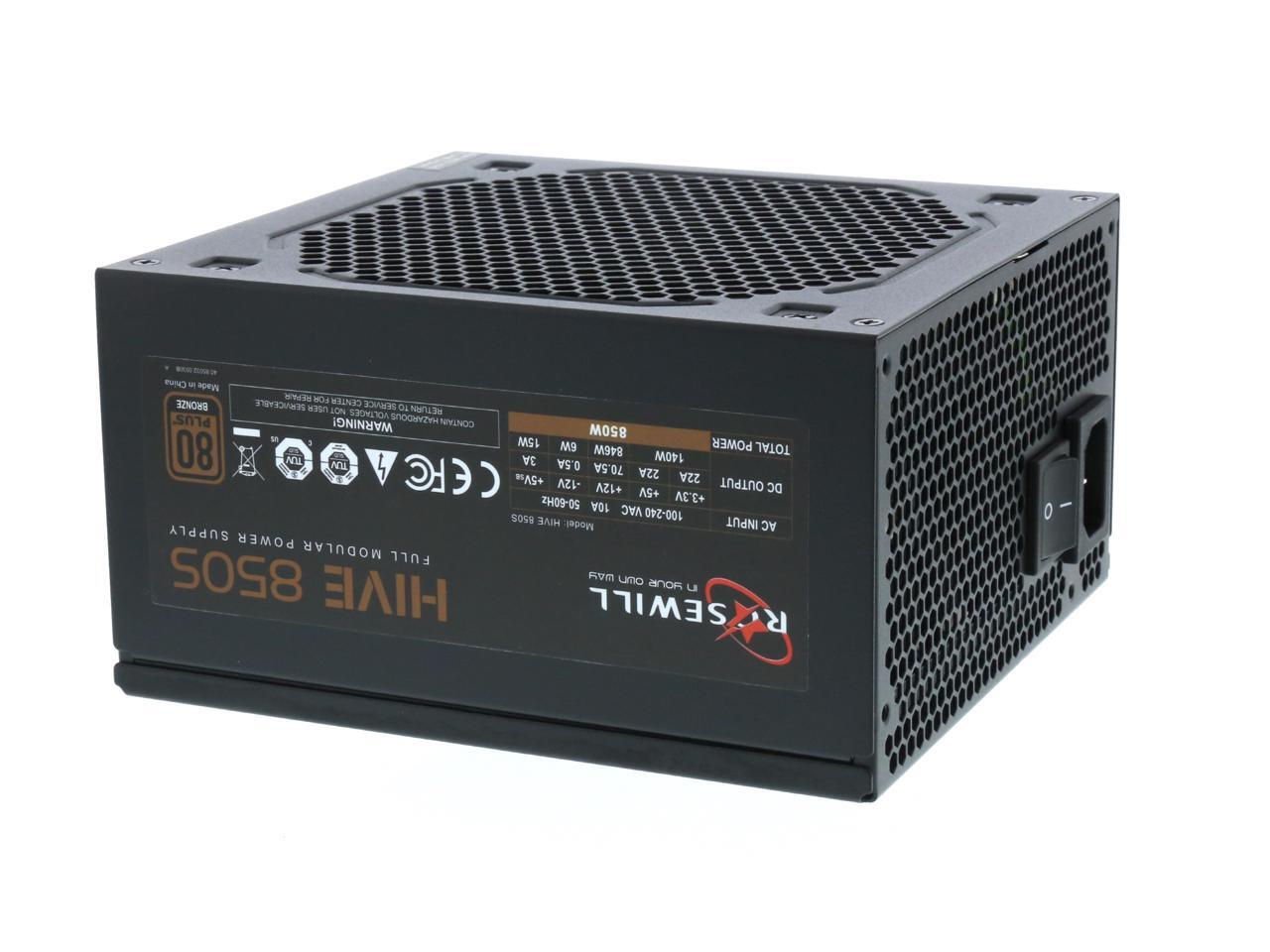

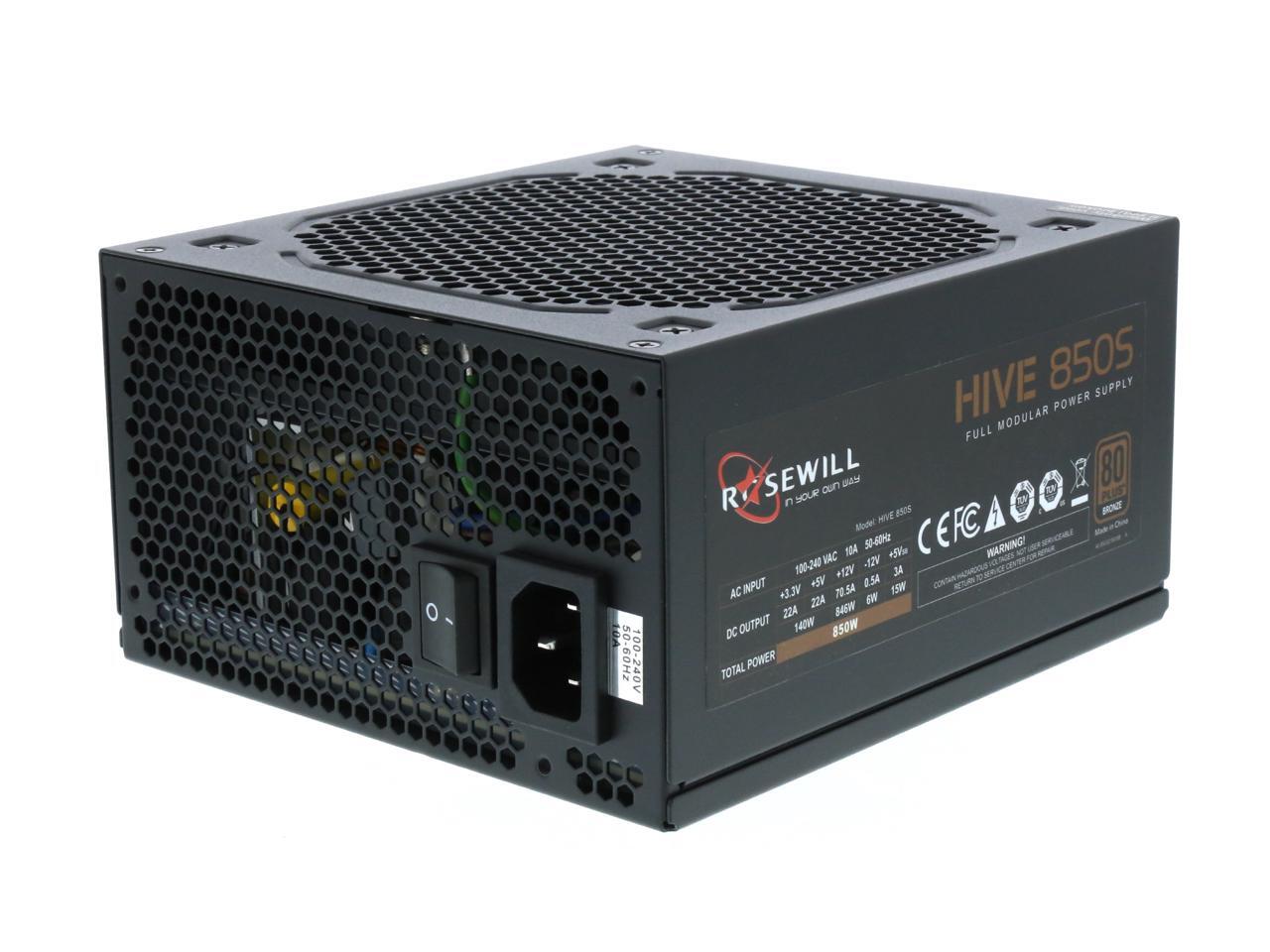

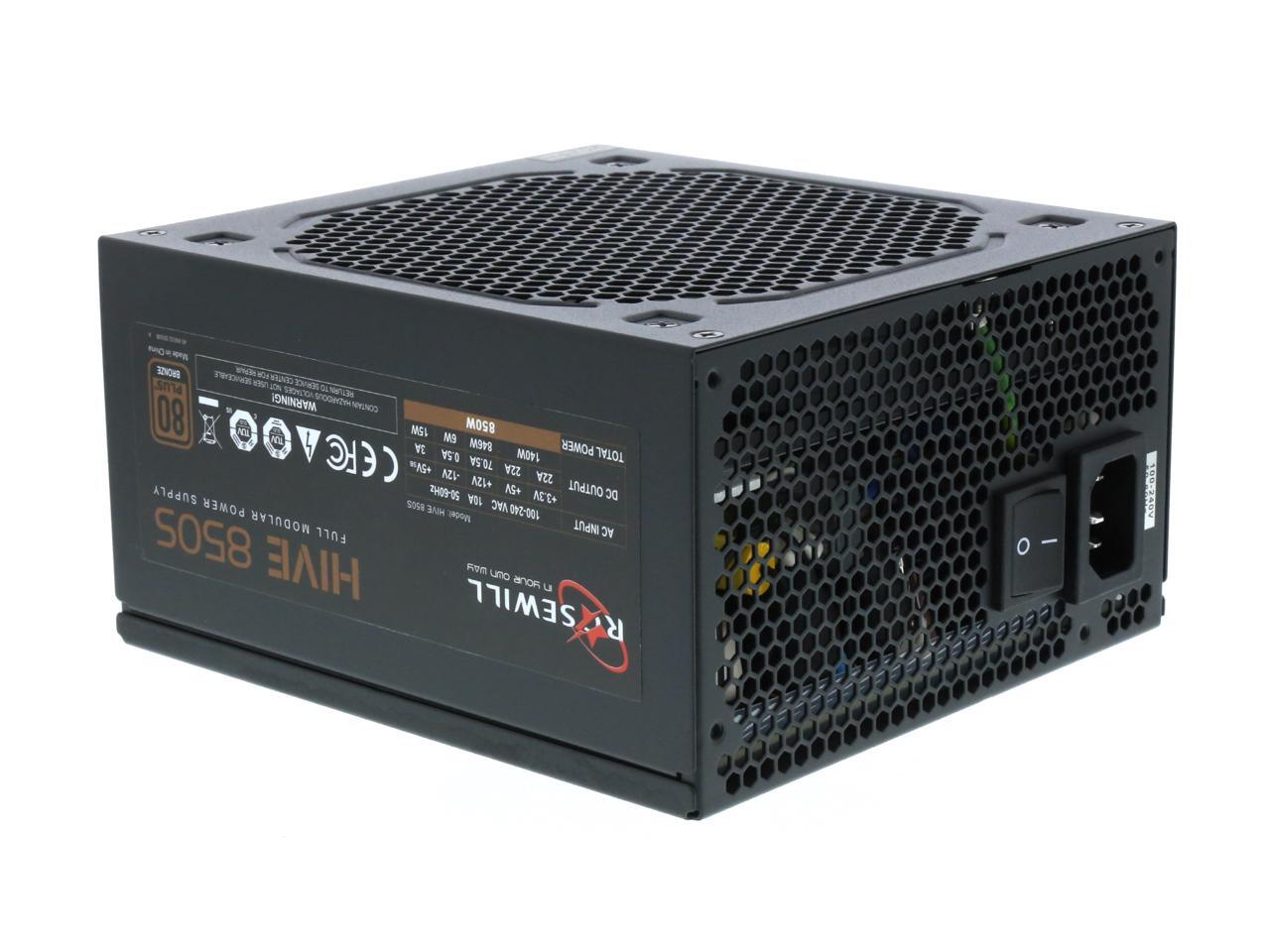

The Hive 850 Watt power supply is 80 PLUS Bronze certified and delivers up to 85% efficient performance under typical loads. This high form of efficiency saves energy, reduces heat in your computer system, decreases fan noise and prolongs the PSU’s life span to maximize your gaming and activity.
The Hive 850 power supply boasts high quality Japanese Primary Capacitors for more reliability and protection against capacitor leaks. These electrolytic capacitors increase the life span of your equipment and are resilient in high temperature environments within the PSU.
Hive PSUs have successfully passed safety and compliance tests from CE, FCC, TUV, and cTUVus.

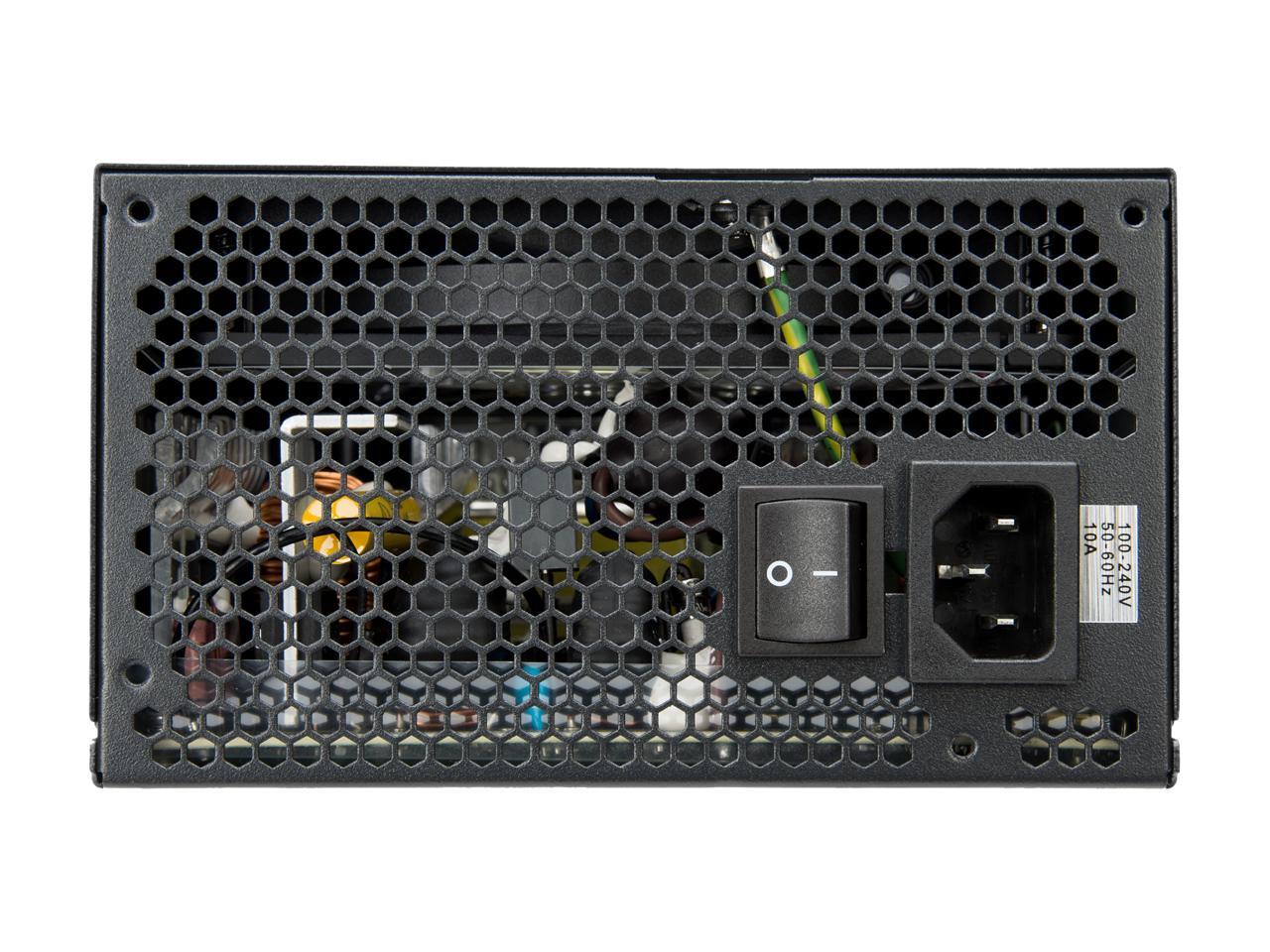

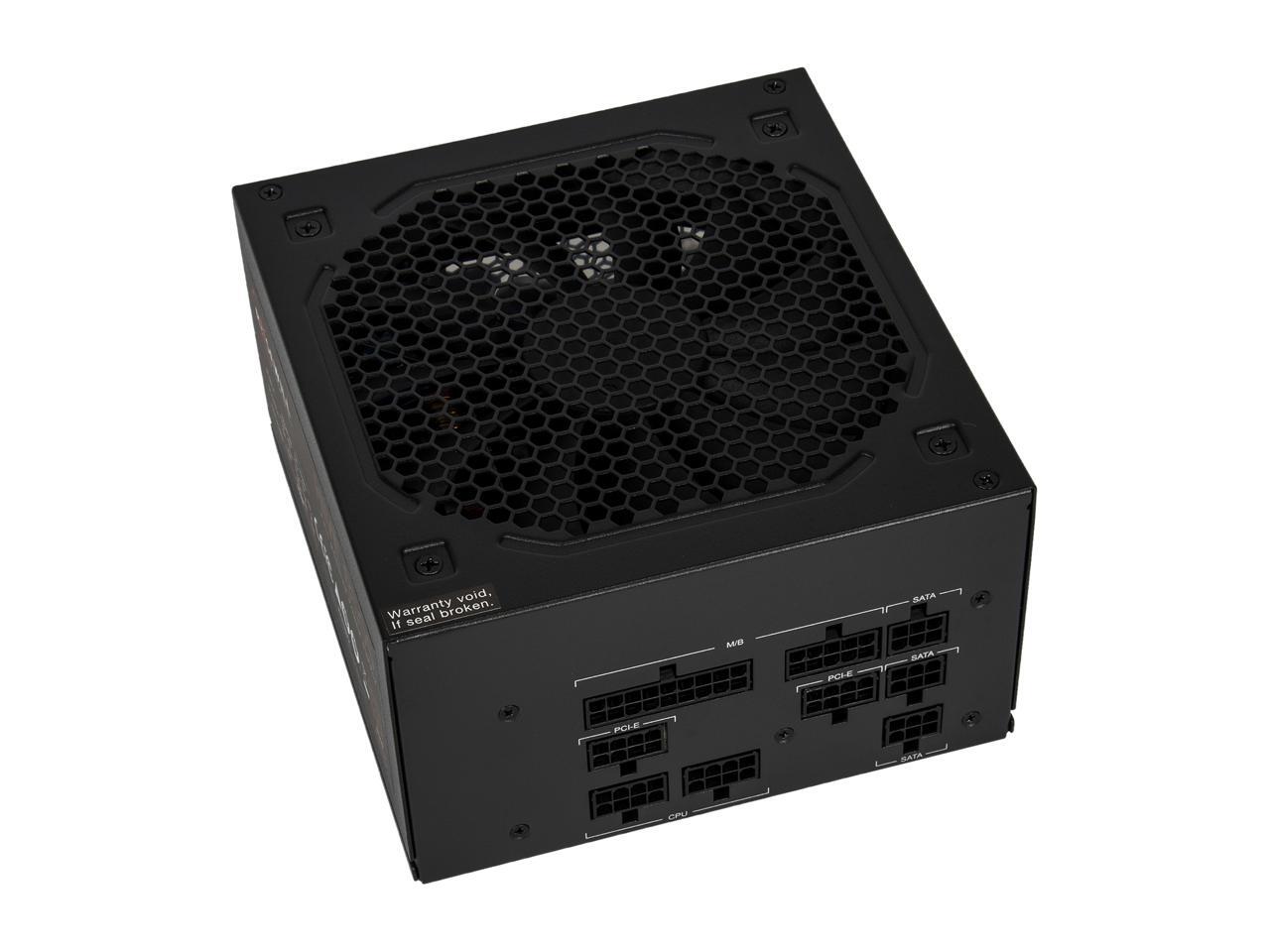

With Auto Fan Speed Control, the power supply’s 135mm fan turns slowly at low temperatures, reducing power consumption and fan noise to near silence. When temperatures increase, fan speed will also increase. This extends the fan’s life span, reduces energy consumption and decreases the odds of over-heating.

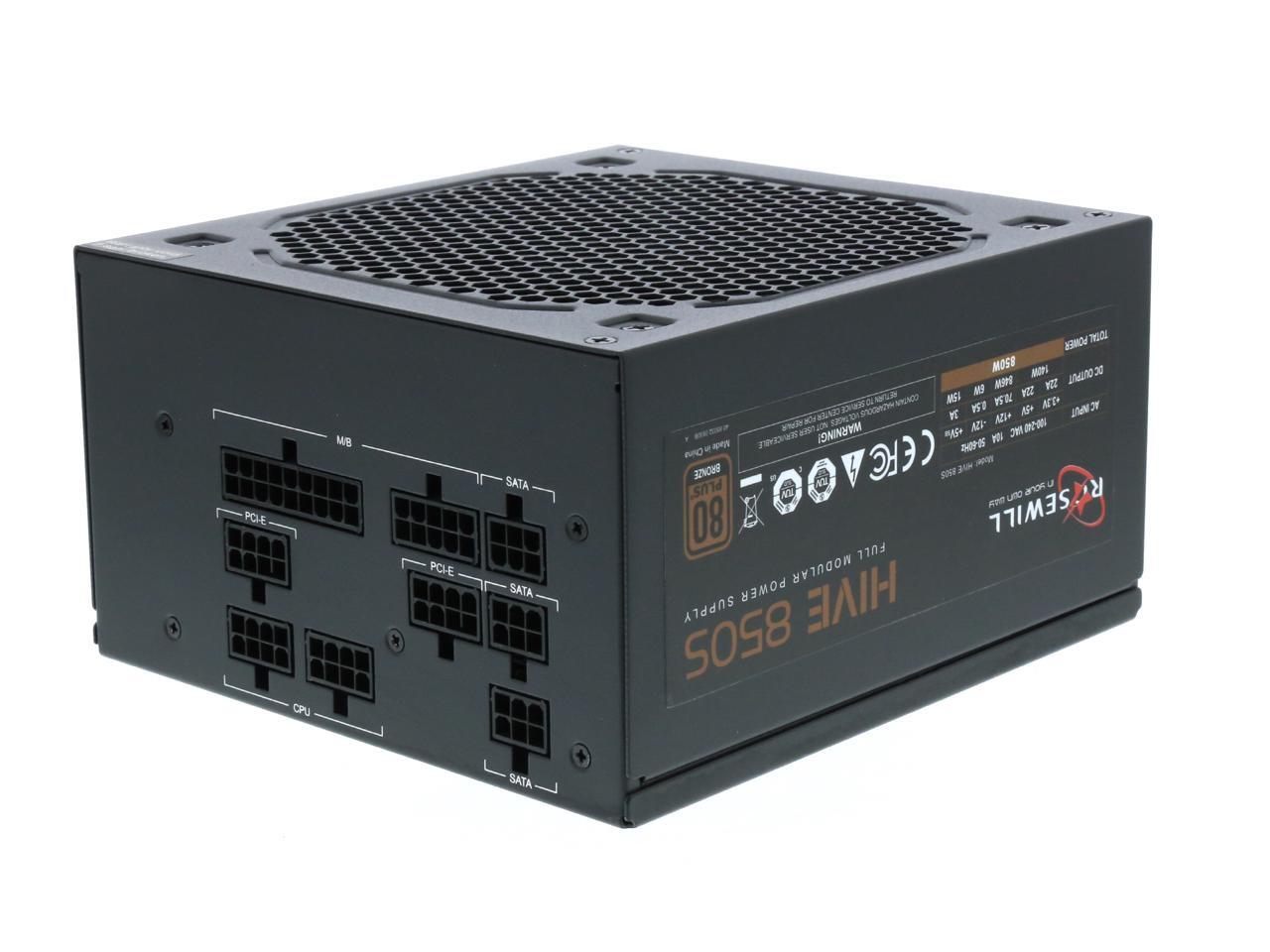

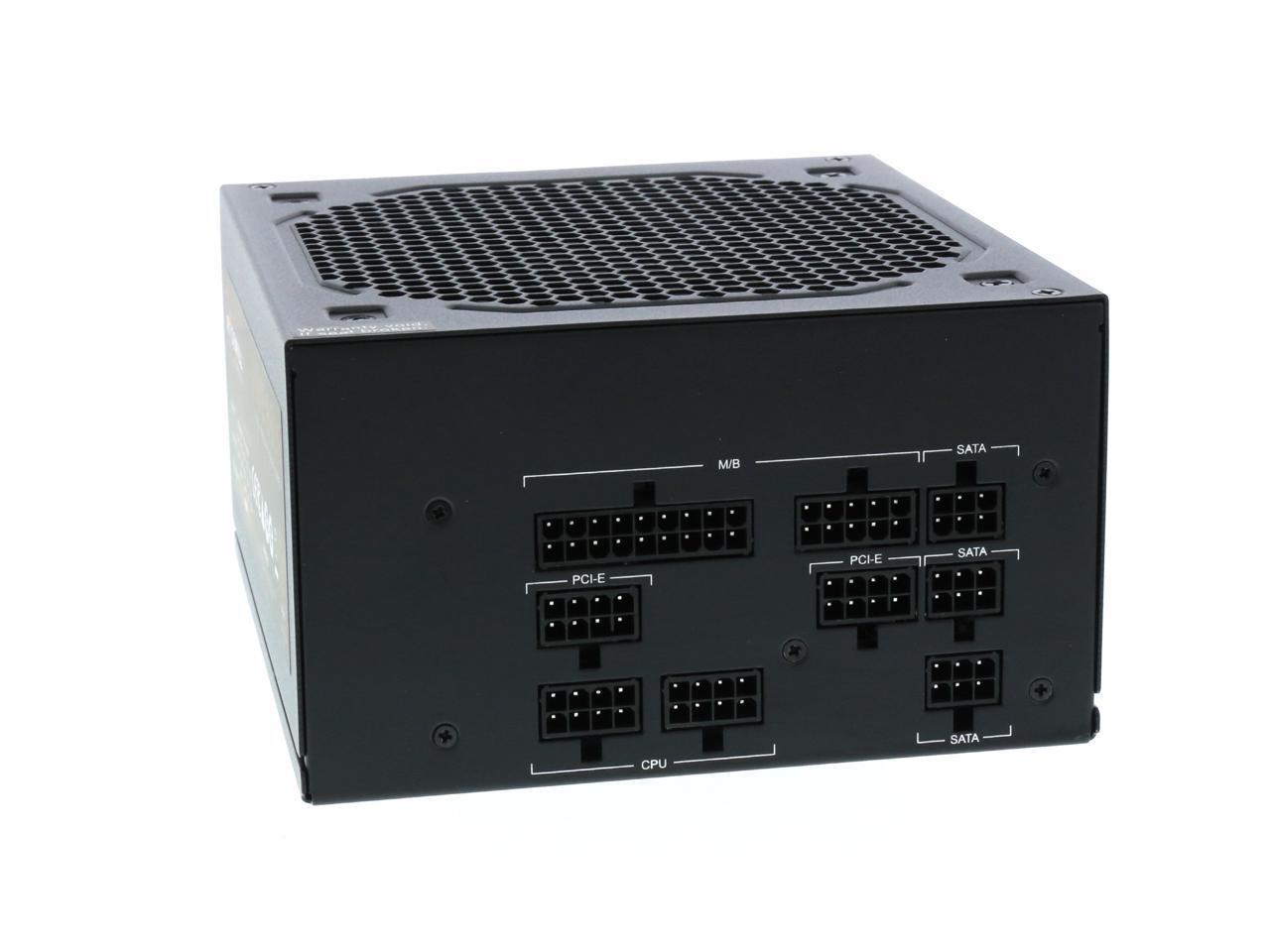

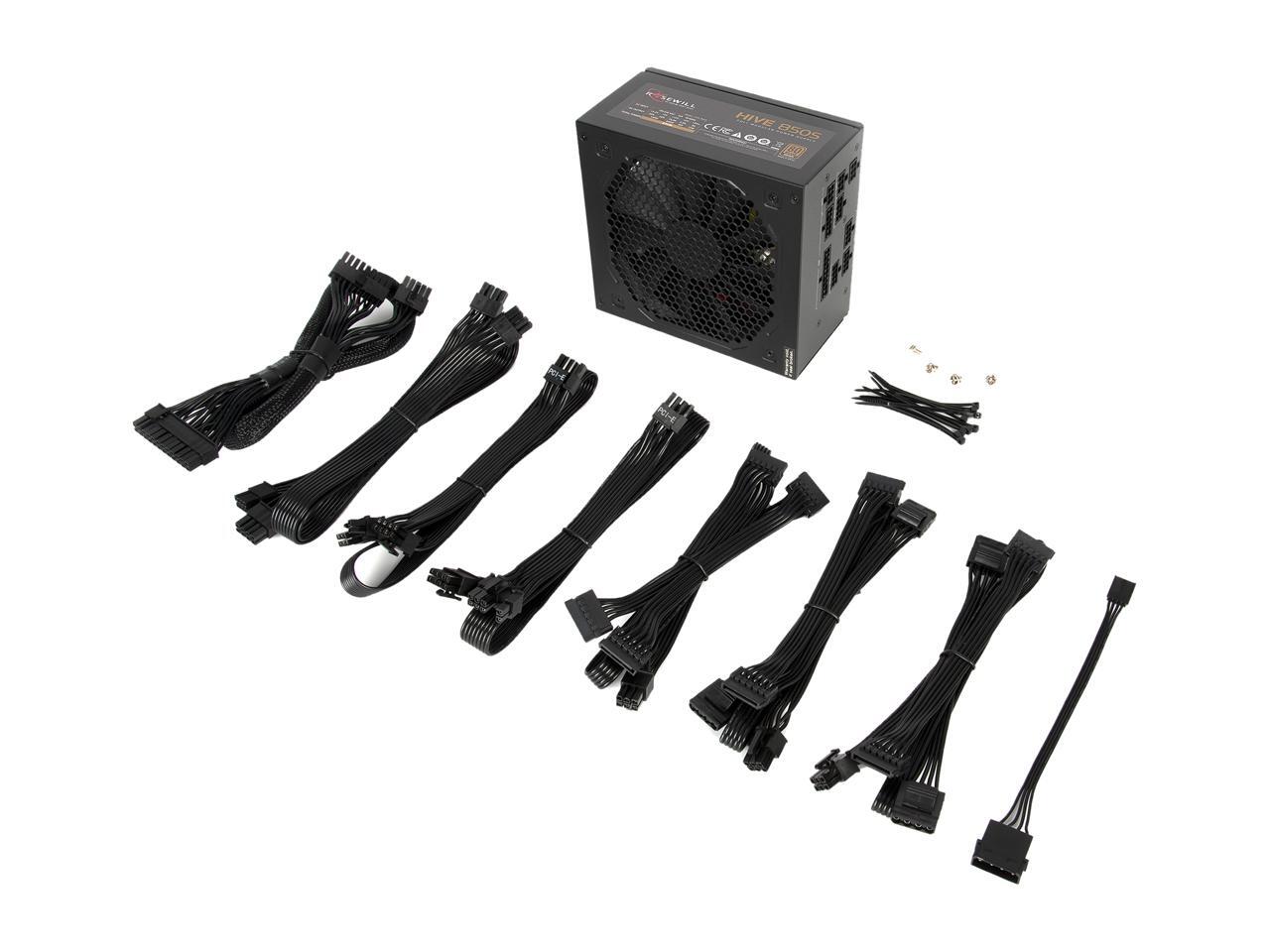

A completely modular PSU design allows every single cable to be removed from the power supply. Easily install or exclude unnecessary cables to reduce clutter and the need for cable management while maximizing airflow and cooling within your system or computer case.
| STYLE | CONNECTOR TYPE | Hive-550S | Hive-650S | Hive-750S | HIVE-850S | HIVE-1000S |
 |
20+4 Pin | x1, 21.67 in | x1, 21.67 in | x1, 21.67 in | x1, 21.67 in | x1, 21.67 in |
 |
4+4 Pin - EPS | x1, 23.64 in | x1, 23.64 in | x1, 23.64 in | x1, 23.64 in | x1, 23.64 in |
 |
Split PCI-E | x1, 23.6, 29.5 in | x2, 23.6, 29.5 in | x2, 23.6, 29.5 in | x2, 23.6, 29.5 in | x3, 23.6, 29.5 in |
 |
2 SATA + 2 Molex | x2, 21.6(s), 27.5(s), 33.4(m), 39.3(m) in | x2, 21.6(s), 27.5(s), 33.4(m), 39.3(m) in | x2, 21.6(s), 27.5(s), 33.4(m), 39.3(m) in | x2, 21.6(s), 27.5(s), 33.4(m), 39.3(m) in | x2, 21.6(s), 27.5(s), 33.4(m), 39.3(m) in |
 |
SATA Only | x1, 21.6(s), 27.5(s), 33.4(s), 39.3(s) in | x1, 21.6(s), 27.5(s), 33.4(s), 39.3(s) in | x1, 21.6(s), 27.5(s), 33.4(s), 39.3(s) in | x1, 21.6(s), 27.5(s), 33.4(s), 39.3(s) in | x1, 21.6(s), 27.5(s), 33.4(s), 39.3(s) in |
 |
4 Pin Floppy | x1, 5.91 in | x1, 5.91 in | x1, 5.91 in | x1, 5.91 in | x1, 5.91 in |
*LEGEND: (in) - inches, (m) - Molex Connector, (s) - SATA Connector, (f) - Floppy Connector
