100V a.c.-240V a.c 200V a.c.-240V a.c.(Only For China & India)
Input Frequency Range
47 - 63 Hz
Input Current
15A-7.5A
Output
+3.3V@20A, +5V@20A, +12V@100A, +5VSB@3A
Connectors

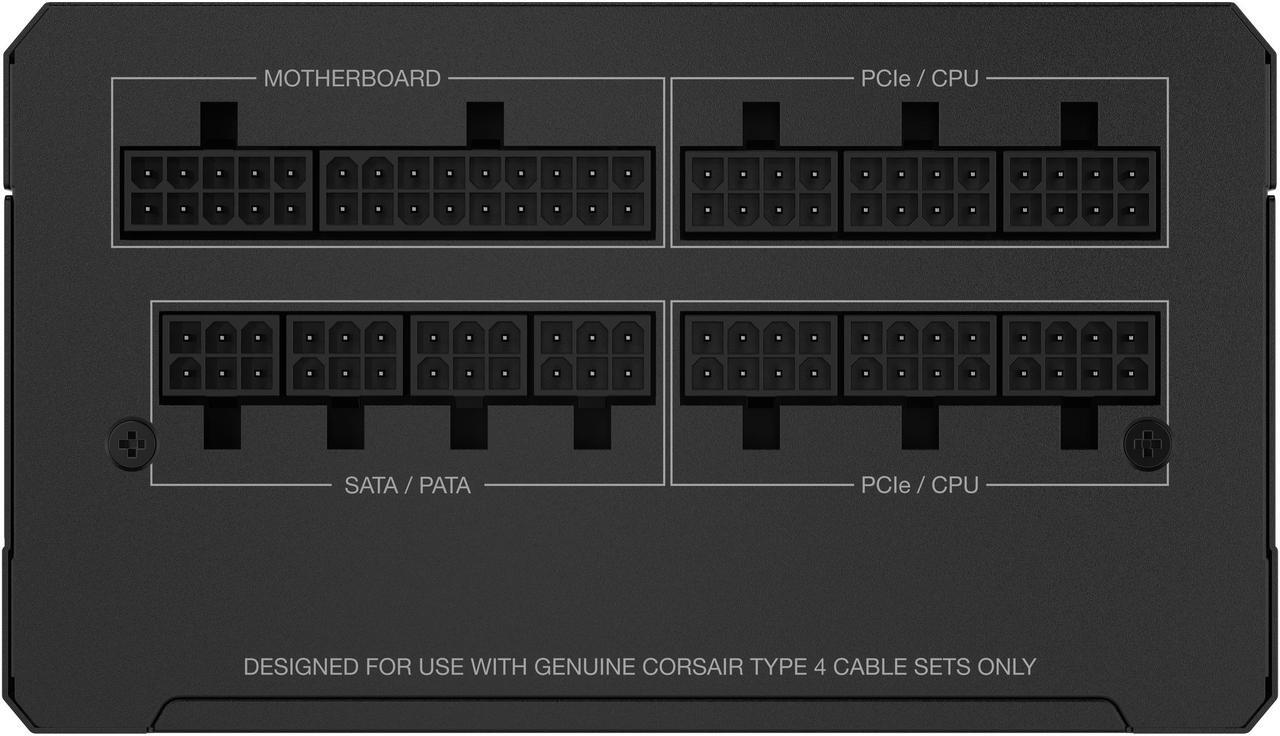

1 x Modular ATX Cable (24-PIN) (24) 2 x Modular EPS/ATX12V Cable (8-PIN) (4+4) 2 x Modular PCIe Cable (8-PIN) (6+2) 1 x Modular PCIe 5.0 (16-PIN) (12+4) 2 x Modular PCIe Cable (8-PIN) (6+2)/(6+2) 1 x Modular SATA Cable (3 SATA)(straight) 1 x Modular SATA Cable (4 SATA)(right angle) 1 x Modular PATA Cable (4 PATA)
Features
Features

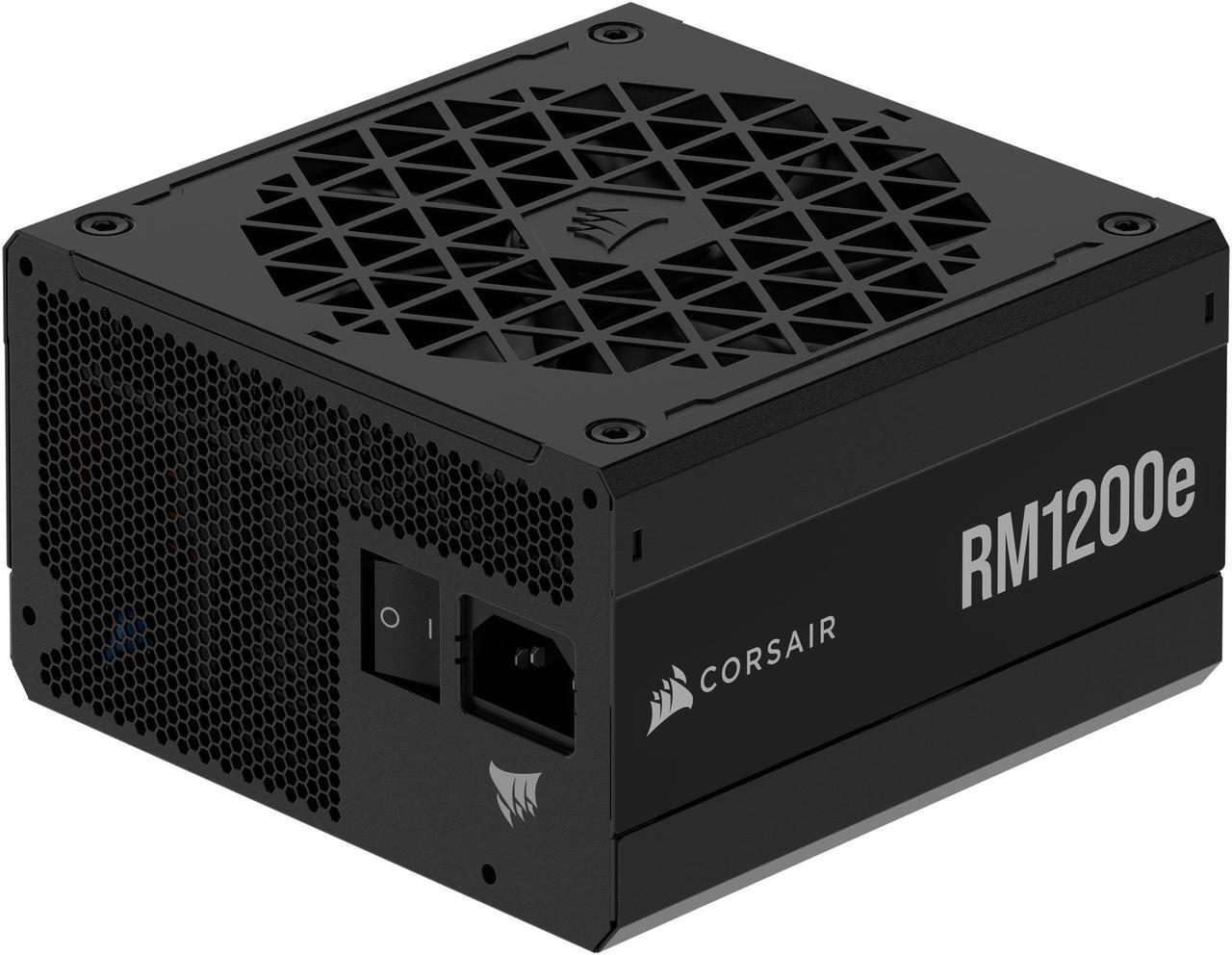

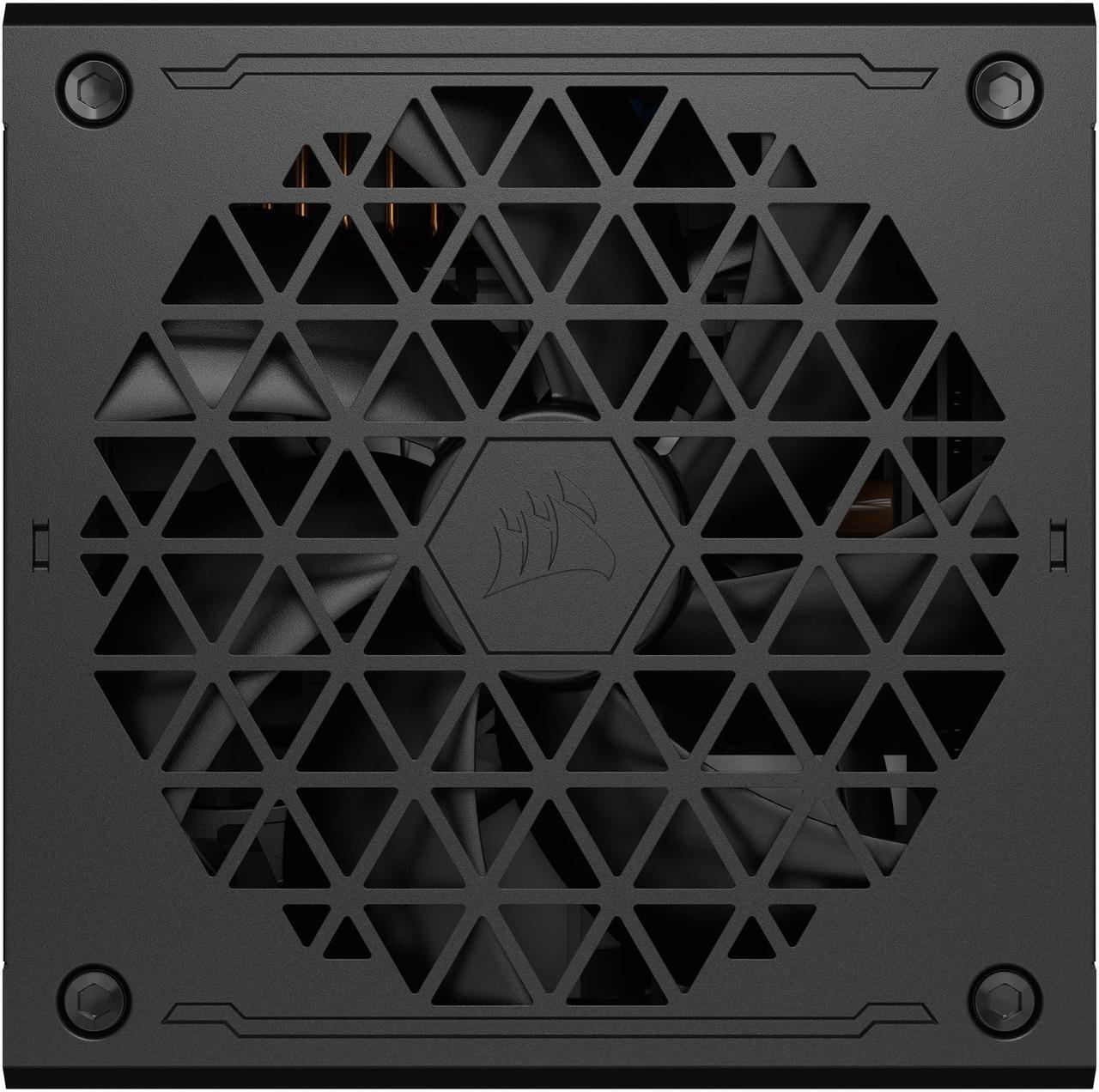

Fully Modular PSU: Reliable and efficient low-noise power supply with fully modular cabling, so you only have to connect the cables your system build needs. ATX 3.0 Compliant: Compliant with the ATX 3.0 power standard from Intel®, supporting the PCIe Gen 5 platform and resisting transient power spikes. 105°C-Rated Capacitors: Delivers steady, reliable power and dependable electrical performance, with 100% Japanese electrolytic capacitors. Keeps Quiet: A 120mm rifle bearing fan with a specially calculated fan curve keeps fan noise down, even when operating at full load. Modern Standby Compatible: Extremely fast wake-from-sleep times and better low-load efficiency. 80 PLUS Gold-Certified: Steady power output at up to 90% efficiency, and Cybenetics Platinum certified for lower power consumption, less noise, and cooler temperatures. Zero RPM Fan Mode: For near-silent operation at lower loads. Resonant LLC Topology with DC-to-DC Conversion: Provides clean, consistent power and enables use of more energy-efficient sleep states. Ten-Year Warranty: Your guarantee of reliable operation for peace of mind through multiple builds. The Right Fit: A compact 140mm casing fits easily into any power supply compartment and offers more space for cables.
Dimension & Weight
Dimensions
5.91"*5.91"*3.39"
Weight
4 lbs
Package
Package Content
RM1200e ATX Power Supply | Power cord | DC Cables | Mounting screws | Cable ties
