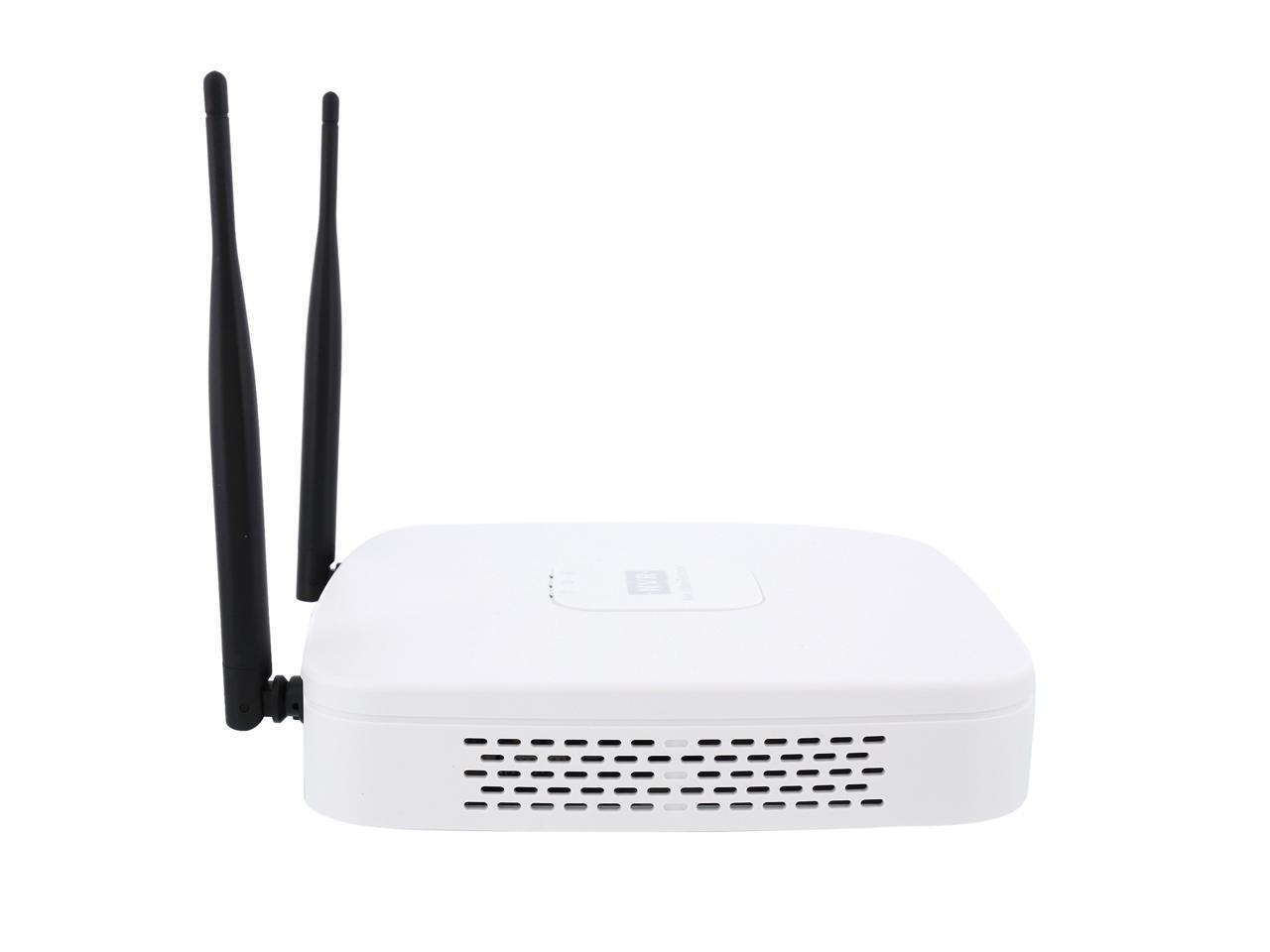

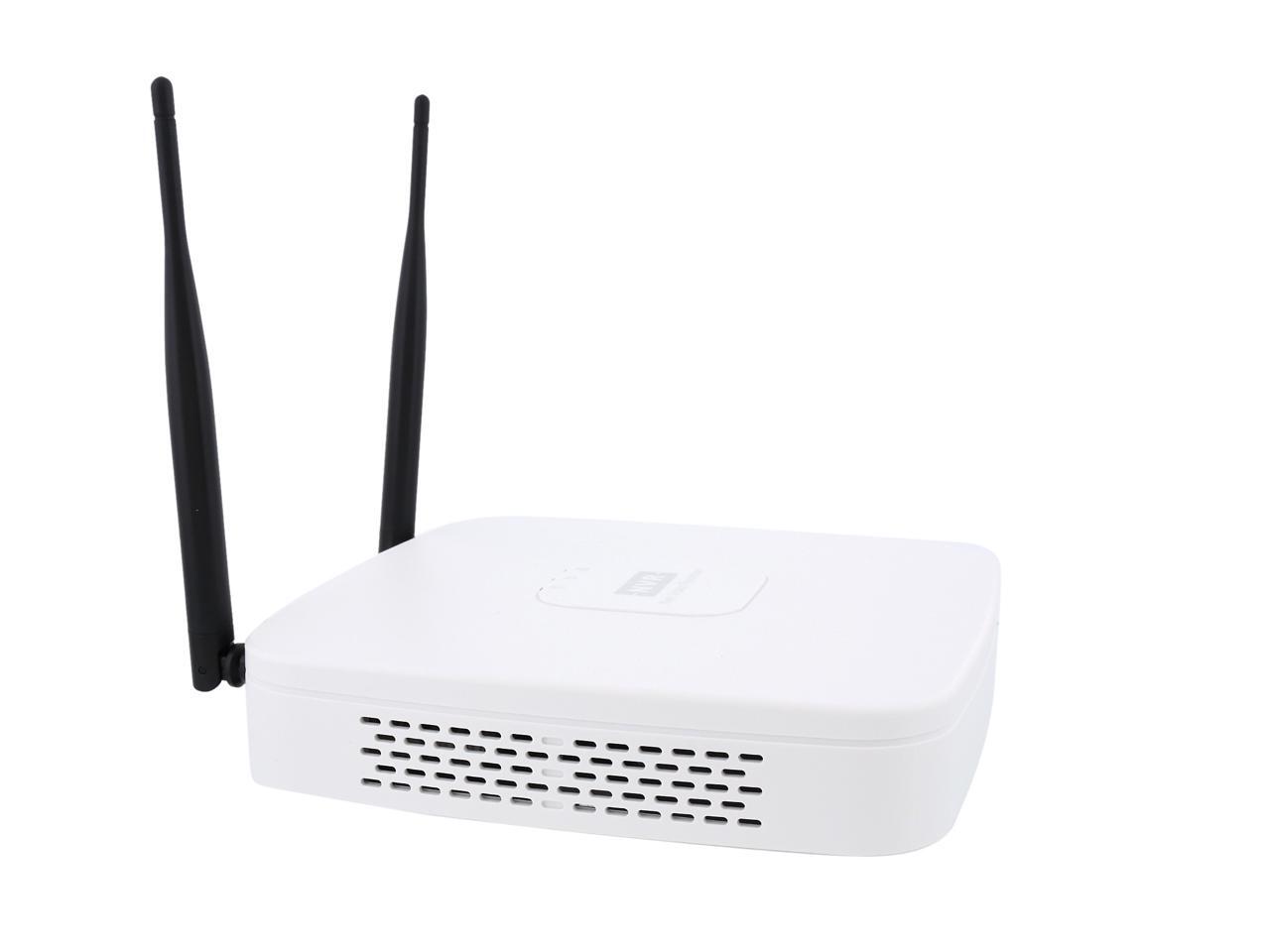

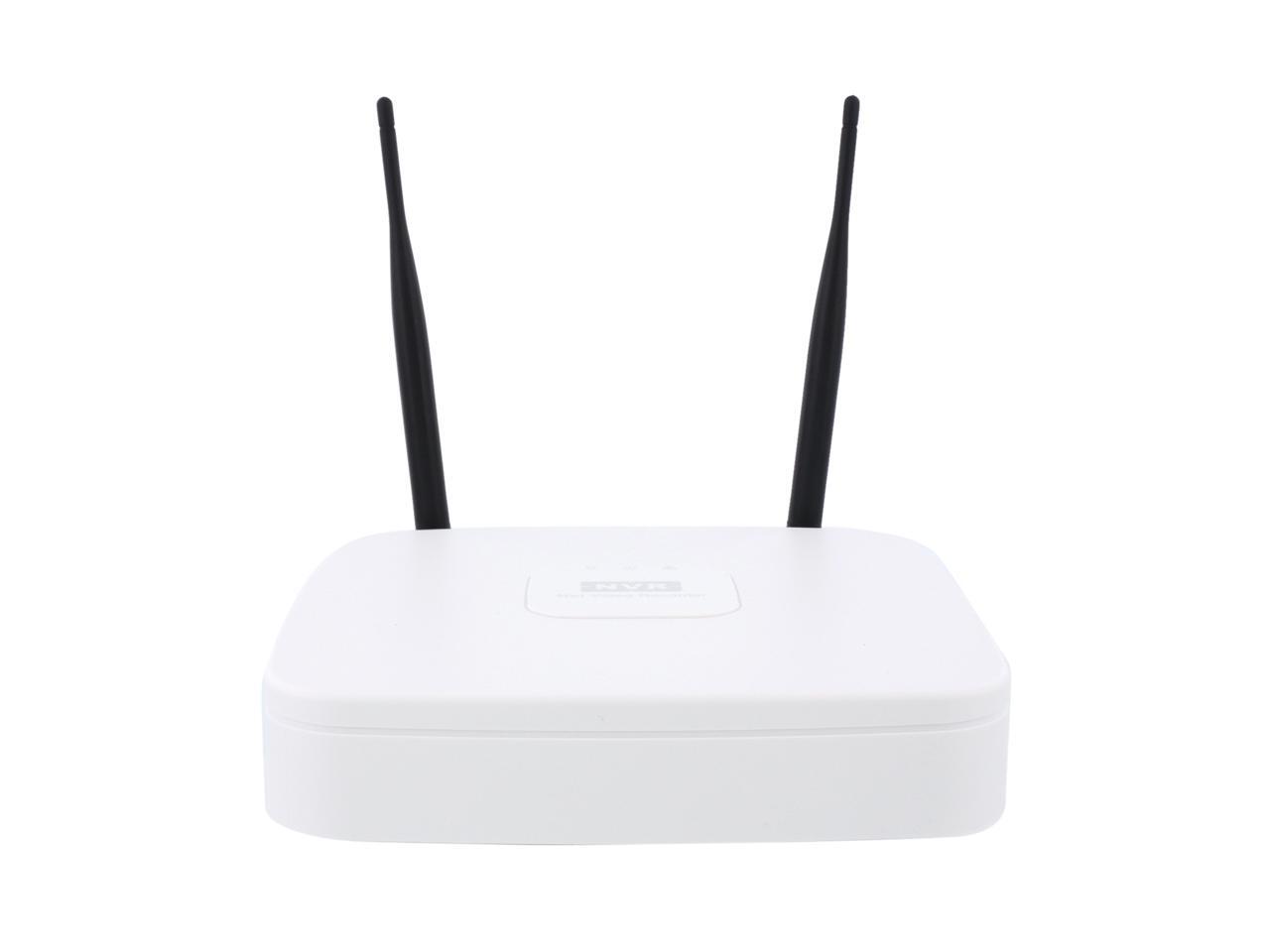

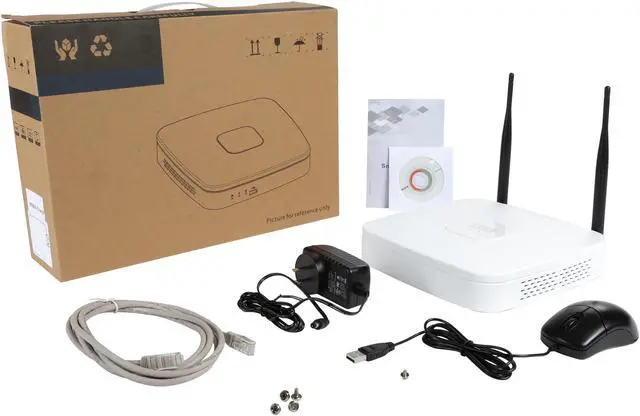

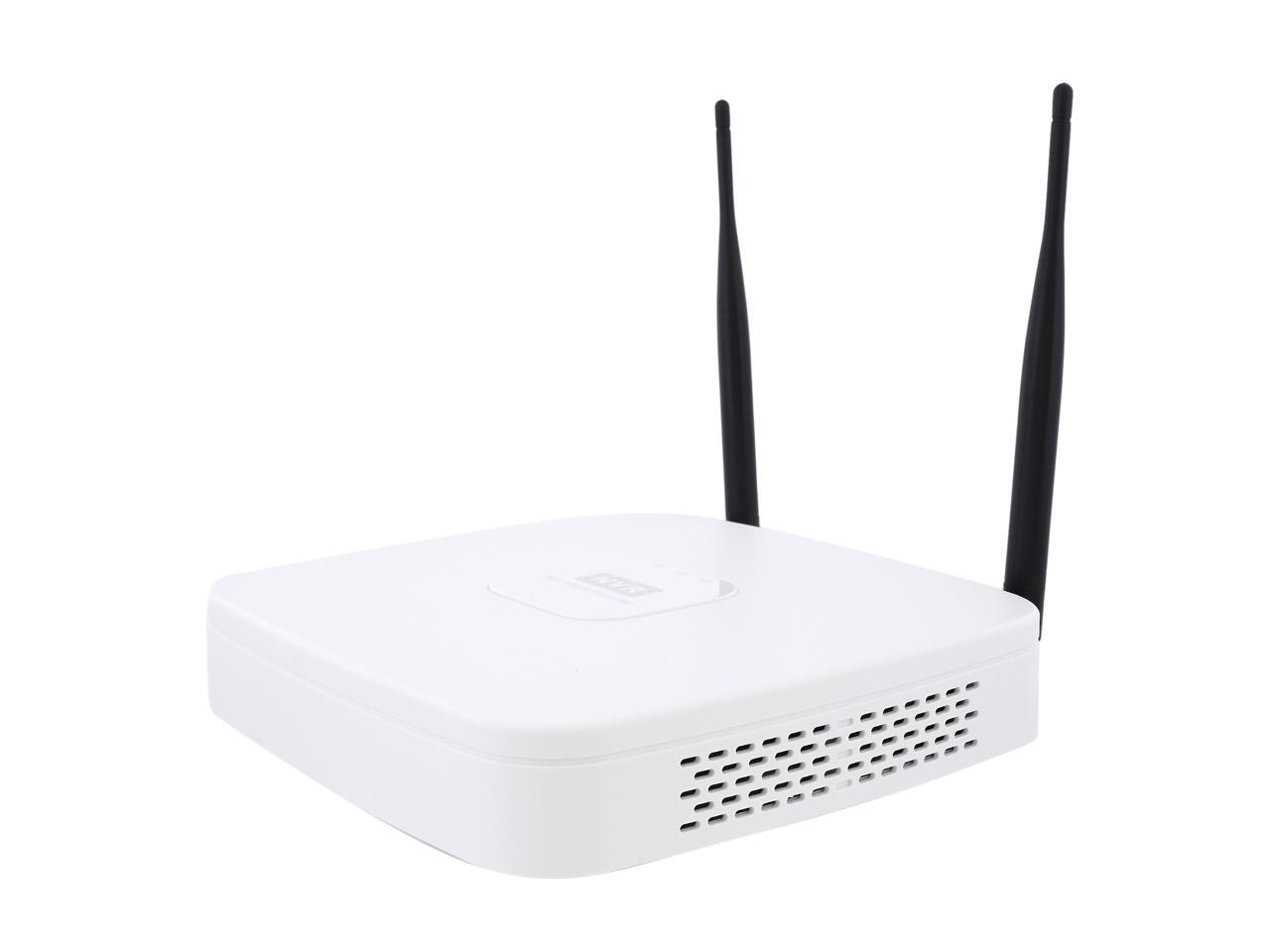

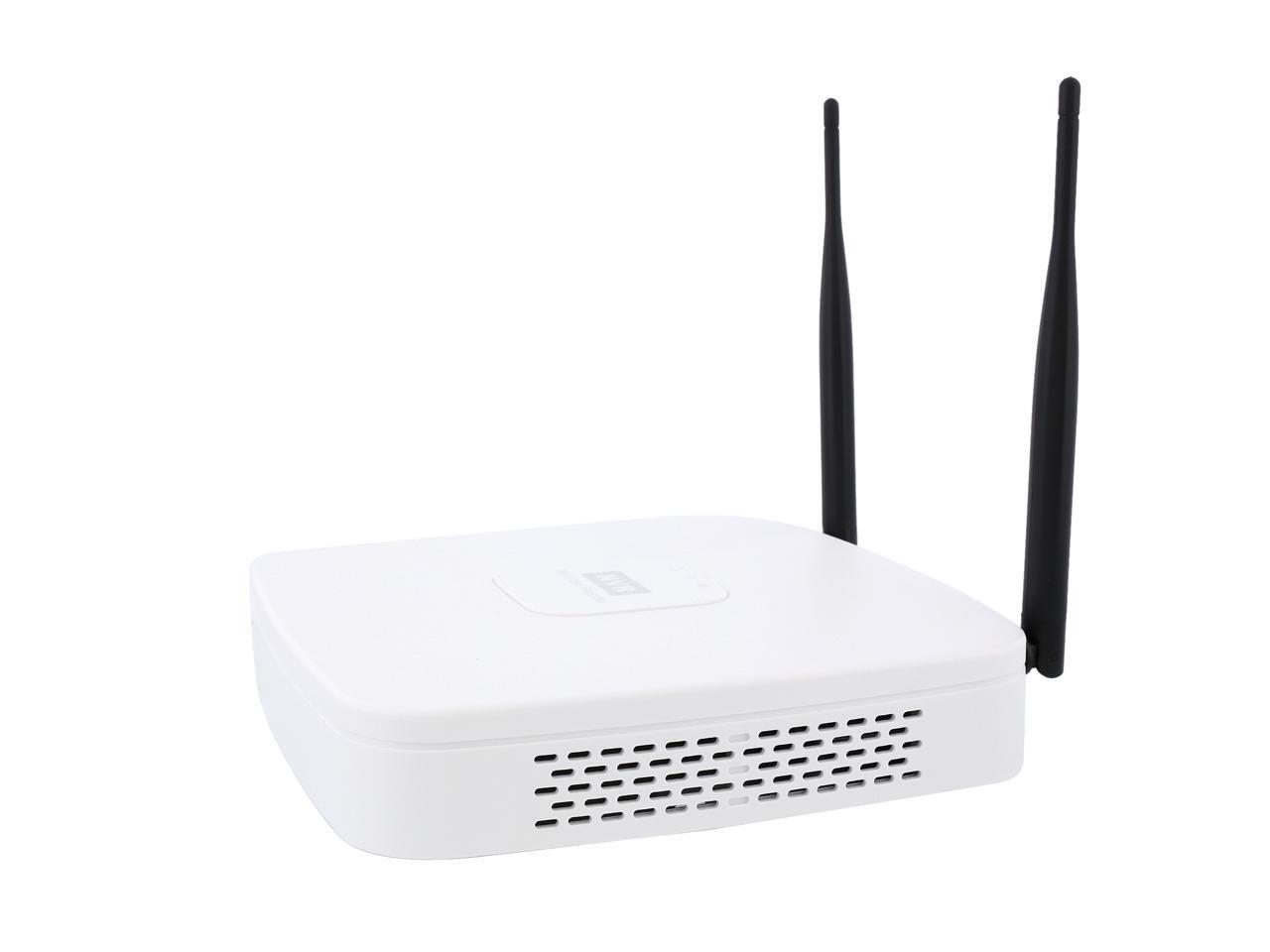

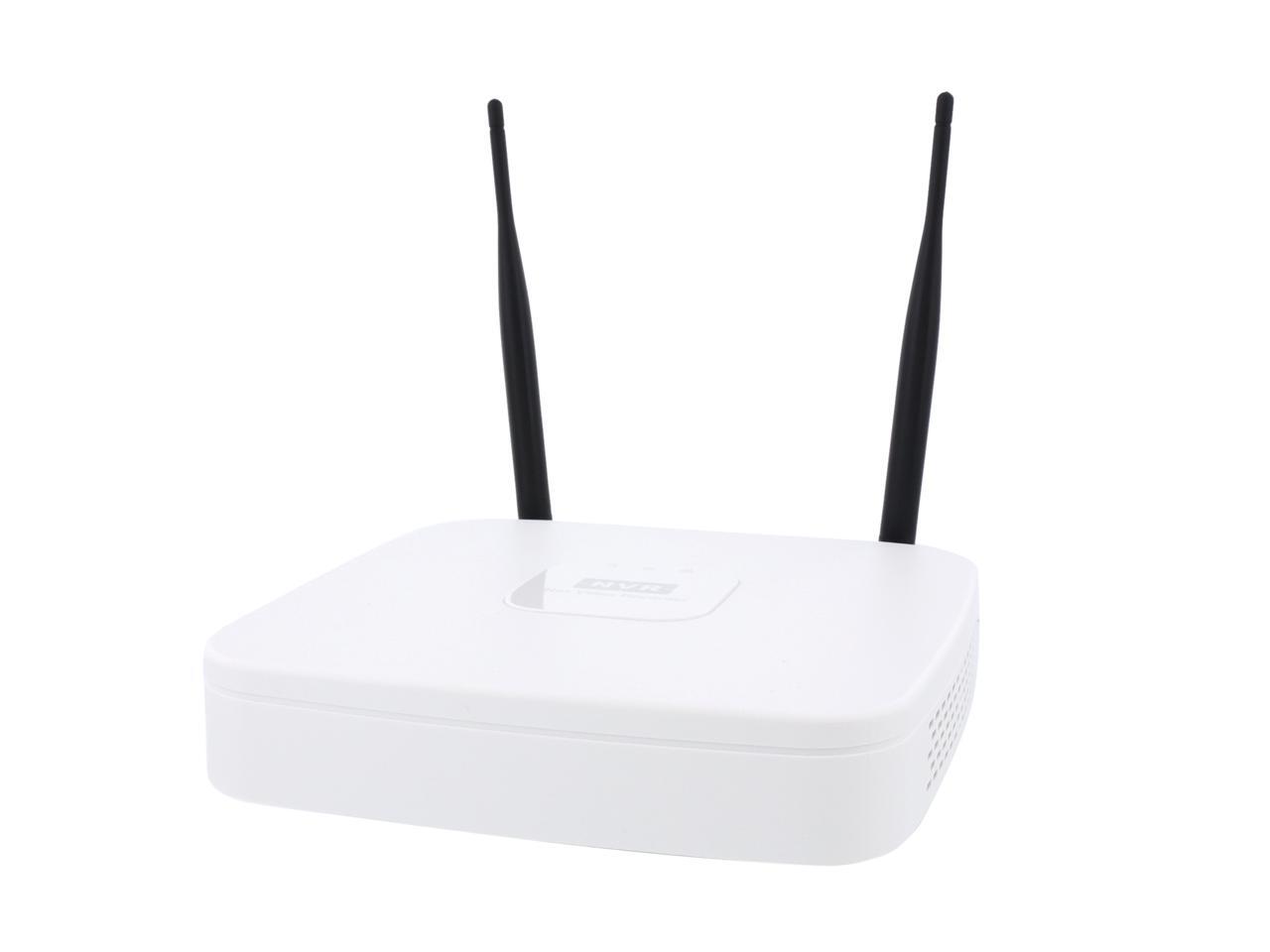

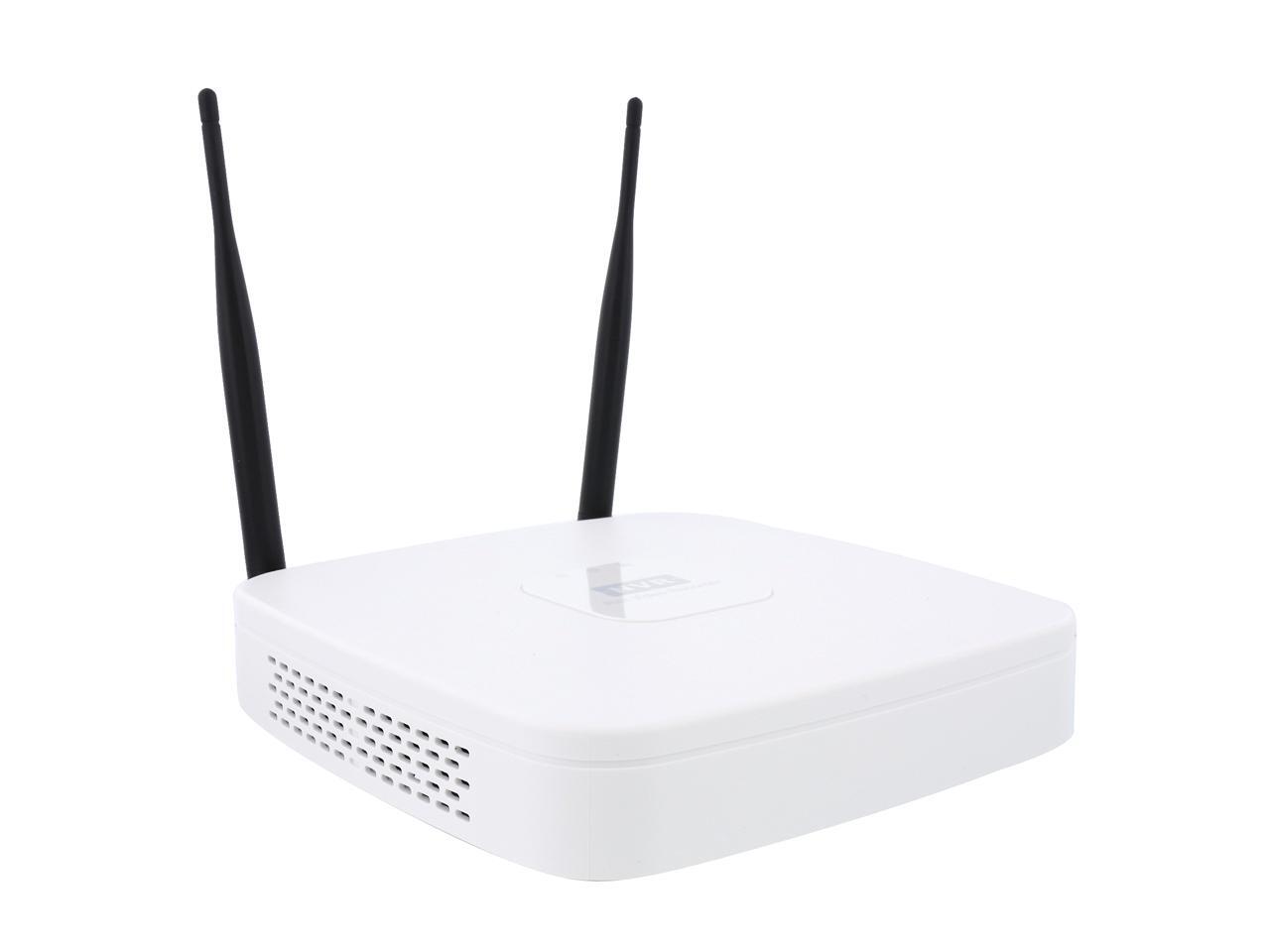

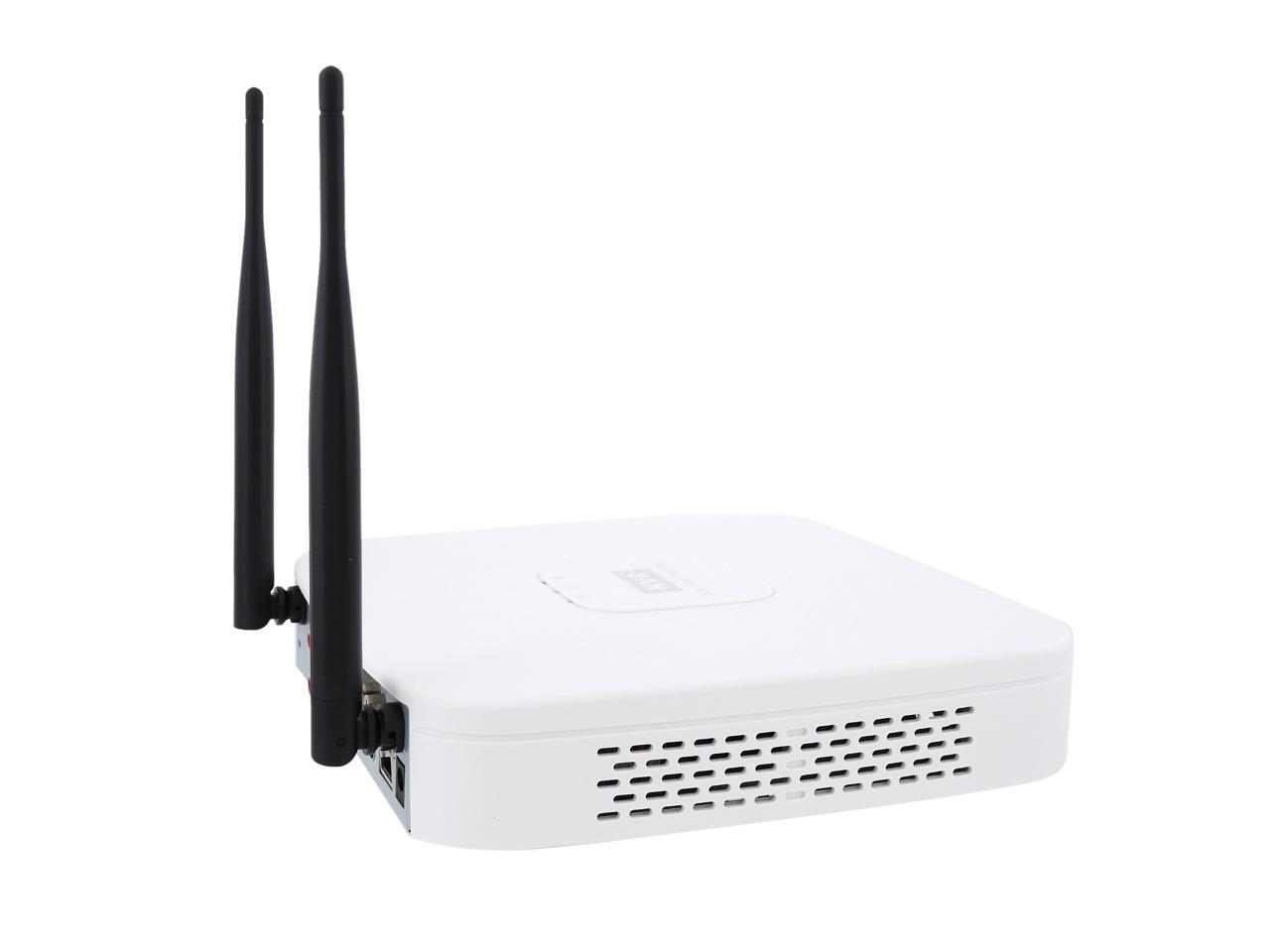

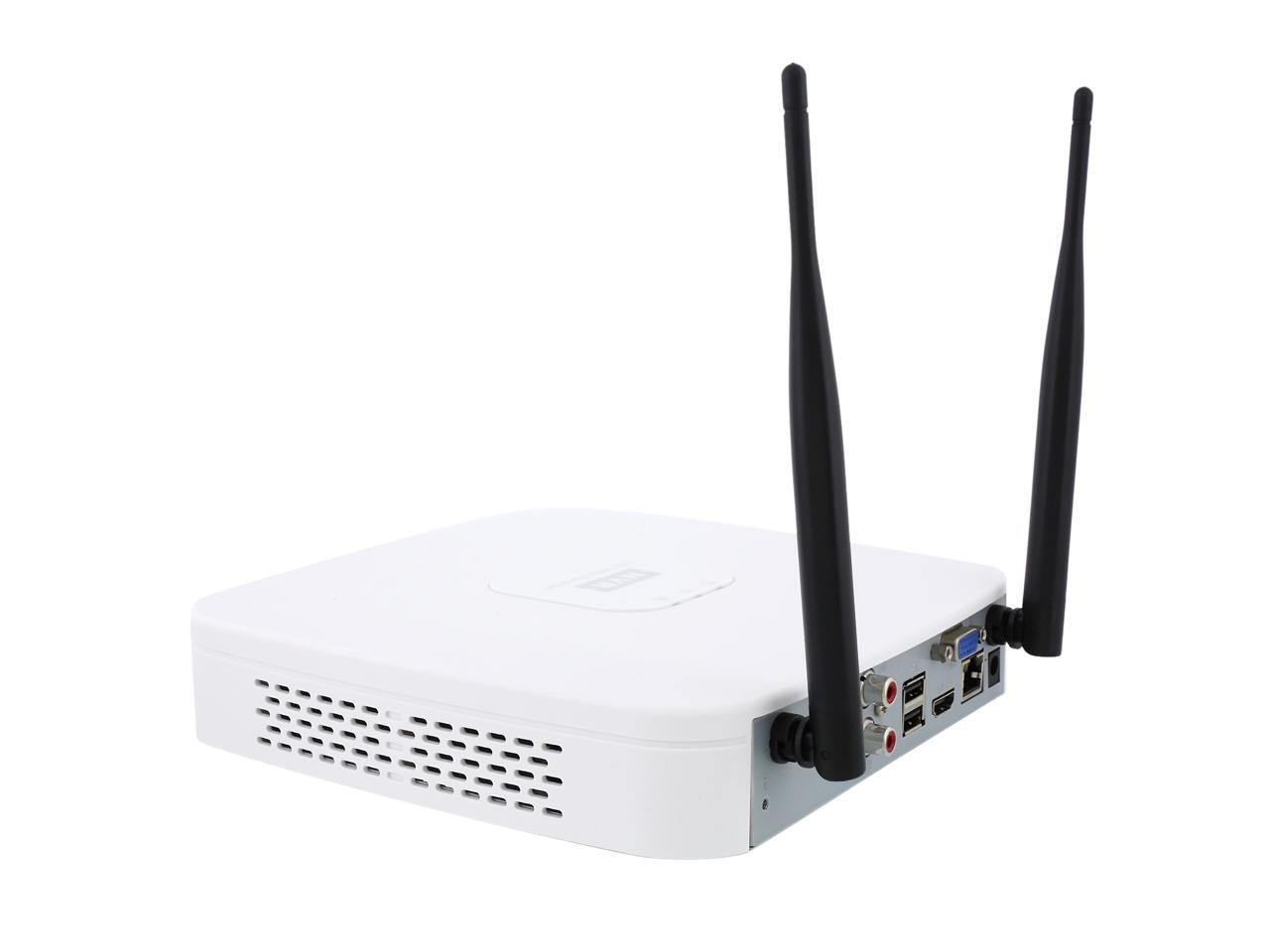

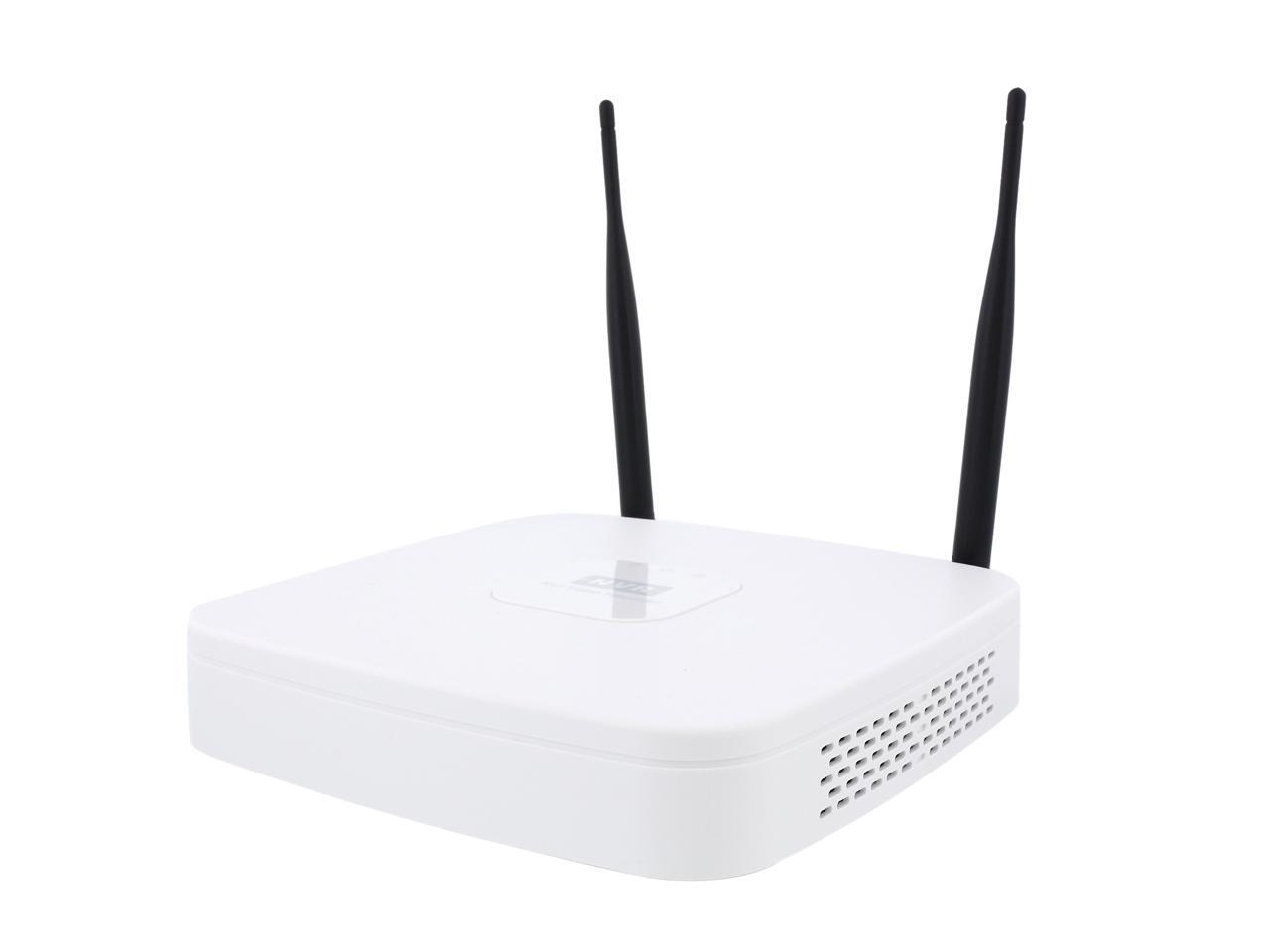

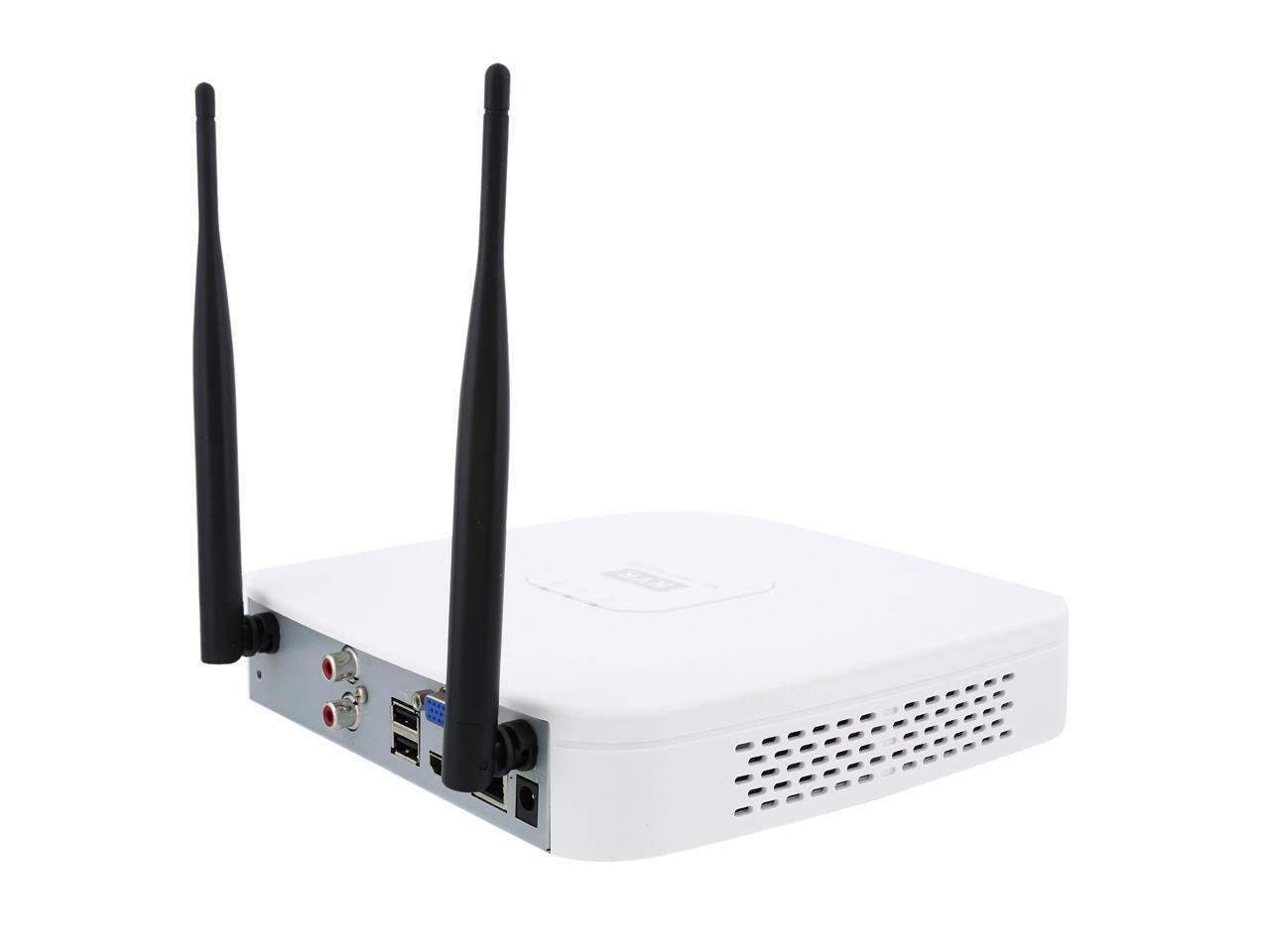

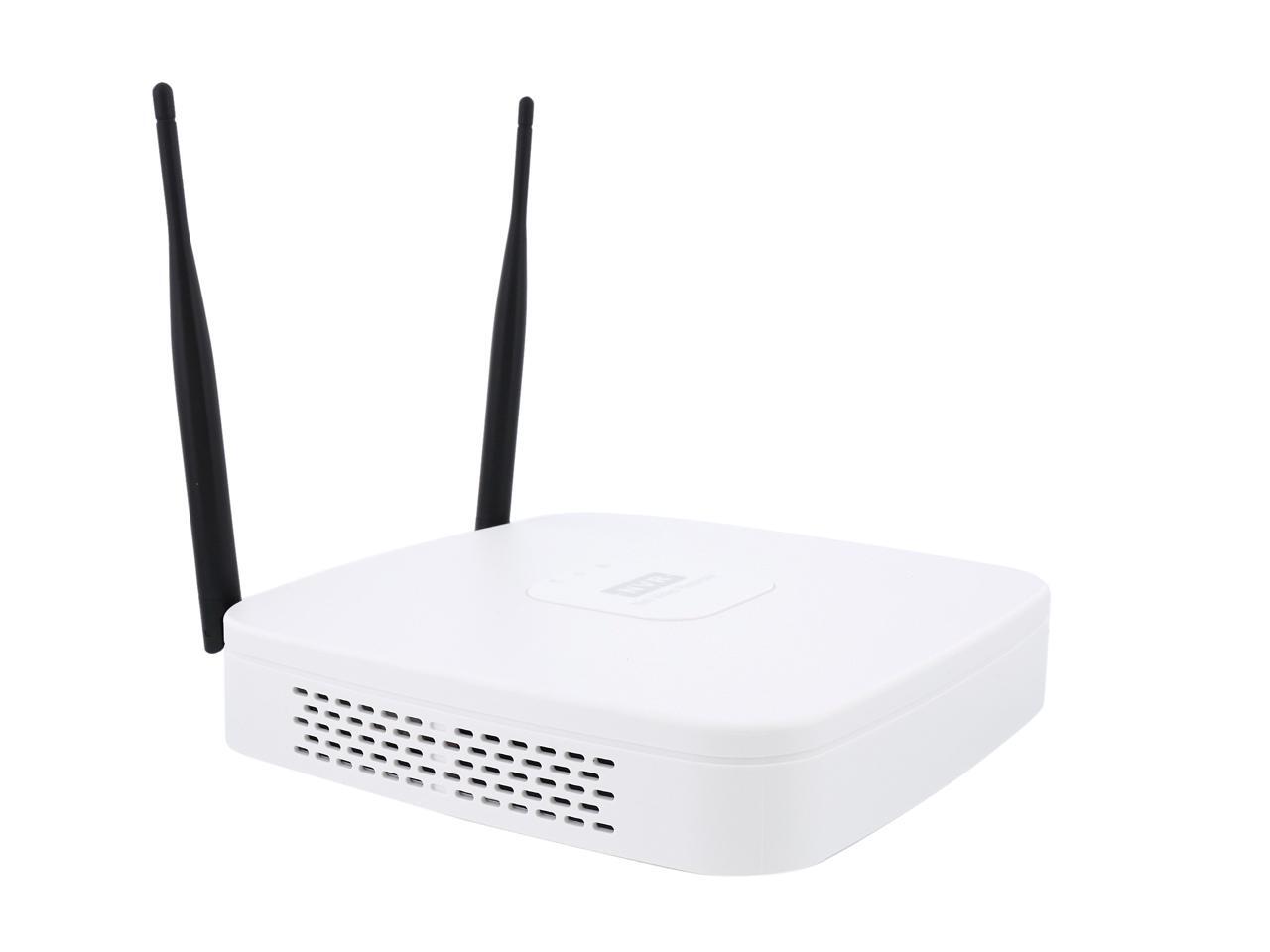

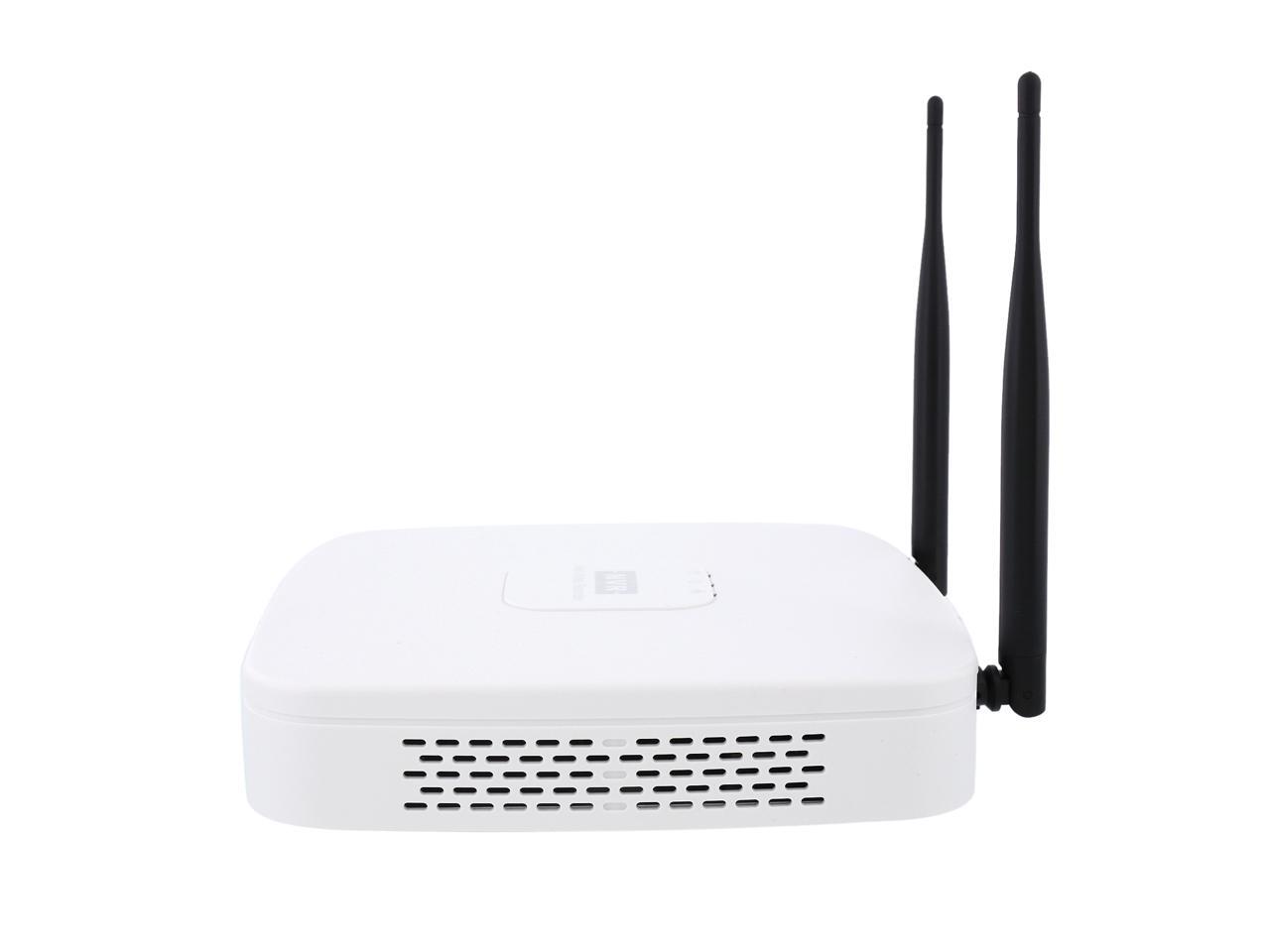

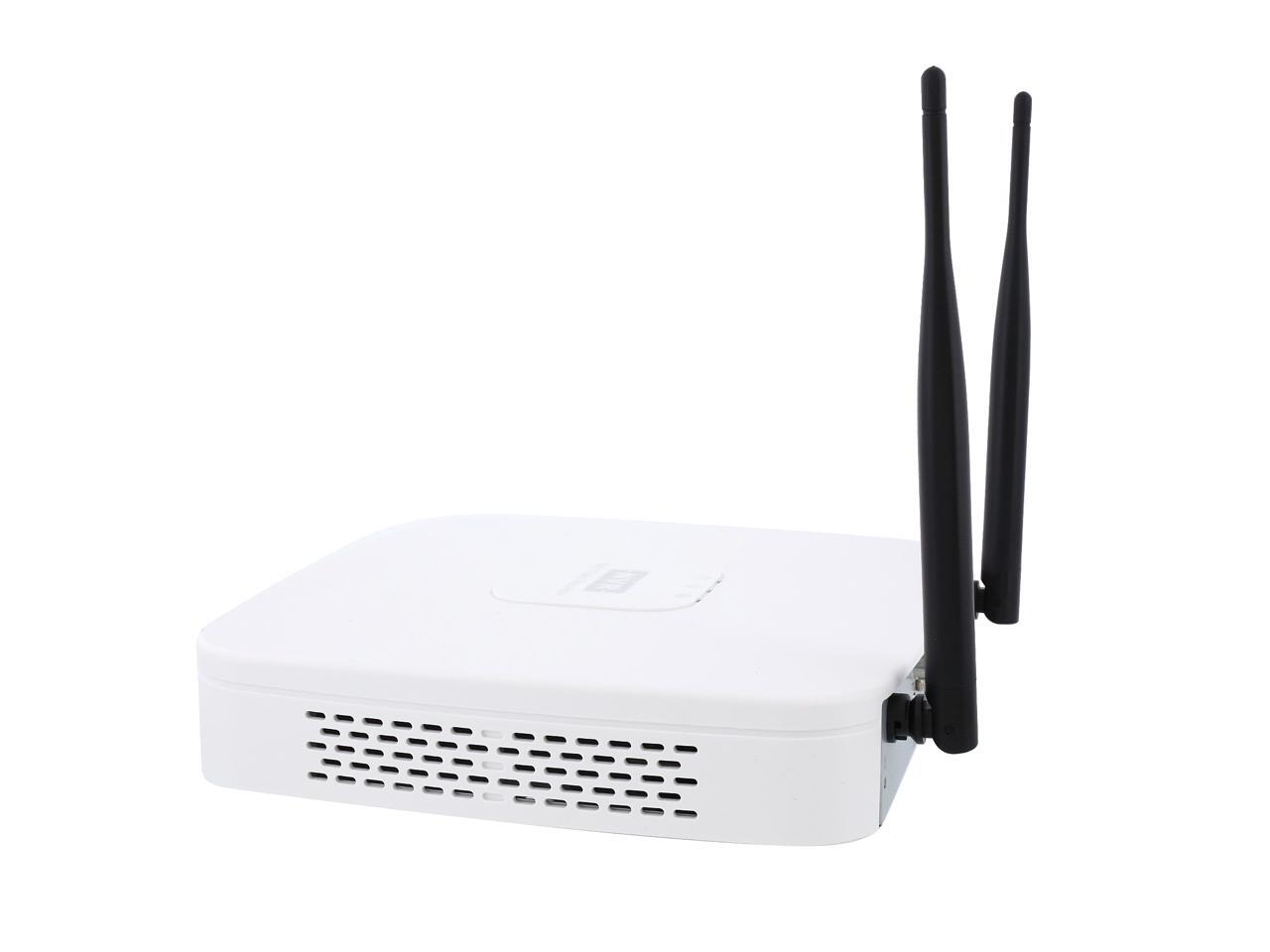

PROXY CCTV NVR301C-04/W 4CH WIFI NVR, 80 Mbps, HDMI / VGA, 1 SATA

Be the first to review this product...
  • 4ch Wifi NVR
  • 80Mbps Video Inputs
  • Up to 12MP decoding
  • 1 SATA HDD up to 6TB
  • One-Click Online Remote Set-up on Smartphone
  • Dahua OEM
Specs
Reviews

Learn more about the PROXY NVR301C-04/W

Model
Brand PROXY
Series Diamond Series NVRs
Model NVR301C-04/W
Details

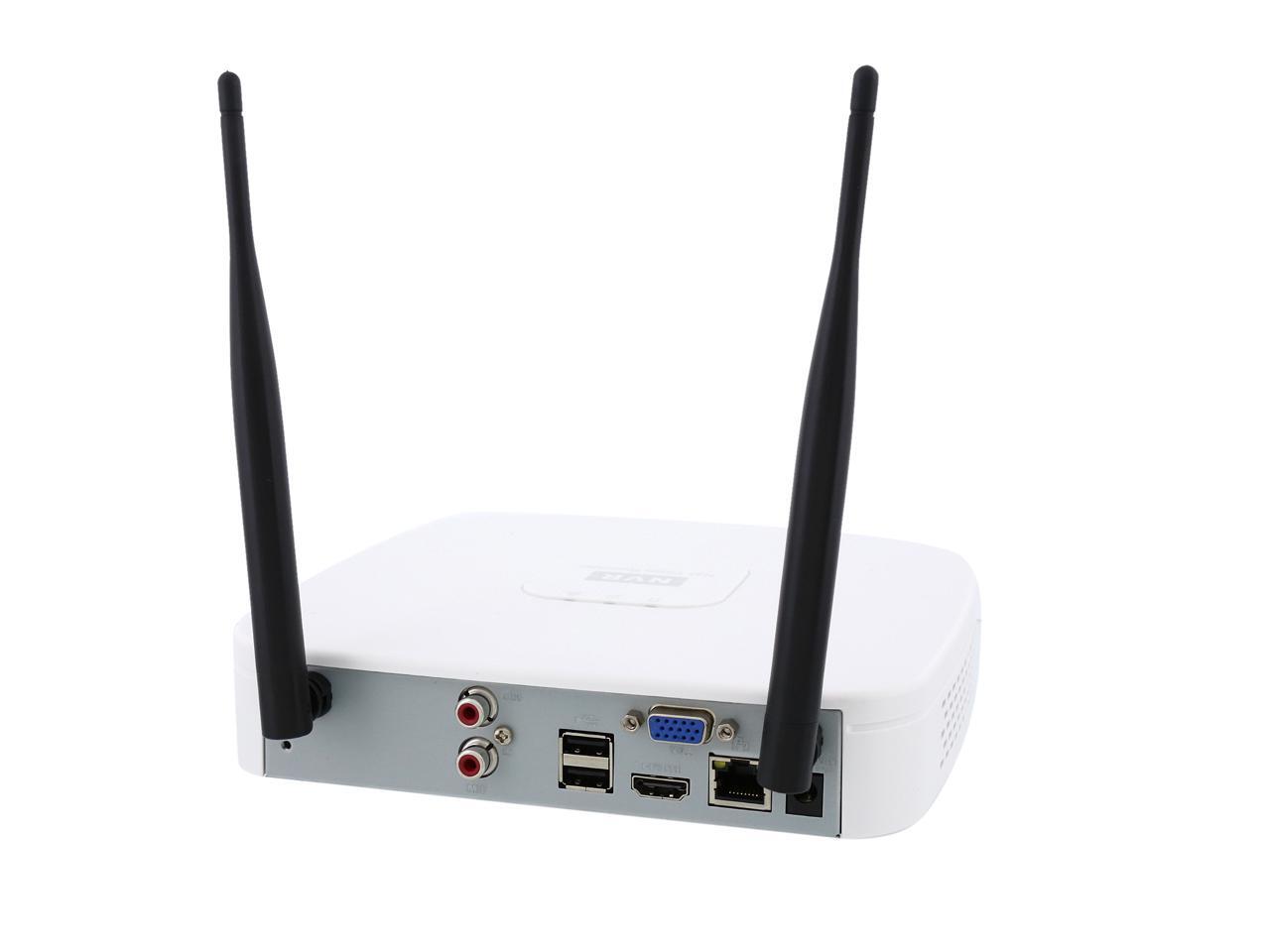

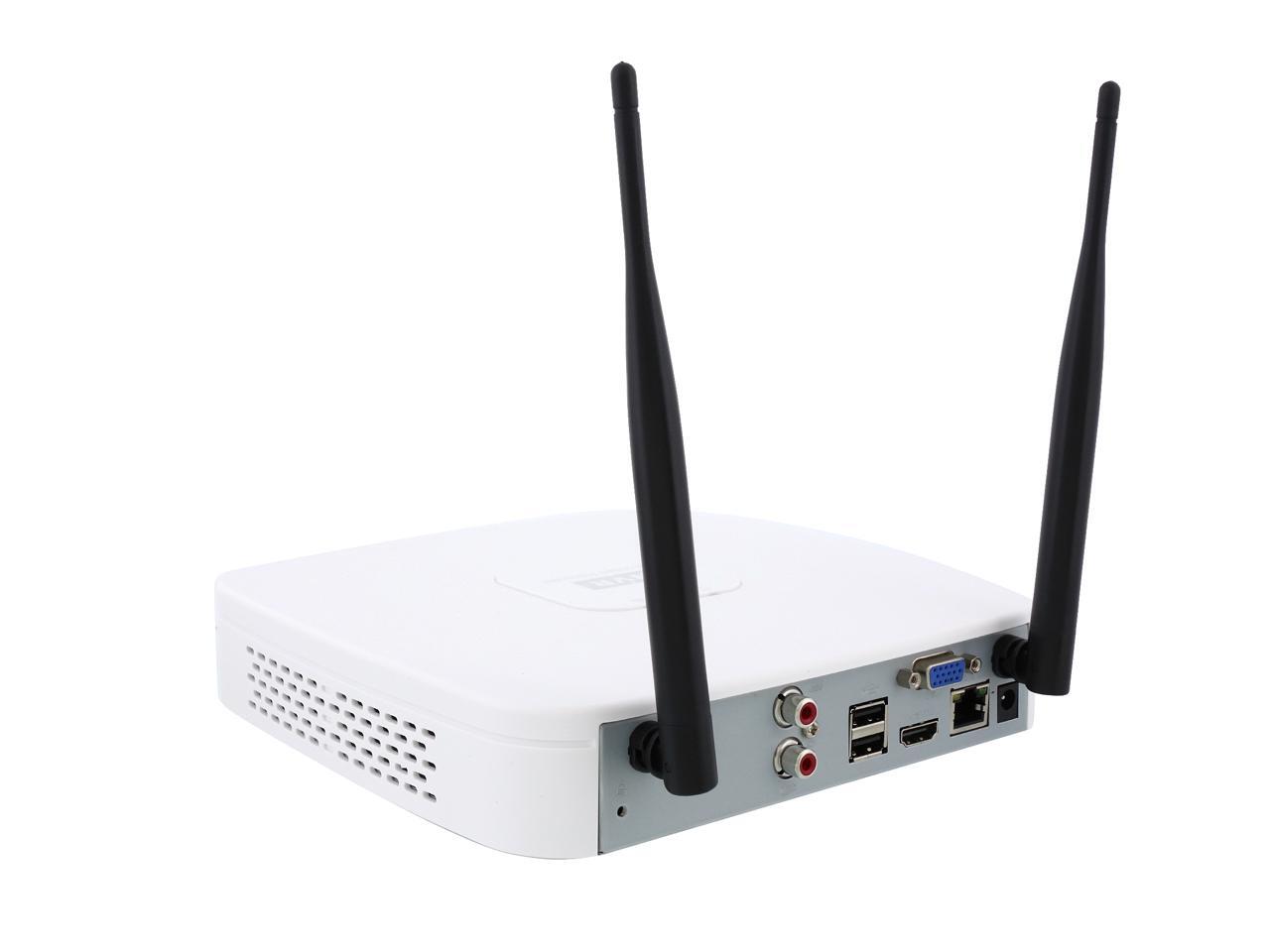

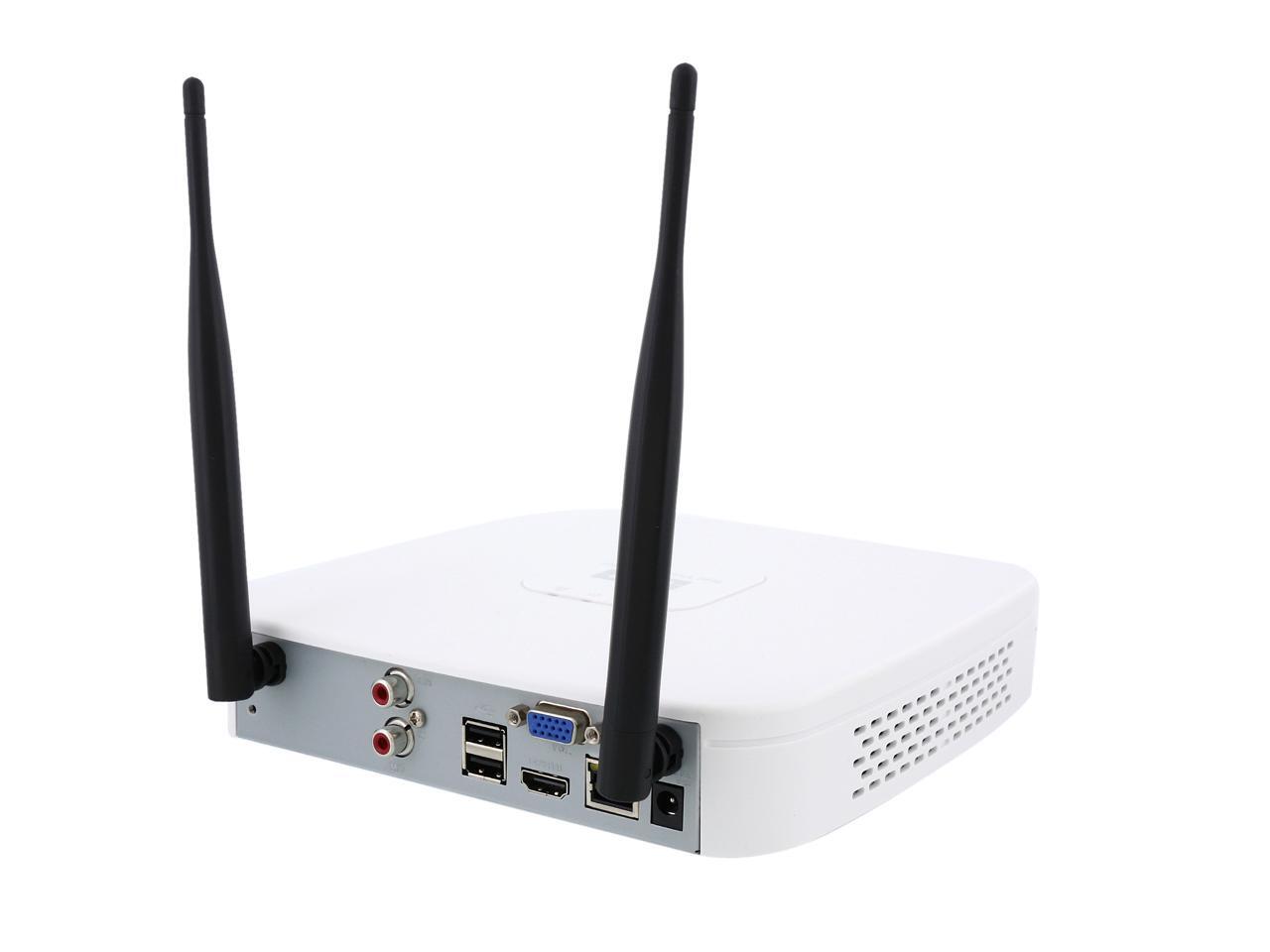

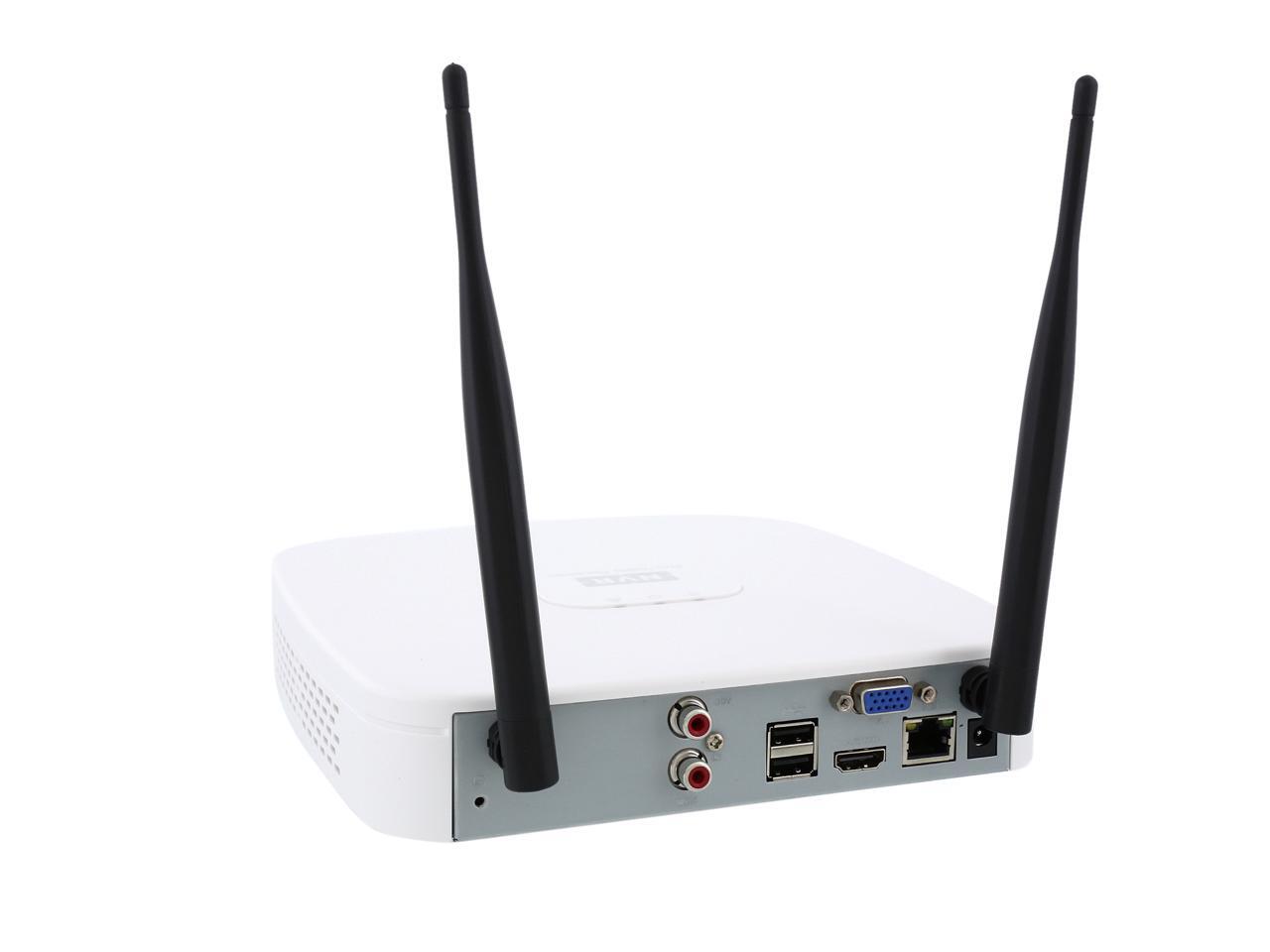

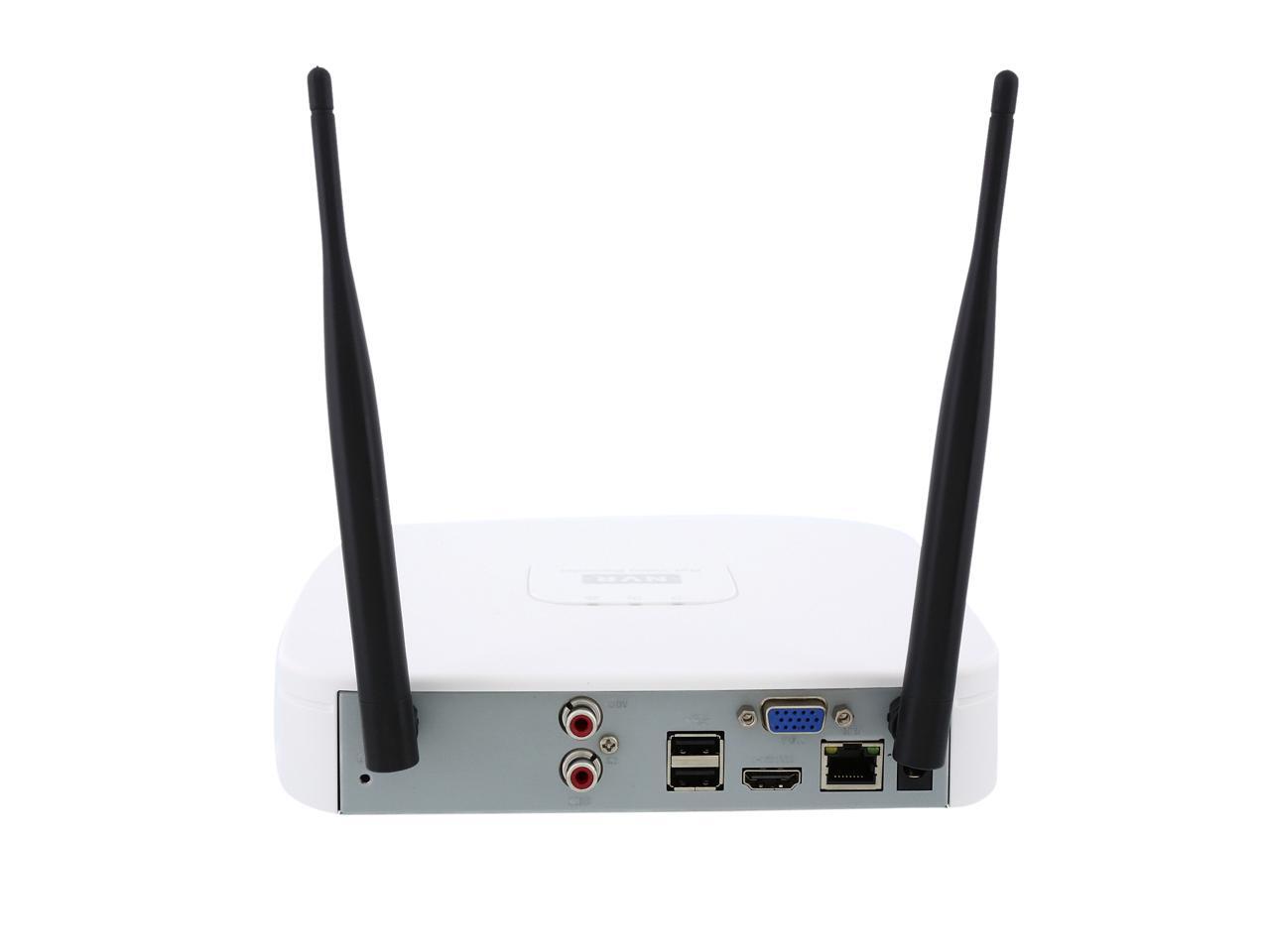

Network Interface 1 x RJ-45 port (10/100Mbps)
Ports 1 x SATA, up to 4TB
2 x USB 2.0
Video Input 4 channel
Video Output 1 x VGA, 1 x HDMI
Audio Input 1 x RCA
Compression Format H.264 / MJPEG
Processor Dual-core embedded processor
Operating System Embedded LINUX
Power Supply Power Supply DC 12 V / 2A
Power Consumption: 10W (without HDD)
Environmental
Temperature -10 °C - 55 °C
Humidity 10% - 90% RH
Features
Features Up to 4 channel IP camera input

H.264 / MJPEG dual codec decoding

Max 80Mbps incoming bandwidth

HDMI / VGA simultaneous video output

All channel synchronous realtime playback , GRID interface

Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brick com, Canon, CP Plus, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.

ONVIF Version 2.4 conformance

3D intelligent positioning with Dahua PTZ camera

Support 1 SATA HDD up to 4TB, 2 USB 2.0

Support WiFi network connection

Multiple network monitoring: Web viewer, CMS (DSS / Smart PSS) & Smart Phone (DMSS)
Dimensions & Weight
Dimensions 8.07" x 8.07" x 1.77" (H x W x D)
Weight 1.10 lbs.
Additional Information
First Listed on Newegg July 15, 2016
