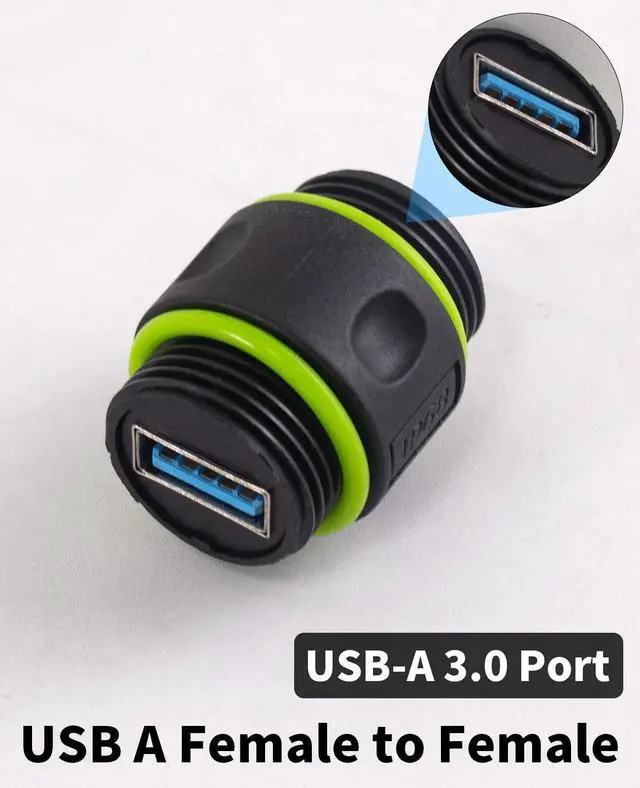

Vszerda Waterproof USB Port, 5Gbps Waterproof IP68 Pass Through USB 3.0 Connector, Type A Female to Female Bulkhead Extension Adapter for Outdoor Charging and Data, 1pcs
- [Waterproof USB Port]This Waterproof USB 3.0 Female to Female Adapter has M20 Waterproof ring. The integrated waterproof cover and sealing gasket provide effective protection against rain and debris, ensuring the safety of your devices in outdoor environments.
- [5Gbps USB Waterproof Connector]This USB C Waterproof Adapter boasts copper pins with brass solid terminals and gold plating, allowing for extended use and high-speed transmission of up to 5Gbps. Ideal for charging and data transfer on devices with usb 3.0 input.
- [ Waterproof USB 3.0 Panel Connector]This IP68 Waterproof USB Connector meets industry standards for protection against moisture, dust, rain, and snow, ensuring a reliable and high-quality connection. The adjustable waterproof casing allows for versatile use on ground sockets, desktop sockets, and 86 panels.

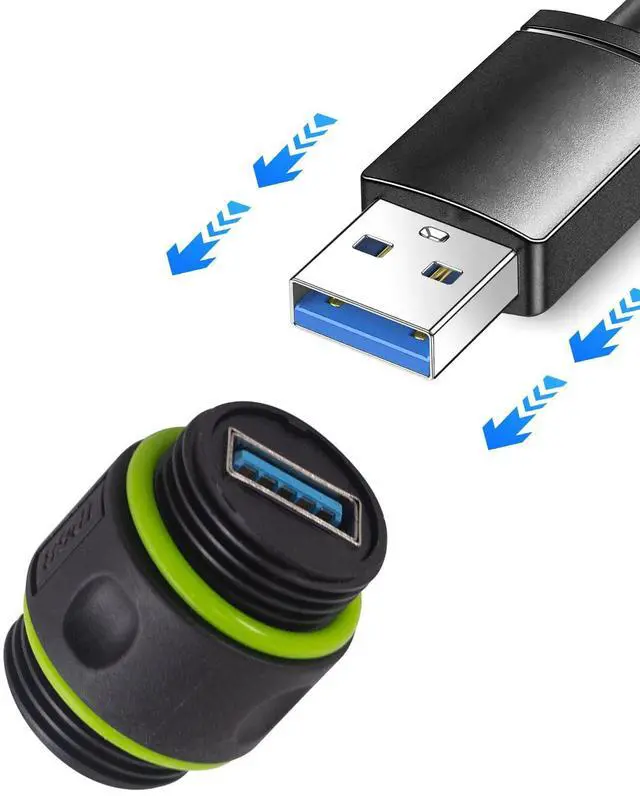

- [Feature]The nylon PA 66 shell of this USB 3.0 female-to-female bulkhead connector is waterproof and flame-retardant, making it perfect for outdoor environments requiring data transmission. Easy to installation, no soldering, no installation tools, just plug the standard type-c head directly for quick installation.
+
+
Overview
Specs
Reviews
Specifications:
Waterproof rating: IP68without Waterproof/Dust Cap)
Connection type: USB Type A
Flame retardant rating: UL94V-0
Connection method: plug type

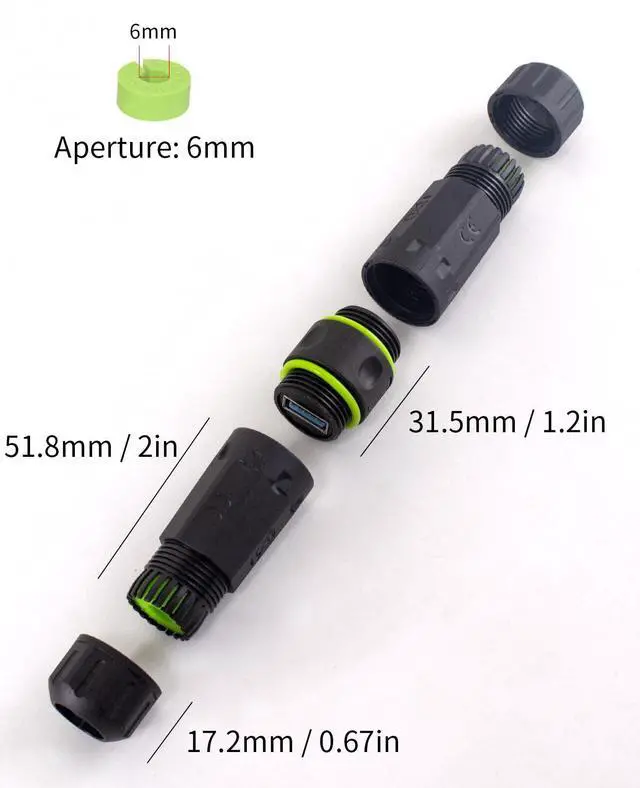

Case wall thickness: Threaded type: >2mm, through-hole type: 0.3~7mm
Connector transmission classification: USB3.0
Transmission speed range: 5Gbps
Electrical parameters:
Rated current: 5A
Rated voltage: 12V
Insulation resistance: 500M
Compressive strength: AC1000V 50HZ or 60HZ for 1 minute
Contact resistance: 10M
Material:
Shell: PA66
Socket contact pin: phosphor copper
Waterproof rubber ring: M20 silicone
Environmental conditions:
Working temperature: -40120Celsius
Storage temperature: -2585Celsius
Atmospheric pressure: 86106kPa
Relative humidity: 90% RH
Tips:
When the transmission speed is only 30Mbps, please insert the data cable in reverse, and the transmission speed will reach the expected 5Gbps.
Package Included:
1x Waterproof USB 3.0 Connector
Additional Features
- [Wide Use]USB 3.0 Panel Waterproof socket can be installed on ground socket, desktop socket and 86 panel, and is widely used in cinemas, stages, home audio and video, KTV, automatic intelligent equipment and various weak current engineering facilities. Also can be used for data transmission and charging for mobile phones, tablets, digital electronic devices.
