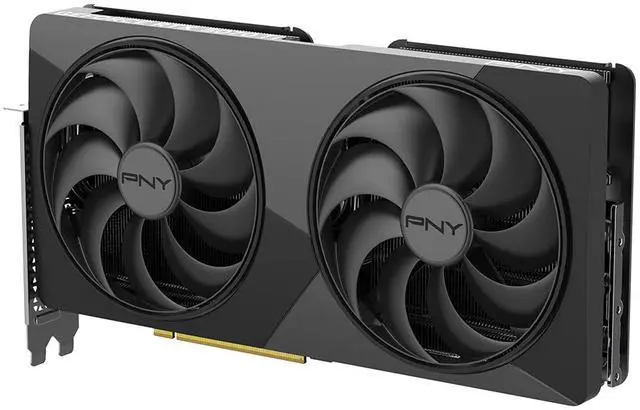

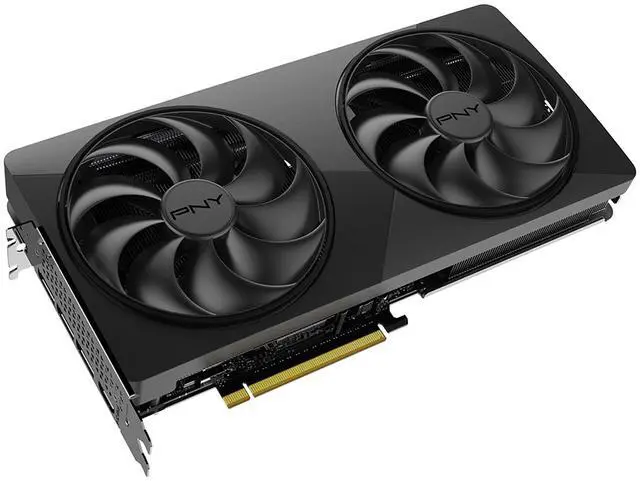

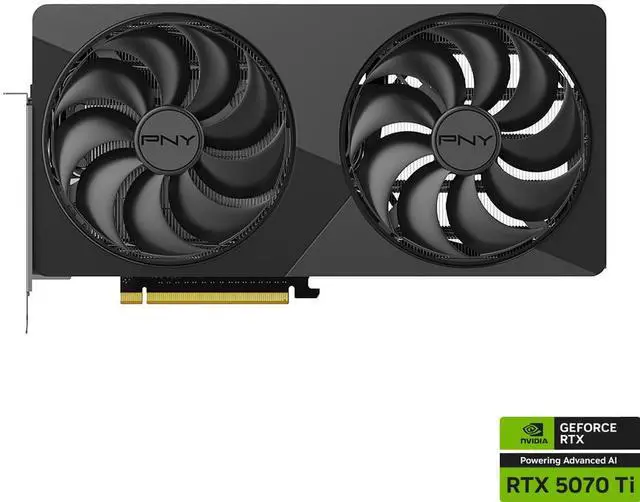

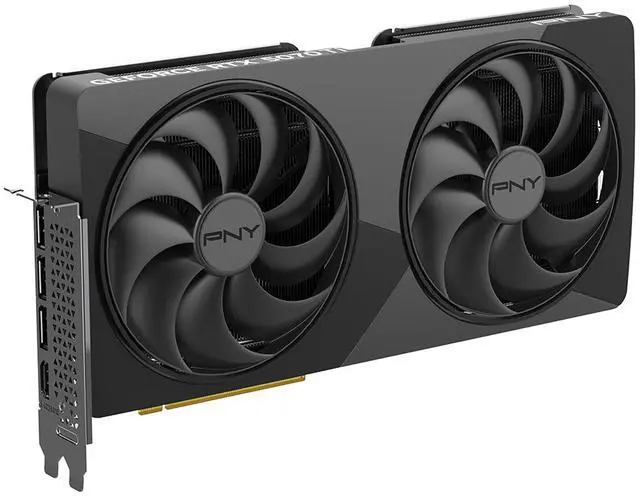

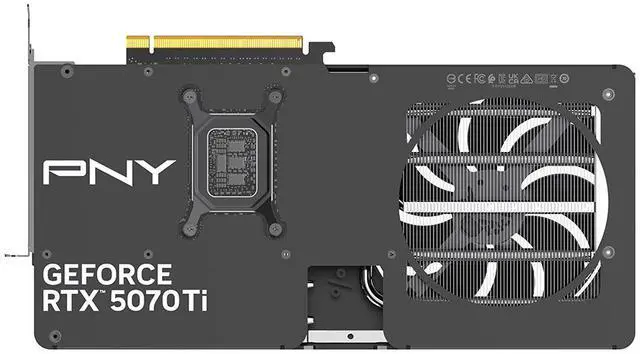

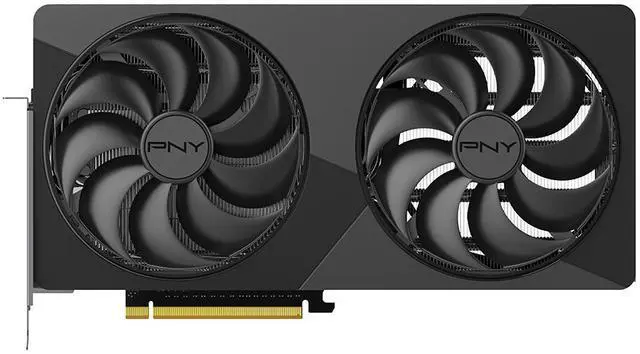

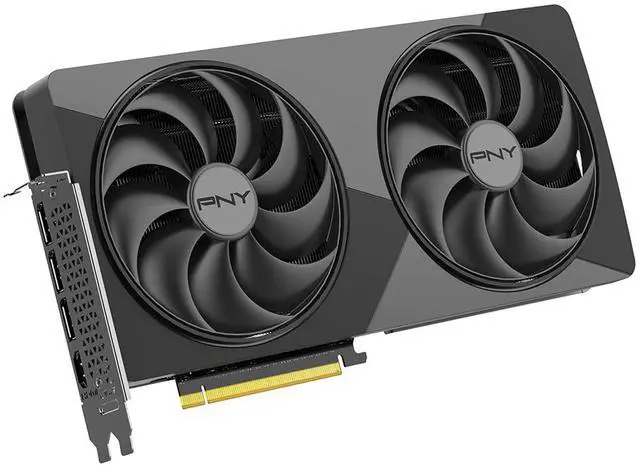

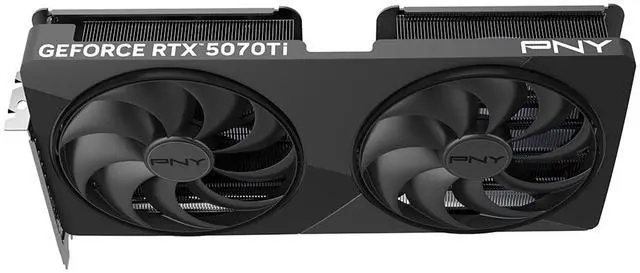

Learn more about the PNY Technologies, Inc. NVIDIA RTX 5070 Ti
Model| Brand | PNY |
|---|
| Series | OC |
|---|
| Model | NVIDIA RTX 5070 Ti |
|---|
| Part Number | VCG5070T16DFSXPB1-O |
|---|
Interface| Interface | PCI Express 5.0 x16 |
|---|
Chipset| Chipset Manufacturer | NVIDIA |
|---|
| GPU Series | NVIDIA GeForce RTX 50 Series |
|---|
| GPU | GeForce RTX 5070 Ti |
|---|
| Core Clock | 2295 MHz |
|---|
| Boost Clock | 2572 MHz |
|---|
| CUDA Cores | 8960 Cores |
|---|
Memory| Memory Size | 16GB |
|---|
| Memory Interface | 256-Bit |
|---|
| Memory Type | GDDR7 |
|---|
3D API| DirectX | DirectX 12 Ultimate |
|---|
Ports| Multi-Monitor Support | 4 |
|---|
| Thunderbolt 3 | No |
|---|
| HDMI | 1 x HDMI 2.1b |
|---|
| DisplayPort | 3 x DisplayPort 2.1b |
|---|
Details| Color | Black |
|---|
| DLSS Support | DLSS 4.0 |
|---|
| Max Resolution | 7680 x 4320 |
|---|
| CrossFireX Support | No |
|---|
| TrueAudio Support | No |
|---|
| Mantle Support | No |
|---|
| Cooler | Double Fans |
|---|
| Operating Systems Supported | Windows 11 64-bit/Windows 10 64-bit/Linux 64-bit |
|---|
| Thermal Design Power | 300W |
|---|
| Recommended PSU Wattage | 750W |
|---|
| Power Connector | 1 x 16-Pin |
|---|
| Dual-Link DVI Supported | No |
|---|
Form Factor & Dimensions| Form Factor | ATX |
|---|
| Max GPU Length | 290 mm |
|---|
| Card Dimensions (L x H) | 290 x 150 x 40mm |
|---|
| Slot Width | 2 Slot |
|---|
Additional Information| First Listed on Newegg | June 23, 2026 |
|---|
