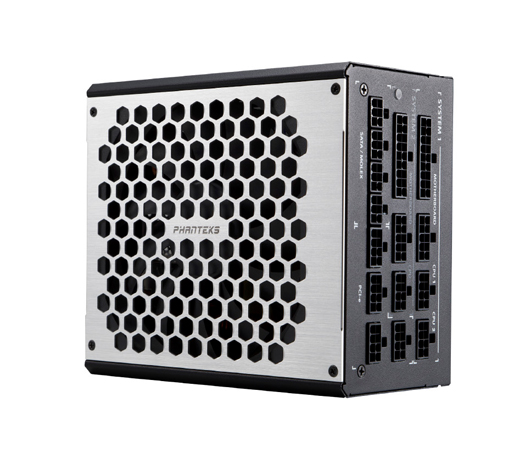

Introducing unique possibilities with the new Phanteks Revolt X Series, the first dual-system power supplies. They're able to support a secondary system and power it individually thanks to Phanteks' patented technology. The Revolt X series power supplies provide 80 PLUS Platinum efficiency, Hybrid mode for quiet operation, and fully modular cables. Powered by Seasonic, the Revolt X power supplies are bringing high reliability and power to the enthusiast market aimed at high performance systems, either single or dual system PCs.
POWER 2 SYSTEMS
If you ever wish to build a dual-system setup for your Gaming + Streaming PC, or Gaming + Server PC, or maybe a Gaming + Workstation PC, the Revolt X series power supply is all you need together with a PC enclosure supporting two motherboard installations such as the Phantek Evolv X.
DUAL-SYSTEM SUPPORT
Phanteks' custom PCB design enables the Revolt X to power 2 systems simultaneously. It's equiped with dual motherboard and CPU output connectors that can support that can support a secondary system and power it individually.
EFFICIENT POWER REGULATION
Continuous load sharing between two systems improves the total efficiency compared with when using 2 individual power supplies.
CLEAN CABLE MANAGEMENT
The Revolt X power supply minimizes the cables for two systems. All cables are included for dual-system.
PREMIUM HYBRID MODE
A state-of-the-art fan control that allows the power supply to work entirely fanless under 40% load and enables the most quiet system setups.
STABILITY & RELIABILITY
The result of a close collaboration between two premium brands. Engineered with premium components, using 100% Japanese 105° capacitors, cable-free internal connections, and a (patented) state-of-the art PCB design, ensures stability and reliability.
CONVENIENT INSTALLATION
Full modular cables minimizes cable clutter for and easy installation of a clean system. Extra long cables (up to 810 mm) ensures sufficient length for high-end single or dual PC systems.
| REVOLT X 1200W | |
| 80 PLUS® | Platinum |
| Power | 1200W |
| Dimension (W x D x H) | 170 mm x 150 mm x 86 mm 6.7 in x 5.9 in x 3.4 in |
| Form Factor | Intel ATX 12V |
| Materials | Brushed aluminum grill Powerder coated steel body |
| Color | Black |
| Warranty | 12 Years |
| Multi-GPU ready | Yes |
| Dual-system ready | Yes |
| FAN | |
| Fan Size | 135 mm |
| Hybrid mode | Yes |
| Fan Bearing | Fluid Dynamic Bearing |
| Life expectancy | 50,000 hours at 40°C, 15% - 65% RH |
| CABLES | |
| Modular | Fully Modular |
| Cable type | Black sleeved cables (MB, CPU,PCIe) Black Flat cables |
| Mainboard (24pin) | 2x |
| CPU (8/4+4pin) | 3x cables, 4 connectors |
| PCI-e (6+2pin) | 4x cables, 8 connectors |
| SATA | 4x cables, 16 connectors |
| Molex | 1x cable, 3 connectors |
| ELECTRICAL FEATURES | |
| Operating Temp. | 0 - 50°C |
| MTBF | > 100,000 hrs at 25°C, excluding fan |
| Protection | OPP, OVP, SCP, OCP, OTP, No-Load protection, Reset Protection |
| Packaging Information | |
| Model no. | PH-P1000PS |
| Packing Dimension (WxDxH) | 345 mm x 200 mm x 135 mm 13.6 in x 7.9 in x 5.3 in |
| Weight | 4.2 KG |
Pros: Big props to Phanteks for being the most innovative hardware company. With this power supply and my new Evolv X case, I have been able to resurrect some desk space by combining 2 of my systems into 1 case. As a graphic designer and 3D CAD jockey, I often have large projects rendering on one system and using a second system to game (BF5 and Call of Duty) while rendering. I have always been interested in the concept of "Dual System" cases, but just recently jumped into it with the Revolt X and Evolv X. The Evolv X lines are simply stunning so I knew it was the case for me. And with the option for dual motherboards, I wanted to give the Revolt X a chance to see what it was capable of. I was not disappointed. Currently I am using the ASRock X399 Taichi with X2950 and dual Quadro P4000 cards for rendering. For gaming, I am using Asus ROG Strix with a 9th gen i7 CPU and Asus RTX 2080 GPU on the vertical location of the case. The ITX system also conveniently controls the DRGB on the case which is nice. So far after almost 2 months I have had 0 issues and could not be happier. This power supply has a 12 year warranty because it is manufactured by SeaSonic. Hopefully I will not have to use it.
Cons: The price could be better, but for the added feature and long warranty, that is the only thing I could put in this box. I guess it would also be nice if Phanteks included some cable combs with the unit as well to aid in cable management.
Overall Review: I would definitely recommend this PSU for anyone even slightly considering dual system. Even if you do not use it to begin with you have 12 years to decide. I am sure the PSU works great to run 1 system as well.
