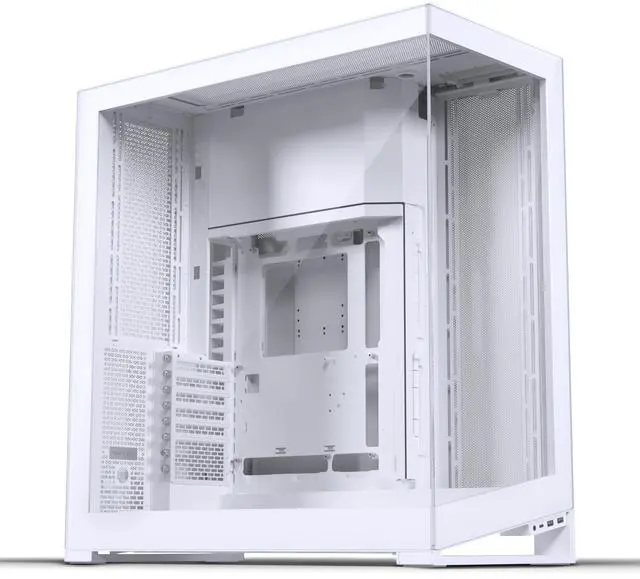

Phanteks NV9 MKII, Showcase Full-Tower Chassis, Rear-Connect MB Support, Integrated D/A-RGB Lighting, Seamless Tempered Glass Design, 11x 140mm Fan Positions, Matte White

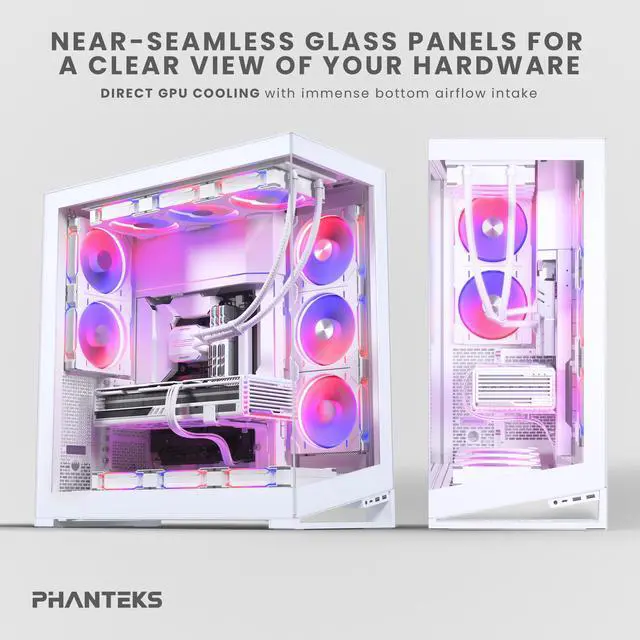

- • Near-seamless glass panels for a perfect view of all your system components. Unique layout with the motherboard at the center and fans all around it.

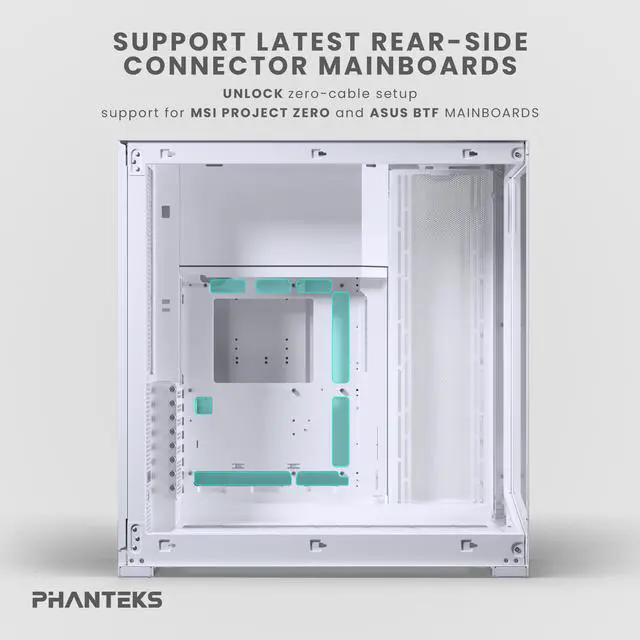

- • Support for the new Rear-Connect Mainboards for a zero-cable build, Project Zero & BTF
- • Ultra-fine Performance mesh on exterior panels. Immense bottom airflow intake with 65mm clearance. Direct and dedicated GPU cooling from the bottom. Extensive cooling support for triple 420+280 radiators simultaneously for high end cooling performance.

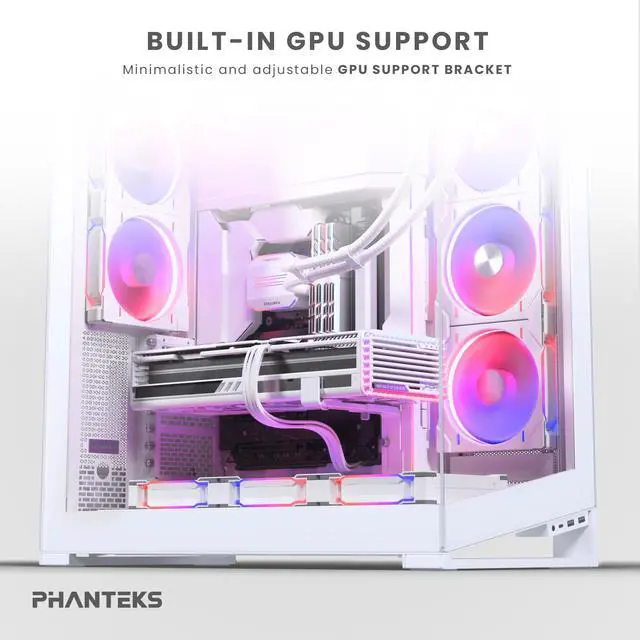

- • Versatile GPU support bracket securely holds GPU to motherboard and prevents sag. Removable side and bottom fan bracket for easy installation. Bottom bracket can be reversed for angled or horizontal position.

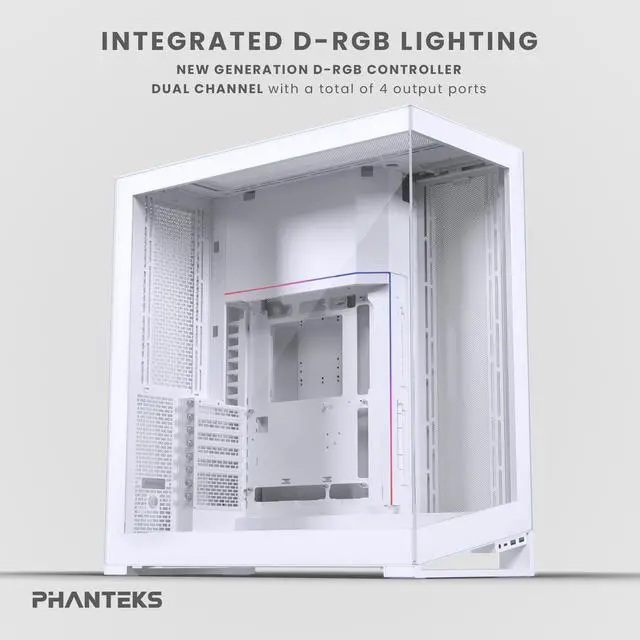

- • Integrated D-RGB lighting around motherboard. Dual channel output to allow for dual color effects. 4 output and dual SATA power to expand. Refined D-RGB lighting effects that works without software. Compatible with third party software with included cable.
+
+
Specs
Reviews (203)
Learn more about the Phanteks PH-NV923TG_DMW02
| Brand | Phanteks |
|---|---|
| Series | NV9 MKII |
| Model | PH-NV923TG_DMW02 |
| Part Number | PH-NV923TG_DMW02 |
| Type | Full Tower |
|---|---|
| Color | White |
| Case Material | Steel Chassis,?Tempered Glass |
| Motherboard Compatibility | ATX, Rear-Connect ATX, micro-ATX, mini-ITX, SSI-CEB, E-ATX (up to 280mm wide) |
| Side Panel | Front and Side Tempered Glass |
| Internal 3.5" Drive Bays | Max 3* (3x included) (*Max 24mm HDD height when SSDs installed) |
|---|---|
| Internal 2.5" Drive Bays | Max 6 (6x included) (*2x if 3x HDD positions are used) |
| Expansion Slots | 8 |
| Fan Options | Bottom - 3 x 120mm / Bottom - 3 x 140mm / Rear - 2 x 120mm / Rear - 2 x 140mm / Side - 3 x 140mm / Side - 4 x 120mm / Top - 3 x 120mm / Top - 3 x 140mm |
|---|---|
| Pre-installed Fans | No Fan Installed |
| Radiator Options | Bottom - Up to 360mm / Rear - Up to 240mm / Side - Up to 480mm / Top - Up to 360mm |
| 140mm Fans | 12 |
| Max GPU Length | 490 mm |
|---|---|
| Max CPU Cooler Height | 205 mm |
| Max PSU Length | 210 mm |
| Dimensions | 61.5cm x 57.5cm x 28cm |
| Weight | 23kg |
| First Listed on Newegg | December 17, 2025 |
|---|
