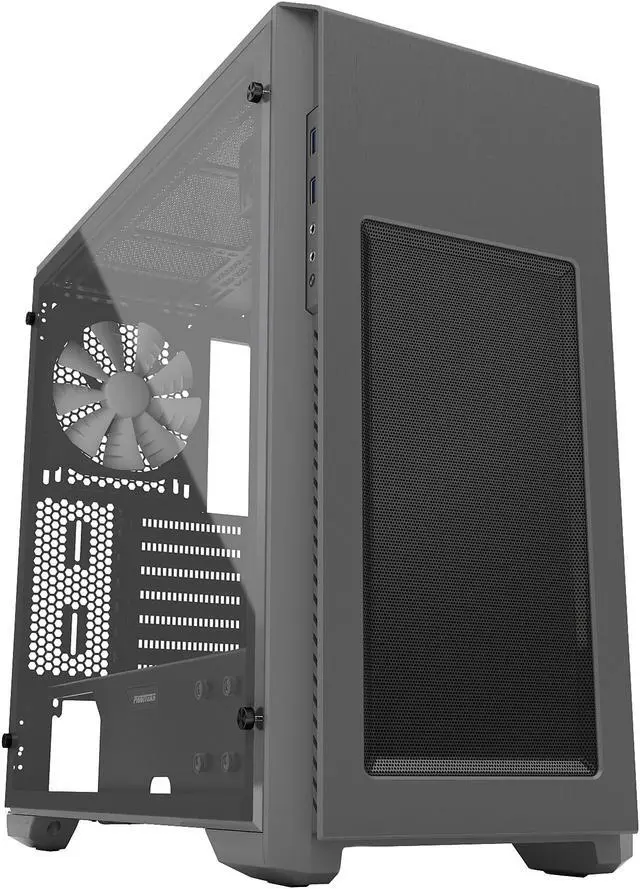

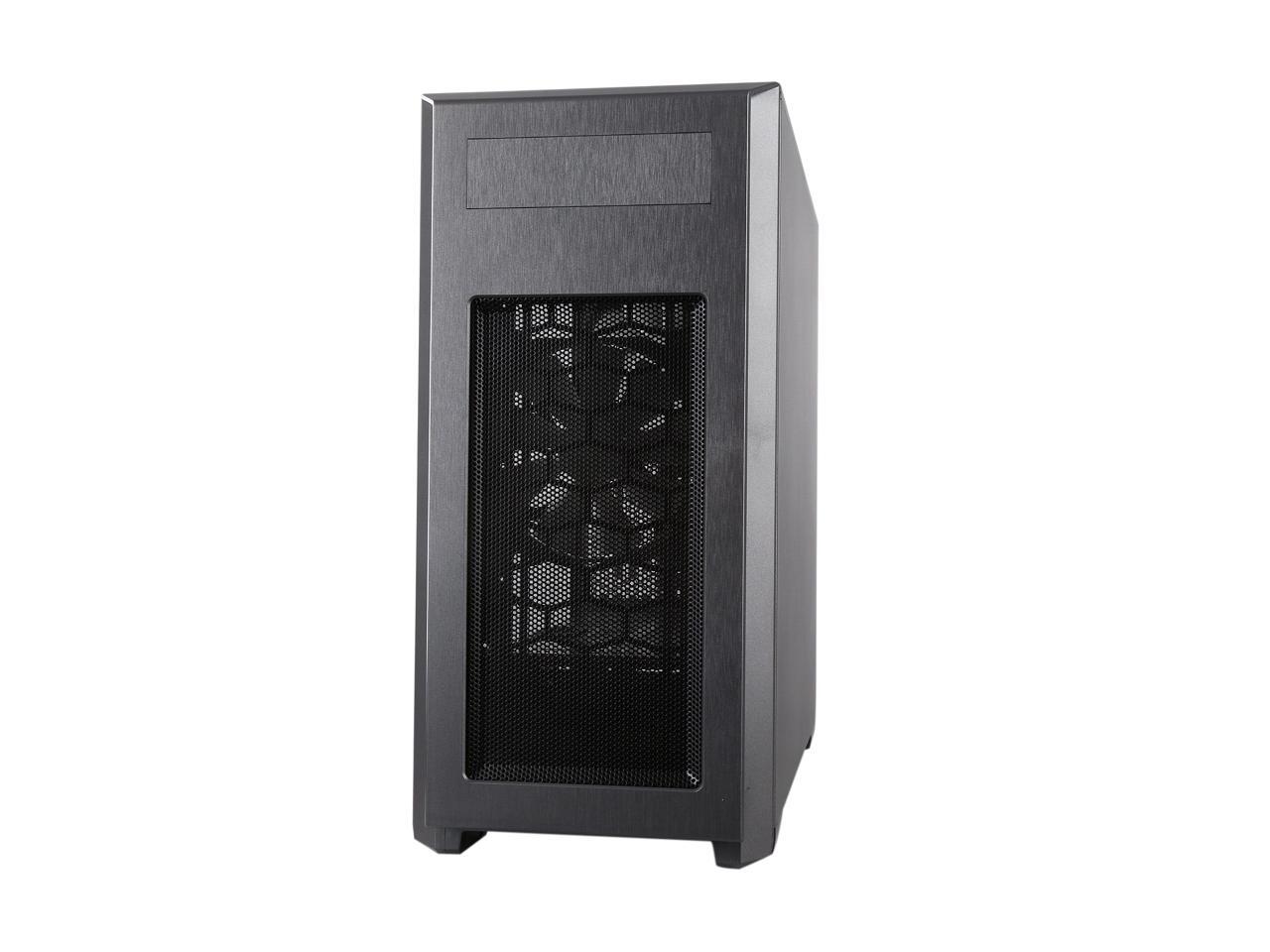

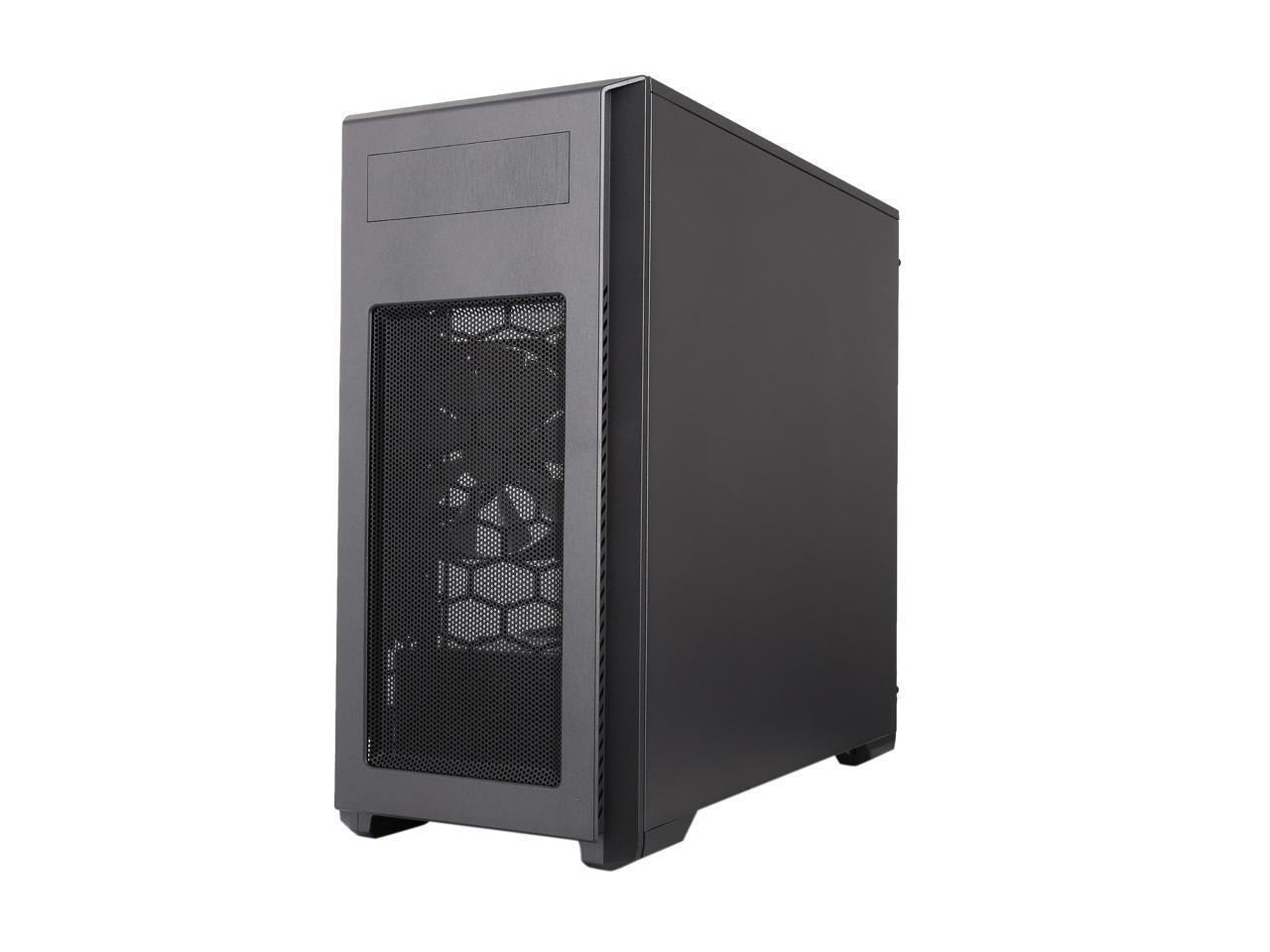

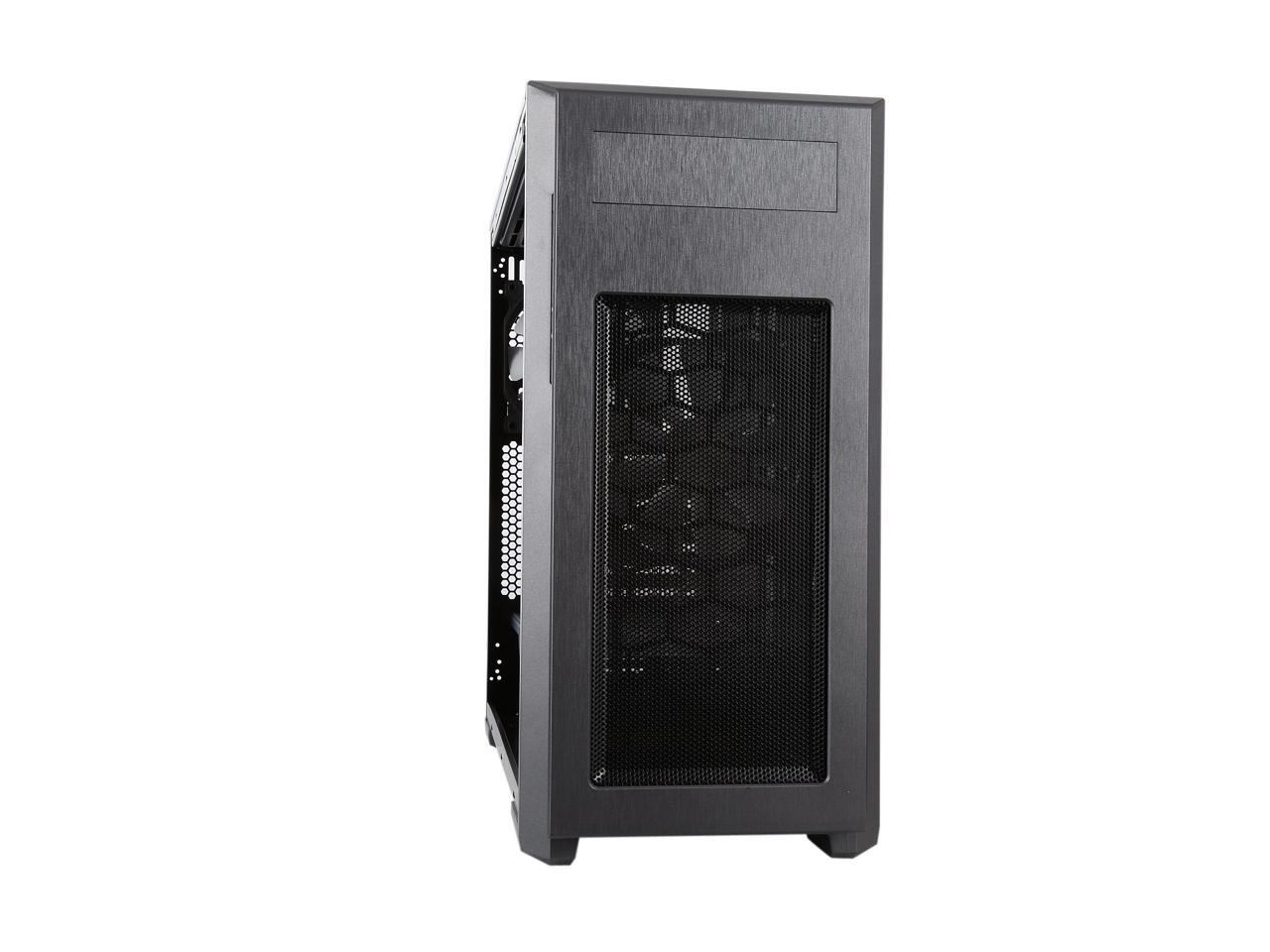

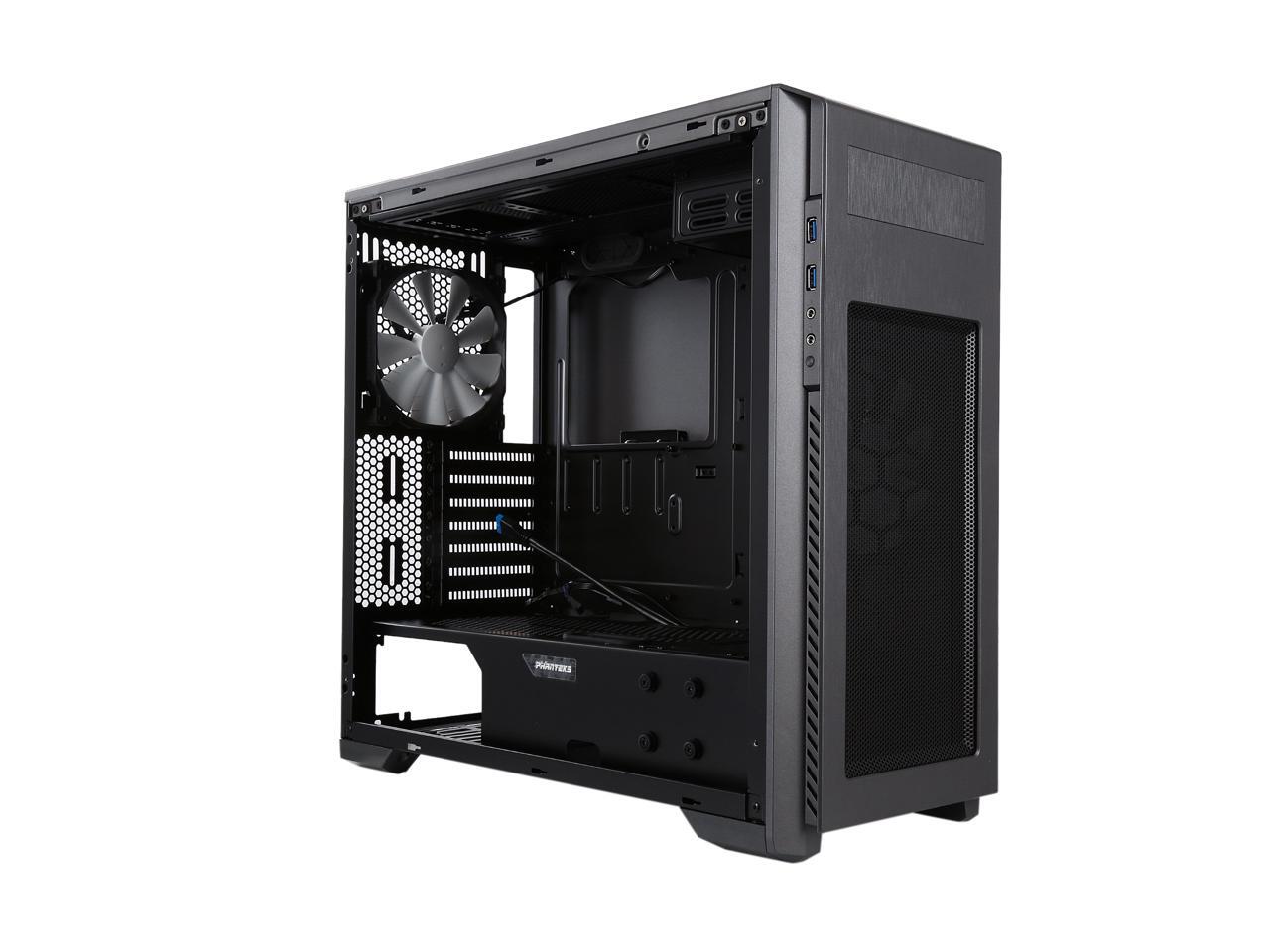

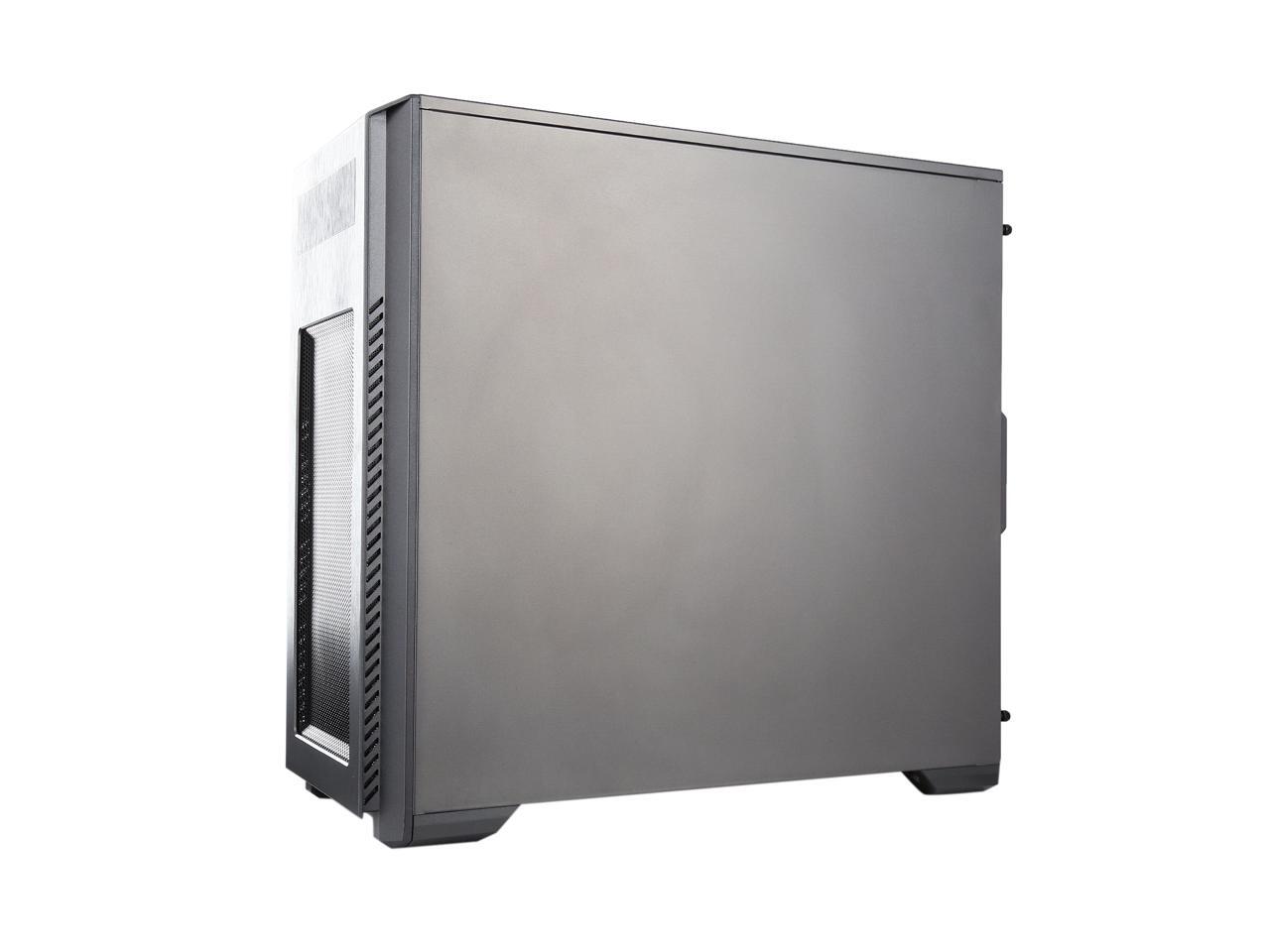

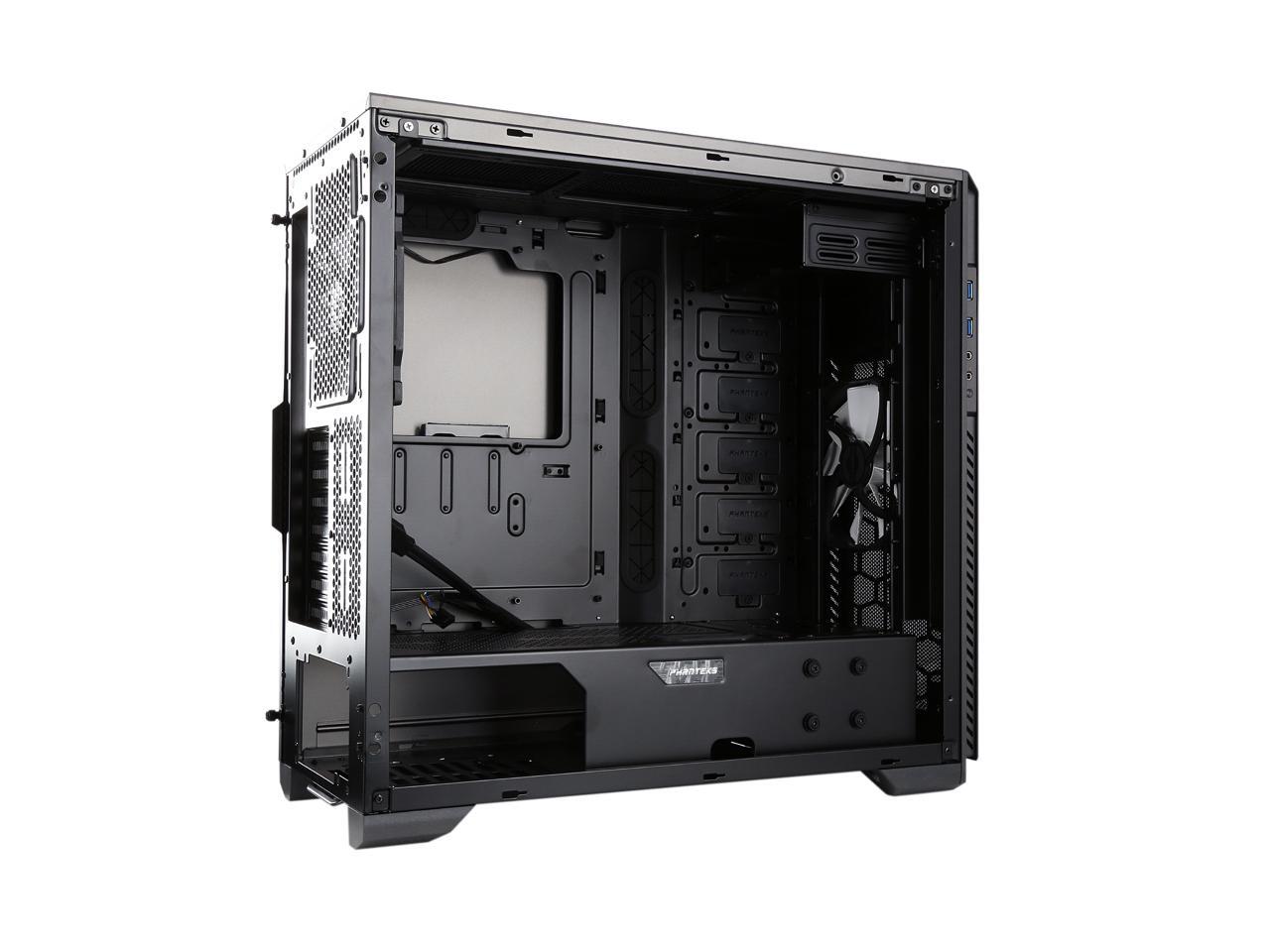

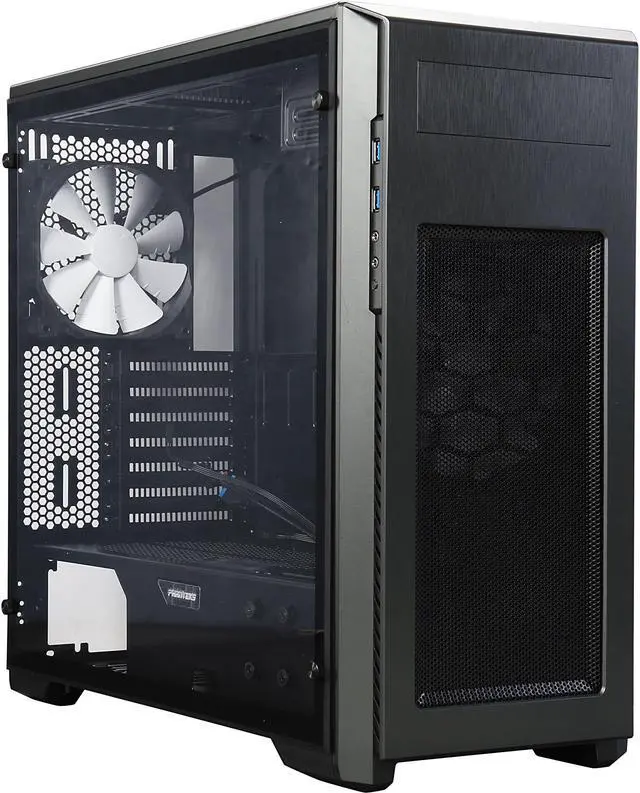

Phanteks ENTHOO Pro M PH-ES515PA_AG Anthracite Gray Steel / Plastic/Full Size Acrylic Window ATX Mid Tower Cases
- Steel / Plastic/Full Size Acrylic Window ATX Mid Tower
- 2 x USB 3.0 / Mic / Headphone / Reset Front Ports

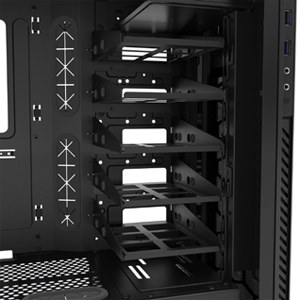

- 8x (2x included) Internal 3.5" Drive Bays
- Equipped with removable dustfilters
Overview
Specs
Reviews (286)

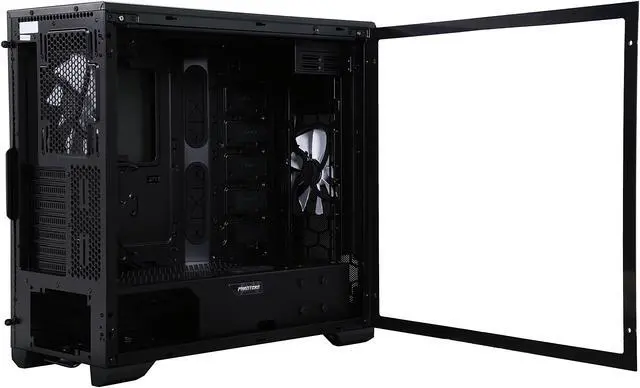

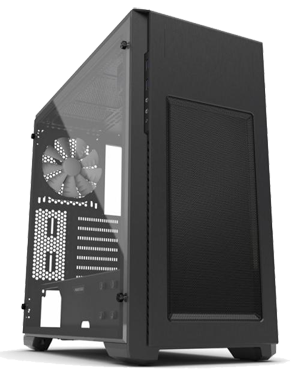

Enthoo Pro M Acrylic
The EVOLV PRO M focuses on delivering great design
without compromising price. Water-cooling builds will be a
simple task with the help of our innovative radiator bracket
and pump mounting locations. Whether you are a system
builder or water-cooling enthusiast, the PRO M will give you
unlimited possibilities.
Appearance
- Brushed aluminum look

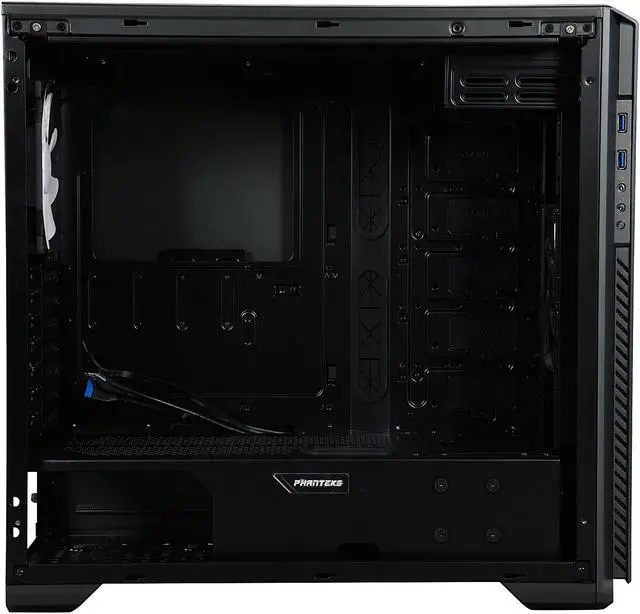

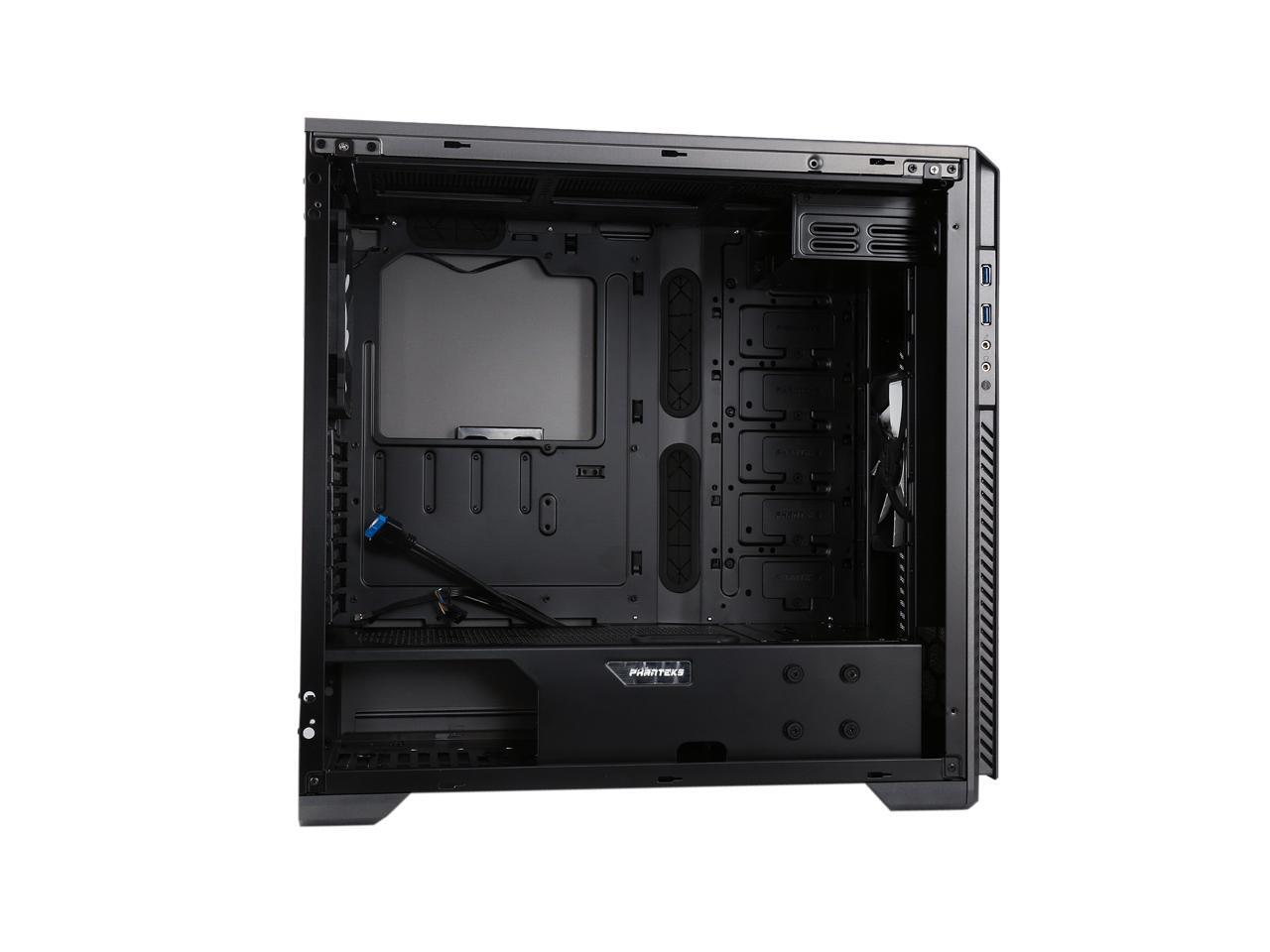

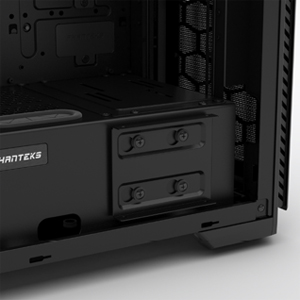

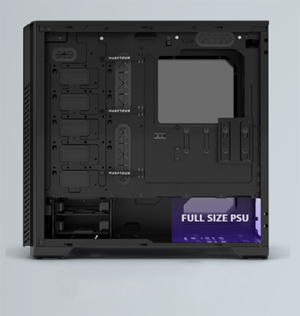

- Clean interior - Hidden PSU and HDD’s

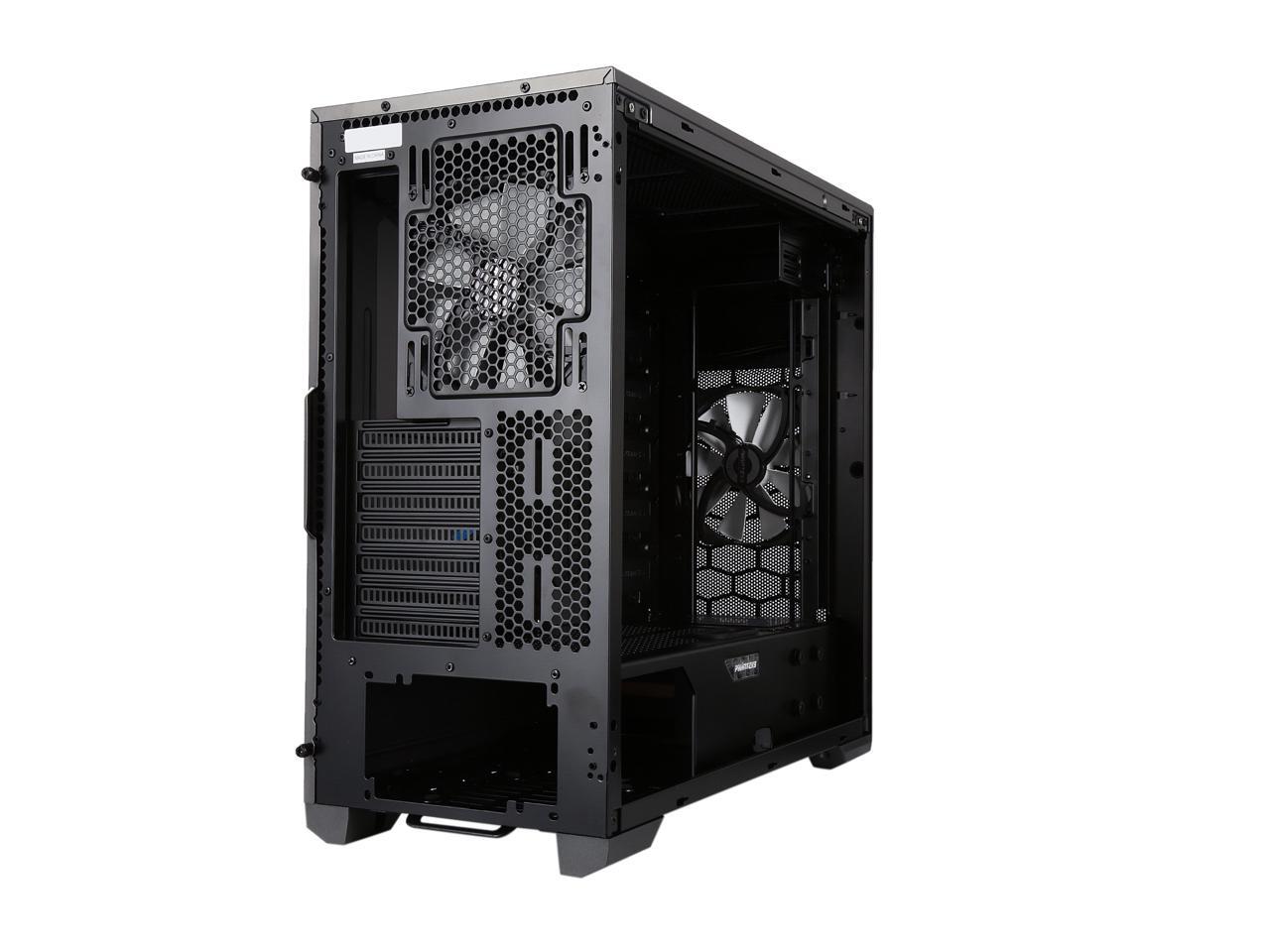

HIGH AIRFLOW
- Support for multiple fan configurations
- Optimized for airflow with low resistance
- Direct airflow for optimal CPU/GPU cooling
CABLE MANAGEMENT
- Equipped with Phanteks’ velcro cable ties
- 35 mm cable management space + additional cable compartment in bottom
Feature

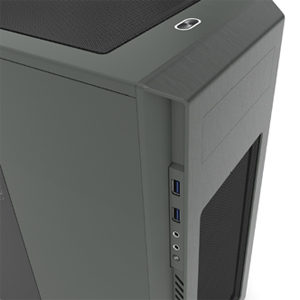

Front I/O:
2x USB 3.0 / Headphone / Mic / Rest

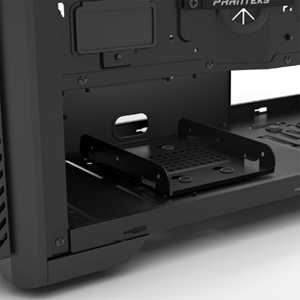

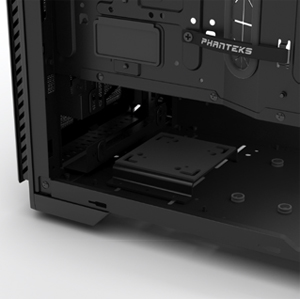

1X SSD Bracket included

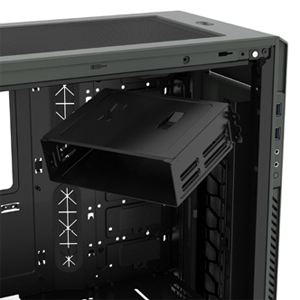

Removable optical Drive Cage
WATERCOOLING READY

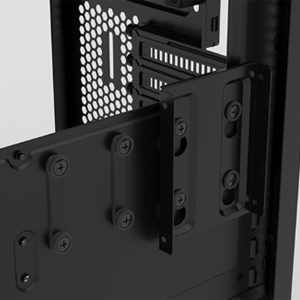

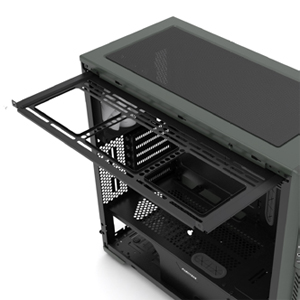

Offset radiator brackets
No conflicts between radiator and memory

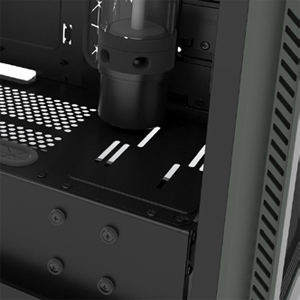

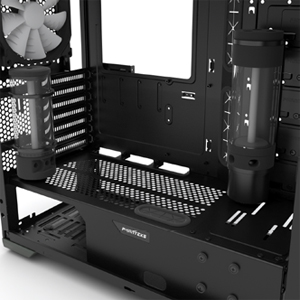

Reservoir mounts
Pump Slots
ACCESSORIES
SSD / 3.5" HDD UPGRADE (PH-SDBKT_01 / PH-HDDKT_01 / PH-HDDKT_02)

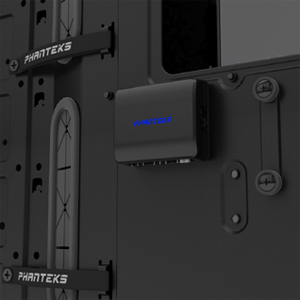

PWM HUB UPGRADE (PH-PWHUB_01), PUMP BRACKET (PH-PUMBKT_01)
Specifications
| Case Specifications | |||

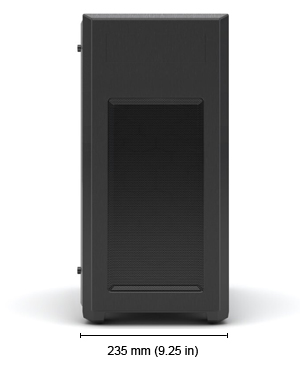

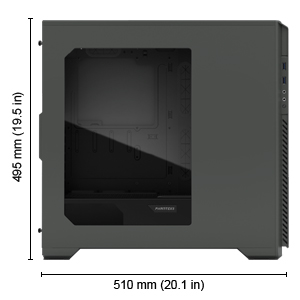

| Dimension | 235 mm x 480 mm x 500 mm (W x H x D) 9.25 in x 18.9 in x 19.7 in |
||
| Form Factor | Midtower | ||
| Material(s) | Plastic, Steel | ||
| Motherboard Support | E-ATX *(up to 264mm wide), ATX, Micro ATX, Mini ITX | ||
| Front I/O | 2x USB 3.0, Mic, Headphone, Reset | ||

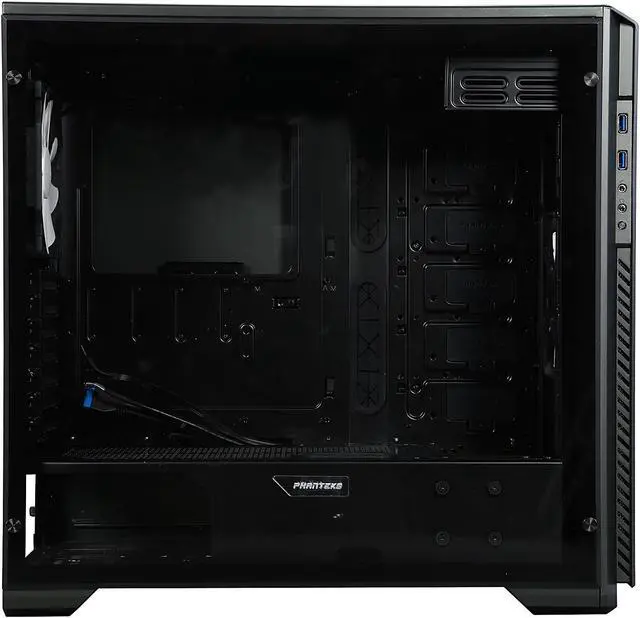

| Side Window | Yes | ||
| Expansion & Drive Bays | |||
| Expansion slots | 7 | ||
| Internal 3.5" | 8x (2x included) | ||
| Internal 2.5" (dedicated) | 3x (1x included) | ||
| Cooling | 120mm fan | 140mm fan | |
| Front | 2x (3x without ODD cage) | 2x (1 included) | |
| Top | 3x | 2x | |
| Rear | 1x | 1x (included) | |
| Liquid Cooling | 120mm radiator | 140mm radiator | |
| Front | Up to 360 | Up to 280 | |
| Top | Up to 360 | Up to 280 | |
| Rear | 120 | 140 | |
| PH-F140SP_BBK (included fans) | |||
| Speed (rpm) | 1200 ± 250 rpm | ||
| Max Airflow | 82.1 CFM | ||
| Static Pressure | 1.33mm H2O | ||
| Acoustical Noise | 19 dB | ||
| Clearance | |||

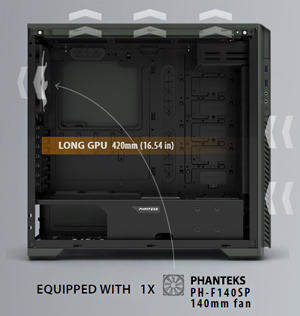

| Graphic card | 420 mm (16.54 in) 300 mm (11.8 in) Optional HDD brackets installed |
||
| PSU | 318 mm (12.5 in) | ||
| CPU cooler | 194 mm (7.6 in) | ||
| Cable management | 35 mm (1.38 in) | ||
| Memory clearance (motherboard - fan) |
120mm: 68 mm (2.68 in) 140mm: 48 mm (1.89 in) |
||
| Packaging Information | PH-ES515E | ||
| Package Dimension | 315 mm x 545 mm x 585 mm (WxHxD) | ||
| Net Weight | 7,4 kg (15.4 lbs) | ||
| Gross Weight | 9,0 kg (19.8 lbs) | ||
| Warranty | |||
| Length | 5 Years Limited | ||
