Peerless SP746PU 32"-50" Pivot TV Wall Mount LED & LCD HDTV up to VESA 400x400 max load 80 lbs,for Samsung, Vizio, Sony, Panasonic, LG, and Toshiba TV
- Max. load 80 lbs.
- Cable Management
- VESA Compatible
- Tilt: +15/-5°
- Swivel: Up to ±90°
- 3.74"-12.55" Depth
Overview
Specs
Reviews

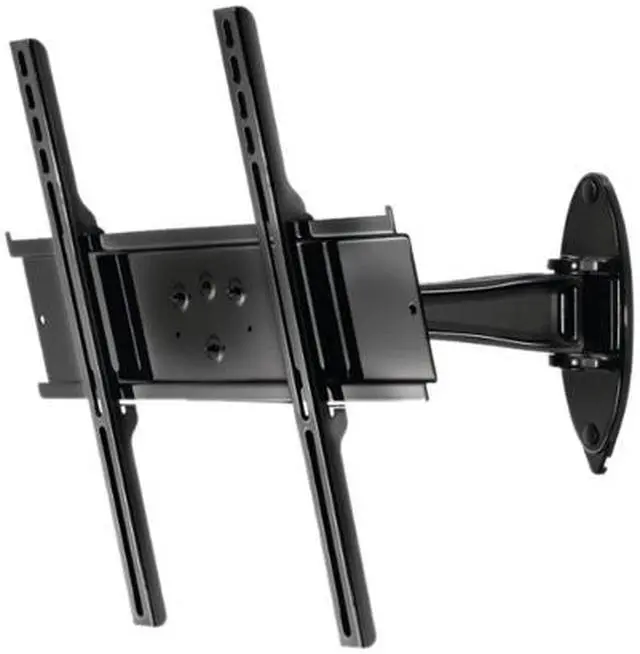

Peerless 39"- 50" Pivot Wall Mount - SP746PU
Supporting displays up to 50" the SP746PU mount provides pivoting functionality for the viewing angle adjustment when full articulation is not required. This user-friendly and easy to install mount delivers one touch side-to-side swivel and tilting functionality that is complemented by its lightweight construction and intuitive three step installation process. Adding to its pivot functionality is the mounts clean aesthetic, contributed to by its cable management system that easily organizes and routes cables, focusing all the attention on the display. Designed and built in the USA.
Features
- Universal display adaptors provide compatibility with up to a VESA® 400 x 400mm mounting hole pattern

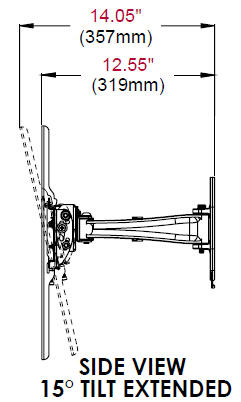

- Arm extends up to 12.55" (319mm) from wall
- One-Touch™ tilt allows adjustment of +15/-5° without the use of tools
- Up to ±90° of side-to-side swivel
- ±5° of roll to level display horizontally
- Integrated cable management keeps cables out of the way
- Viewing Flexibility One-Touch™ tilt allows adjustment of +15/-5° without the use of tools
- Ideal Tilt with Just a Touch Adjustable arms to match the footprint of any component
Cable management from the display to the wall plate for an organized, clean look
Specifications
| Minimum to Maximum Screen Size: | 32" to 50" |
| VESA Pattern: | 400 x 400 |

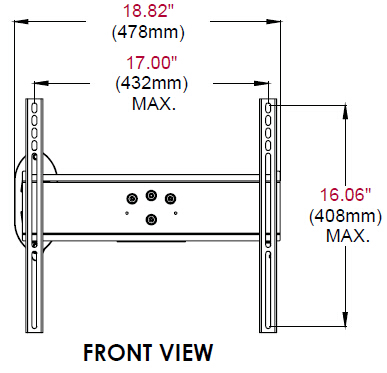

| Mounting Pattern: | 432 x 408mm (17.00 x 16.06") |
| Weight Capacity: | 80lb (36.0kg) |
| Color: | Black |
| Finish: | High Gloss |
| Security Features: | Non-Security Hardware |
| Tilt: | +15 / -15 |
| Swivel Yaw: | + 90 / - 90 |
| Roll: | + 5 / - 5 |

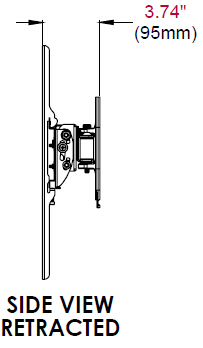

| Distance from Wall: | 3.74 - 12.55" (95 - 319mm) |
| Product Dimensions: | 18.82 x 17.00 x 3.74 - 12.55" (478 x 432 x 95 - 319mm) |
| Ship Dimensions: | 11.5 x 5 x 21" (292.1 x 127.0 x 533.4mm) |
| Shipping Weight: | 8.4lb (3.50kg) |
| UPC Code: | 735029271918 |
MAIN OVERVIEW FEATURES: Device Supported: Flat Panel DisplayMaximum Load Capacity: 80 lbMaximum Screen Size Supported: 46"Color: BlackHeight: 17"Width: 18.8"Depth: 3.7"Package Contents: SmartMount SP746PU Pivot Wall MountScreen and Wall Mounting HardwareCompatibility: LCD/Plasma ScreenEnvironmentally Friendly: YesEnvironmental Certification: RoHSCountry of Origin: United StatesLimited Warranty: 5 Year
