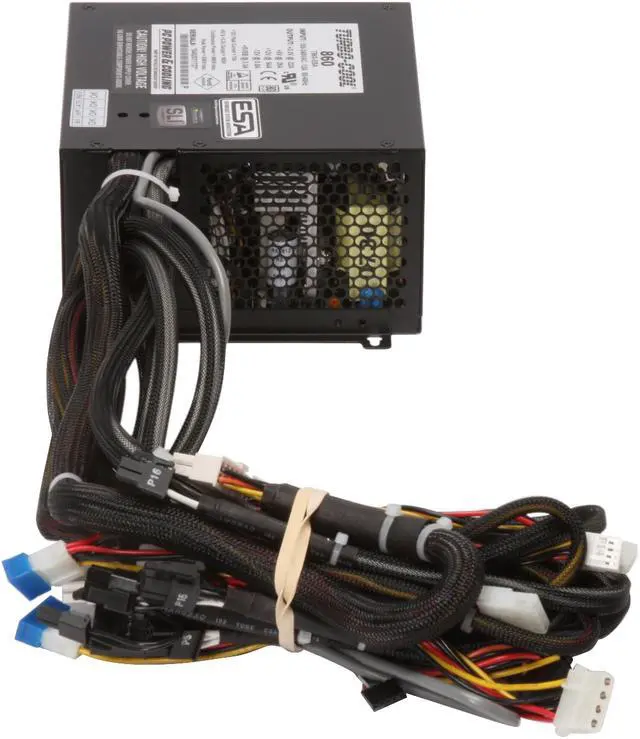

PC Power and Cooling PPCT860ESA 860 W ATX12V / EPS12V SLI Ready CrossFire Ready Power Supply
- ATX12V / EPS12V
- 100 - 240 V 50/60 Hz
- +3.3V@22A,+5V@26A,+12V@64A,[email protected],[email protected]
Specs
Reviews (4)
Learn more about the PC Power and Cooling PPCT860ESA
| Brand | PC Power and Cooling |
|---|---|
| Model | PPCT860ESA |
| Type | ATX12V / EPS12V |
|---|---|
| Maximum Power | 860 W |
| Fans | 1 |

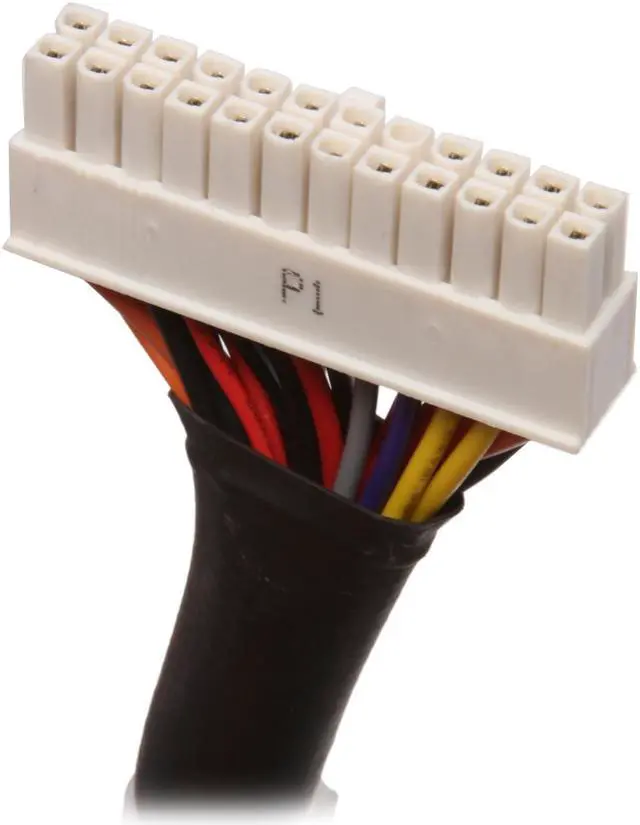

| Main Connector | 24Pin |
| +12V Rails | Single |
| PCI-Express Connector | 2 x 6-Pin, 2 x 6+2-Pin |
| SATA Power Connector | 6 |
| SLI | SLI Ready |
| CrossFire | CrossFire Ready |
| Modular | No |
| Power Good Signal | 300ms |
| Hold-up Time | 20 ms min |
| Efficiency | 84% (typical) |
| Over Voltage Protection | Yes |
| Overload Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 12A |

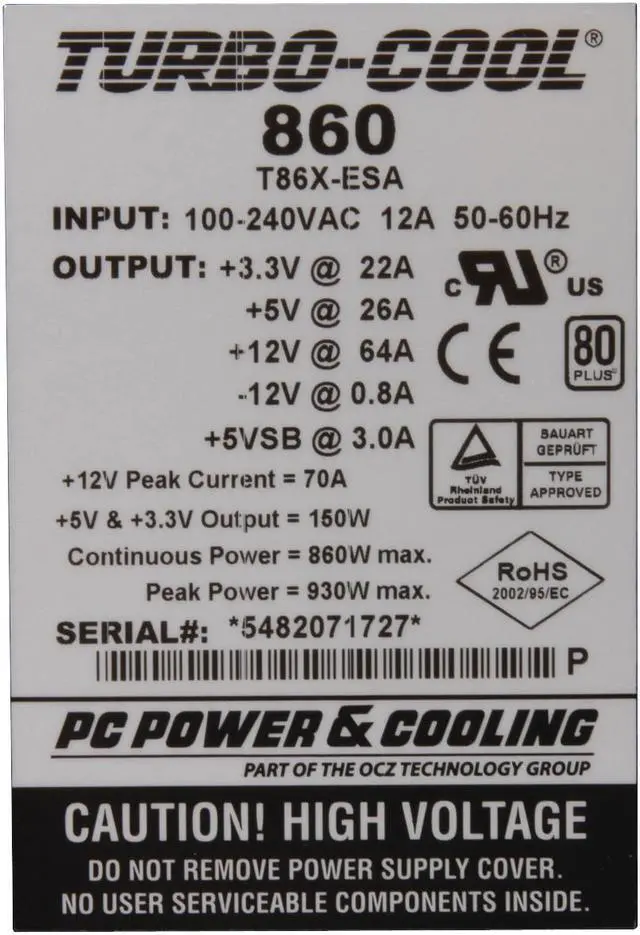

| Output | +3.3V@22A,+5V@26A,+12V@64A,[email protected],[email protected] |
| MTBF | 200,000 Hours ( full load, 40°C ) |
| Approvals | UL, ULC, CE, TUV, RoHS |

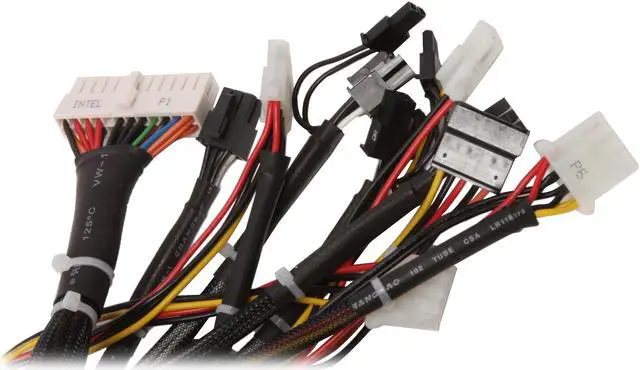

| Connectors | 1 x Main connector (24Pin) 1 x 12V(P4) 1 x 12V(8Pin) 8 x Peripheral 6 x SATA 1 x Floppy 4 x PCI-E |
| First Listed on Newegg | July 31, 2008 |
|---|
