Specifications: Simply pull the connector down over the cable jacket so that insulated wires go through the nose of the plug. Inspect the wiring prior to crimping the connector. It's done in one step with the EZ-RJ45 Crimp Tool. Make faster terminations and reduce wasted crimps and scraps. Backward compatible with
Features: Adapter Features
Data Rate Supported: 100/50/25/10GbE per port
Bus Type/Bus Width: PCIe 4.0 x16
Note: full 200Gbps performance requires PCIe slot bifurcation enabled in the system BIOS
Hardware Certifications: BSMI, CE, CMIM, FCC, ICES, KCC, RCM, UKCA, cURus, and VCCI
BMSI RoHS and RoHS-compliant: Product is compliant with Taiwan Bureau of Standards, Metrology and Inspection (BMSI), and EU RoHS Directive 2 2011/65/EU (Directive 2011/65/EU) and its amendments (e.g. 2015/863/EU)
Controller: Intel® Ethernet Controller E810-CAM1 (two controllers per adapter)
Power Consumption
DAC's
100GbE (Typical Power) Max 21.8 W 29.6 W (Max Power)
Idle (no traffic) 19.2 W (Typical Power)
Optics
100GbE Max 25.3 W (Typical Power) 33.5 W (Max Power)
Idle (no traffic) 22.8 W (Typical Power)
QSFP28 Max Pow...

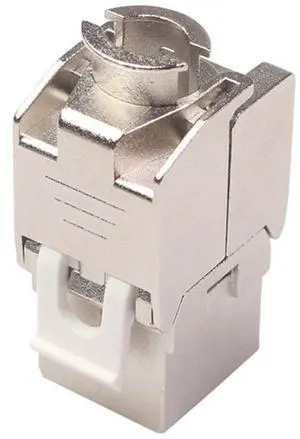

Specifications: RJ45 8P/8C Female port gold-plated contacts Category 5e ANSI/TIA/EIA 568-C.2 performance T568A and T568B Labeling IDC modules (110 or Krone) with covers Compatible with 22-26 AWG Solid wire
