Specifications: Chipset: PTN3361B
Compliant with DisplayPort 1.1a receiver
Compliant with DVI 1.1 specification
Configurable 1 or 2 lane operation
Supports Down Spread Spectrum (SSC)
Display modes:
PC: VGA, SVGA, XGA, SXGA & UXGA display modes
HDTV: 480i, 576i, 480p, 576p, 1080i and 1080p
Product:
Overall Length: 9.65" +/- 0.6" (245mm +/- 15mm)
Weight: 0.09 lbs
Color: Black
Material: Plastic
Connector:
Connectors: 20-Pin DisplayPort (male) to 24-pin DVI-D (female)
DisplayPort connector housing (L x W x H): 1.93" x 0.78" x 0.51" (49 x 20 x 13 mm)
DVI-D connector housing (L x W x H): 1.77" x 1.77" x 0.59" (45 x 45 x 15 mm)
Environmental conditions:
Operating temperature: 32 to 140 degrees F
Storage temperature: 14 to 158 degrees F
Humidity: < 85% non-condensing
Certifications/ Standards: FCC, CE, RoHS
Warranty: 3 ...

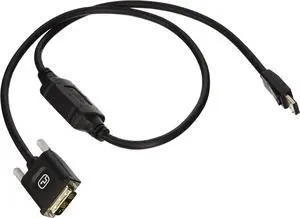

Specifications: DisplayPort to DVI-D Converter Sends HD Video to Your Current DVI-D Display Device
This three-foot DisplayPort to DVI-D cable connects the DisplayPort output on your PC, laptop or Ultrabook to the DVI-D single-link input on your monitor, projector or television. No separate adapter or cable is needed. This allows you to continue using your existing DVI-D display for video without the expense of buying a new DisplayPort monitor.
Simple Solution for Displaying 1080p Video on a Large Screen or Secondary Monitor
The P581-003 is ideal for the office, classrooms, lecture halls and anywhere else you need to connect a DisplayPort computer to a DVI monitor. It also allows you to conveniently connect an additional monitor to your home or office workspace. The DisplayPor...
Specifications: Connector A: USB C (MALE)
Connector B: DVI-D DUAL LINK (FEMALE)
Chromebook Compatible: Yes
System Requirements
Windows XP, Vista, 7, 8 or 8.1 or Mac OS X 10.8.3 and later (32- and 64-bit versions)
Computer with USB-C port and at least 1.2 GHz single-core CPU and 512 MB of RAM
HDMI-enabled monitor
Supports Surface tablets running non-RT Windows 8 or 8.1
Changer Type: Mini DisplayPort to VGA / DVI / HDMI
Color: White
Specifications: Mini DP to VGA/DVI/HDMI adapter connects your Mini DisplayPort or Thunderbolt 1/2 laptop or tablet to a VGA, DVI or HDMI display.
Multiple video outputs connect to most displays-no more carrying multiple adapters
Delivers high-definition picture quality at resolutions up to 1920 x 1200, including 1080p
Compact unit fits easily into briefcase or laptop bag for instant use anywhere
Plug-and-play operation with no software required for easy, immediate installation
Passive adapter requires connected computer to have DP++ port for signal pass-through
