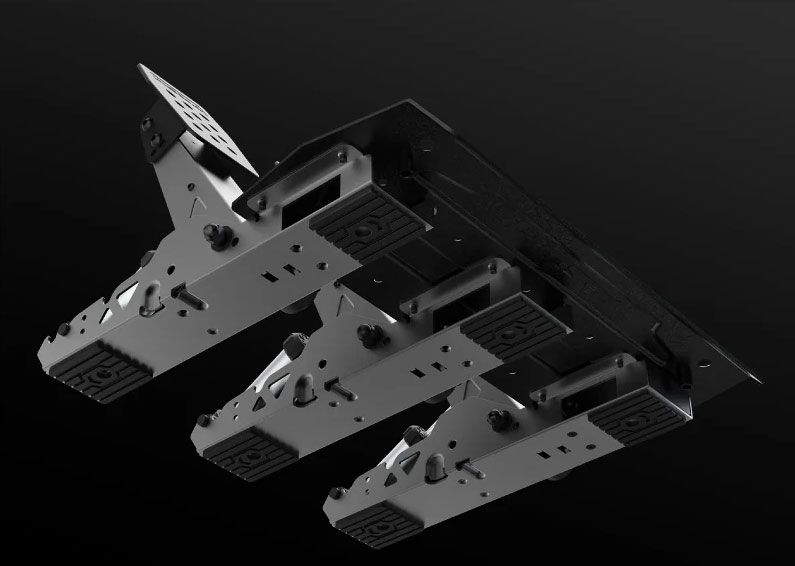

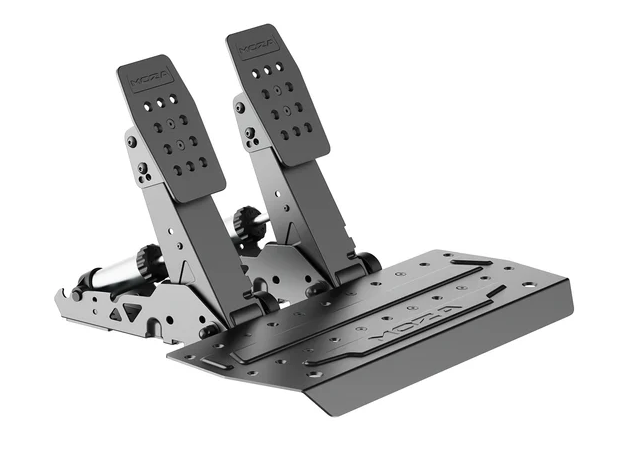

Precision-engineered MOZA SRP2 Dual Load Cell Pedals feature CNC aerospace-grade aluminum and high-strength steel for durable, professional-grade performance. Equipped with a 100KG load cell and 15-bit angle sensor with fusion technology, the SRP2 delivers accurate, responsive brake input. Fully adjustable pedal angle, spacing, and height, combined with tool-free tuning and optional Performance Kit for 1,000+ brake feel configurations, ensure a customizable and immersive sim racing experience.
You can upgrade your MOZA SRP2 Dual Load Cell Pedals with MOZA SRP2 Clutch Pedal, MOZA SRP2 Rear Support Bracket or Brake Performance Kit (for CRP2 & SRP2). (All are sold separately.)

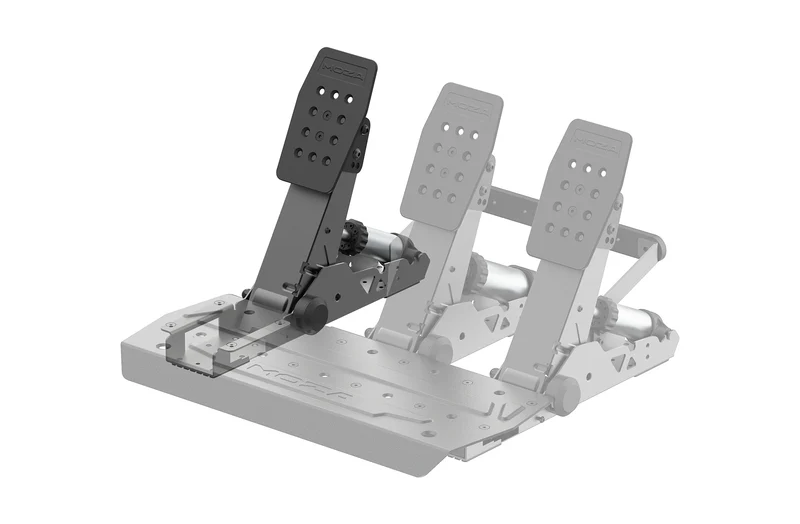

Designed for smooth operation and quick adjustment, it integrates seamlessly into the SRP2 system for enhanced control and realism.

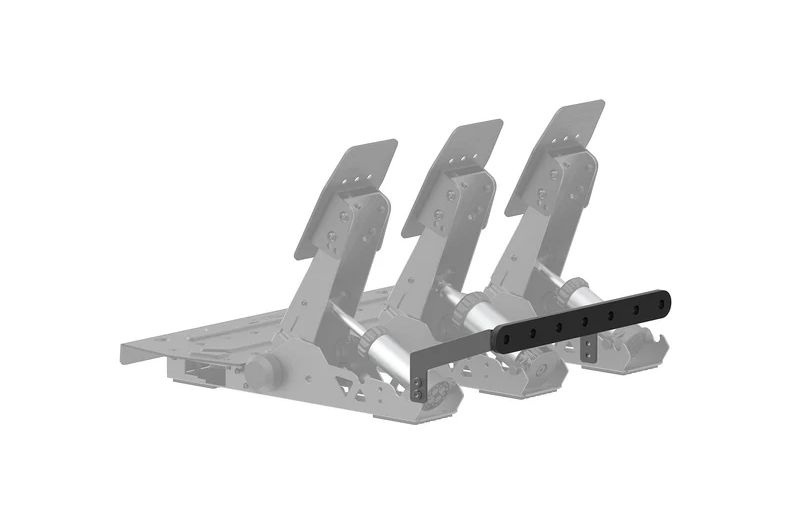

The MOZA SRP2 Rear Support Bracket enhances stability for SRP2 pedals when used on the floor.
The Performance Kit for CRP2 and SRP2 allows you to fully customize the braking feel of your pedals, simulating the hard brake feel of top-tier race cars like F1 and F2.
25 Brake Feel Configurations
Aluminum Construction
100KG High-precision Load Cell Sensor
15-bit High-precision Angle Sensor
Wide-range Adjustable Design
Smooth and Quiet Operation
Tool-free Adjustment
Open Ecosystem

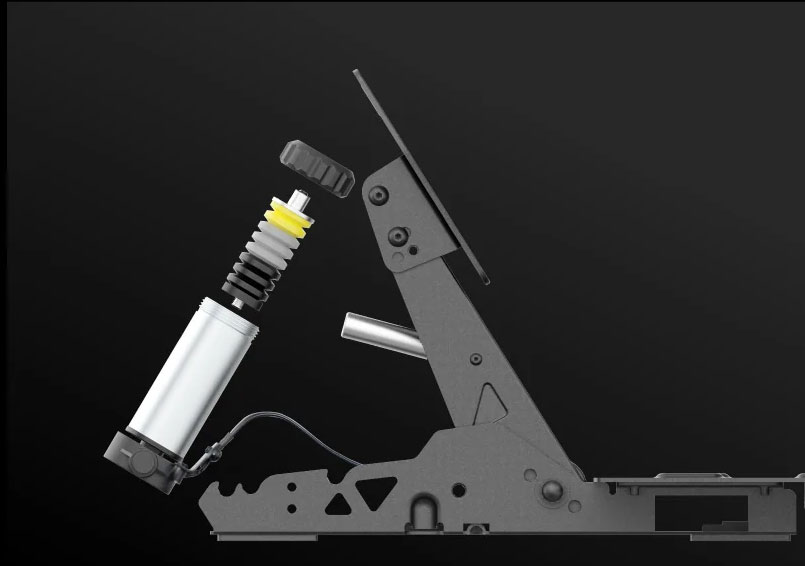

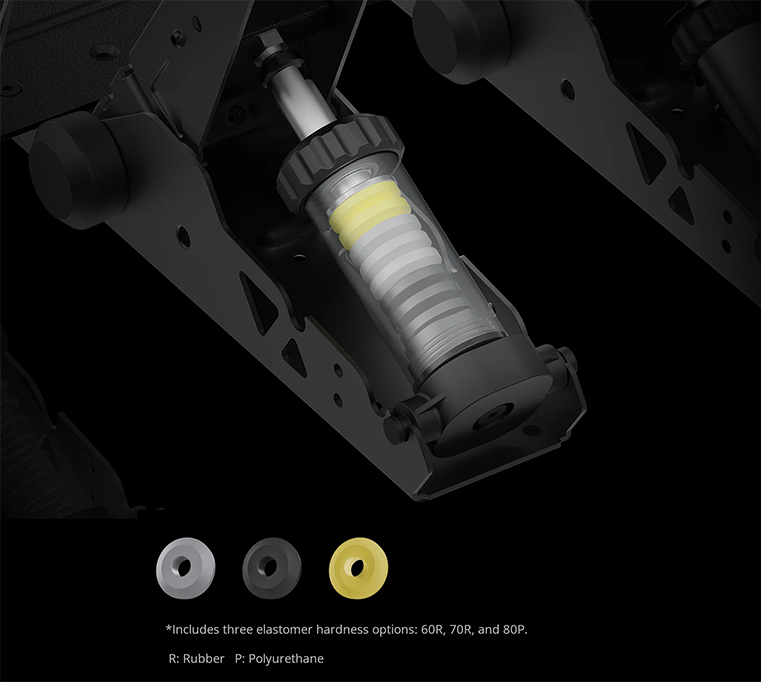

The standard setup features an elastomer structure with multiple spring hardness options (60R, 70R, and 80P), offering 25 distinct brake feel configurations. The optional Performance Kit provides additional elastomers and springs, enabling over 1,000 customizable brake feel settings.
Pedal components are made from aerospace-grade aluminum, precision-machined using CNC technology, and anodized for enhanced durability. The base and pedal linkages are constructed from high-strength steel to withstand high torque and pressure.

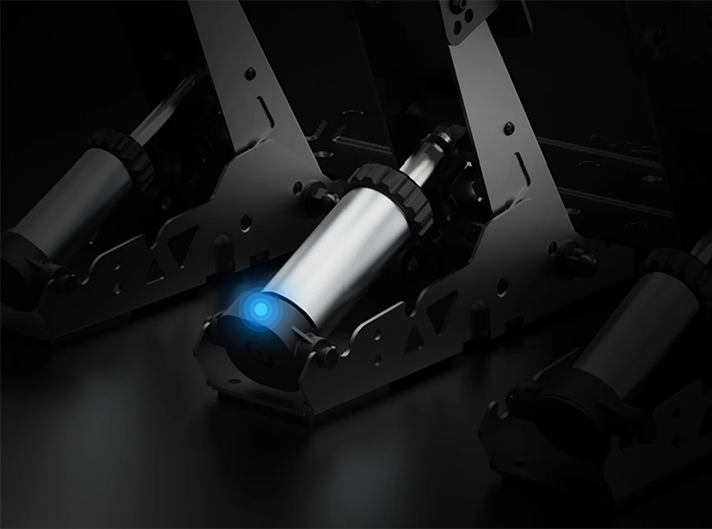

Featuring a 100Kg load cell, this sensor provides highly accurate and responsive brake input, making it ideal for users seeking precise control.

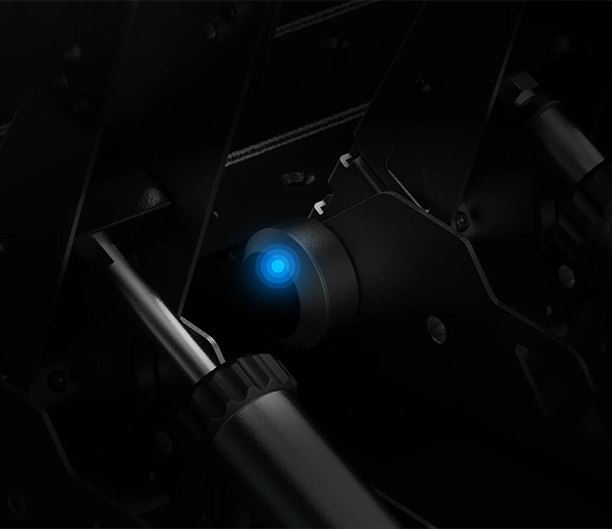

Utilizing patented sensor fusion technology, this system combines a 15-bit angle sensor with the load cell, ensuring precise brake inputs while leveraging muscle memory for accurate control over braking force.

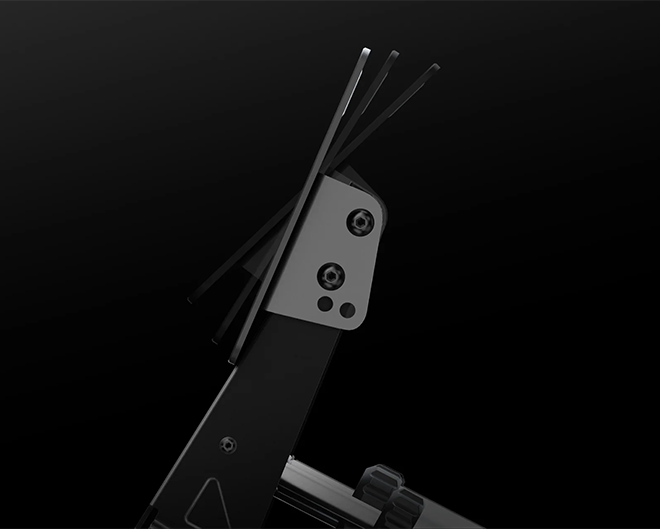

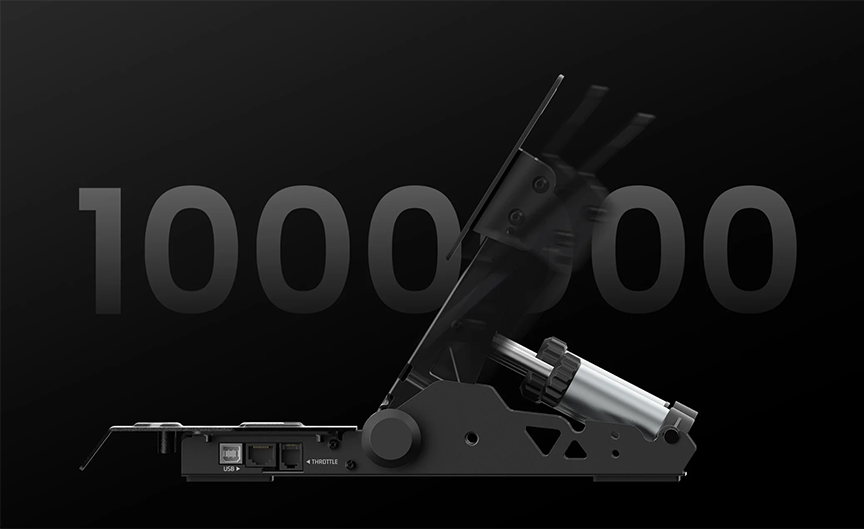

The pedals feature a full 25° of angle adjustment allowing for better customization to suit different user preferences and ergonomic needs.

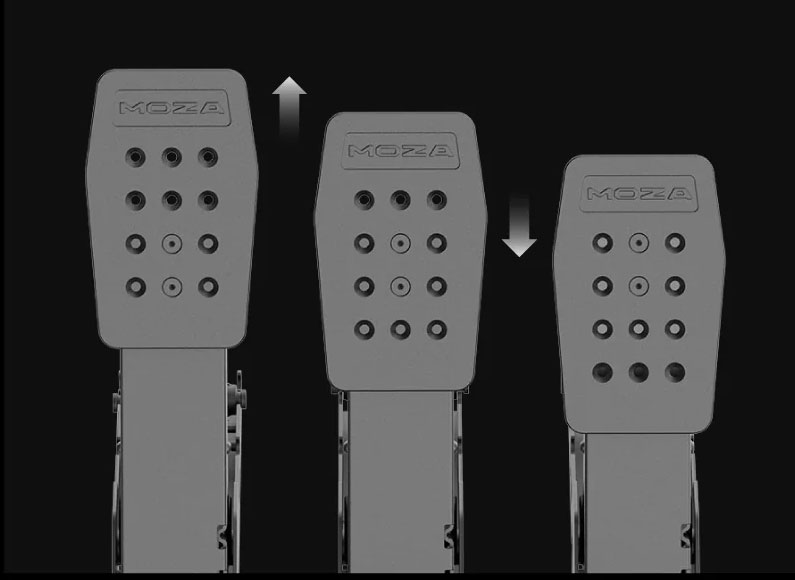

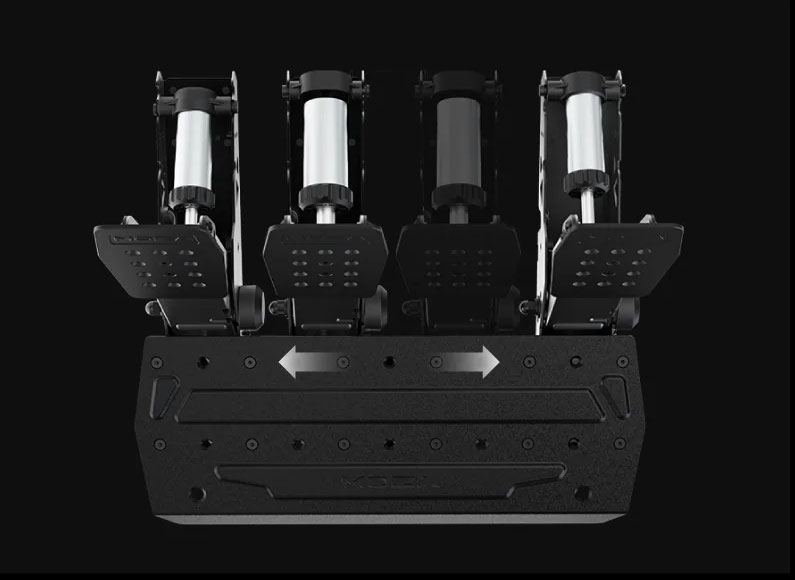

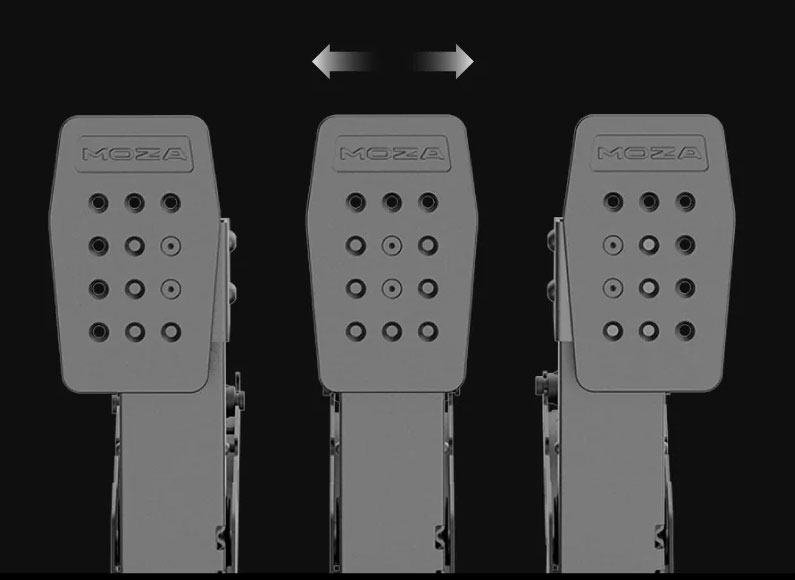

The spacing between the brake, throttle, and clutch pedals can be easily adjusted, with the option to fine-tune the distance (±15mm left/right) by adjusting the pedal installation position. Additionally, the pedal height is individually adjustable with a range of 36mm.

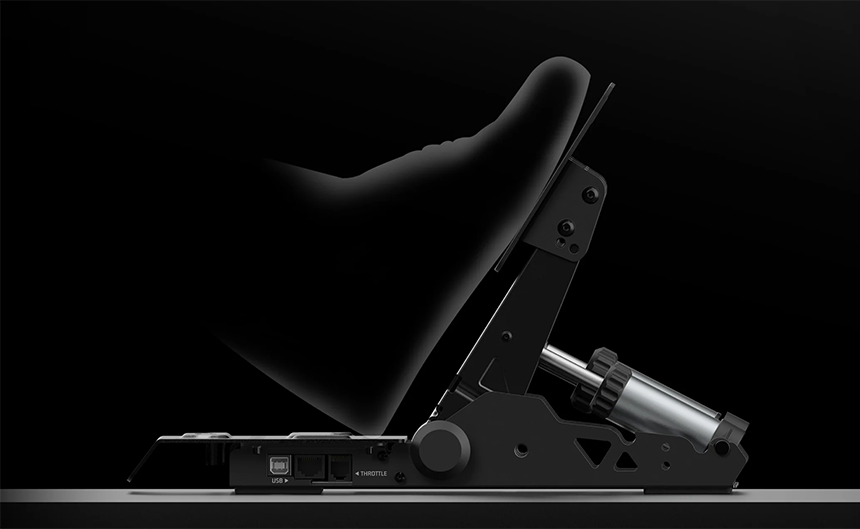

The angle of the pedal arm is tailored for desktop racing setups, aligning with natural seating and foot positioning.

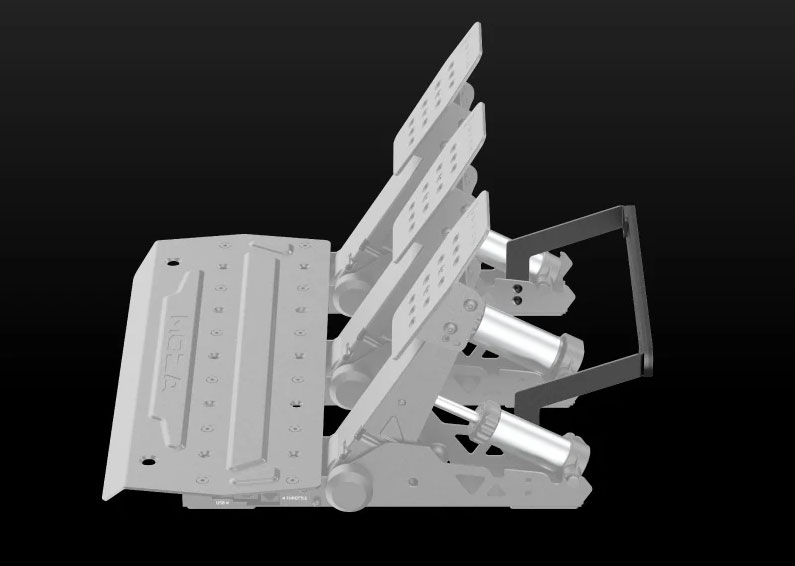

An optional wall support bracket is available to further stabilize the pedals, preventing sliding and enhancing comfort during use.

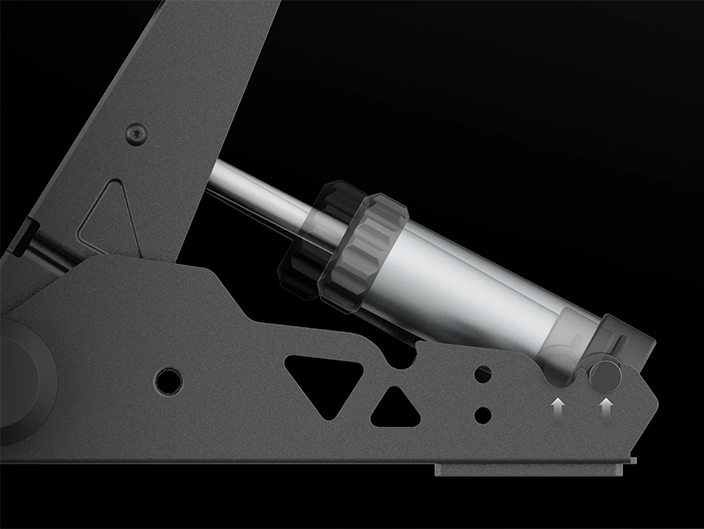

Both the throttle and clutch pedals feature a spring-loaded, enclosed design with a smooth guiding rod, allowing for quick manual adjustment of preload in two levels, ensuring a smooth and responsive feel.

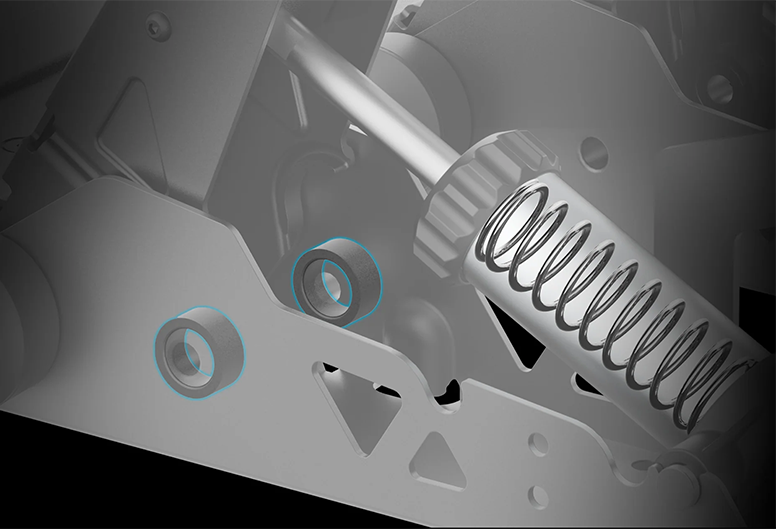

The enclosed sleeve motion structure and highly polished steel shafts ensure exceptionally smooth and quiet pedal movements. Soft cushioning at the limit points further reduces noise, providing a more immersive experience.

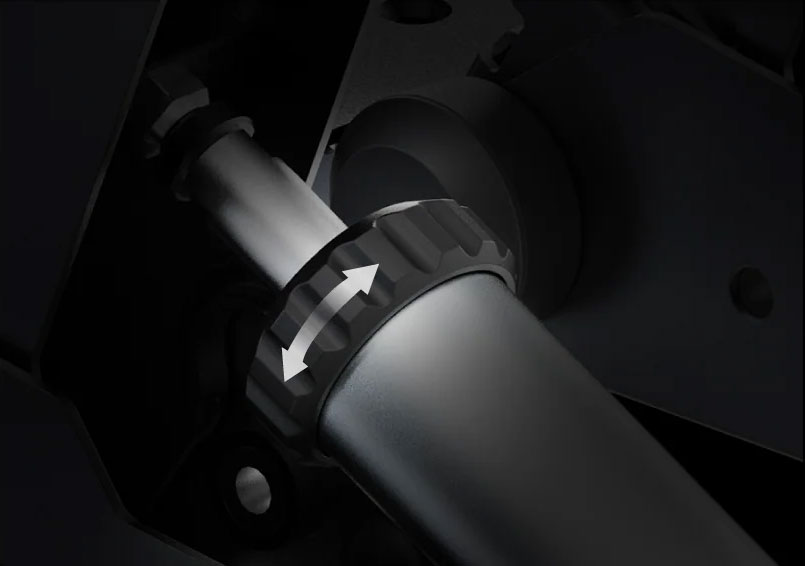

The pedal system is designed for quick, tool-free force adjustments, allowing you to modify brake feel and force levels with just your hands.

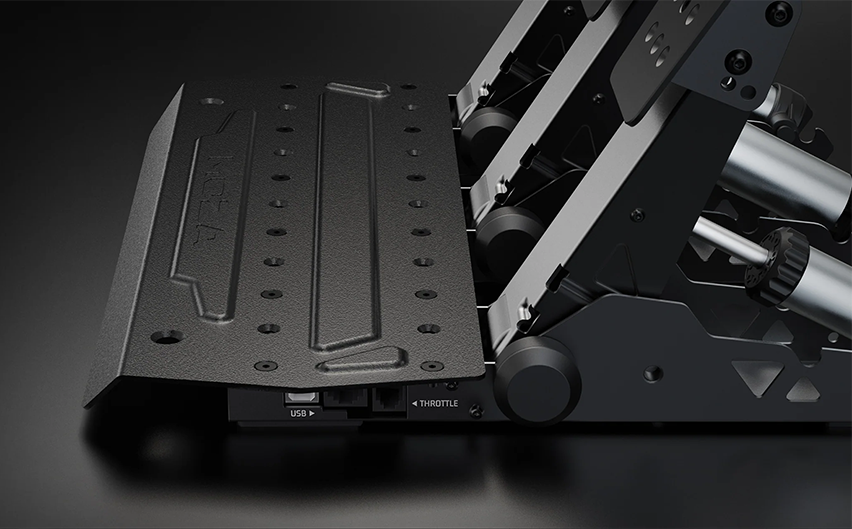

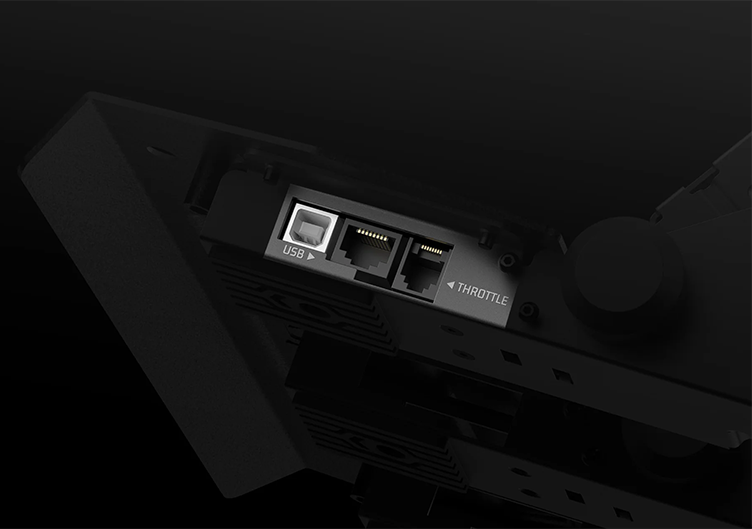

Directly connect to PC and compatible with almost all branded bases, fully supporting MOZA's wheelbase lineup.

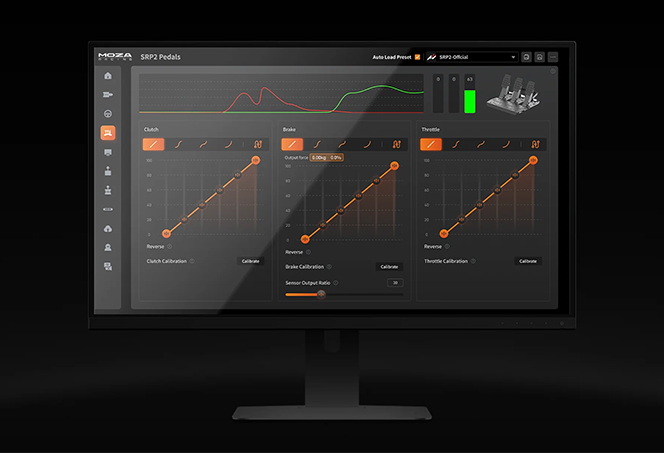

With the Pit House software, you can monitor pedal performance, adjust pedal travel and signal output curves, and view real-time data, allowing the hardware to perform at its full potential.

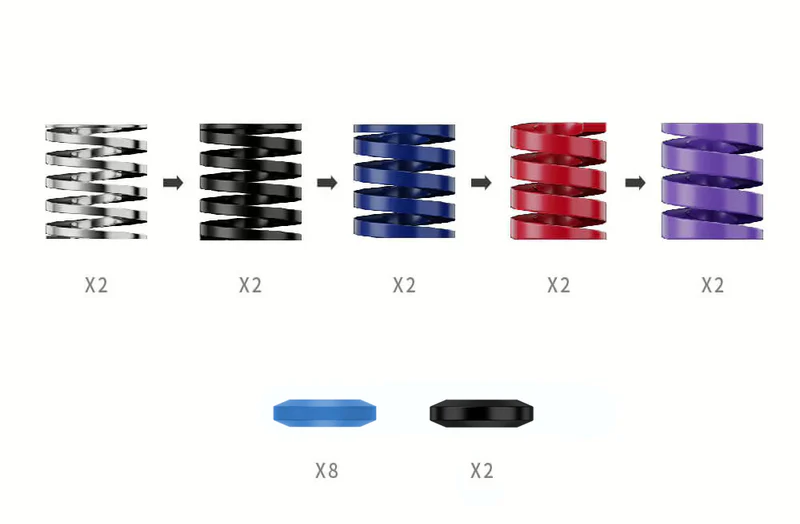

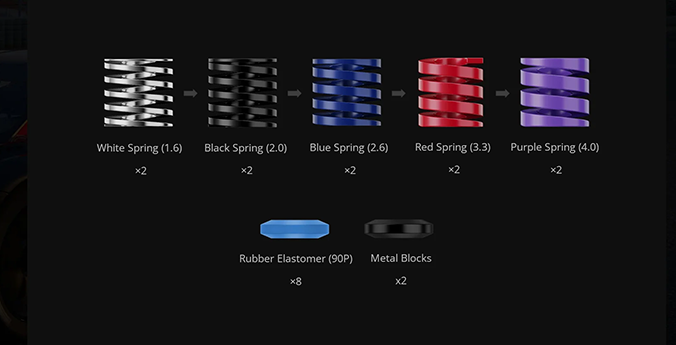

The optional performance kit includes 10 molded springs, rubber springs, and metal blocks, which can be combined with the standard setup to provide over 1,000 possible brake feel configurations. This kit can replicate the stiff brake feedback found in high-performance racing cars like F1 and LMP1, allowing for ultra-fast brake response times.
Both the throttle and clutch pedals feature a spring-loaded, enclosed design with a smooth guiding rod, allowing for quick manual adjustment of preload in two levels, ensuring a smooth and responsive feel.
All pictures are for demonstration only. This item is a two-pedal system.
