Images from RETAIL item, box contents may vary.

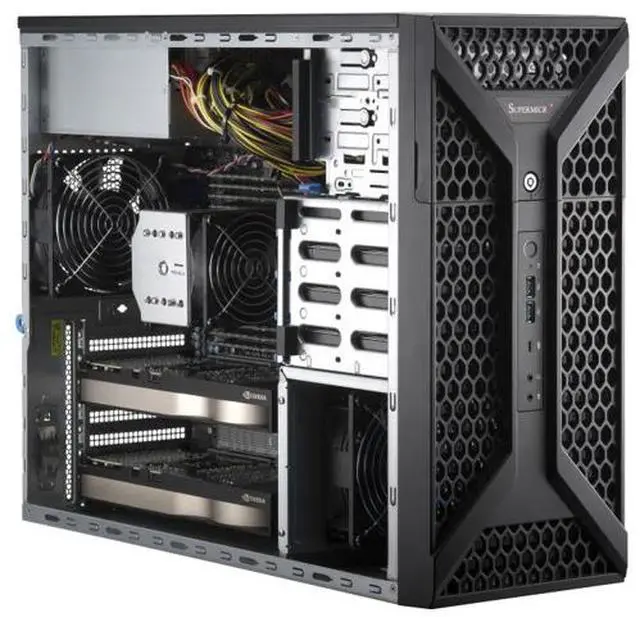

SUPERMICRO SuperWorkstation Mid-tower Workstation Intel Xeon W 64GB DDR5 TK012-SYS-531A-I
OPEN BOX Product Type
- Intel Xeon W w5-2465X (3.10 GHz)
- 1 MAX Processors
- 64GB DDR5
- 1TB Max Memory Capacity
- Micron 7450 PRO 960GB NVMe PCIe 4.0 M.2 22x80mm 3D TLC Samsung PM893 1.92TB SATA 6Gb/s V6 2.5 7mm SSD (Installed)
- 1200W Platinum Level (94%) power supply
+
+
Specs
Learn more about the Supermicro TK012-SYS-531A-I
| Brand | SUPERMICRO |
|---|---|
| Series | SuperWorkstation |
| Model | TK012-SYS-531A-I |
| Workload | Workstation |
|---|---|
| Type | Mid-tower |
| Rack Height | 4U/Tower |
| LEDs | HDD activity LED |
| Hot-swap Fans | Up to 1x 120mm Fan(s) Up to 1x 120mm Fan(s) |
| CPU Type | Intel Xeon W |
|---|---|
| CPU Speed | w5-2465X (3.10 GHz) |
| Number of CPU Cores | 16-Core Processor |
| Cache Memory | 33.75 MB Intel Smart Cache |
| # of Processors Installed | 1 |
| MAX Processors | 1 |
| Installed Memory Size | 64GB |
|---|---|
| Memory Type | DDR5 |
| Max Memory Capacity | 1TB |
| Memory Features | Max Memory (2DPC): Up to 1TB 4800MT/s ECC DDR5 RDIMM/LRDIMM |
| Number of Memory Slots | 8 |
| SSD (Installed) | Micron 7450 PRO 960GB NVMe PCIe 4.0 M.2 22x80mm 3D TLC Samsung PM893 1.92TB SATA 6Gb/s V6 2.5 7mm |
|---|
| Ethernet Controller | 2-ports 10GbE SFP+ Intel X710-BM2, Gen3 x8 LP |
|---|
| Expansion Slots | Default 1 PCIe 4.0 x4 FHFL slot 3 PCIe 5.0 x16 FHFL slots |
|---|---|
| Expansion Bays | 2 5.25" bays 4 internal fixed 3.5" SATA drive bays 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280/22110) |
| Other ports | USB 2 USB 3.2 Gen1 Type-A ports(front) 4 USB 3.2 Gen2 Type-A ports(Rear) 1 USB 3.2 Gen2 Type-C port(Rear) 1 USB 3.2 Gen2 Type-C port(Front) Video 1 VGA port Serial 1 COM port(rear) Audio 7.1 HD Audio |
| Power Characteristics | 1200W Platinum Level (94%) power supply |
|---|
| Dimensions | 16.7" x 7.6" x 20.68" |
|---|---|
| Weight | 27 lbs. |
| First Listed on Newegg | August 23, 2024 |
|---|
