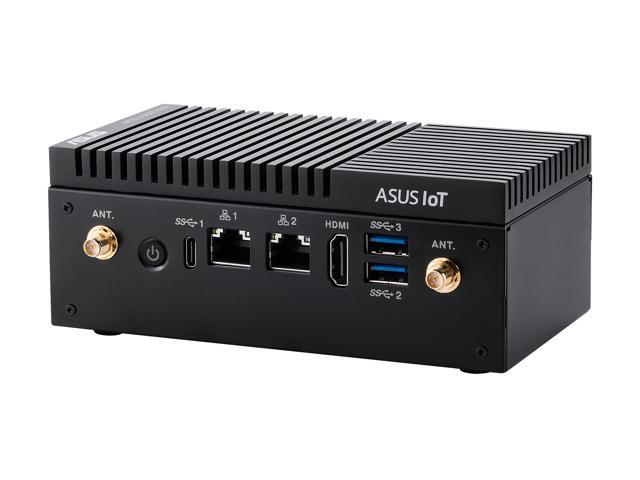

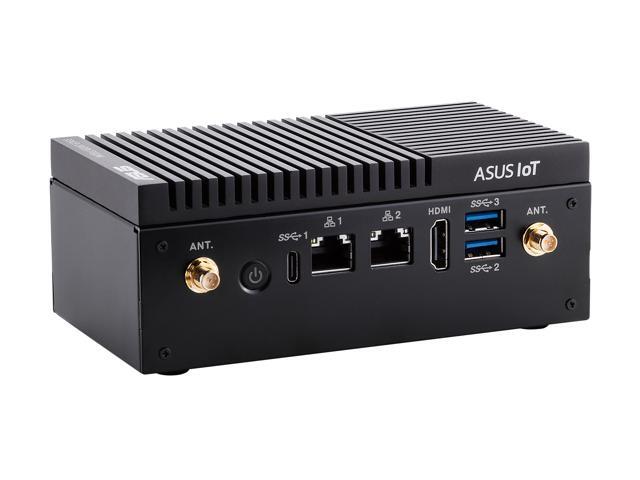

ASUS Mini PC Intelligent Edge Computer NXP i.MX 8M ARM Cortex-A53 core 4GB Onboard LPDDR4 Support Windows 10 IoT Core and Linux Yocto OS PE100A

OUT OF STOCK.
Fees for brokerage and duty included in price.
  • NXP i.MX 8M ARM Cortex-A53 core 1.30 GHz
  • 4GB Onboard LPDDR4
  • 12-24V DC input
  • Support Windows 10 IoT Core and Linux Yocto OS
Specs
Reviews

Learn more about the ASUS PE100A

Model
Brand ASUS
Model PE100A
Details
Type Mini PC
Processor
CPU Type NXP i.MX 8M ARM Cortex-A53 core
CPU Speed 1.30 GHz
Cache Memory 1MB L2 Cache
Memory
Installed Memory Size 4GB
Memory Type Onboard LPDDR4
Storage
Storage Controller 16GB onboard eMMC
Networking
Ethernet Controller 1 x Realtek RTL8211, supports WOL
1 x Intel I211-AT, supports WOL
LAN Ports 2 x RJ-45 10/100/1000Mbps
Expansion & Ports
Expansion Slots Mini PCIe: 1 x Full/Half Length Mini PCIe slot (support mSATA)

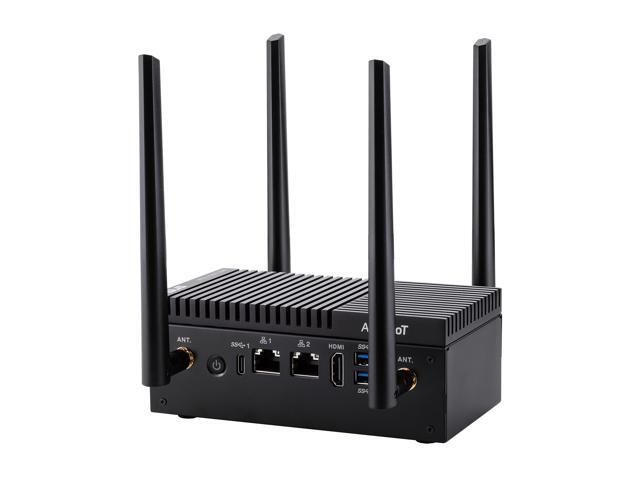

M.2: 1 x M.2 2230 E Key for BT/WiFi module (cooperate with Google Edge TPU Module)
SIM: 1 x on-board Nano-SIM socket
Micro-SD Card: 1 x Micro-SD Card connector

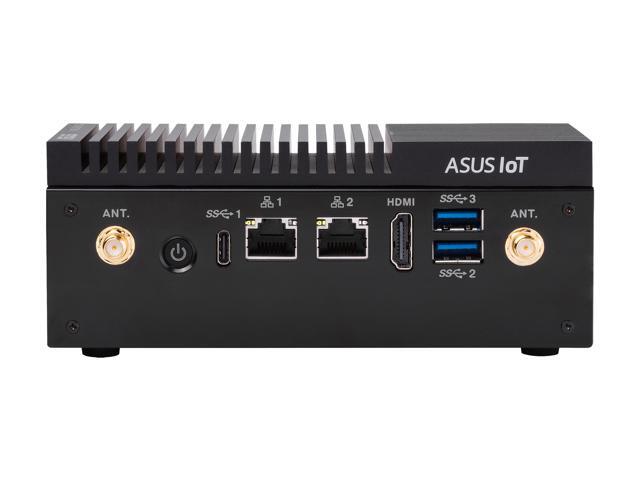

Other ports Front I/O
- HDMI: 1
- USB3.2 Gen1: 2@type A, 5V/2A, 1@type C OTG, 5V/1.5A
- Ethernet: 2

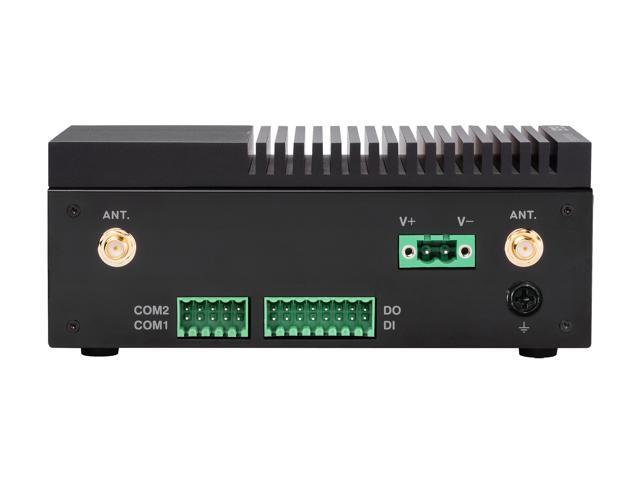

Rear I/O
- Terminal Block: 1 x COM terminal support 2 x COM headers; 1 x RS-232/422/485, 1 x RS232/CANBus (COM terminal block is optional), 1 x DIO terminal; 4*DI, 4*DO (DIO terminal block is optional)
- Power Connector DC Power input
Software
Operating System Support Windows 10 IoT Core and Linux Yocto OS
Power
Power Characteristics 12-24V DC input
Environmental
Temperature Operating Temperature: -20~60°C
Non-Operating Temperature: -40~85°C
Humidity Relative Humidity: 10 ~ 95%
Dimensions & Weight

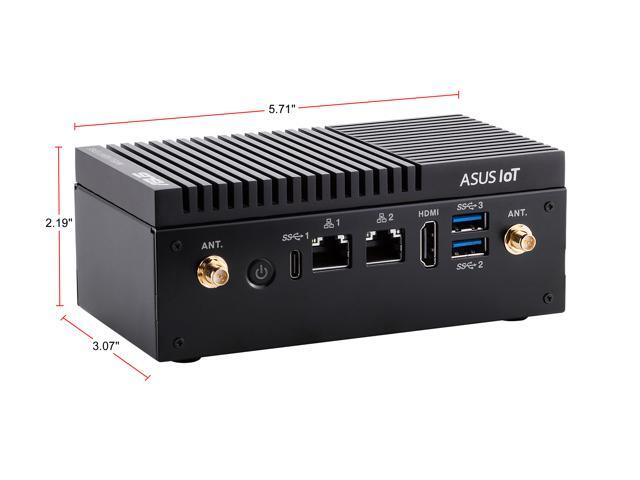

Dimensions 5.71" x 3.07" x 2.19"
Weight 1.71 lbs.
Additional Information
Date First Available December 22, 2020
