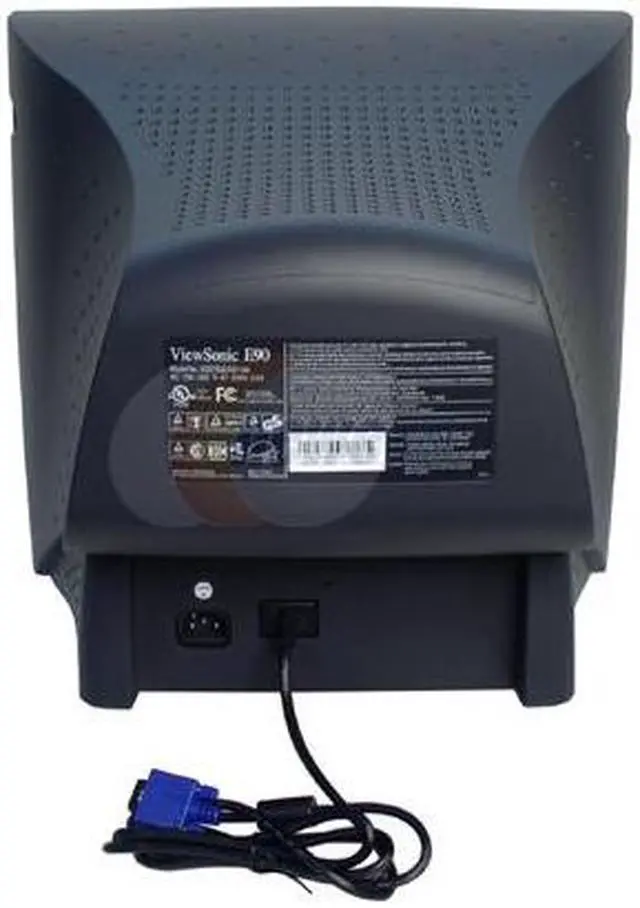

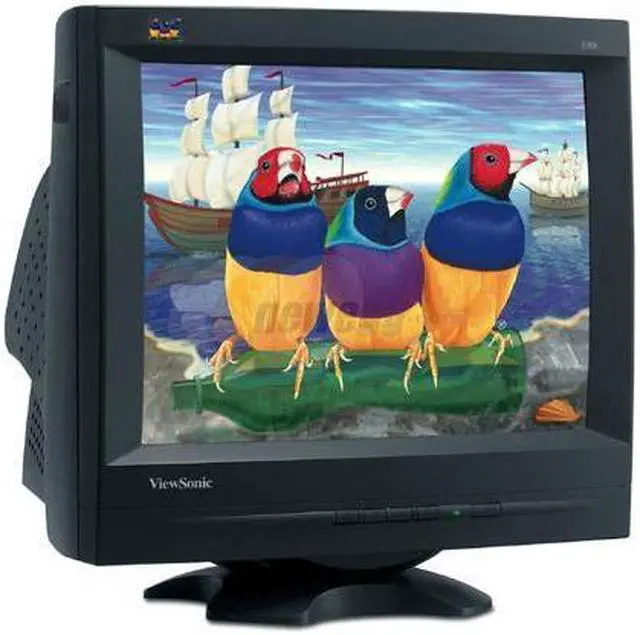

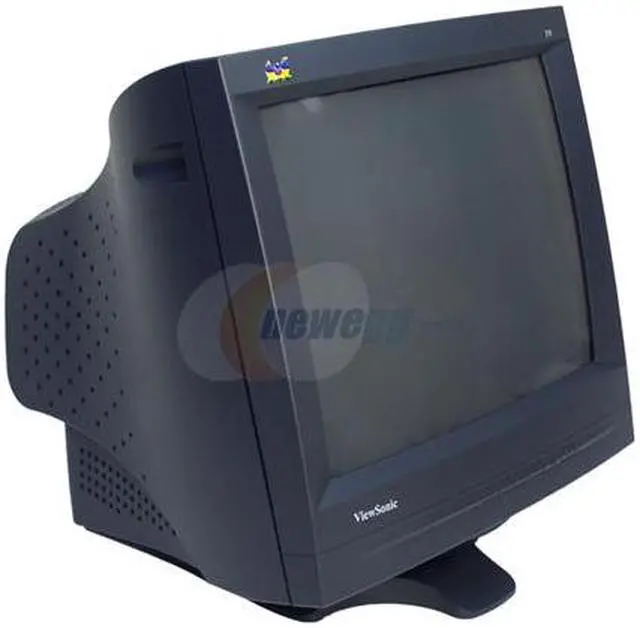

ViewSonic E90B Black 19" CRT Monitor 0.27mm diagonal Dot Pitch 15-pin mini D-sub

(16) Write a Review
  • 0.27mm diagonal Dot Pitch
  • 15-pin mini D-sub
Specs
Reviews (16)

Learn more about the ViewSonic E90B

Model
Brand ViewSonic
Model E90B
Cabinet Color Black
Display
Panel Shadow Mask CRT
Screen Size 19"
Viewable Size 18"
Maximum Resolution 1792 x 1344
Resolution 1280 x 1024
Dot Pitch 0.27mm diagonal
Bandwidth 202MHz
Horizontal Refresh Rate 30~86kHz
Vertical Refresh Rate 50~180Hz
Connectivity
Input Video Compatibility RGB analog (75 ohms, 0.7Vp-p)
Connectors 15-pin mini D-sub
Power
Complies with Meets MPR II and ENERGY STAR standards
Power Supply AC 90–264V / 50-60Hz(+/- 2)
Power Consumption 100W (typ)
Convenience
User Controls Basic:
Power, 1, down, up, 2
On View:
Contrast, brightness, H/V size, H/V position, pincushion, pinbalance, trapezoid, parallelogram, top/bottom hook, tilt, degauss, ViewMatch color adjust (9300k, 6500k, 5000k, user), language, OSD position, ViewMeter, memory recall, zoom
Regulatory Approvals UL, cUL, FCC-B, DHHS, ICES-003, CB report, NOM, TUV/GS, (covers ISO13406-2 and MPR II), C-TICK, ENERGY STAR, TUV-S
Built-in Speakers No
Features •OnView controls including OSD lock function
•Anti-static, anti-reflection screen treatment reduces reflection and glare for exceptional viewing comfort.
•The user-friendly Wizard software automates the setup process to deliver optimized screen performance.
•PC and Mac compatible
Dimensions & Weight
Dimensions 17.5" x 18.0" x 18.0"
Weight 41.6 lbs.
Environmental
Temperature Range 32–104° F (0–40° C)
Humidity Range 5–95% (non-condensing)
Additional Information
First Listed on Newegg February 26, 2004
