EVGA Z790 CLASSIFIED, 121-RL-E798-KR, LGA 1700, Intel Z790, PCIe Gen5, SATA 6Gb/s, 10Gb/s LAN, WiFi6E/BT5.2, USB4, M.2, EATX, Intel Motherboard
See more "evga z790"
In stock. Limit 1 per customer.
Ships from United States.
Fees for brokerage and duty included in price.
- Intel® Z790 Chipset, Supports 13th and 12th Gen Intel® Core™ processors for LGA1700 socket
- PCIe Gen5, M.2 Gen4, EATX Form Factor, 12 Layer PCB, 19 Phase PWM, Metal Reinforced PCIe Slots, Preinstalled rear I/O cover
- 4 DIMM Dual-Channel supports up to 128GB 7800MHz+(OC), 2 USB4 (Type-C) Ports, 7 USB 3.2 Gen2 Ports (6x Type A, 1x Type-C Header)
- 8 SATA 6Gb/s, 3x M.2 Key-M 80mm, 1x M.2 Key-E 32mm with installed WiFi 6E/BT 5.2, 2x DP 1.4 + HDR outputs (via USB4 Type-C), Marvel 10 Gb/s + Intel® 2.5 Gb/s NICs
- Onboard ARGB lighting + 4x ARGB Headers fully customizable through EVGA ELEET X1™
Specs
Reviews
Learn more about the Detailed Specifications
| Brand | EVGA |
|---|---|
| Part Number | 121-RL-E798-KR |
| CPU Socket Type | LGA 1700 |
|---|---|
| CPU Type | Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) |
| Chipset | Intel Z790 |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | DDR5 7800MHz+ (OC) |
| Maximum Memory Supported | 128GB |
| PCI Express 5.0 x16 | 2 x PCI Express 5.0 x16 |
|---|---|
| PCI Express x4 | 1x PCI-Express x4 Gen 4.0 |
| SATA 6Gb/s | 8 x SATA 6Gb/s |
|---|---|
| M.2 | 3 x M.2 |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC1220 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Marvell 10 Gigabit NIC |
|---|---|
| Second LAN Chipset | Intel i226-V 2.5 Gigabit NIC |
| Max LAN Speed | 10Gbps |
| Wireless LAN | Wi-Fi 802.11 ax |
| Bluetooth | Bluetooth 5.2 |
| Form Factor | Extended ATX |
|---|
| Features | 19 Phase Digital VRM provides the cleanest variable power switching Right-angle power connectors to improve cable management and reduce latency Improved overclock stability and PCB cooling keeps M.2 SSDs at optimal temps Preinstalled rear I/O cover Integrated EVGA Wireless Module with Intel® Wi-Fi 6E AX211 - Wi-Fi 6E/BT 5.2 with external antenna PCIe Gen 5.0 Ready with metal-reinforced PCIe slots for the heaviest of graphics cards Supports NVIDIA® Resizable BAR Monitor Your Temps, Overclock, and Control Your LEDs with EVGA ELEET X1™ EVGA's Latest GUI BIOS with OC Robot and In-BIOS Stress Testing |
|---|

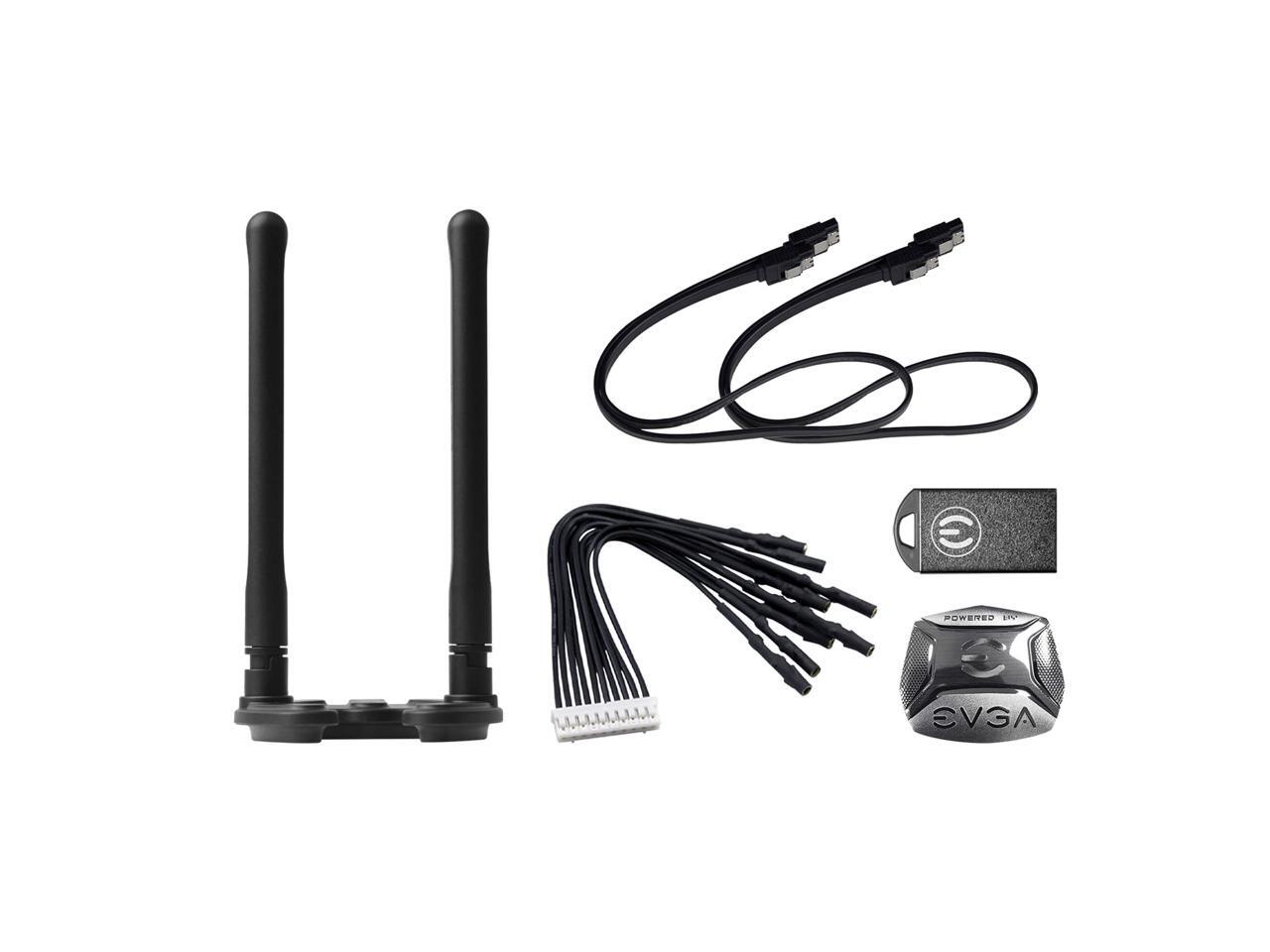

| Package Contents | ACCESSORIES EVGA Quick Installation Guide 2x SATA 6Gb/s Data Cables M.2 Thermal Pads EVGA Wi-Fi Antenna 1x ProbeIt Cable M.2 Screw Kit USB Flash drive with driver and manual |
|---|
| Date First Available | January 24, 2023 |
|---|
