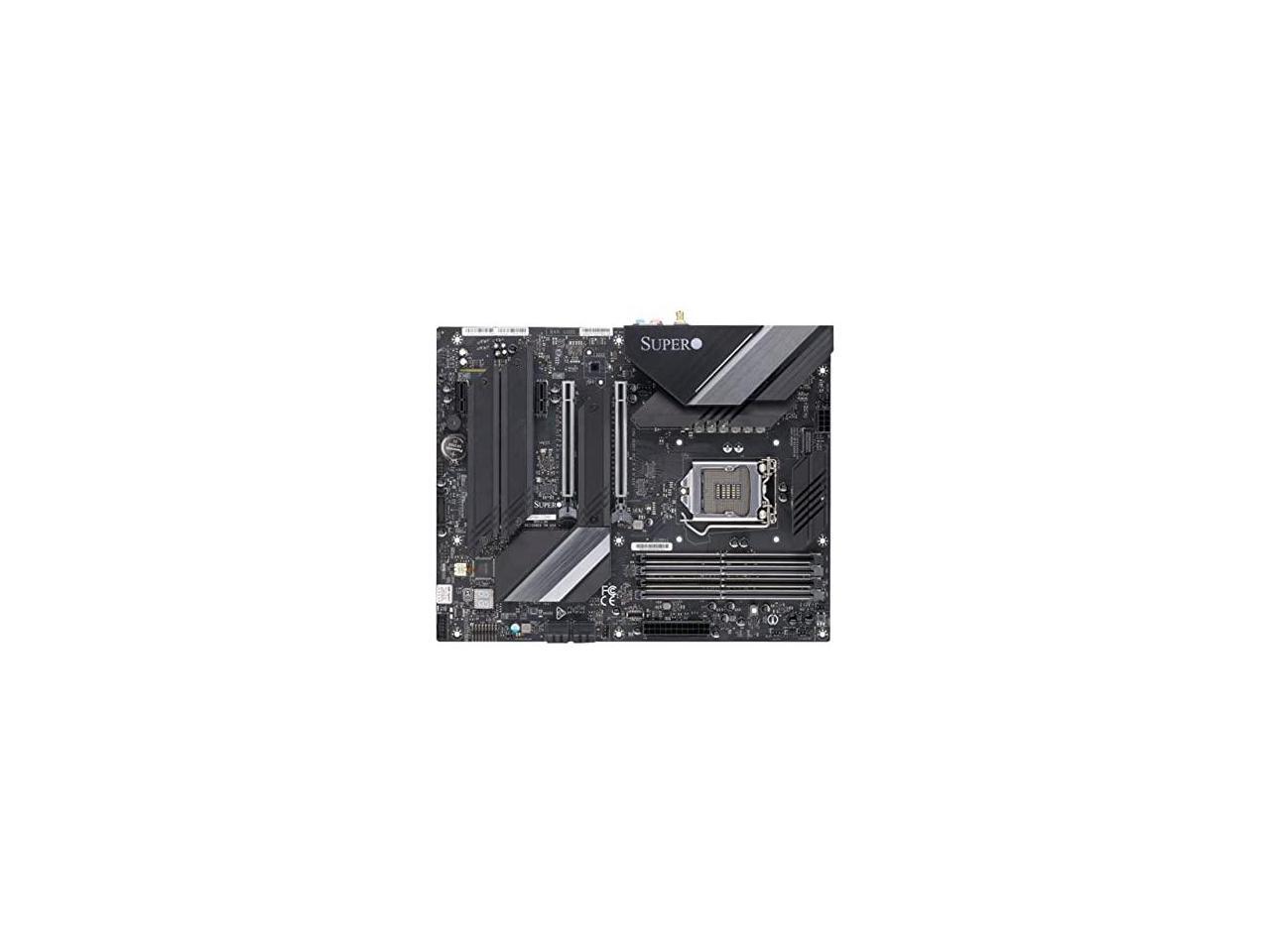

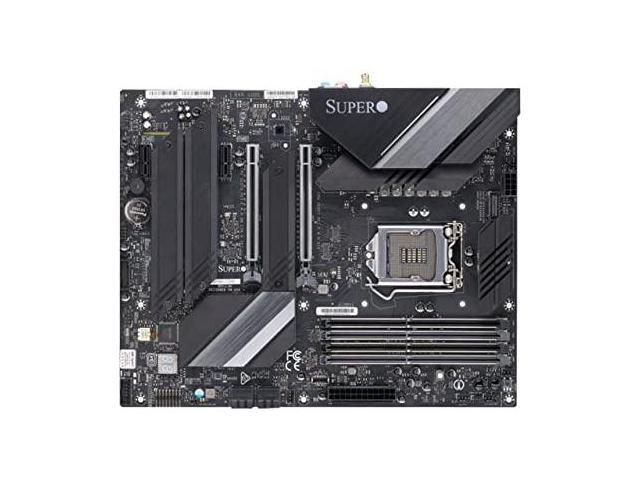

SUPERMICRO MBD-C9Z590-CG-O LGA 1200 Intel Z590 SATA 6Gb/s ATX Intel Motherboard
See more "z590 motherboard"
Check more best sellers of "Intel Motherboards"
Check more lowest price of "Intel Motherboards"
In stock.
Ships from Canada.
- Intel Z590
- Core i3 / Core i5 / Core i7 / Core i9 / Intel Core 10th Gen (LGA 1200) / Intel Core 11th Gen (LGA 1200) / Pentium Gold
- DDR4 3200
+
+
Specs
Reviews
Learn more about the Supermicro MBD-C9Z590-CG-O
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-C9Z590-CG-O |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Core i3 / Core i5 / Core i7 / Core i9 / Intel Core 10th Gen (LGA 1200) / Intel Core 11th Gen (LGA 1200) / Pentium Gold |
| Chipset | Intel Z590 |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 3200 |
| Maximum Memory Supported | 128GB |
| PCI Express 4.0 x16 | 2 x PCI Express 4.0 x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express 3.0 x1 |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
|---|---|
| M.2 | M.2 Interface: 2 PCI-E 3.0 x4; 1 PCI-E 4.0 x4 |
| SATA RAID | 0/1/5/10 |
| Audio Channels | 7.1 Channels |
|---|
| LAN Chipset | Intel I219-V |
|---|---|
| Second LAN Chipset | Marvell AQC113C |
| Max LAN Speed | 10Gbps |
| Back I/O Ports | 2 x LAN (RJ45) / 2 x USB 3.2 Gen 2 Type-A / 2 x USB 3.2 Gen 2x2 / 4 x USB 2.0/1.1 / 1 x DisplayPort / 1 x HDMI |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Features | 11th Generation Intel Core i5/i7/i9 Processors Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP Intel Z590 2 PCI-E 4.0 x16 slots (16/NA or 8/8)2 PCI-E 3.0 x1 (Slot#4 and Slot#6 can be configured as 16/NA, 8/8) M.2 Interface: 1 PCI-E 4.0 x4 and 2 PCI-E 3.0 x4 M.2 Form Factor: 2260/2280/22110 M.2 Key: M-Key The CPU-attached M.2 slot is support with the Intel NVMe drives only (support RAID 0,1). _x005F_x000D_ PCH-attached M.2 slots can support either Intel optane memory with solid state or 3rd party NVMe SSD (support RAID 0,1) Up to 128GB Unbuffered non-ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots Single LAN with Intel single Ethernet PHY i219V 1Gb Single LAN with Marvell AQC113C 10Gb 1 HDMI port, 1 DP (DisplayPort) port, DP version 1.4, HDMI version 2.0b |
|---|
| Date First Available | April 12, 2022 |
|---|
