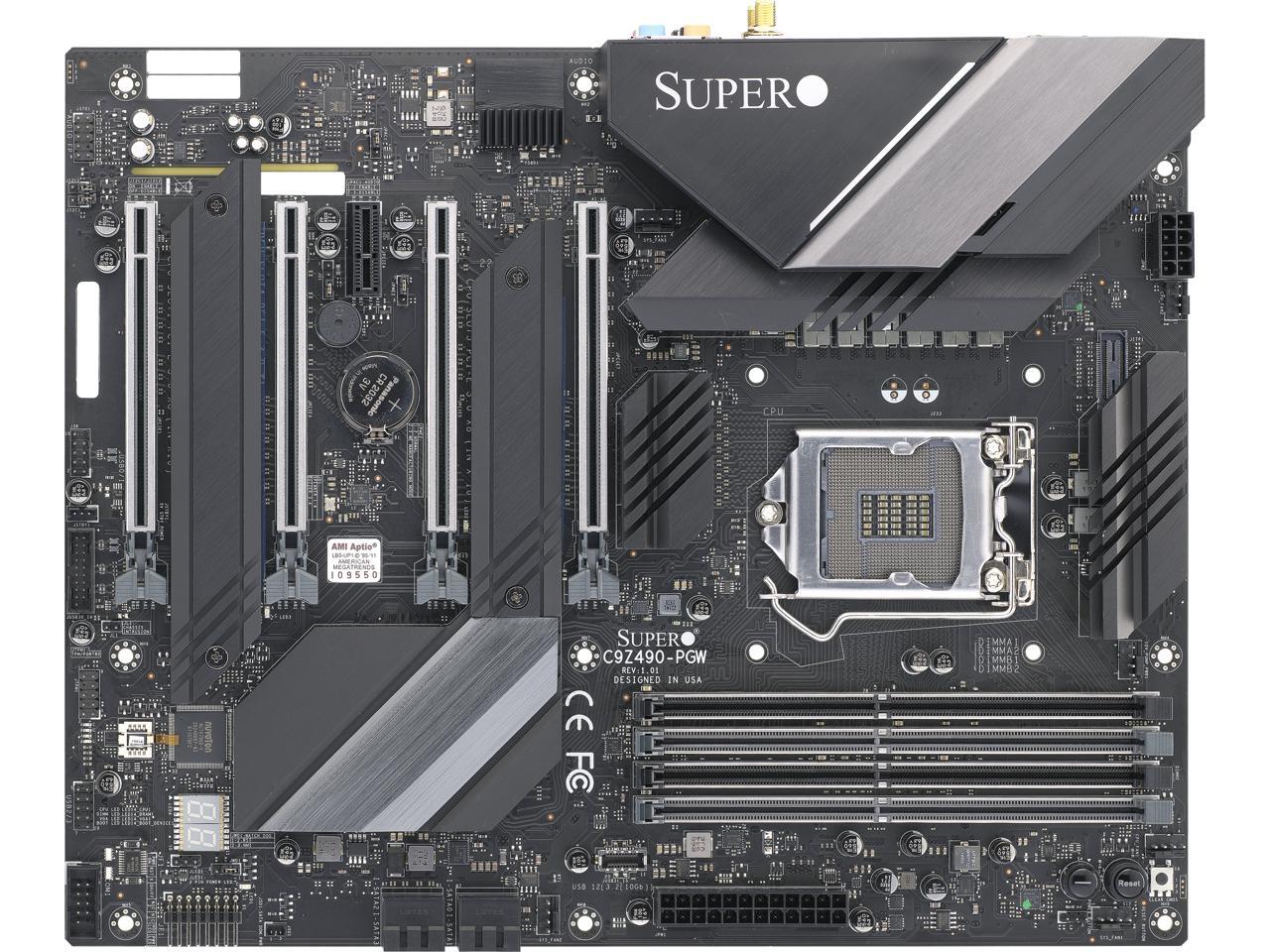

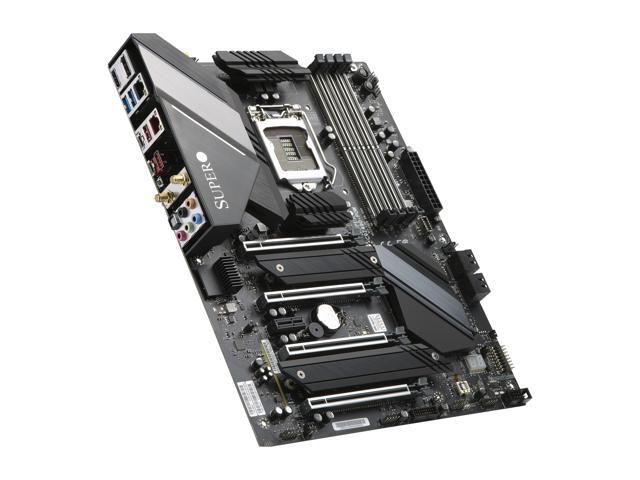

Supermicro MBD-C9Z490-PGW-O, 10th Gen Intel Core CPU Supported, Wi-Fi, Four PCI-e x16, Two M.2 NVMe, USB 3.2 Gen2
See more "z490 motherboard"
Check more best sellers of "Intel Motherboards"
Check more lowest price of "Intel Motherboards"
In stock.
Ships from United States.
Fees for brokerage and duty included in price.

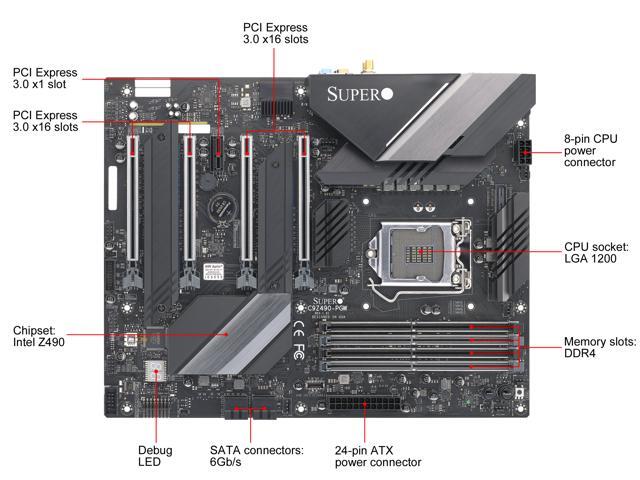

- Intel Z490
- Intel 10th Gen Comet Lake, Core i9, Core i7, Core i5, Core i3 CPUs
- Maximum 128GB DDR4-2933 MHz
- Four PCI-E 3.0 x16 Slots
- Two NVMe M.2 Slots, Fast Storage
- Wired Lan, One 10G, and one 1G Ports
- Wireless Lan, One Wi-Fi 6 (802.11ax) Port
- USB 3.2 Gen 2
- One Display Port, One HDMI port
+
+
Specs
Reviews
Learn more about the Supermicro MBD-C9Z490-PGW-O
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-C9Z490-PGW-O |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | 10th Generation Intel Core i9/Core i7/Core i5/Core i3 / Pentium/Celeron Processor |
| Chipset | Intel Z490 |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 2933 to 4000+ MHz (OC) |
| Maximum Memory Supported | 128GB |
| PCI Express 3.0 x16 | 4 PCI-E 3.0 x16 slots (16/NA/16/NA or 8/8/8/8) |
|---|---|
| PCI Express x1 | 1 PCI-E 3.0 x1 |
| Other Slots | M.2-E1 port pre-installed one Intel Wi-Fi 6 (802.11ax) +BT5.0 module |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
|---|---|
| M.2 | M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1 Form Factor: 2260/2280/22110 Key: M-Key RSTe software raid; 2 M.2 M-Key PCI-E 3.0 x4, 2260/2280/22110 |
| Audio Chipset | Realtek ALC1220 |
|---|
| LAN Chipset | AQUANTIA AQC107 |
|---|---|
| Second LAN Chipset | Intel I219V |
| Max LAN Speed | 10Gbps + 1Gbps |
| Wireless LAN | Wi-Fi 802.11 ax |
| Bluetooth | 5.0 |
| Back I/O Ports | 1 x DisplayPort / 1 x HDMI / 1 x USB 3.2 Gen 2 Type-C / 1 x USB 3.2 Gen 2x2 Type-C / 2 x LAN (RJ45) / 2 x USB 3.2 Gen 1 Type-A / 2 x USB 3.2 Gen 2 Type-A |
|---|
| Onboard USB | 4 USB 2.0 ports 2 USB 3.2 Gen1 ports 1 USB 3.2 Gen2 ports |
|---|
| Form Factor | ATX |
|---|---|

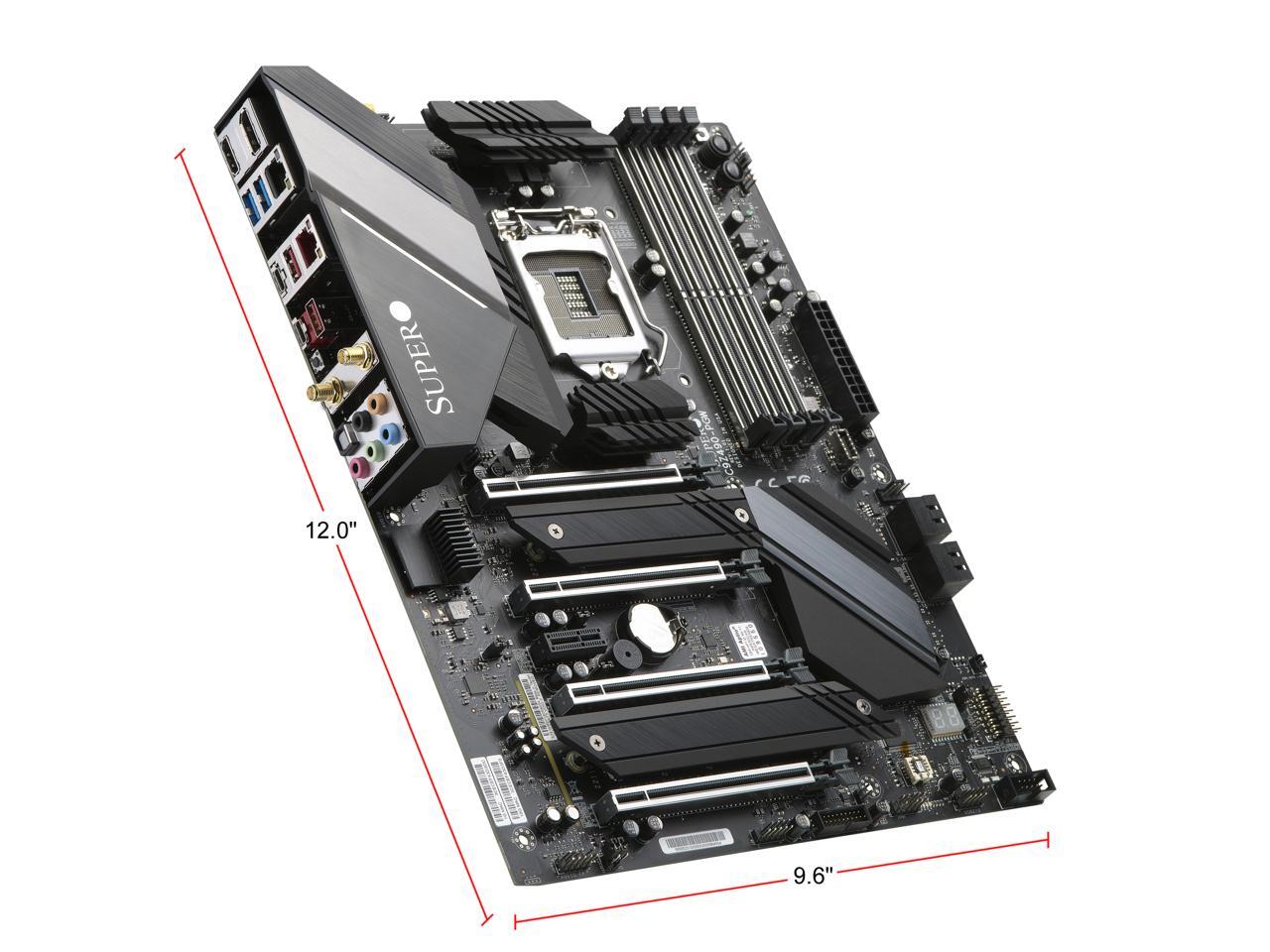

| Dimensions (W x L) | 12.0" x 9.6" |
| Windows 11 | Supported |
|---|
| Date First Available | February 02, 2023 |
|---|
