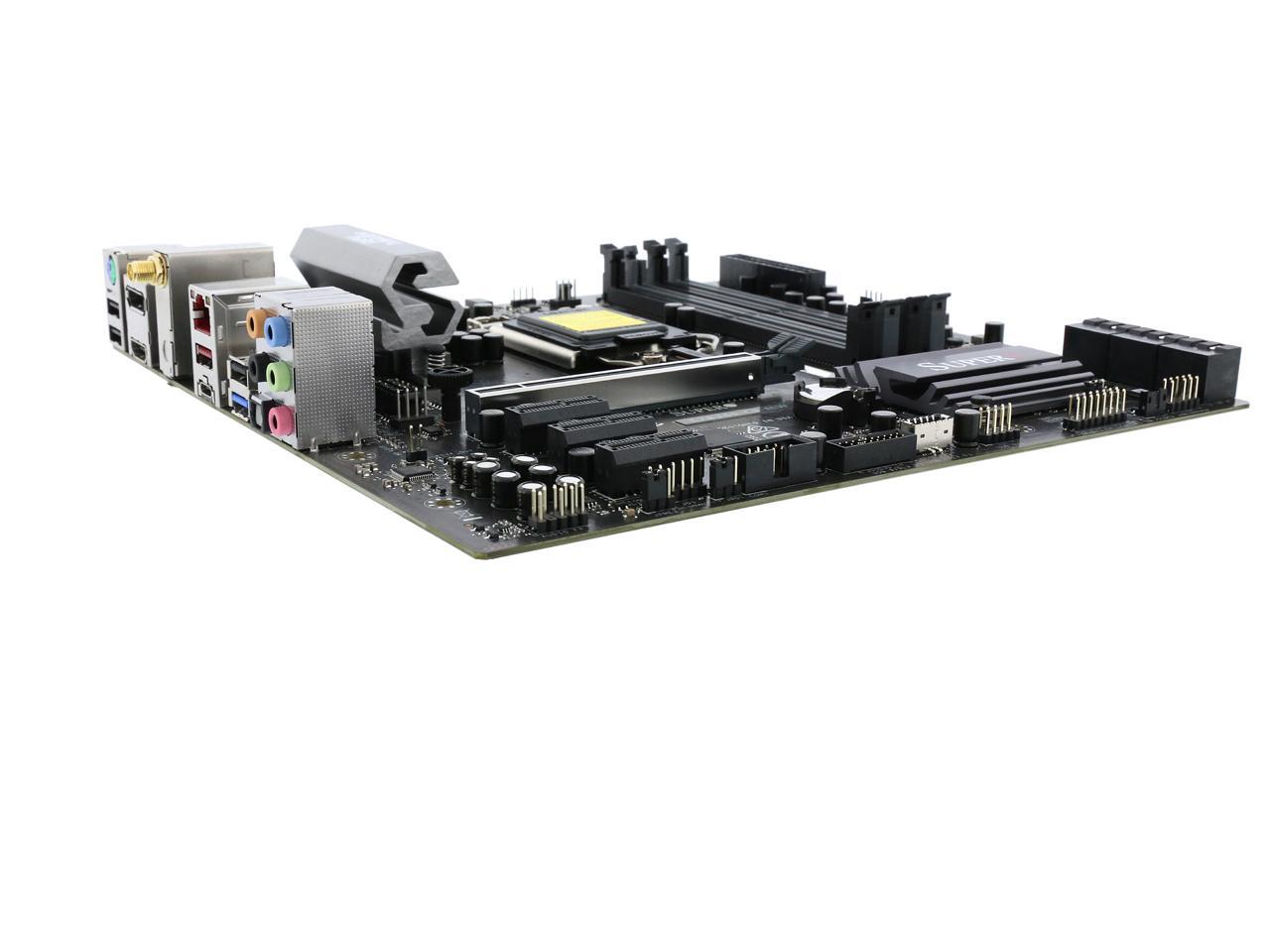

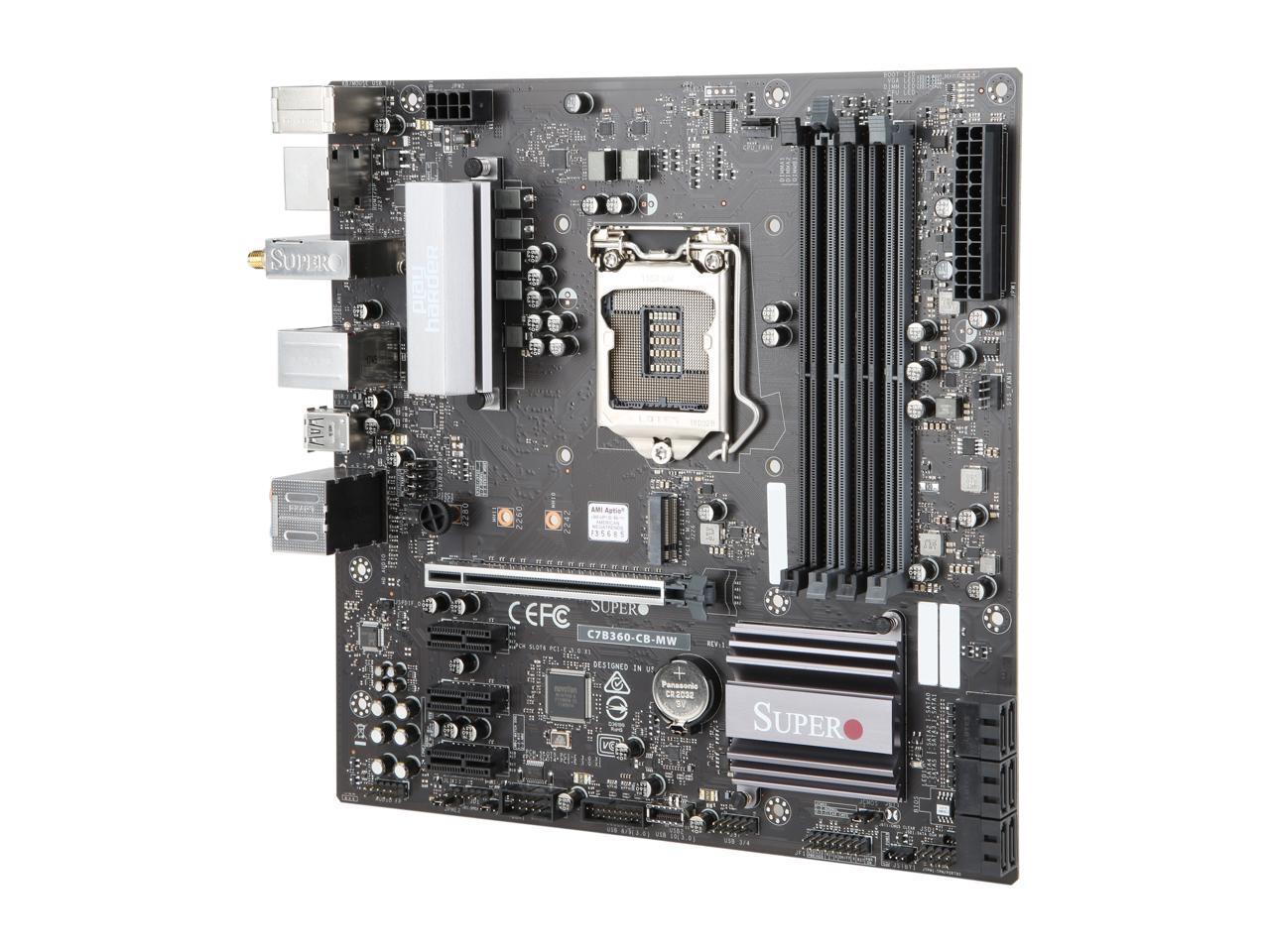

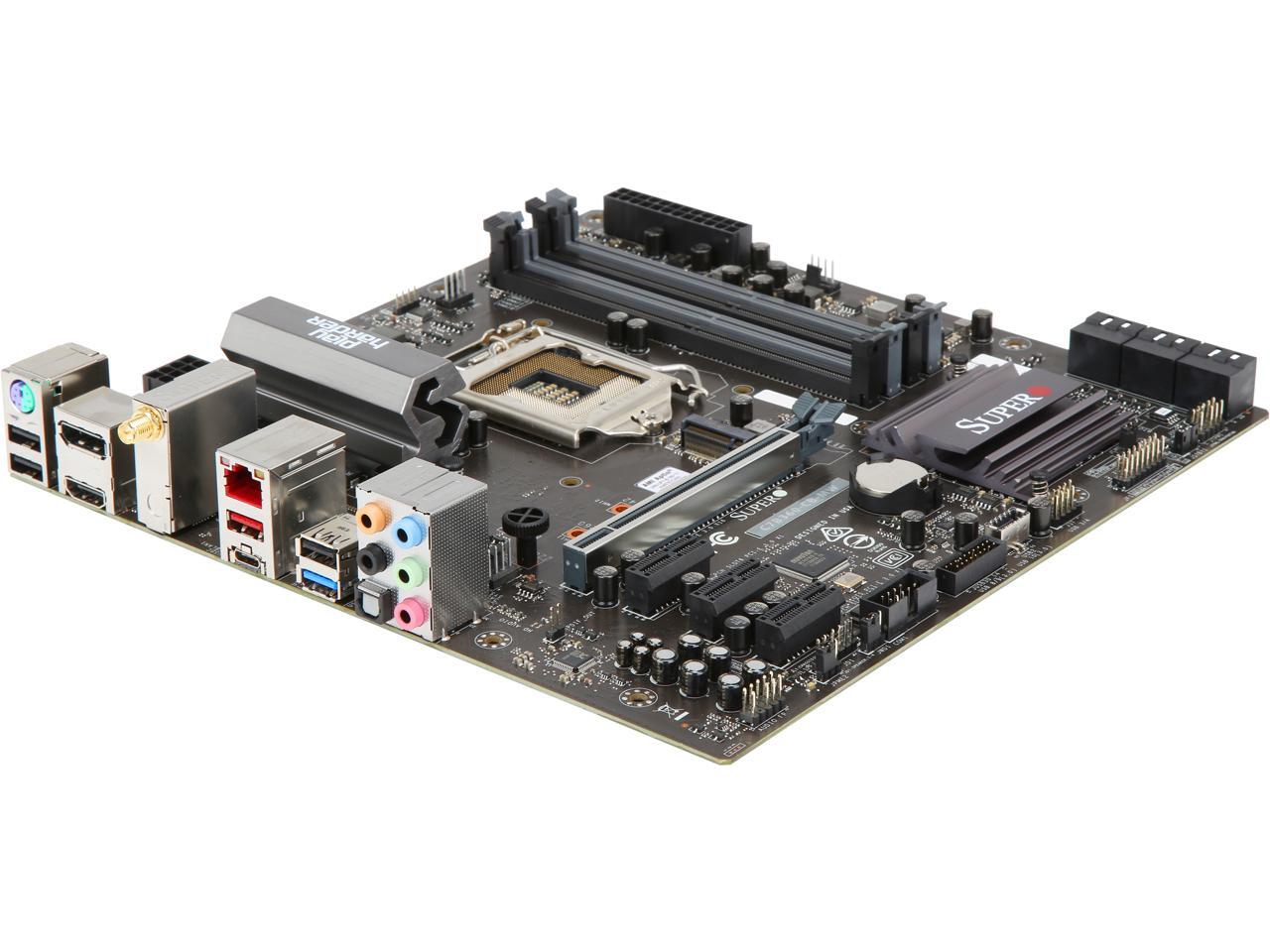

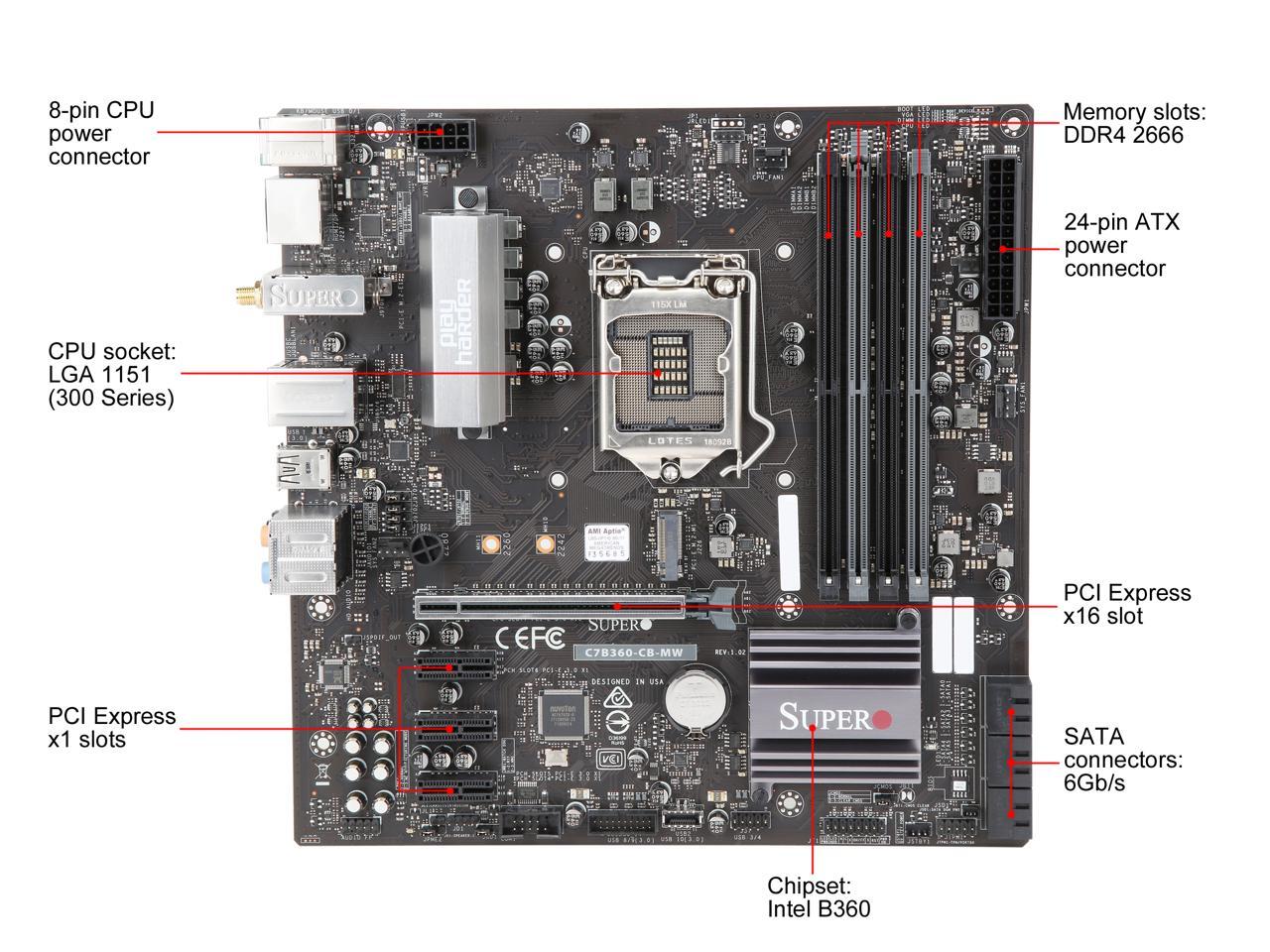

- Gold Plated Single CPU socket(LGA 1151) supports Intel 8th Gen. Core i7/i5/i3 series Intel Celeron and Intel Pentium Processor (95Watt TDP)

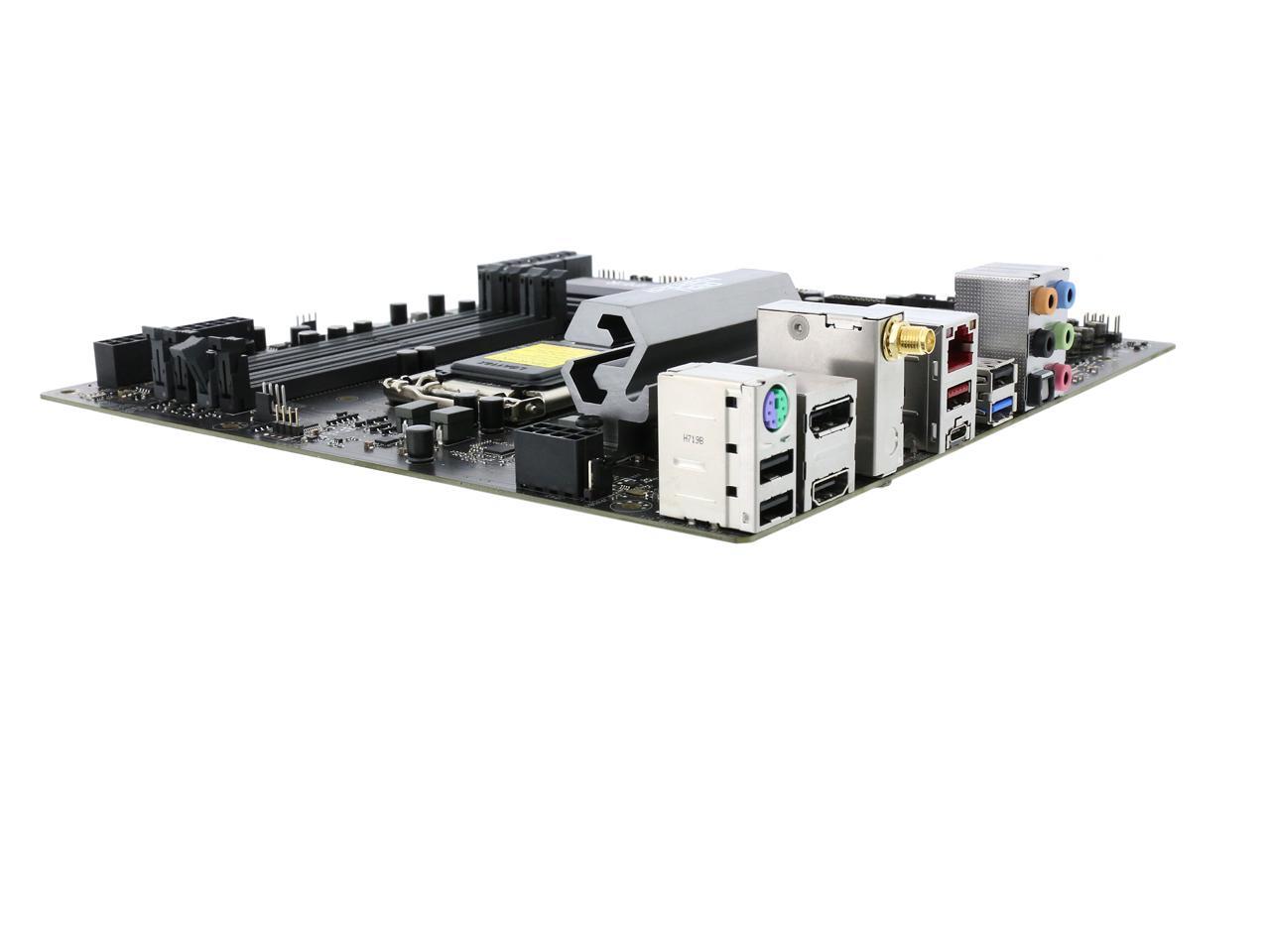

- PS/2 Port for Keyboard and Mouse
- HDMI 1.4 b; Display Port 1.2
- 2 USB 3.1 port(10Gbps, Type A and Type C)via PCH
- 4 USB 3.0 port(5Gbps, 1 rear + 1 via Type C header and 2 via pin header)
- 3 USB 2.0 ports (rear)
- 2 USB 2.0 ports (via header)
- 1 Intel Gbit Ethernet LAN port
- 7.1 HD Audio powered by Realtek ALC 888S
- 1 PCI-E 3.0 x16 slot
- 3 PCI-E 3.0 x1 slot

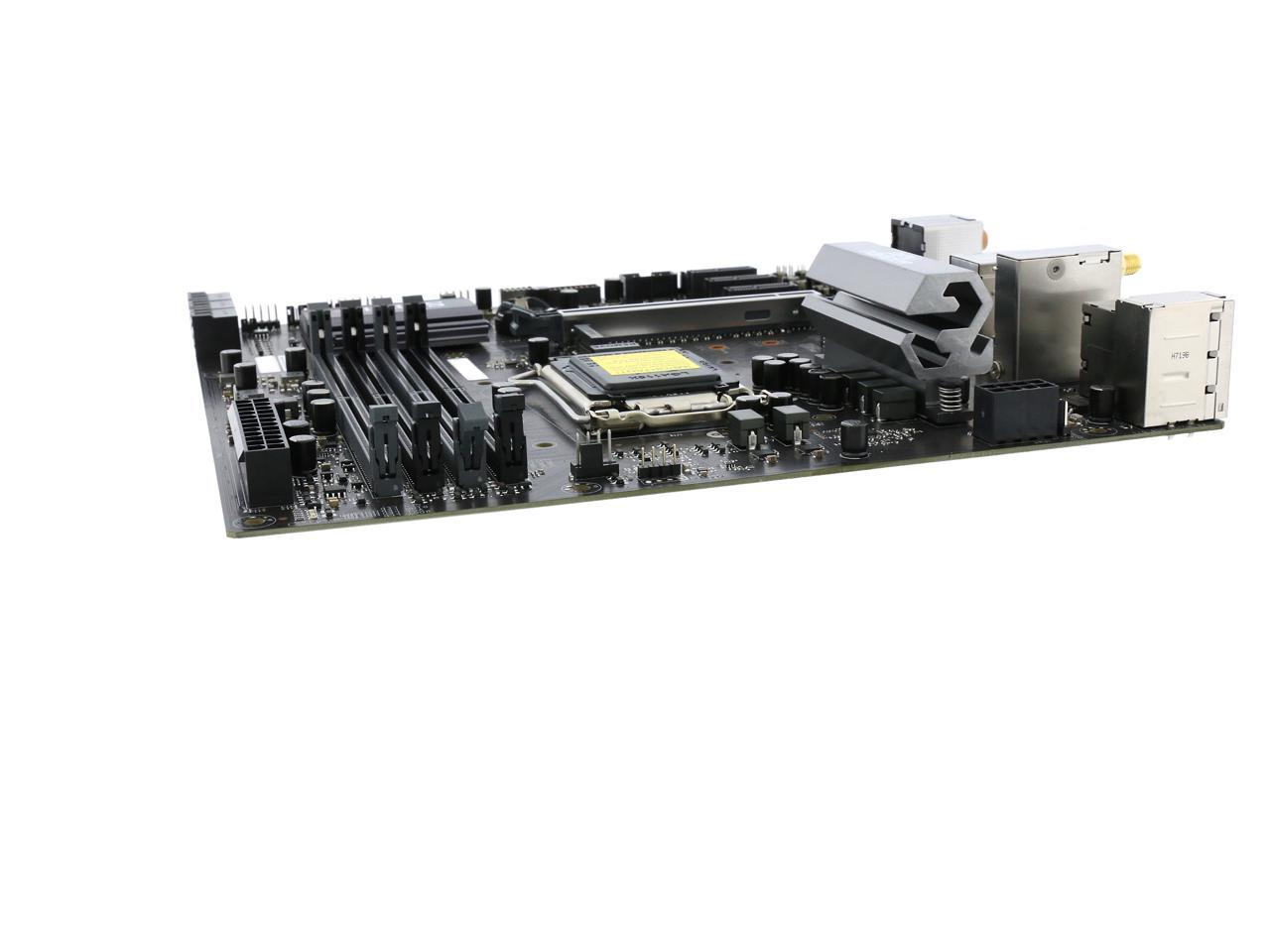

- 4 DDR4 DIMM sockets support up to 64GB Non-ECC unbuffered memory
- 1 M.2 with M Key(PCI-E 3.0 x4)
(2242/2260/2280 form factors) - Status LED for troubleschooting
- 1 4pin CPU Fan connector + 2 4pin SYS Fan connectors (PWN Fan only)
- Intel B360 Express Chipset

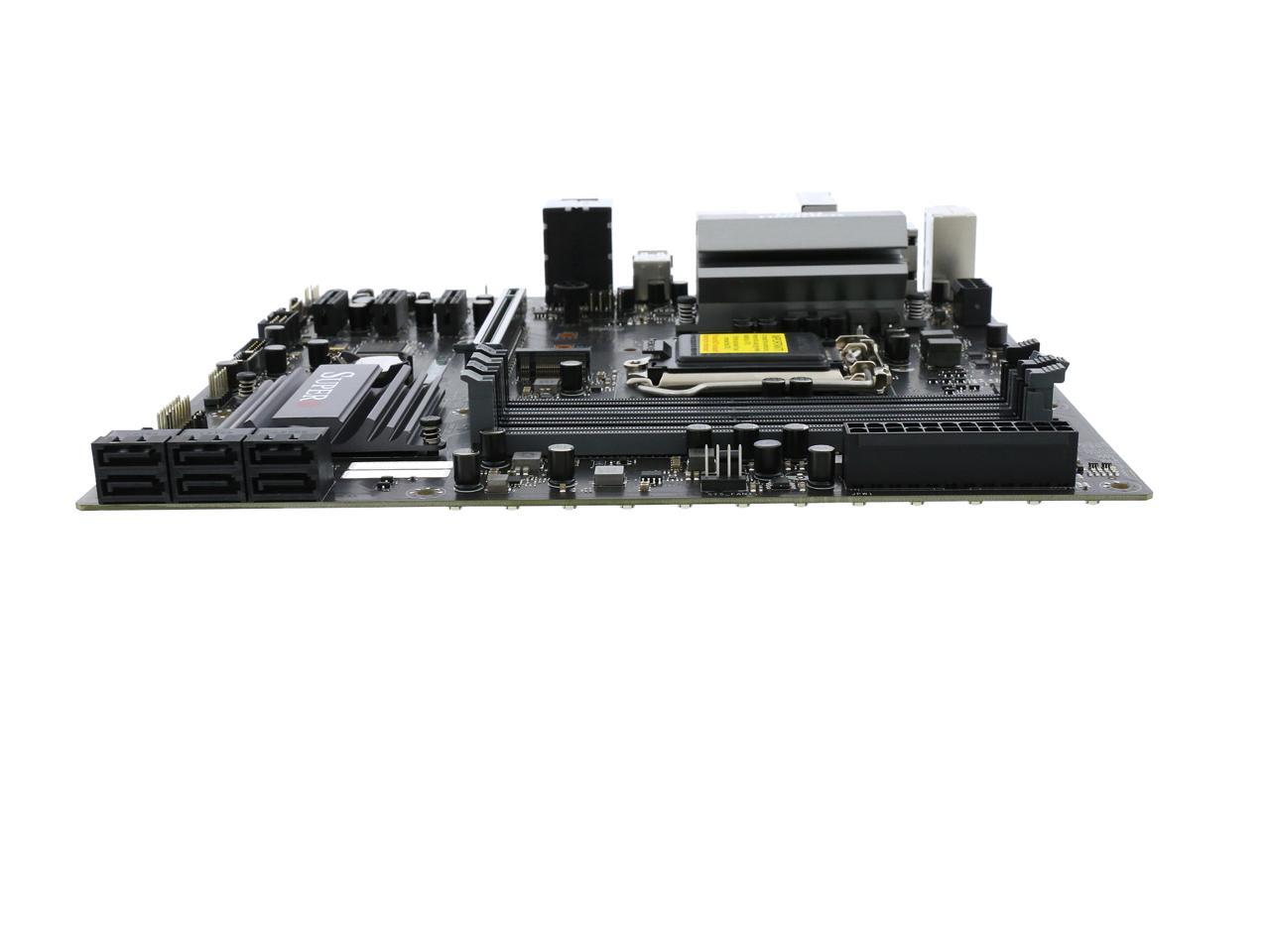

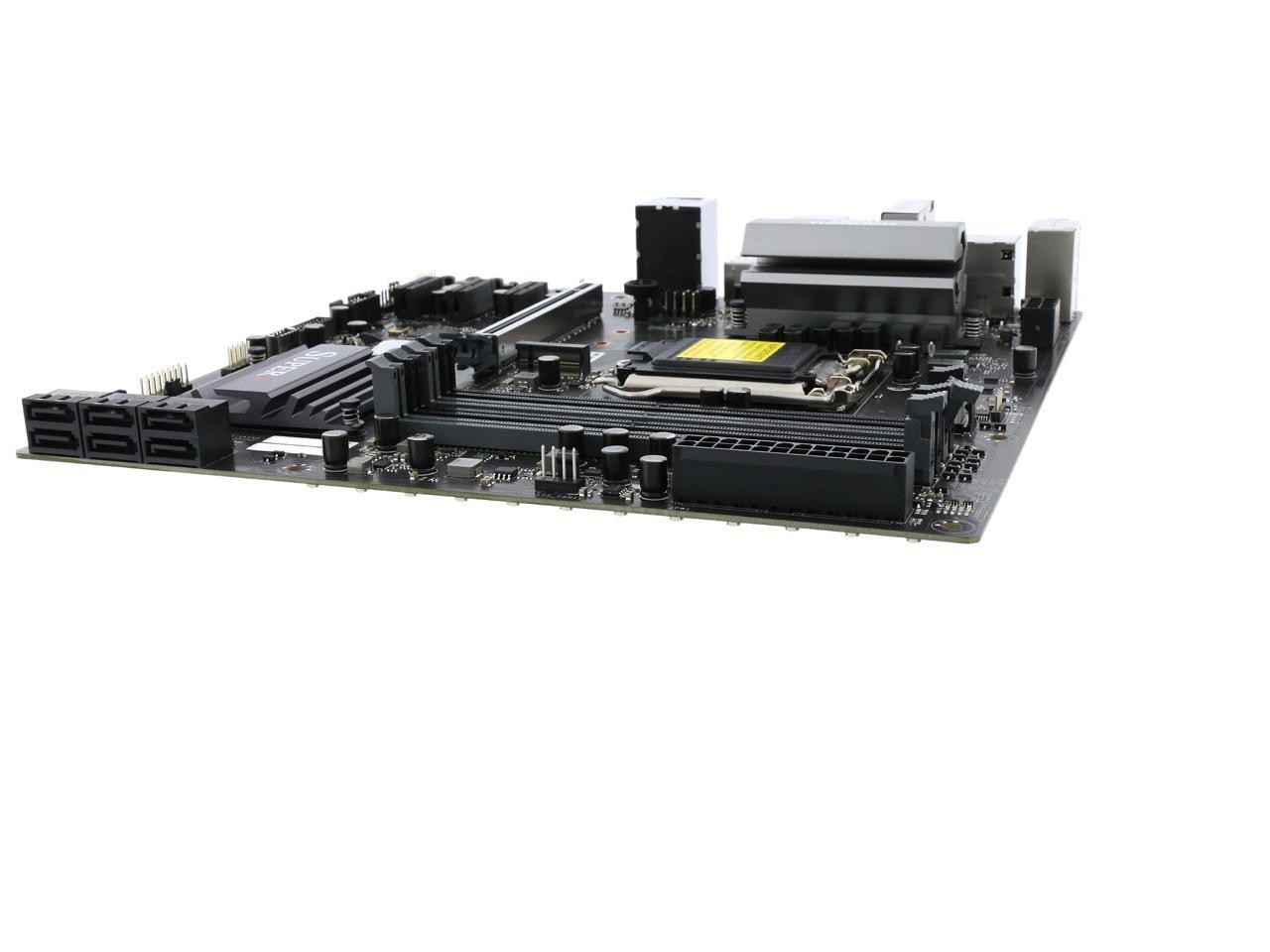

- 6 SATA3 (6Gbps) ports
- WiFi 802.11ac w/ 1x1 dual-band(2.4/5 Ghz)
antenna+ Bluetooth 5.0 (For C7B360-CB-MW only)

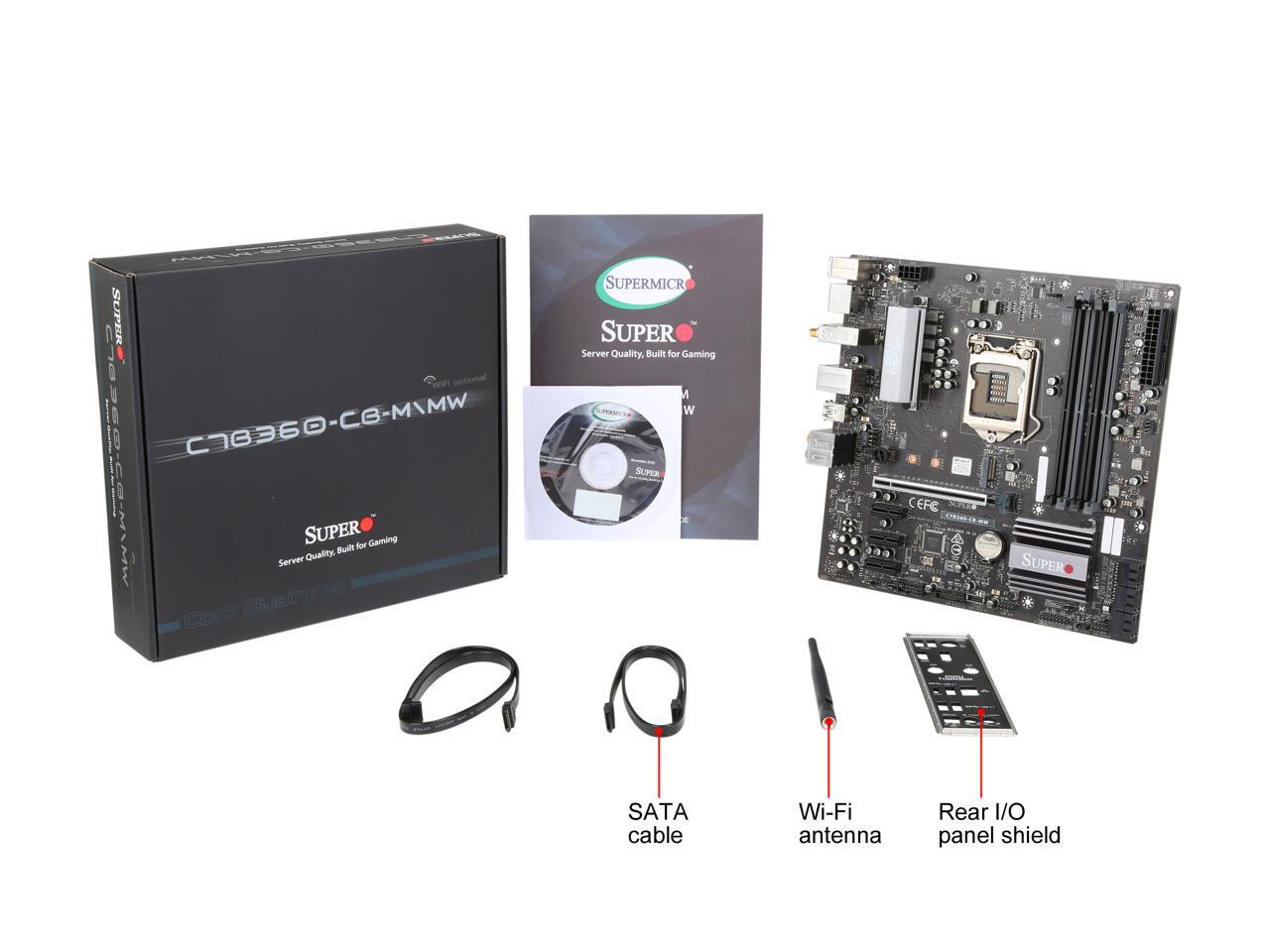

If price-to-performance is the most critical factor you consider then the SUPERO C7B360-CB-M(W) is the best choice! Packed with the latest features and performance design such as supporting the 8th Gen Intel Core CPUs, up to 64GB of DDR4 memory, gigabit wired AND wireless technologies, you'll be prepared to take on any workload in the office or at home!
We have over 20 years of creating the best servers in the world. Our motherboards are fast and powerful and designed to maintain a lower operating temperature for better stability. Our customers can expect better longevity, faster performance, and a cooler machine when processing heavy data tasks.
The new 8th generation Intel Core processors are here and ready to take on every task you can throw at it. Whether it is creating, editing, and sharing 4K, VR, and 360 degree content, playing your favorite video games, or streaming 4K movies and TV shows, this new generation of motherboards and CPUs can handle it all.
Running the latest Intel's CPU you'll want to use the best monitoring program for your SUPERO motherboard. The SUPERO Booster lets you sit in the driver's seat to monitor, tweak, and fine-tune every crucial component in your system. You'll be able to adjust memory and fan speeds and create multiple system profiles that gives you the ability to toggle different configurations on the fly. Don't forget! You can also adjust the customizable RGB LEDs to personalize your machine to your liking!

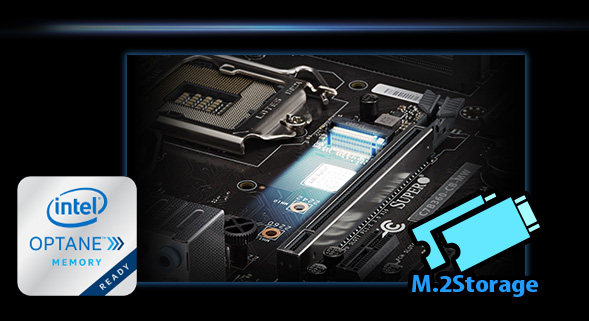

Have you been eyeing up the latest technology in SSDs? Our boards come equipped to handle M.2 (PCIe 3.0 - 32GB/s) drives, allowing you to blast through reading and writing files; an essential feature for performance sensitive users.
With our latest 2nd generation SUPERO Booster you'll be able to light up your world with the customizable RGB LEDs built into the motherboard. You'll have different series of patterns such as alarm, breathing, meteor, and rainbow with adjustable speeds as well. You'll stand out from the crowd and outshine the competition with our latest C7B360-CB-M(W) motherboard!

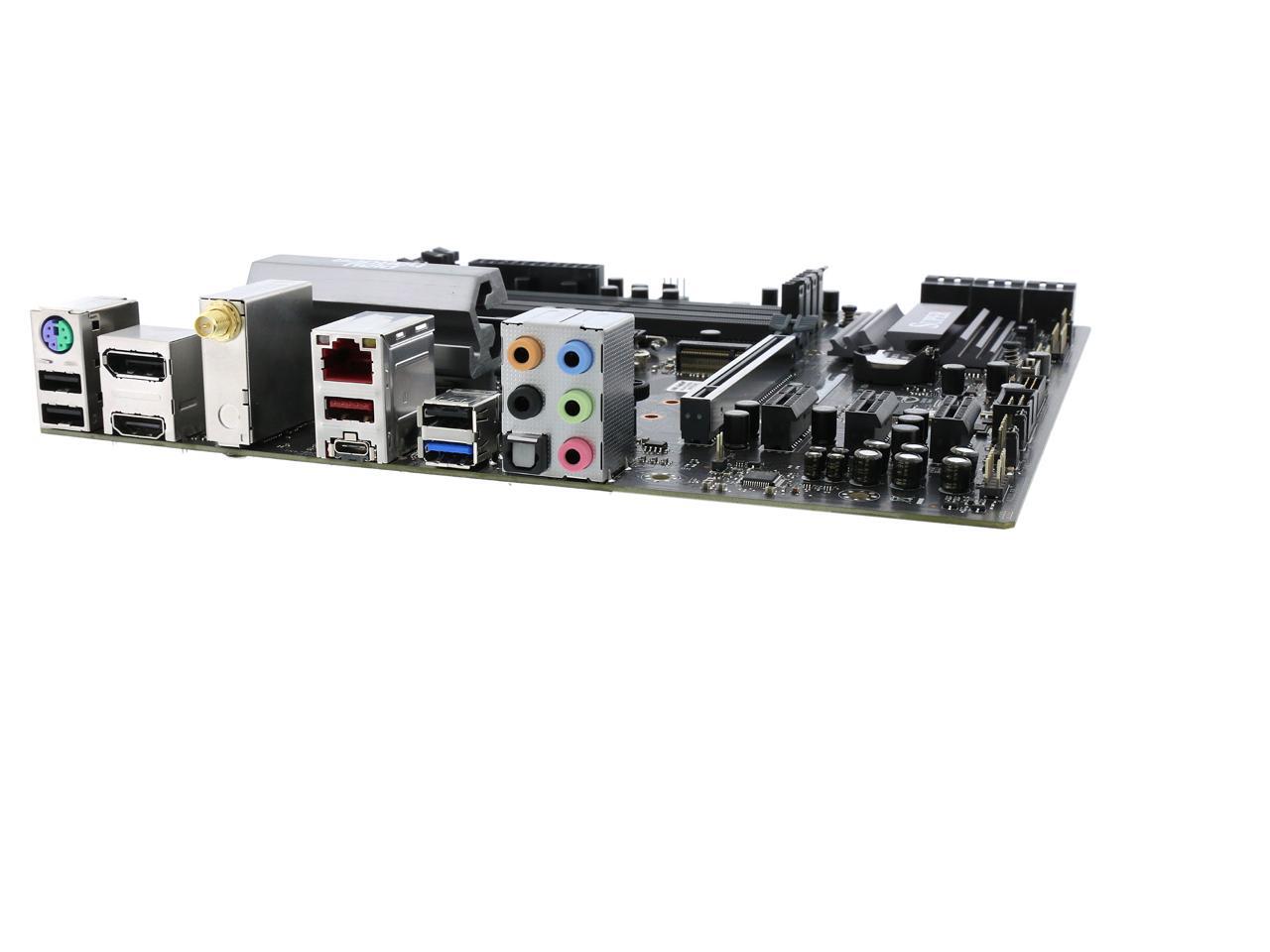

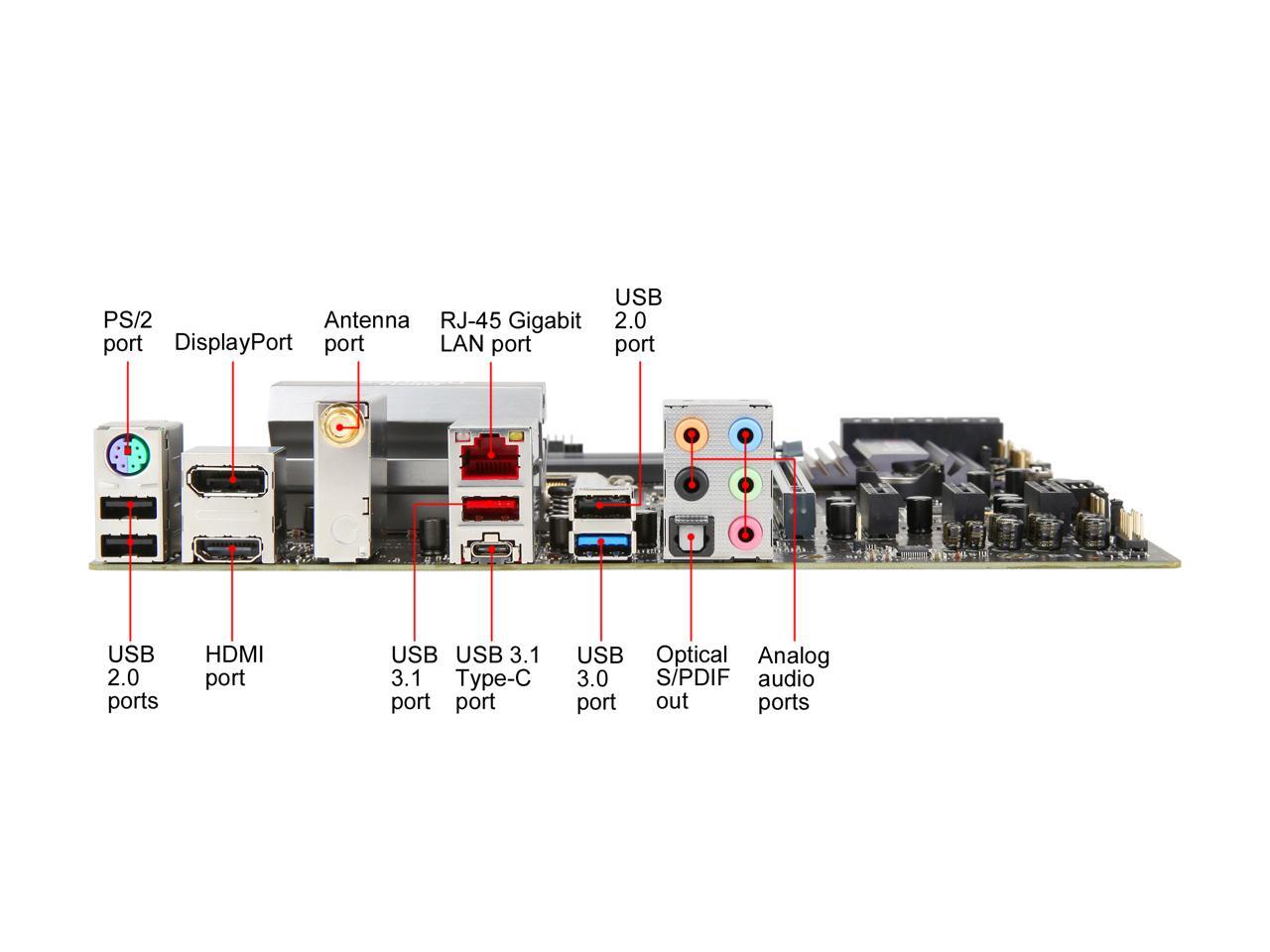

We include the latest 802.11ac wireless technology and Intel's i219V gigabit Ethernet controller so that you can run your system at home and at any LAN party. In addition to internet connectivity, we include a range of USB 3.1, 3.0, and 2.0 ports for your devices. Multiple displays for your system? No problem! We have included both HDMI and DisplayPort outputs for you to maximize efficiency for your setup!
