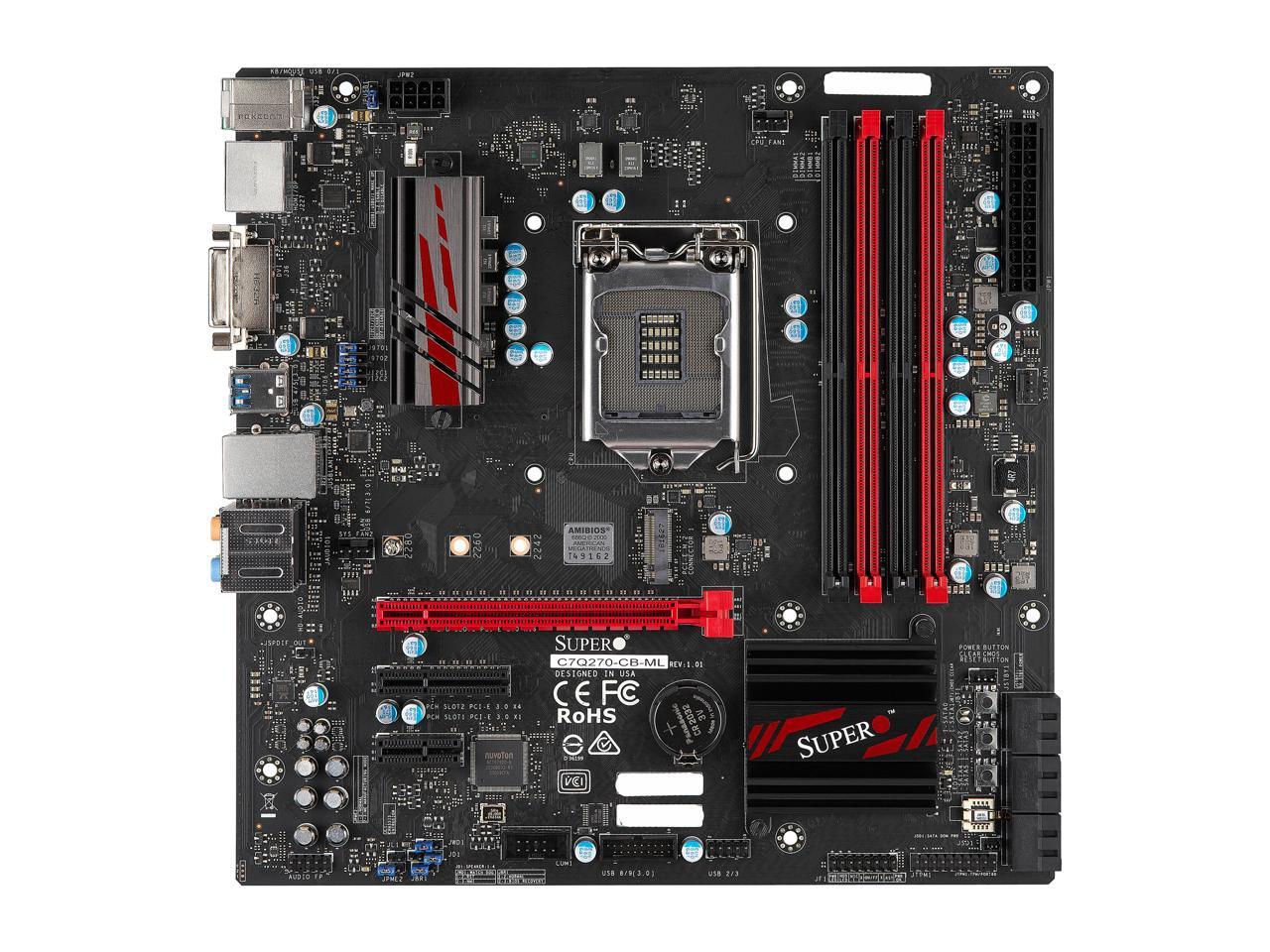

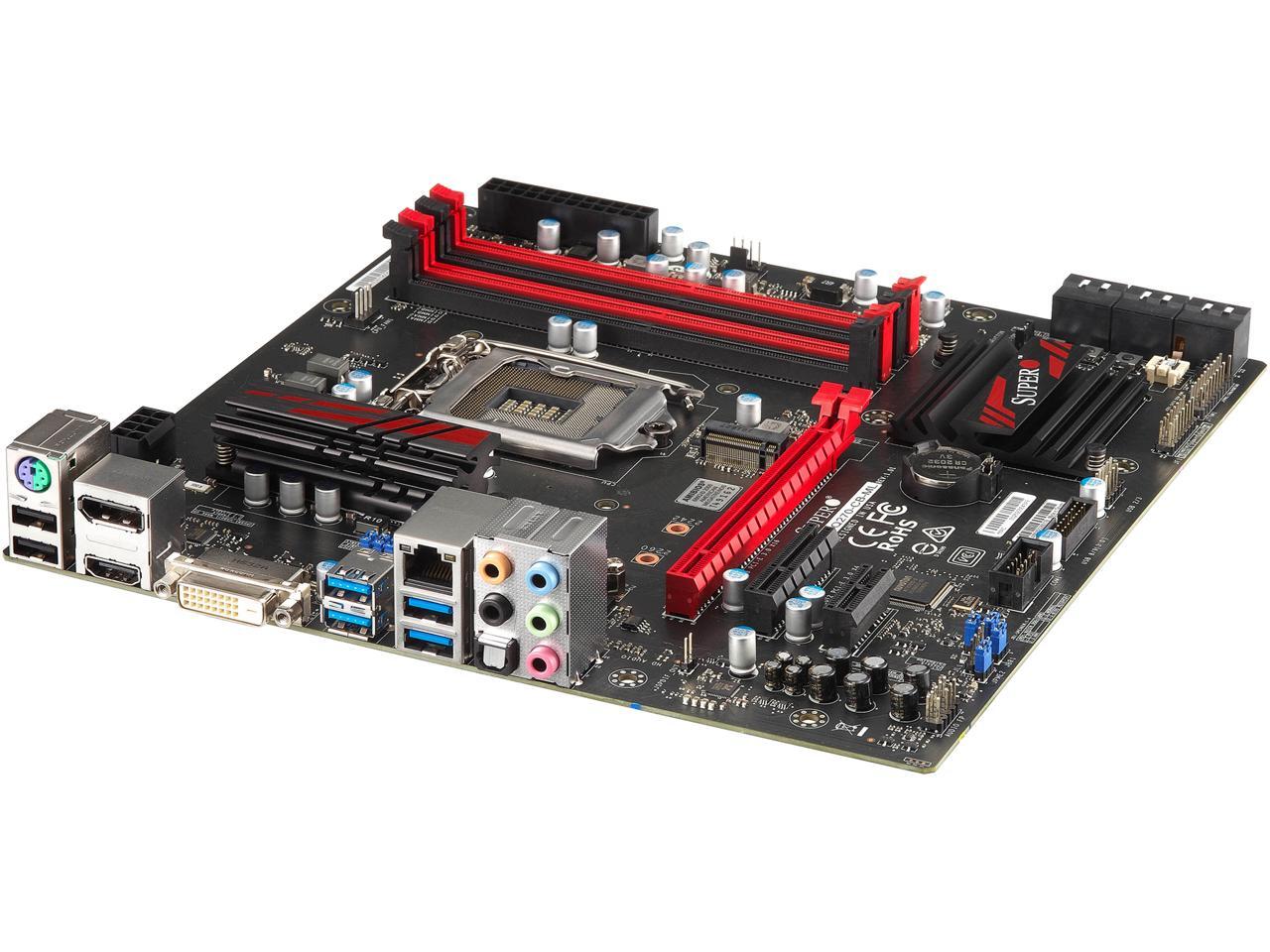

SUPERMICRO C7Q270-CB-ML LGA 1151 Intel Q270 HDMI SATA 6Gb/s USB 3.0 Micro ATX Motherboards - Intel
See more "lga 1151 motherboard"
Check more best sellers of "Intel Motherboards"
Check more lowest price of "Intel Motherboards"
In stock.
Ships from China.
Fees for brokerage and duty included in price.
- Intel Q270
- Intel 7th/6th Gen Core i7/i5/i3 series processors; CPU TDP support up to 65W TDP
- DDR4 up to 2400
+
+
Specs
Reviews
Learn more about the Supermicro C7Q270-CB-ML
| Brand | SUPERMICRO |
|---|---|
| Model | C7Q270-CB-ML |
| CPU Socket Type | LGA 1151 |
|---|---|
| CPU Type | Intel 7th/6th Gen Core i7/i5/i3 series processors; CPU TDP support up to 65W TDP |
| Chipset | Intel Q270 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 up to 2400 |
| Maximum Memory Supported | 64GB |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
|---|---|
| PCI Express x4 | 1 x PCI-E 3.0 x4 slot 1 x PCIe 3.0 x4 M.2 (supports 2280) |
| PCI Express x1 | 1 x PCI-E 3.0 x1 slot |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC1150 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel I219-LM |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x DisplayPort / 1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 4 x USB 3.0 |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| COM | 1 |
| Video Ports | 1 x DVI-D |
| HDMI | 1 x HDMI 1.4b |
| RJ45 | 1 x RJ45 |
| DisplayPort | 1 x DisplayPort 1.2 |
| USB 3.0 | 4 x USB 3.0 |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Onboard USB | 2 x USB 3.0 + 2 x USB 2.0 |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Features | Single socket H4 (LGA 1151) supports Intel 7th/6th Gen. Core i7/i5/i3 series Intel Q270 Express Chipset Up to 64GB Non-ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots 1 GbE LAN port via Intel i219LM 6 x SATA3 (6Gbps); RAID 0, 1, 5, 10 1 x PCI-E 3.0 x16, 1 x PCI-E 3.0 x4, 1 x PCI-E 3.0 x1 1 x PCIe 3.0 x4 M.2 (2280 form factor) 6 x USB 3.0 (4 rear, 2 via header) 4 x USB 2.0 (2 rear, 2 via headers) 1 x DP (Display Port), 1 x HDMI, 1 x DVI-D HD Audio 7.1 channel connector by Realtek ALC1150, support SPDIF-Out |
|---|
| Date First Available | April 01, 2021 |
|---|
