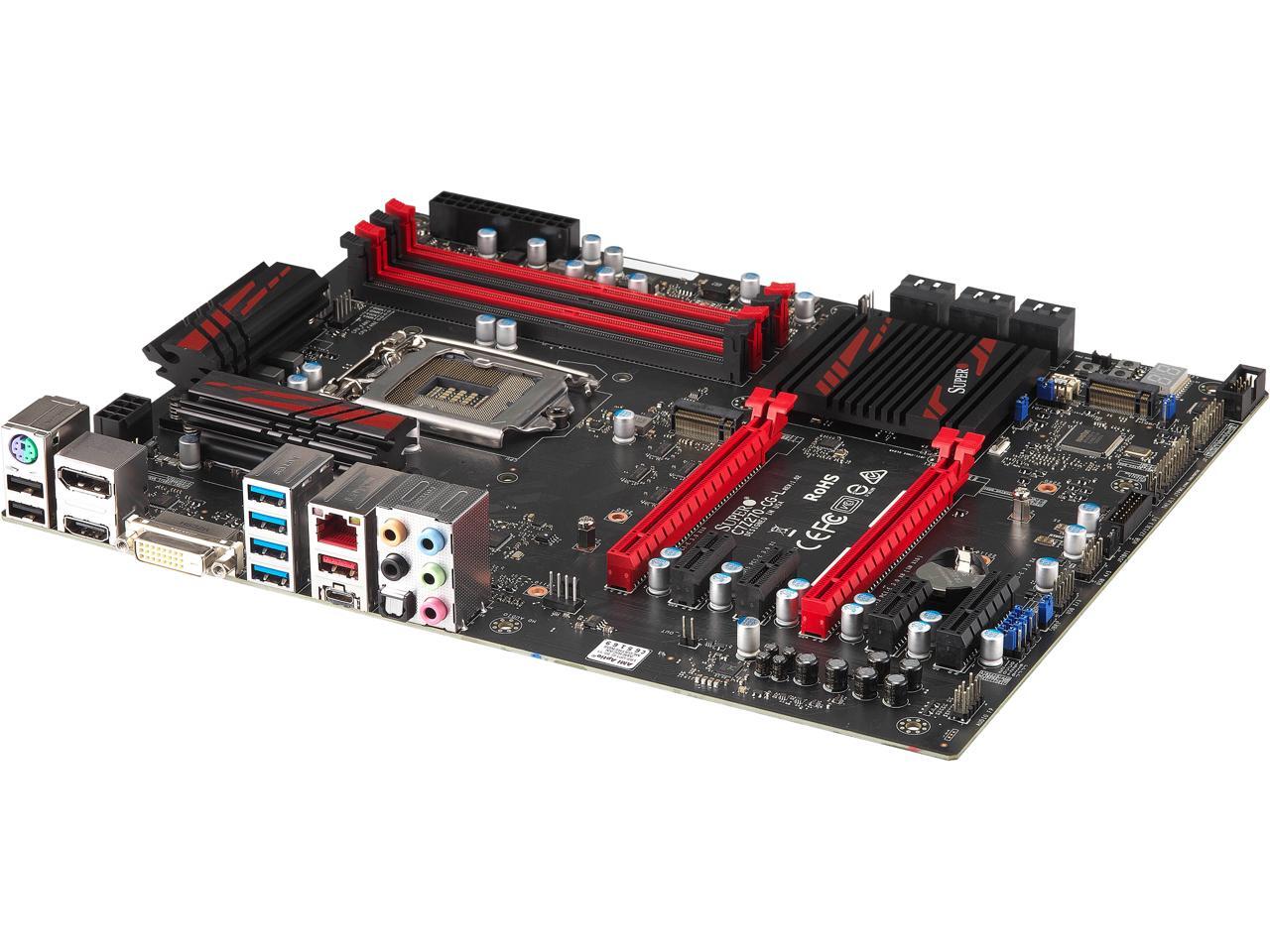

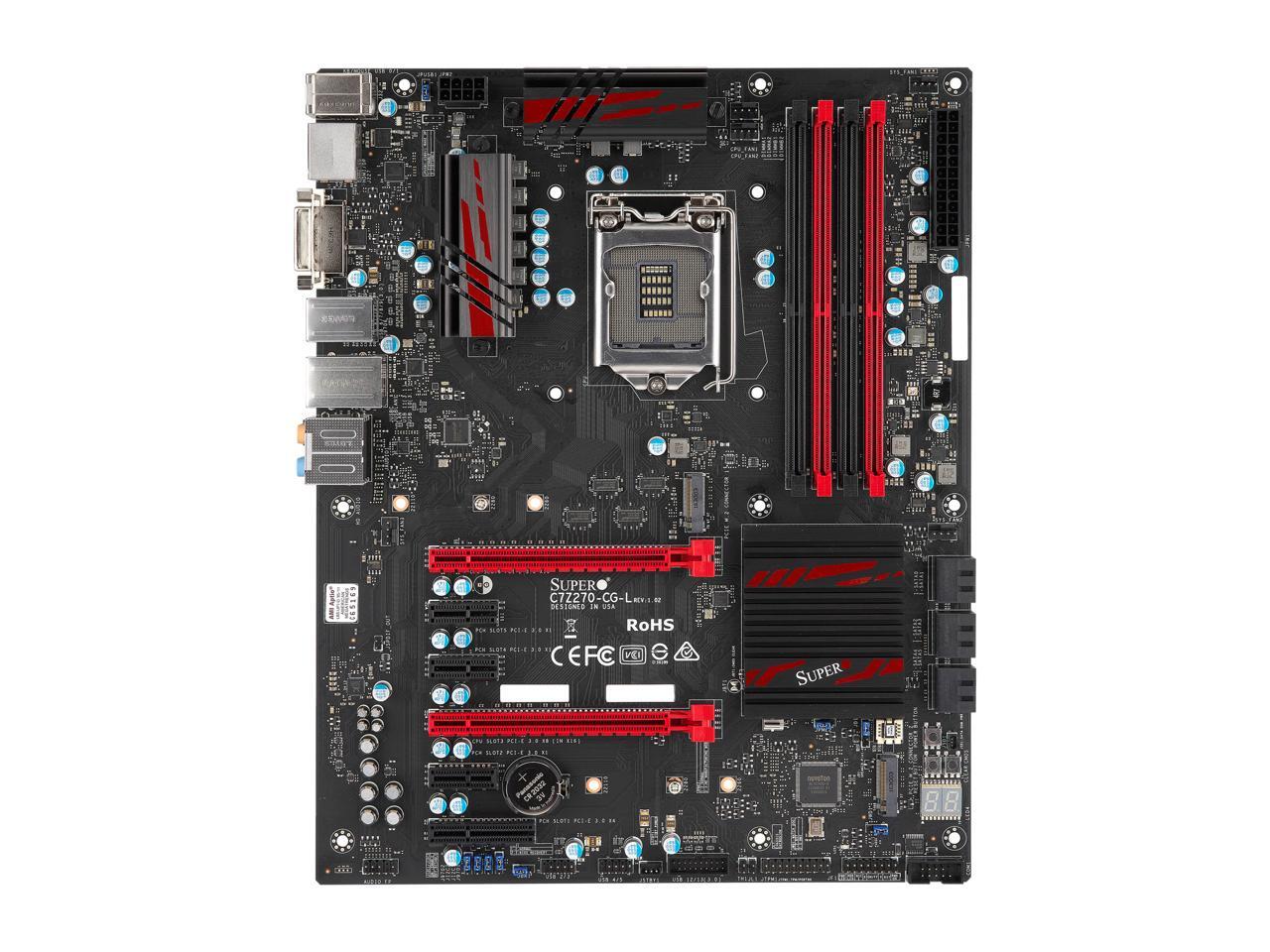

SUPERMICRO C7Z270-CG-L LGA 1151 Intel Z270 HDMI SATA 6Gb/s USB 3.1 USB 3.0 ATX Motherboards - Intel
See more "z270 motherboard"
Check more best sellers of "Intel Motherboards"
Check more lowest price of "Intel Motherboards"
In stock.
Ships from China.
Fees for brokerage and duty included in price.
- Intel Z270
- Intel 7th/6th Gen Core i7/i5/i3 series processors; CPU TDP support up to 160W TDP
- DDR4 up to 2800(OC)
+
+
Specs
Reviews
Learn more about the Supermicro C7Z270-CG-L
| Brand | SUPERMICRO |
|---|---|
| Model | C7Z270-CG-L |
| CPU Socket Type | LGA 1151 |
|---|---|
| CPU Type | Intel 7th/6th Gen Core i7/i5/i3 series processors; CPU TDP support up to 160W TDP |
| Chipset | Intel Z270 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 up to 2800(OC) |
| Maximum Memory Supported | 64GB |
| PCI Express 3.0 x16 | 2 x PCI-E 3.0 x16 slots (16/NA or 8/8) |
|---|---|
| PCI Express x4 | 1 x PCI-E 3.0 x4 slot 2 x PCIe 3.0 x4 M.2 (support 22110, RAID 0, 1 support) |
| PCI Express x1 | 3 x PCI-E 3.0 x1 slots |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC1150 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel I219-V |
|---|---|
| Max LAN Speed | 1Gbps |

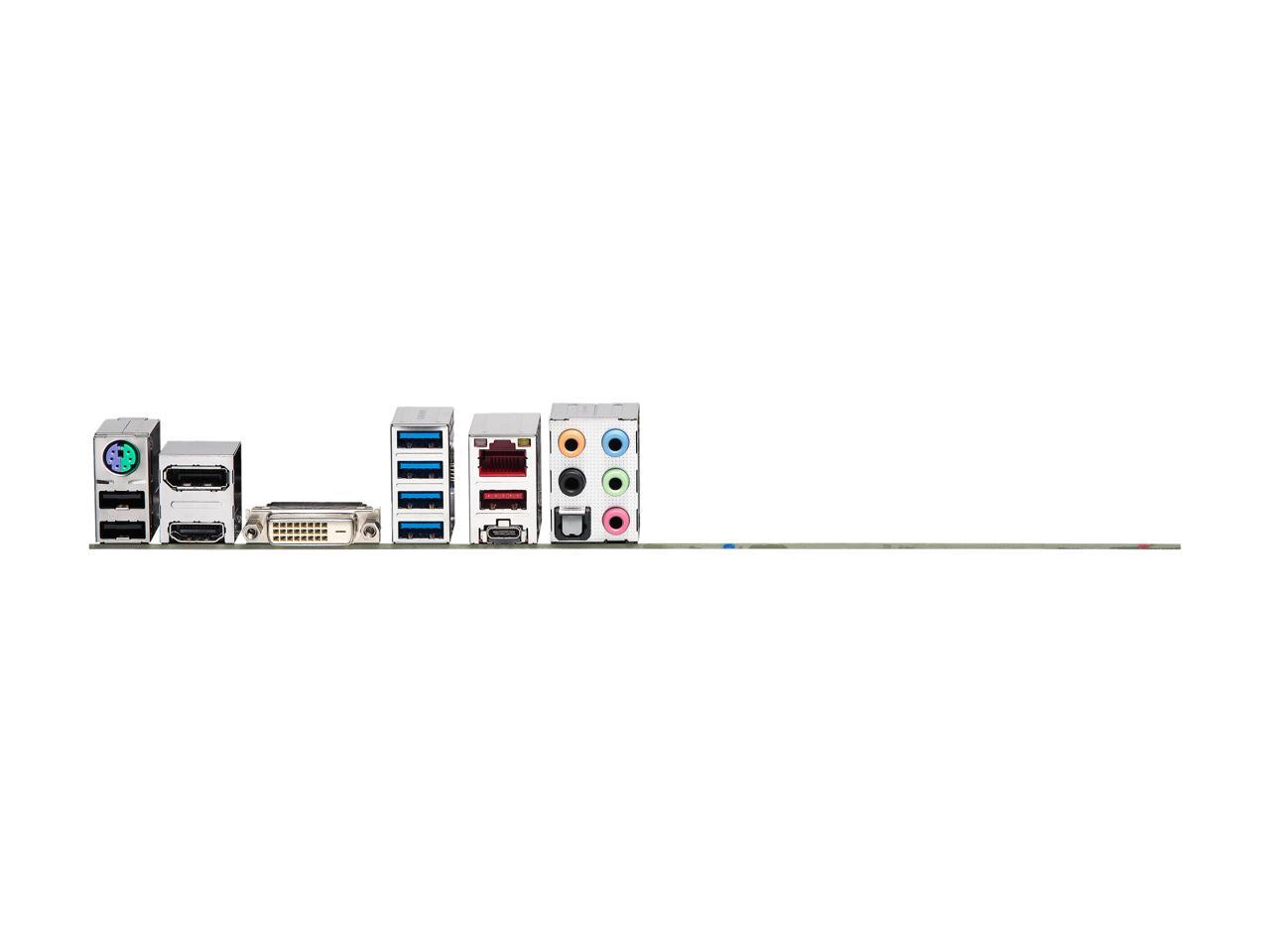

| Video Ports | 1 x DVI-D |
|---|---|
| HDMI | 1 x HDMI 1.4b |
| RJ45 | 1 x RJ45 |
| DisplayPort | 1 x DisplayPort 1.2 |
| USB 3.1 | 2 x USB 3.1 ports (1 Type A, 1 Type C) |
| USB 3.0 | 4 x USB 3.0 |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Onboard USB | 2 x USB 3.0 + 4 x USB 2.0 |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Features | Single socket H4 (LGA 1151) supports Intel 7th/6th Gen. Core i7/i5/i3 series Intel Z270 Express Chipset Up to 64GB Non-ECC UDIMM, DDR4-2800MHz (OC), in 4 DIMM slots 1 x GbE LAN port via Intel i219V 6 x SATA3 (6Gbps); RAID 0, 1, 5, 10 2 x PCI-E 3.0 x16 (16/NA or 8/8), 1 x PCI-E 3.0 x4, 3 x PCI-E 3.0 x1 2 x PCIe 3.0 x4 M.2 6 x USB 3.0 (4 rear, 2 via header) 6 x USB 2.0 (2 rear, 4 via headers) 2 x USB 3.1 (1 Typa A, 1 Type C) 1 x DP (Display Port), 1 x HDMI, 1 x DVI-D HD Audio 7.1 channel connector by Realtek ALC1150, support SPDIF-Out |
|---|
| Date First Available | April 01, 2021 |
|---|
